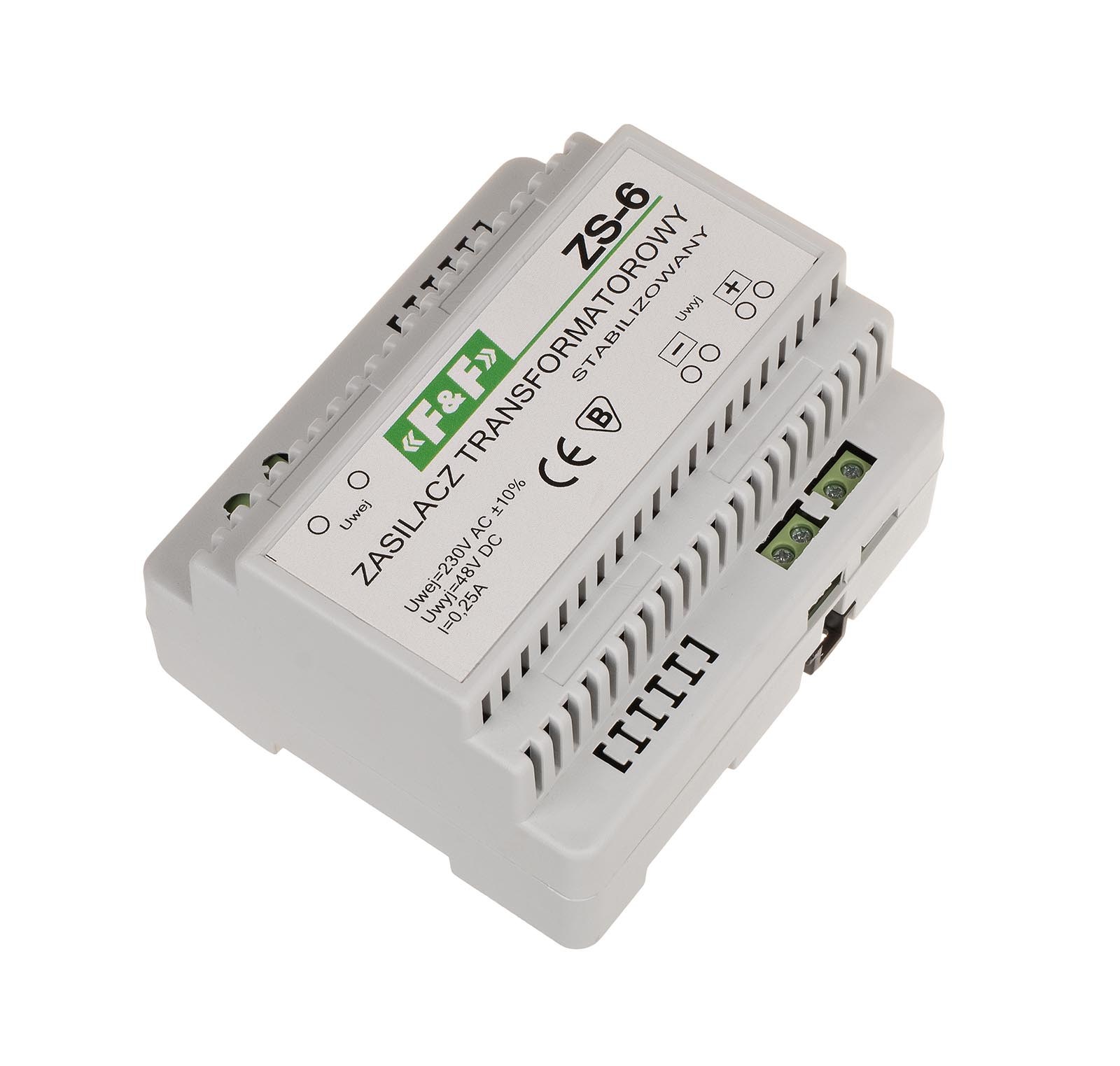

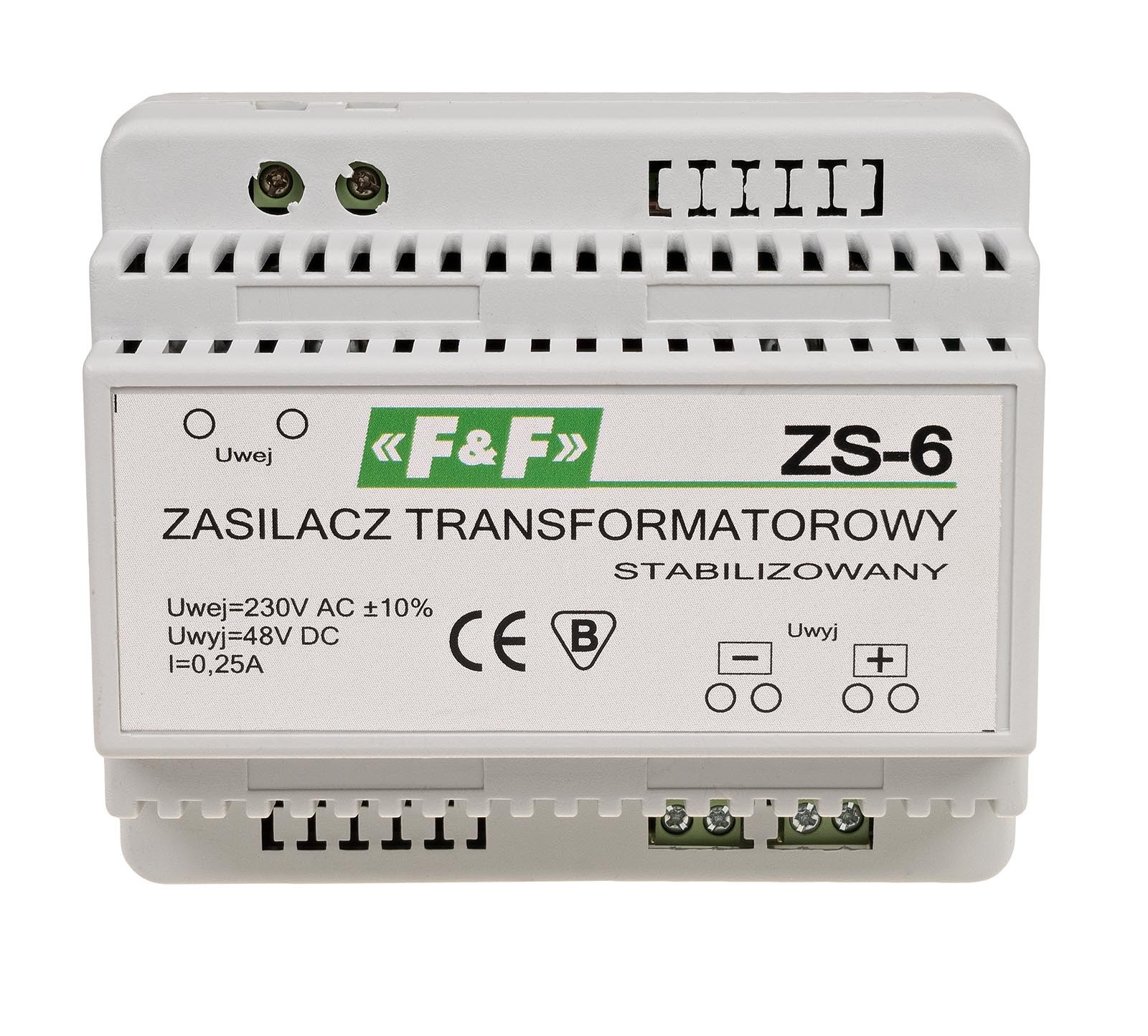

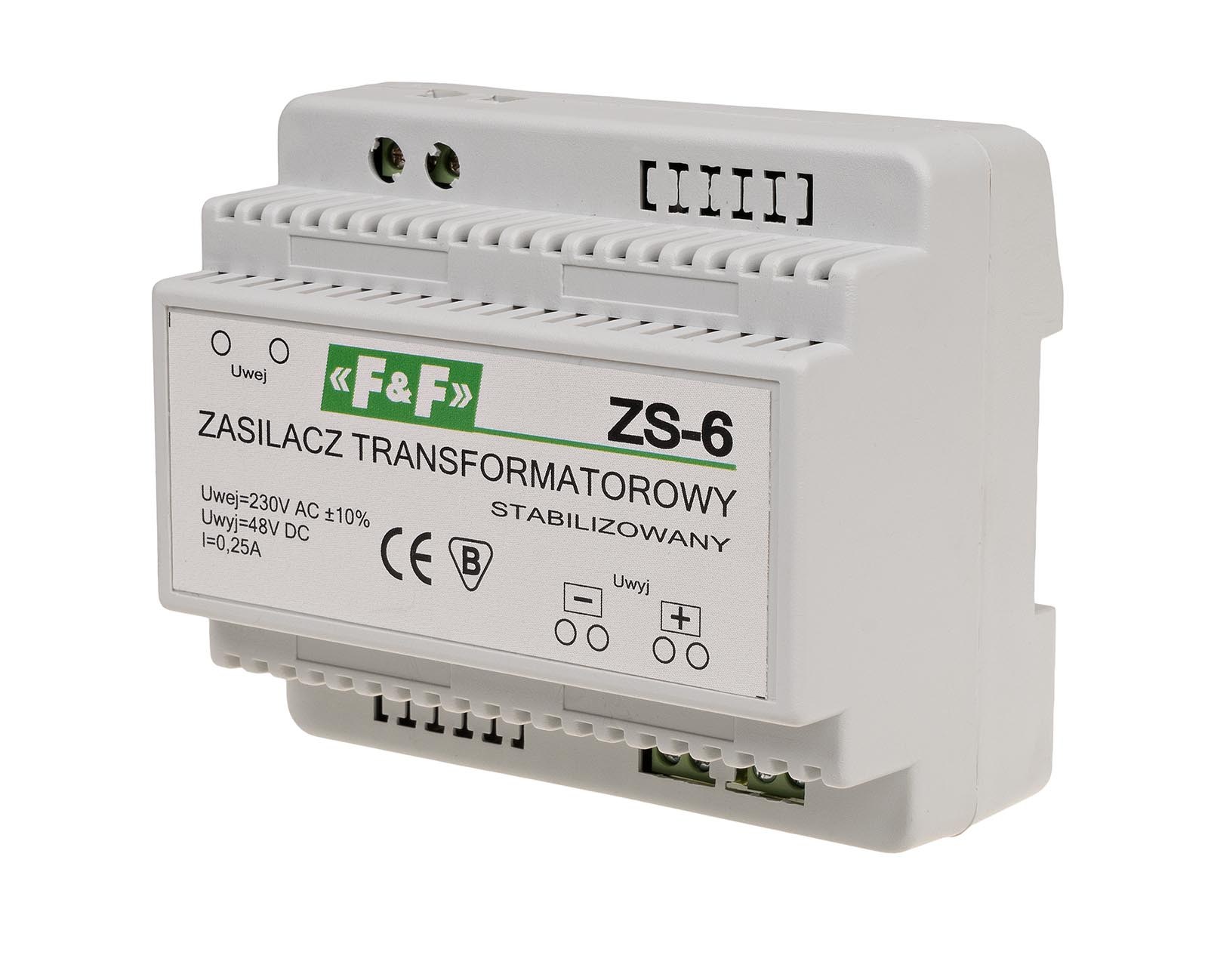

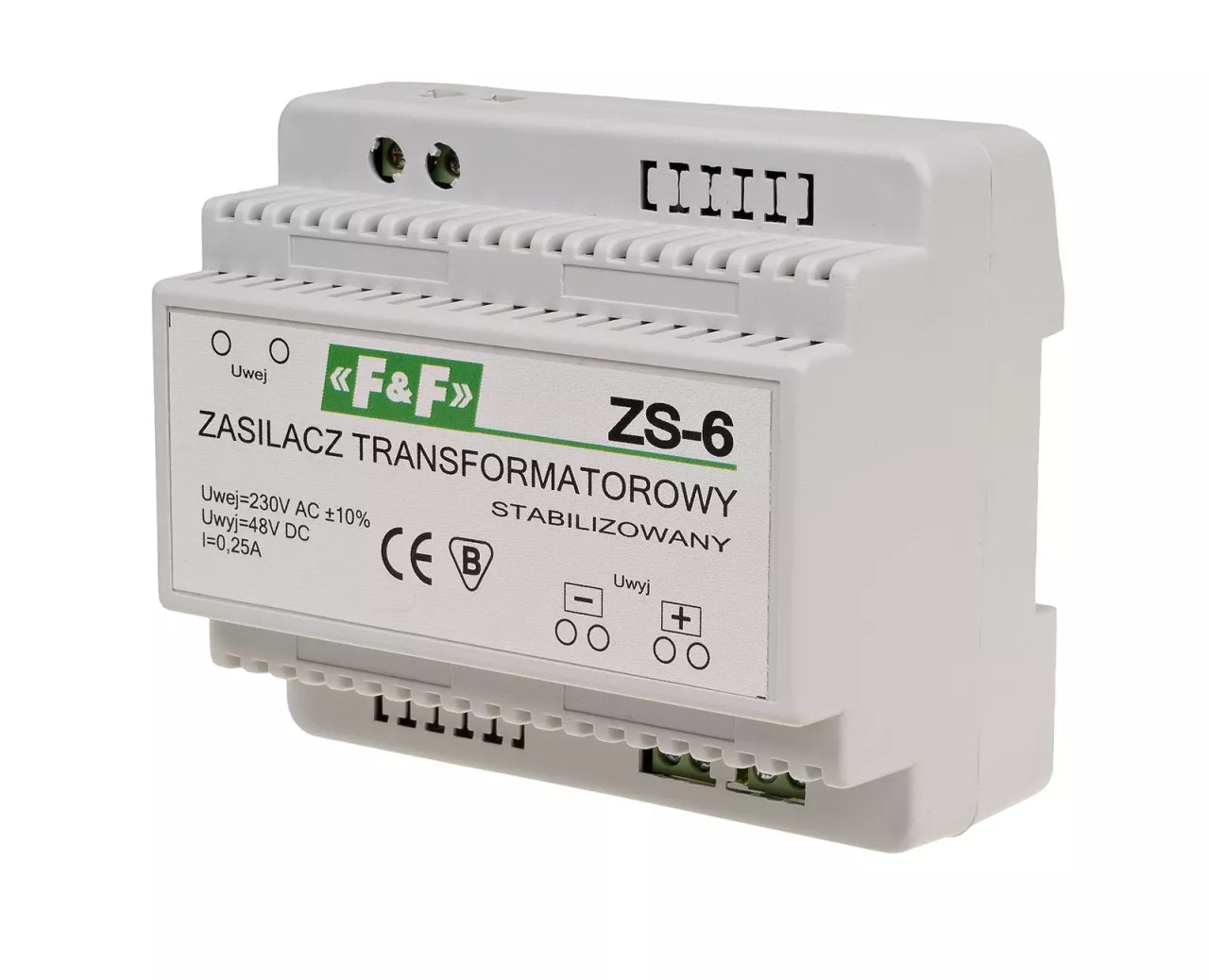

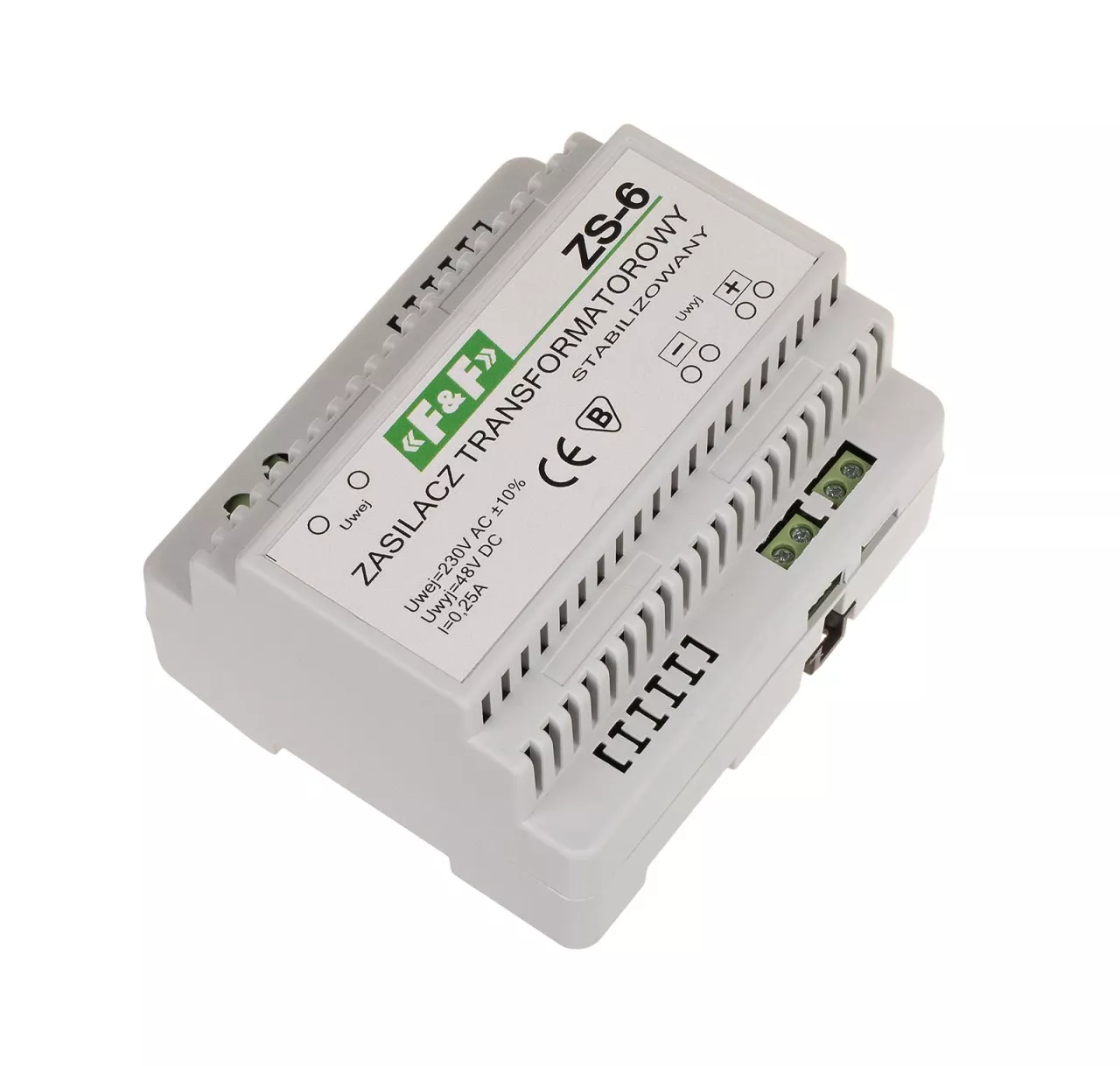

Zasilacz stabilizowany 48V DC 0,25A ZS-6
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | ZI |
| Symbol | ZS-6 |
| GTIN(EAN) | 5908312596035 |
| Price unit | piece |
| Catalog price | 223,86 zł (182,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Typ zasilacz transformatorowy Napięcie zasilania 230 V AC Maksymalny prąd obciążenia 0,25 A Napięcie wyjściowe OUT 48 V DC Moc wyjściowa 12 W Tętnienie maks. 3 mV RMS Masa 550 g Przyłącze zaciski śrubowe 2,5 mm² Moment dokręcający 0,4 Nm Temperatura pracy -10÷40°C Wymiary 6 modułów (105 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 770 g |
| ETIM class: | DC-power supply |
| Voltage type (supply voltage): | AC |
| 1st secondary output voltage: | 48 - 48 V |
| Max. output current 1: | 0.25 A |
| Secondary voltage adjustable: | no |
| Rated supply voltage AC 50 Hz: | 230 - 230 V |
| Rated supply voltage AC 60 Hz: | 0 - 0 V |
| Output voltage stabilized: | yes |
| Power output: | 12 W |
| Stabilized: | yes |
| Type of electric connection: | Screw-/spring clamp connection |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Modular version: | yes |
| Width in number of modular spacings: | 6 |
| Built-in height: | 65 mm |
| Direct mounting possible: | no |
| Width: | 105 mm |
| Height: | 89 mm |
| Depth: | 65 mm |
| Degree of protection (IP): | IP20 |
