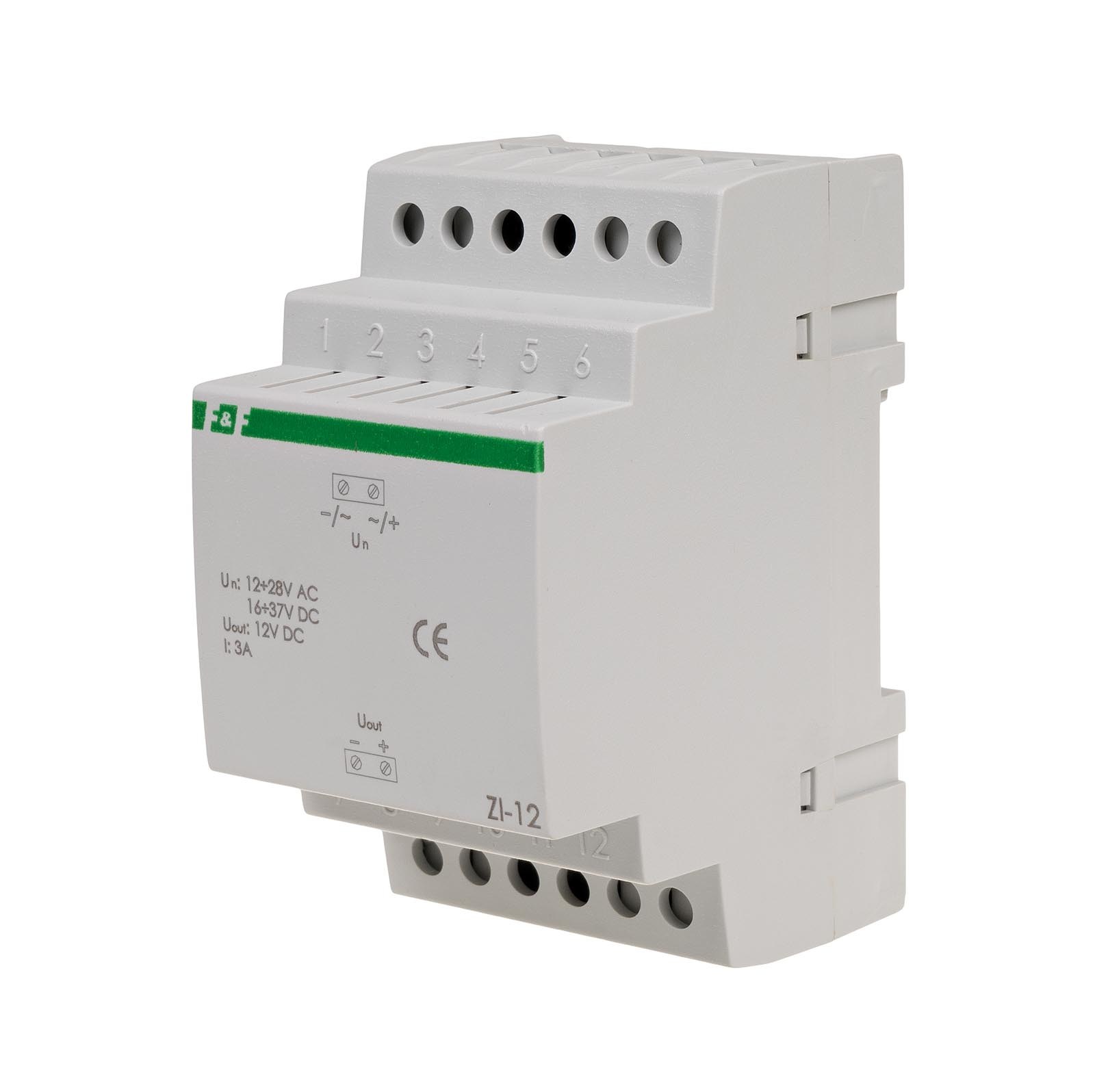

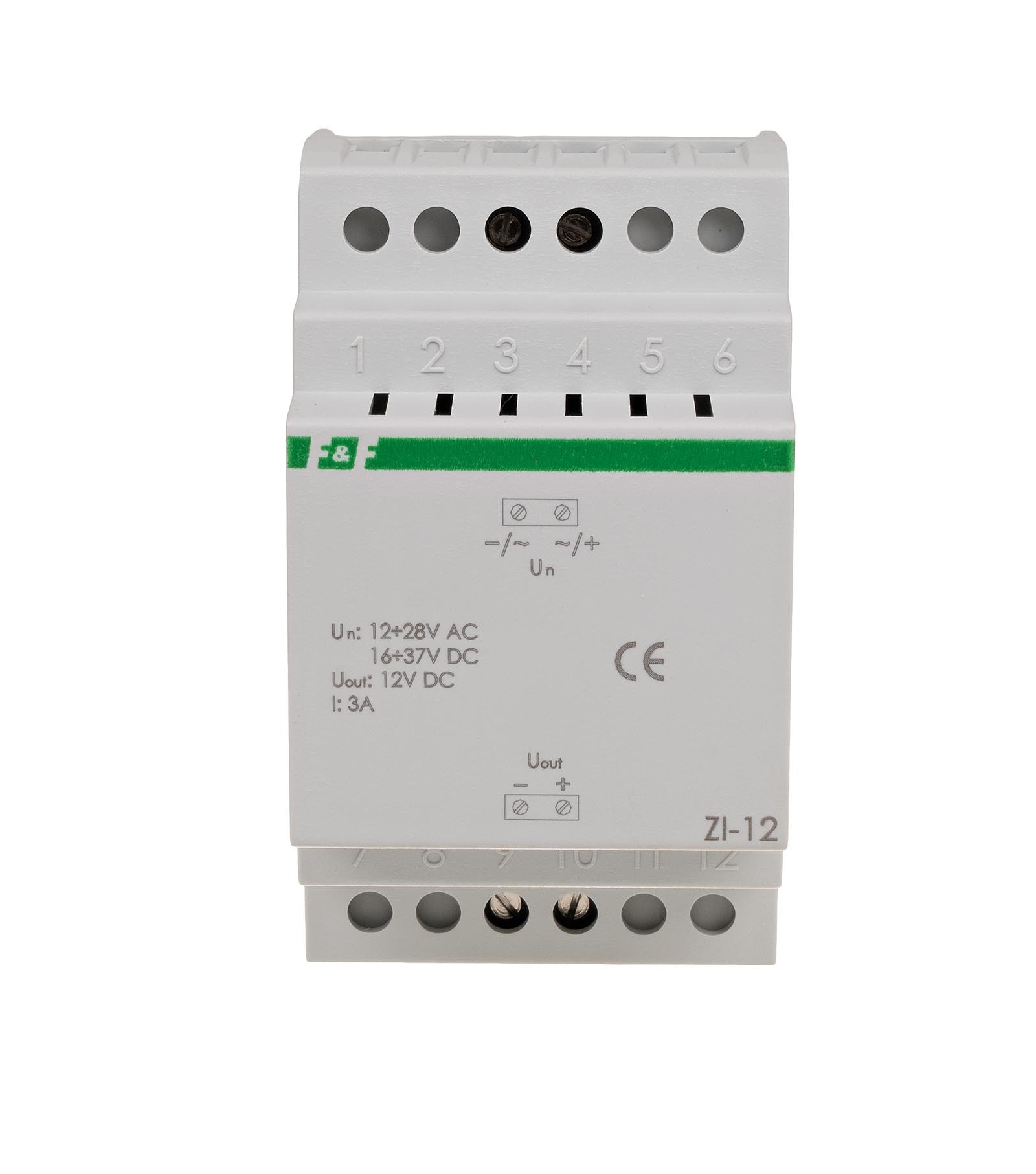

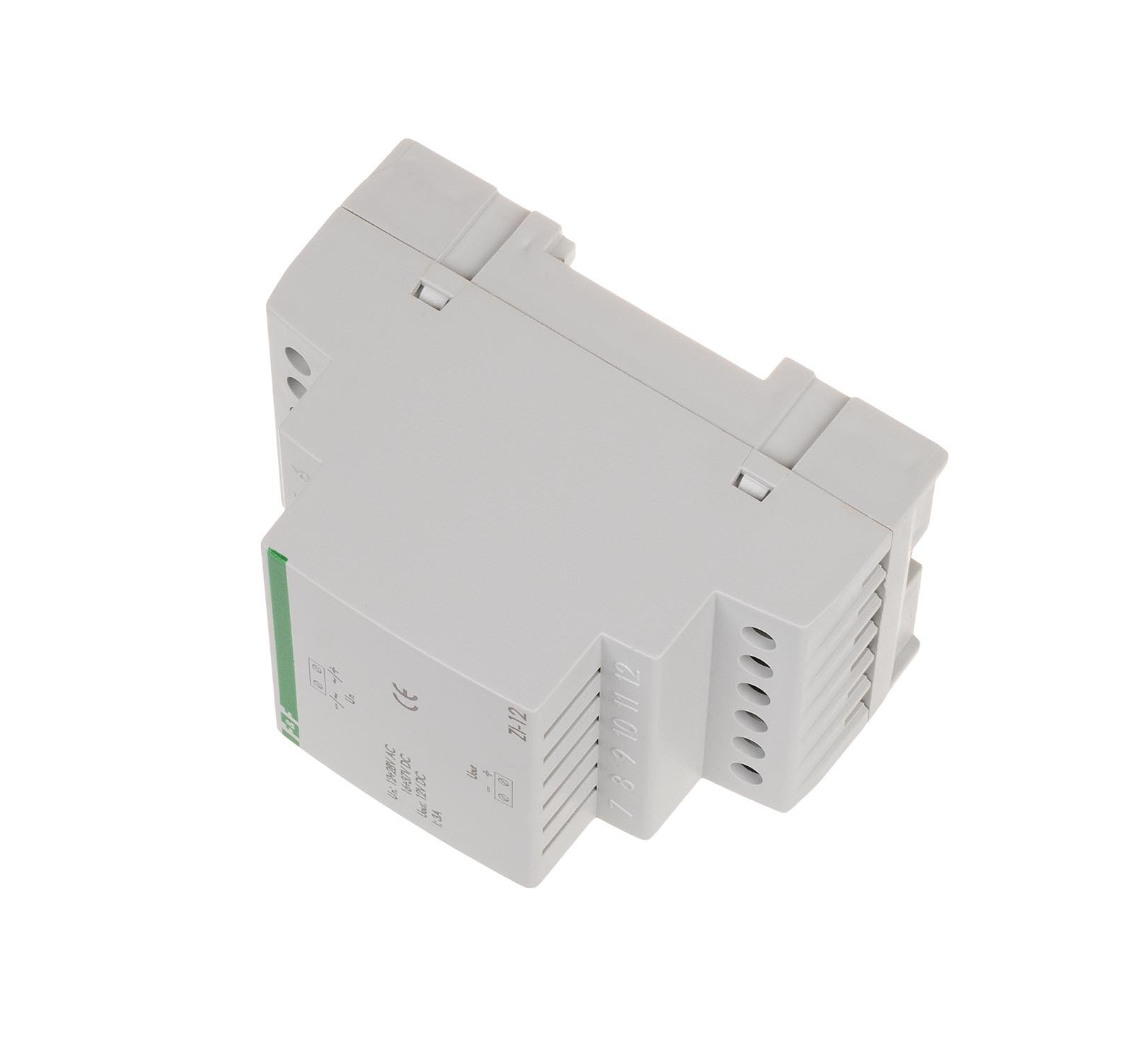

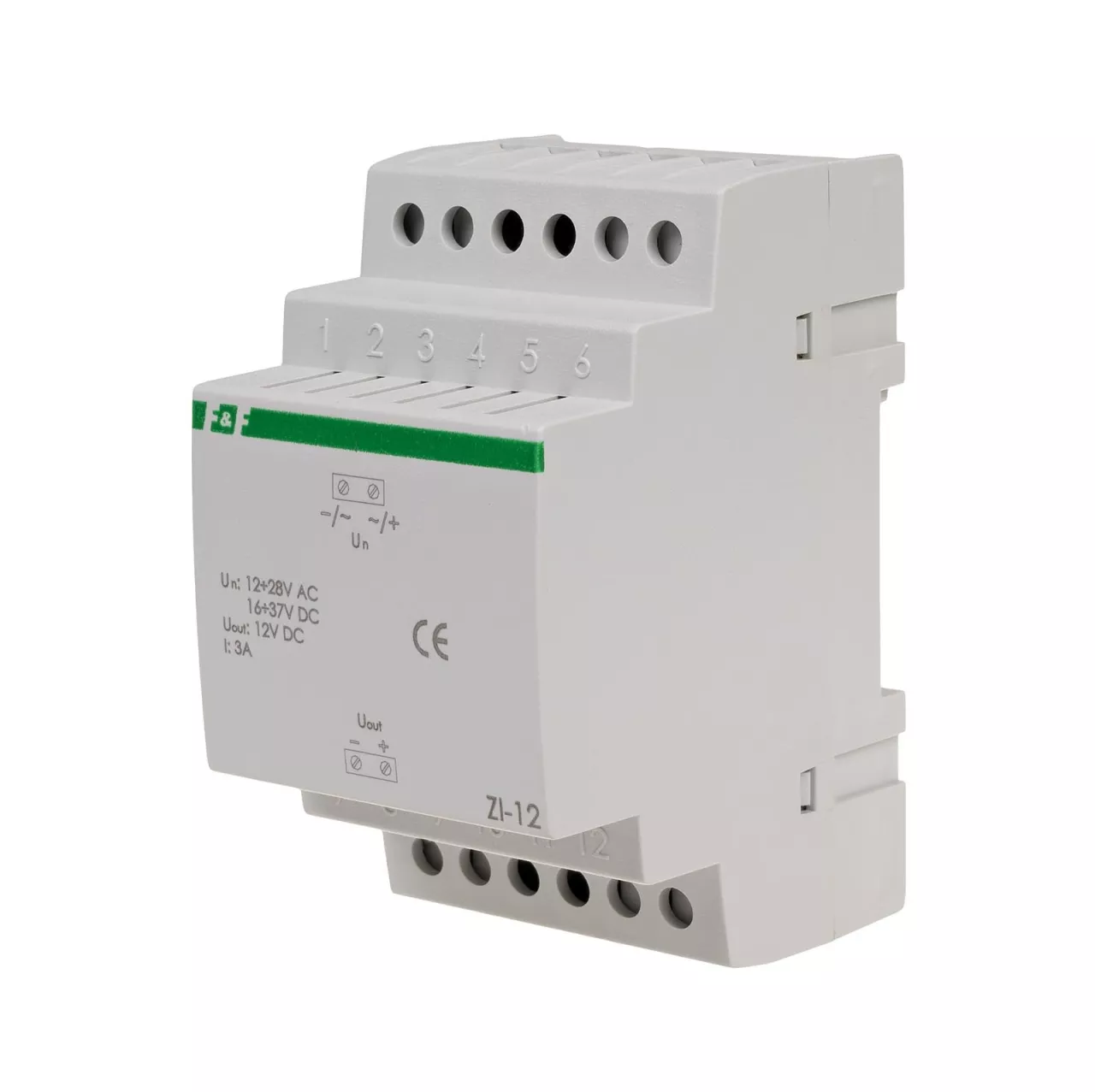

Stabilizator impulsowy 12V DC ZI-12 12÷28V AC / 16÷37V DC 3A 3A
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | ZI |
| Symbol | ZI-12 |
| GTIN(EAN) | 5908312595892 |
| Price unit | piece |
| Catalog price | 143,91 zł (117,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Typ stabilizator impulsowy niskiego napięcia Napięcie zasilania 12÷28 V AC / 16÷37 V DC Maksymalny prąd obciążenia 3 A Napięcie wyjściowe OUT 12 V DC Ograniczenie prądowe 110% napięcia wyjściowego Minimalne obciążenie 0% Częstotliwość kluczowania 52 kHz Masa 150 g Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Temperatura pracy -10÷40°C Wymiary 3 moduły (52,5 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 250 g |
| ETIM class: | Voltage stabilizer |
| Primary voltage: | 28 V |
| Secondary voltage: | 12 V |
| Rated power: | 36 VA |
| Rated secondary current: | 3 A |
| Ambient temperature during operating: | -10 - 40 °C |
| Degree of protection (IP): | IP20 |
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
F&F Filipowski S.K.
Konstantynowska 79/81, 95-200 Pabianice, Polska
mail: biuro@fif.com.pl
|
| Updated: | 2025-01-27 11:28:05 |
| Files to download: |
|
| External links: |
