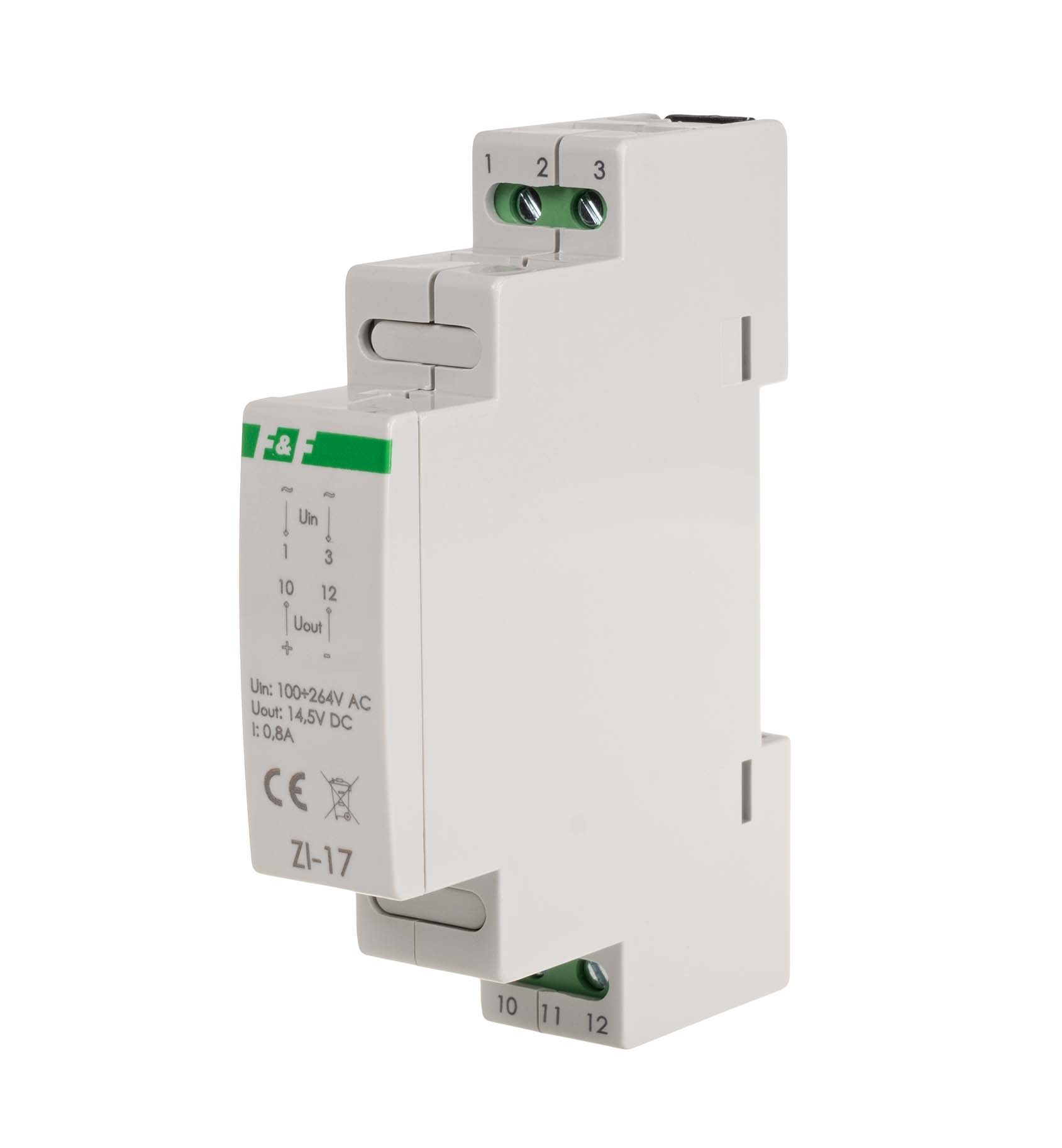

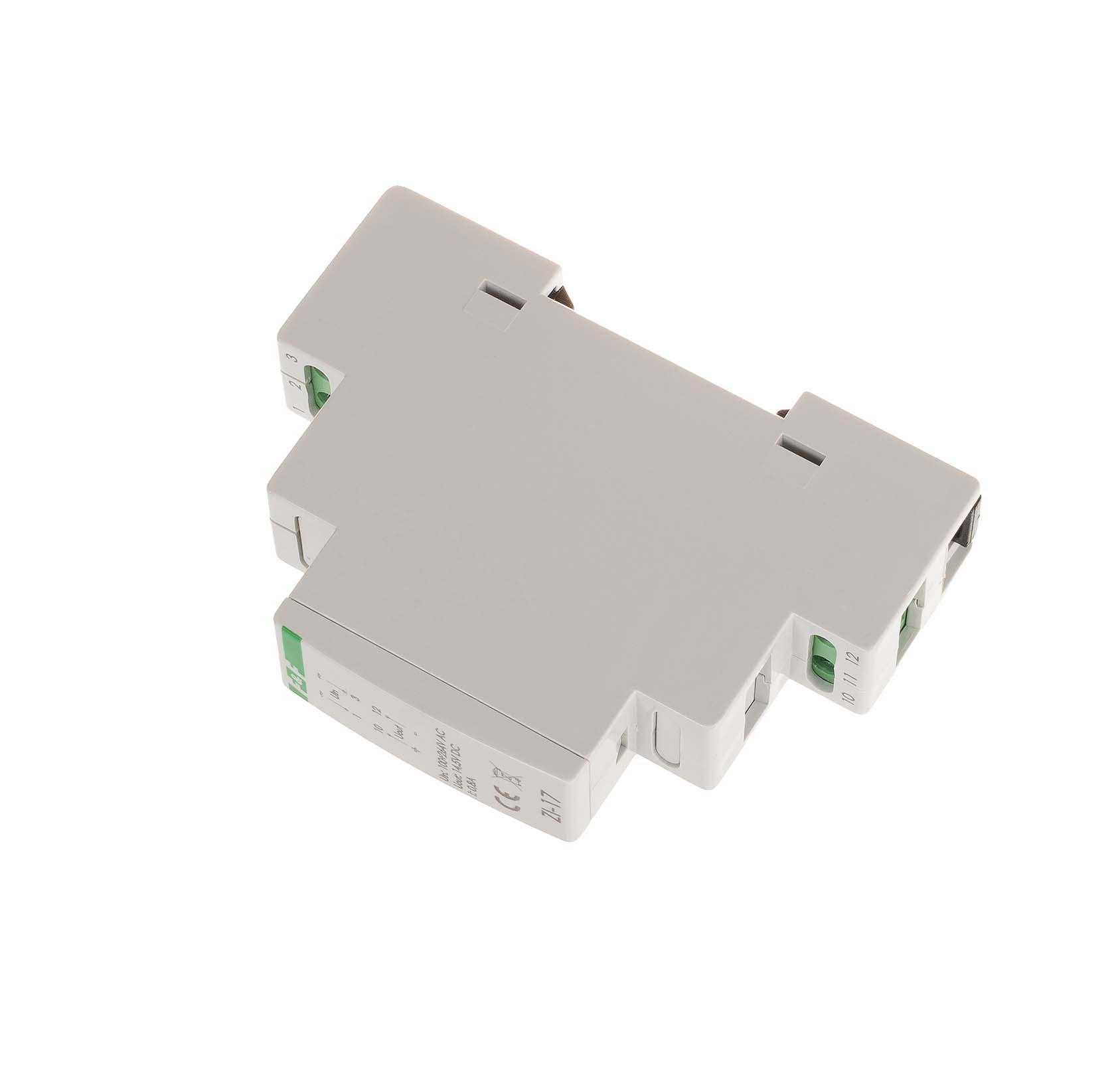

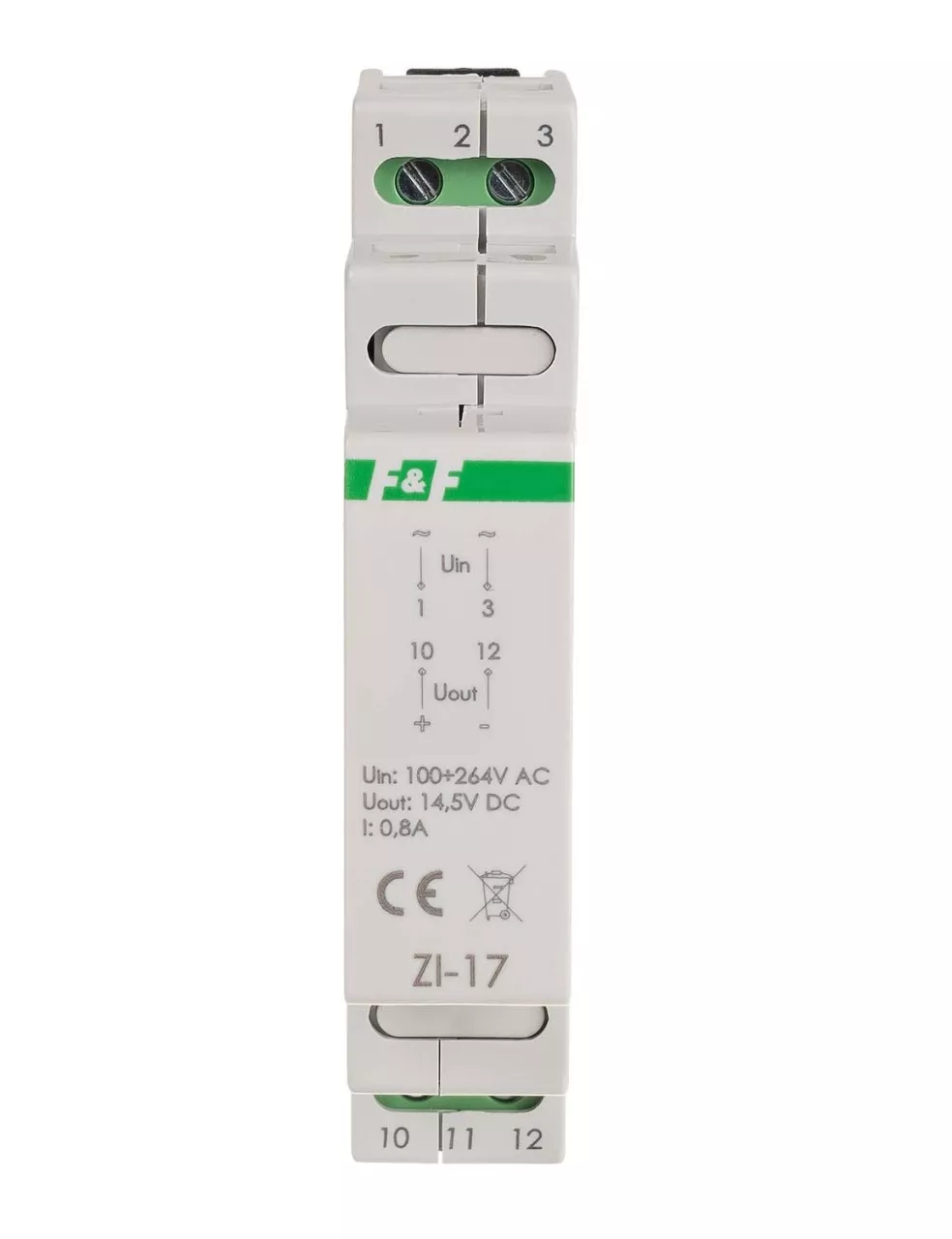

Zasilacz impulsowy 12W, 14,5V DC, nap. zas. 100÷230V, do montażu na szynie DIN
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | ZI |
| Symbol | ZI-17 |
| GTIN(EAN) | 5902431671031 |
| Price unit | piece |
| Catalog price | 143,91 zł (117,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Typ zasilacz impulsowy Napięcie zasilania 100÷264 V AC Maksymalny prąd obciążenia 0,8 A Napięcie wyjściowe OUT 14,5 V DC Moc wyjściowa 12 W Ograniczenie prądowe 110% napięcia wyjściowego Minimalne obciążenie 0% Częstotliwość kluczowania 70 KHz Masa 80 g Przyłącze zaciski śrubowe 2,5 mm² Moment dokręcający 0,4 Nm Temperatura pracy -10÷40°C Wymiary 1 moduł (18 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 266 g |
| ETIM class: | DC-power supply |
| Voltage type (supply voltage): | DC |
| 1st secondary output voltage: | 14.5 - 14.5 V |
| Max. output current 1: | 0.8 A |
| Secondary voltage adjustable: | yes |
| Nominal value output voltage 1: | 12 V |
| Rated supply voltage AC 50 Hz: | 100 - 264 V |
| Output voltage stabilized: | yes |
| Power output: | 12 W |
| Stabilized: | yes |
| Type of electric connection: | Screw connection |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Modular version: | yes |
| Width in number of modular spacings: | 1 |
| Direct mounting possible: | no |
| Width: | 18 mm |
| Height: | 90 mm |
| Depth: | 65 mm |
| Degree of protection (IP): | IP20 |
