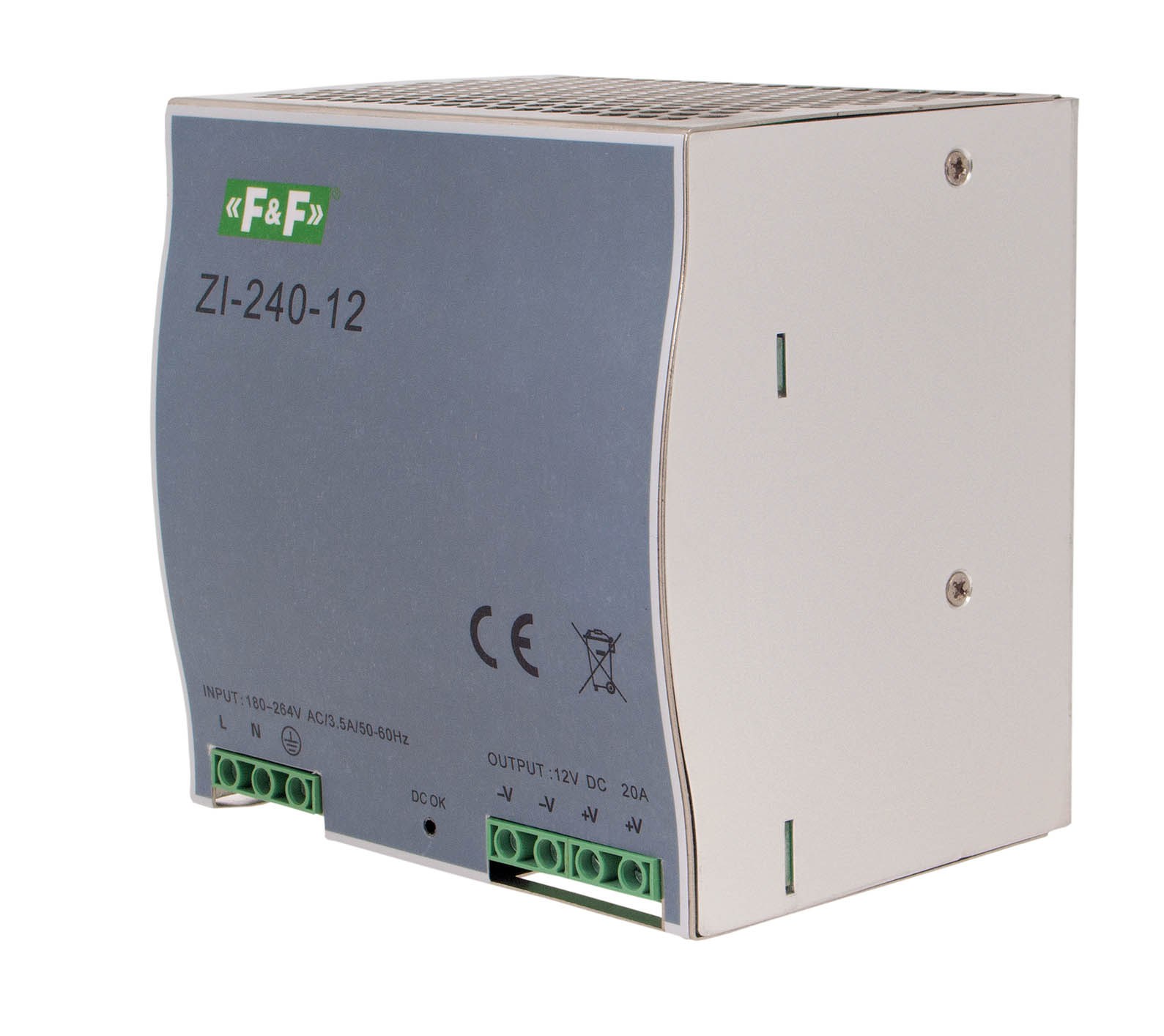

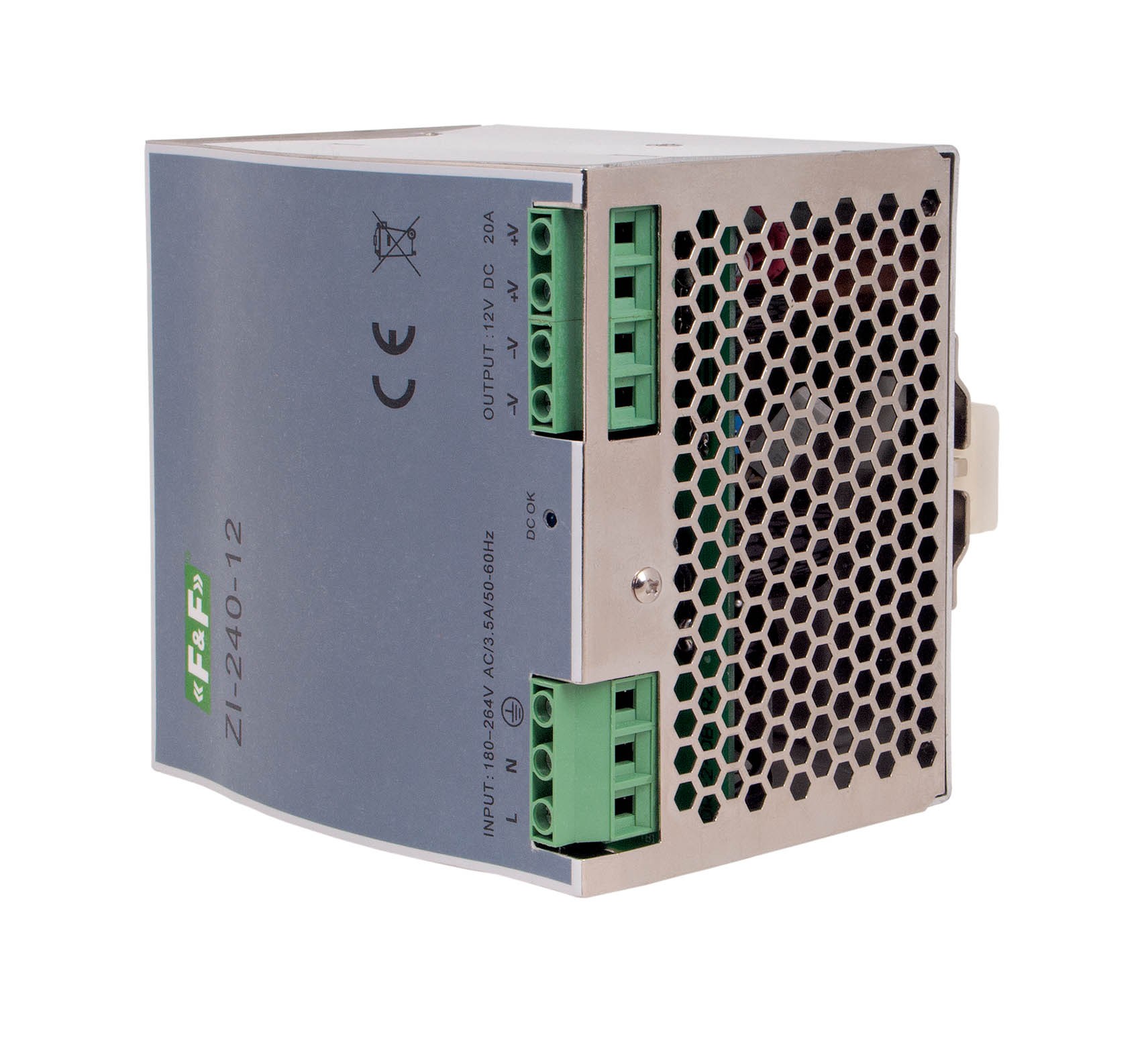

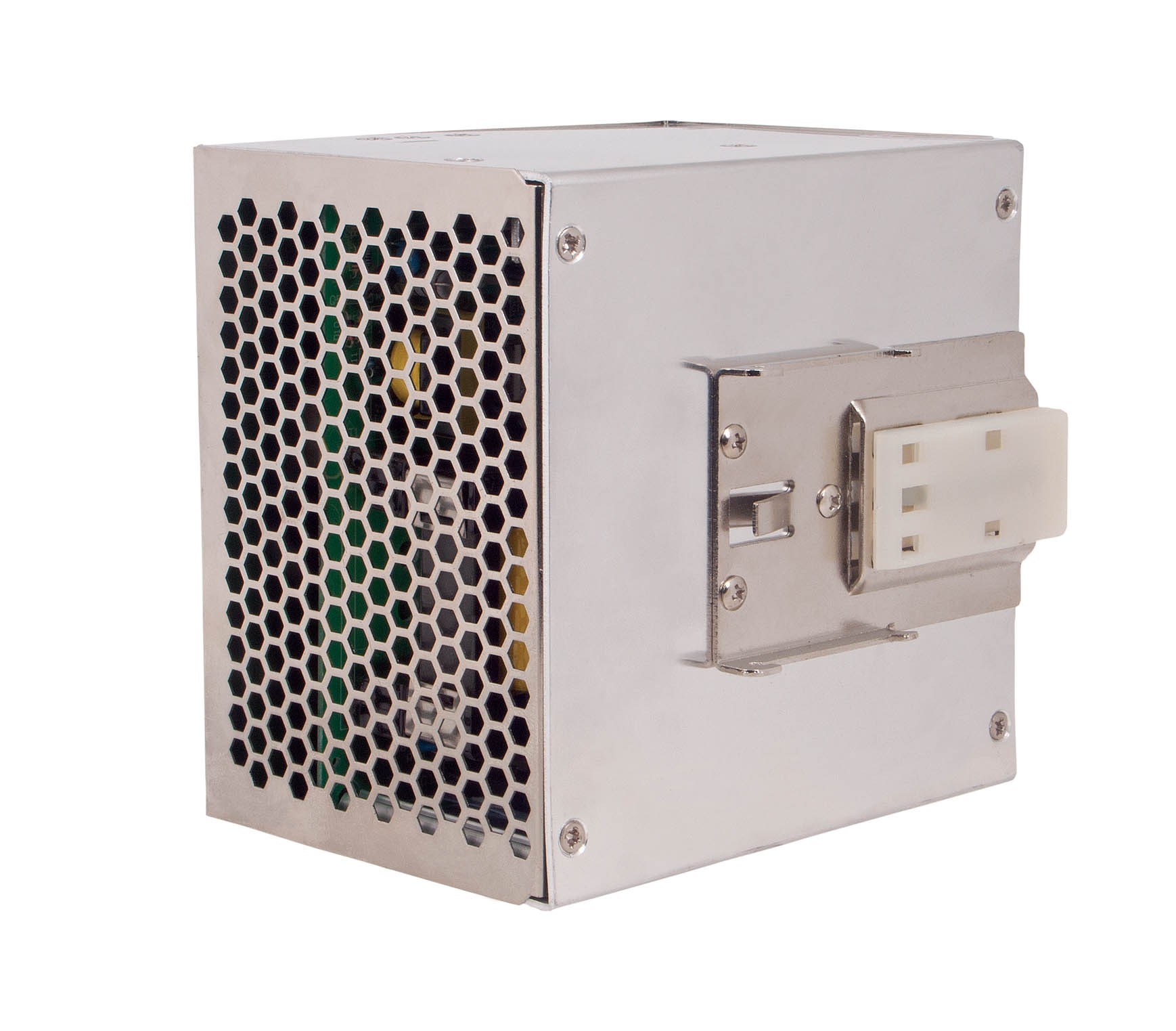

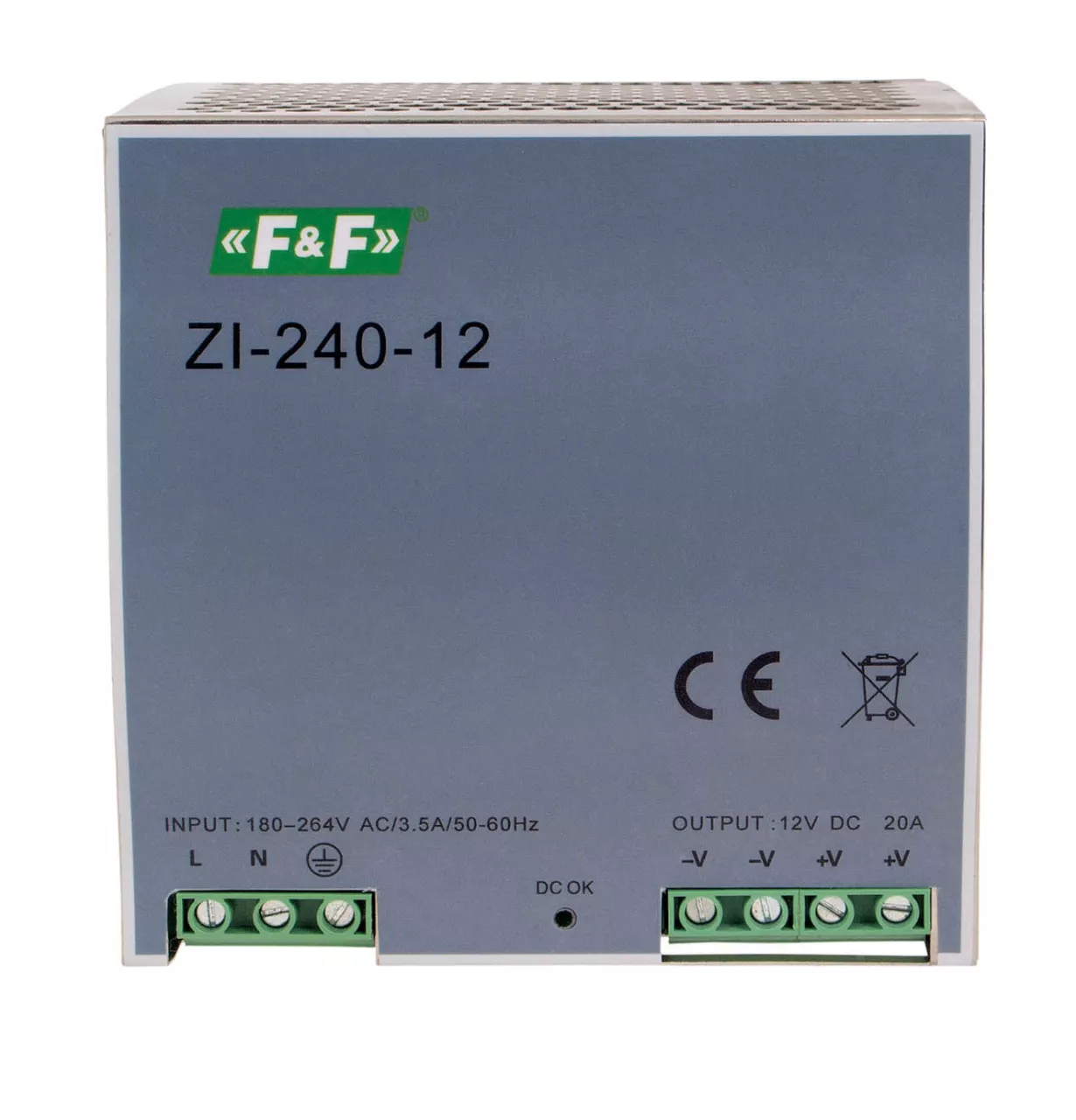

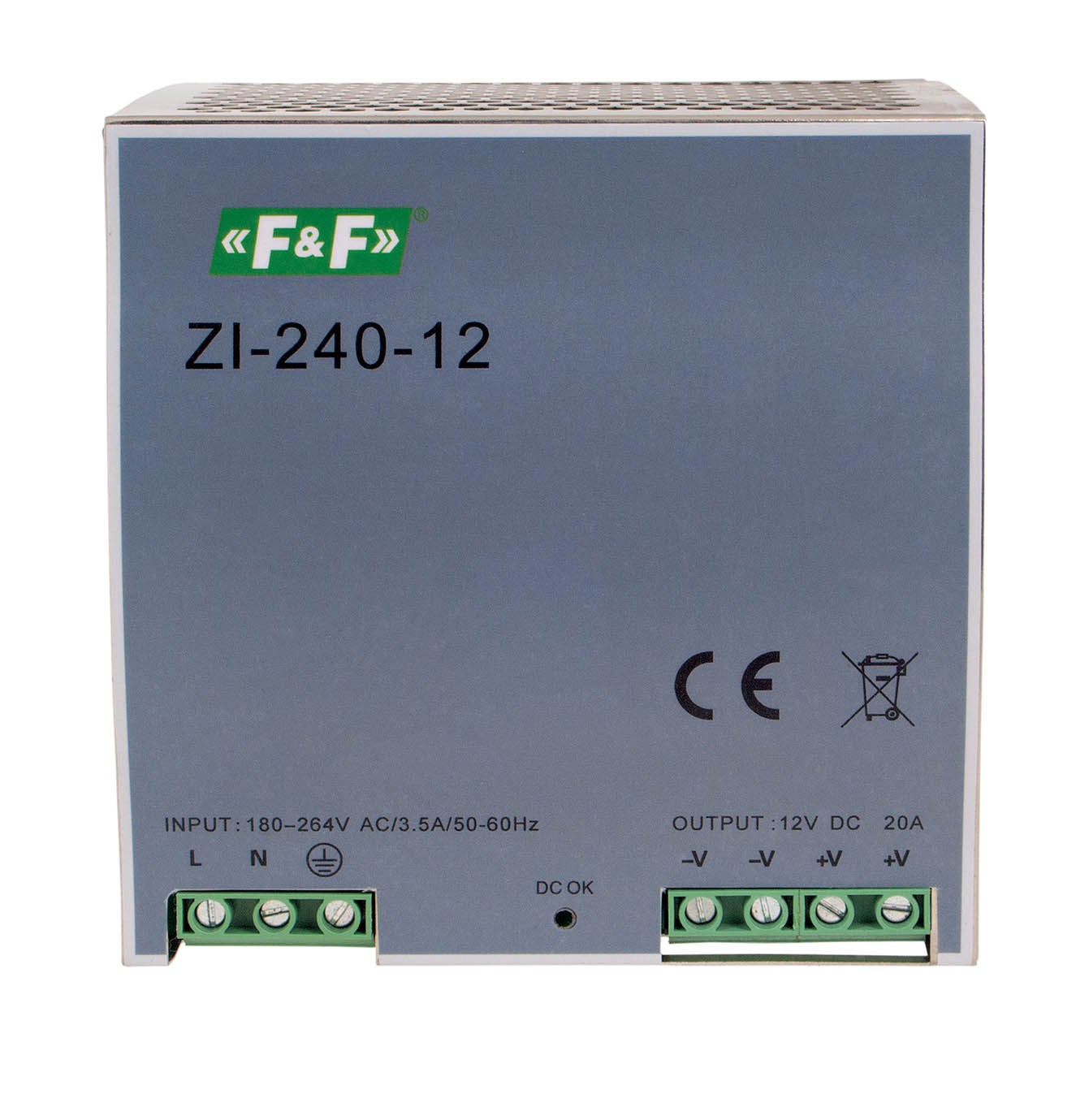

Zasilacz impulsowy przemysłowy nap. wej. 90÷264V AC/120÷370V DC, P=240W nap. Wyj. 12V DC
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | ZI |
| Symbol | ZI-240-12V |
| GTIN(EAN) | 5908312599494 |
| Price unit | piece |
| Catalog price | 639,60 zł (520,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Typ zasilacz impulsowy Napięcie zasilania 180÷264 V AC Częstotliwość 50÷60 Hz Maksymalny prąd obciążenia 20 A Napięcie wyjściowe OUT 12 V DC Moc wyjściowa 240 W Minimalne obciążenie 0% Częstotliwość kluczowania 100 kHz Przeciążenie 150%/3 min Napięcie przebicia WE-WY 3 kV Masa 960 g Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Temperatura pracy -10÷70°C Wymiary 130 mm x 127 mm x 115 mm Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 320 g |
| ETIM class: | DC-power supply |
| Voltage type (supply voltage): | AC |
| Max. output current 1: | 20 A |
| Secondary voltage adjustable: | yes |
| Nominal value output voltage 1: | 12 V |
| Rated supply voltage AC 50 Hz: | 180 - 264 V |
| Output voltage stabilized: | yes |
| Power consumption: | 2 VA |
| Power output: | 240 W |
| Stabilized: | yes |
| Type of electric connection: | Screw connection |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Modular version: | yes |
| Width in number of modular spacings: | 4 |
| Built-in width: | 67 mm |
| Built-in height: | 130 mm |
| Direct mounting possible: | no |
| Width: | 67 mm |
| Height: | 130 mm |
| Depth: | 115 mm |
| Degree of protection (IP): | IP20 |
