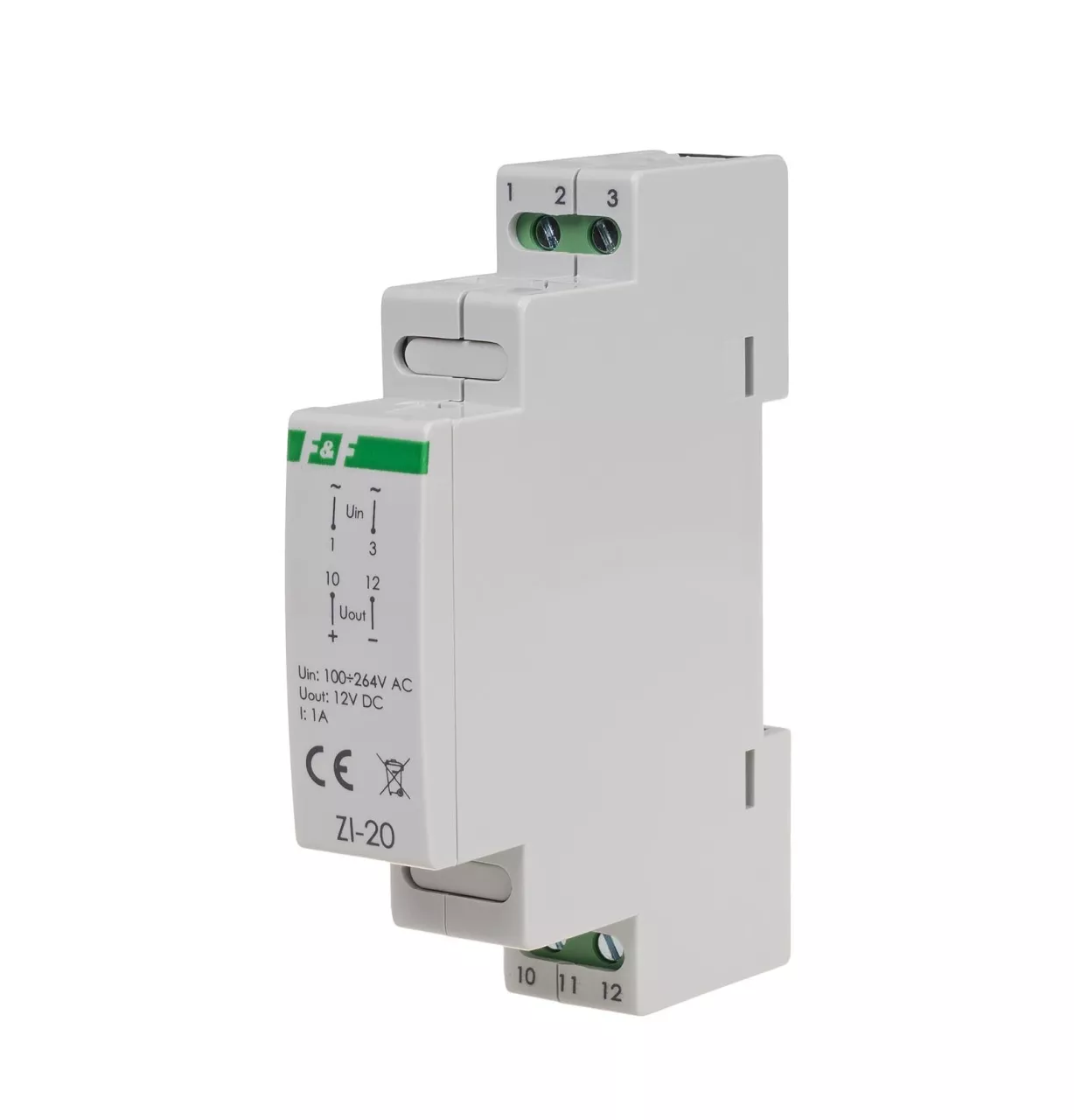

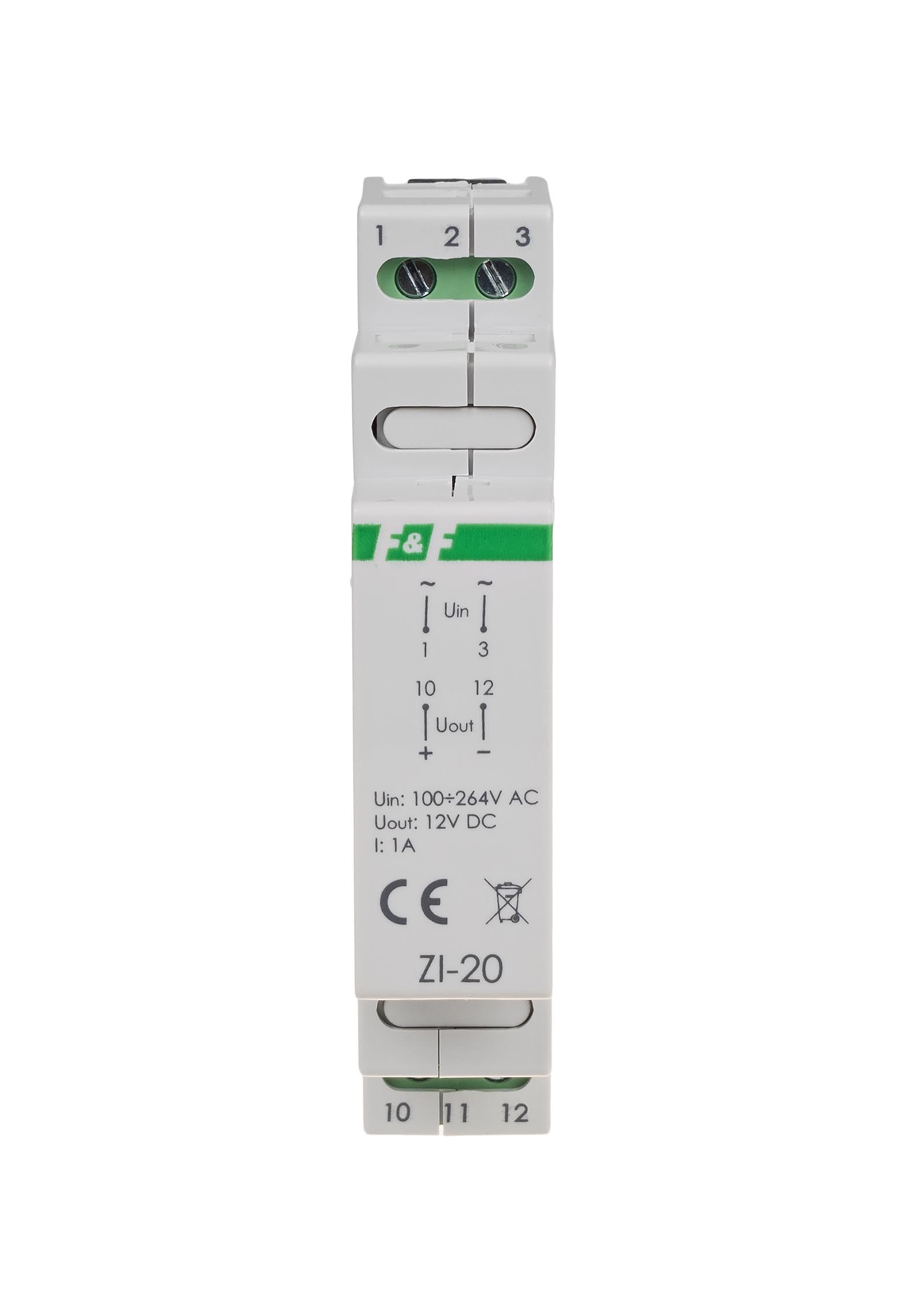

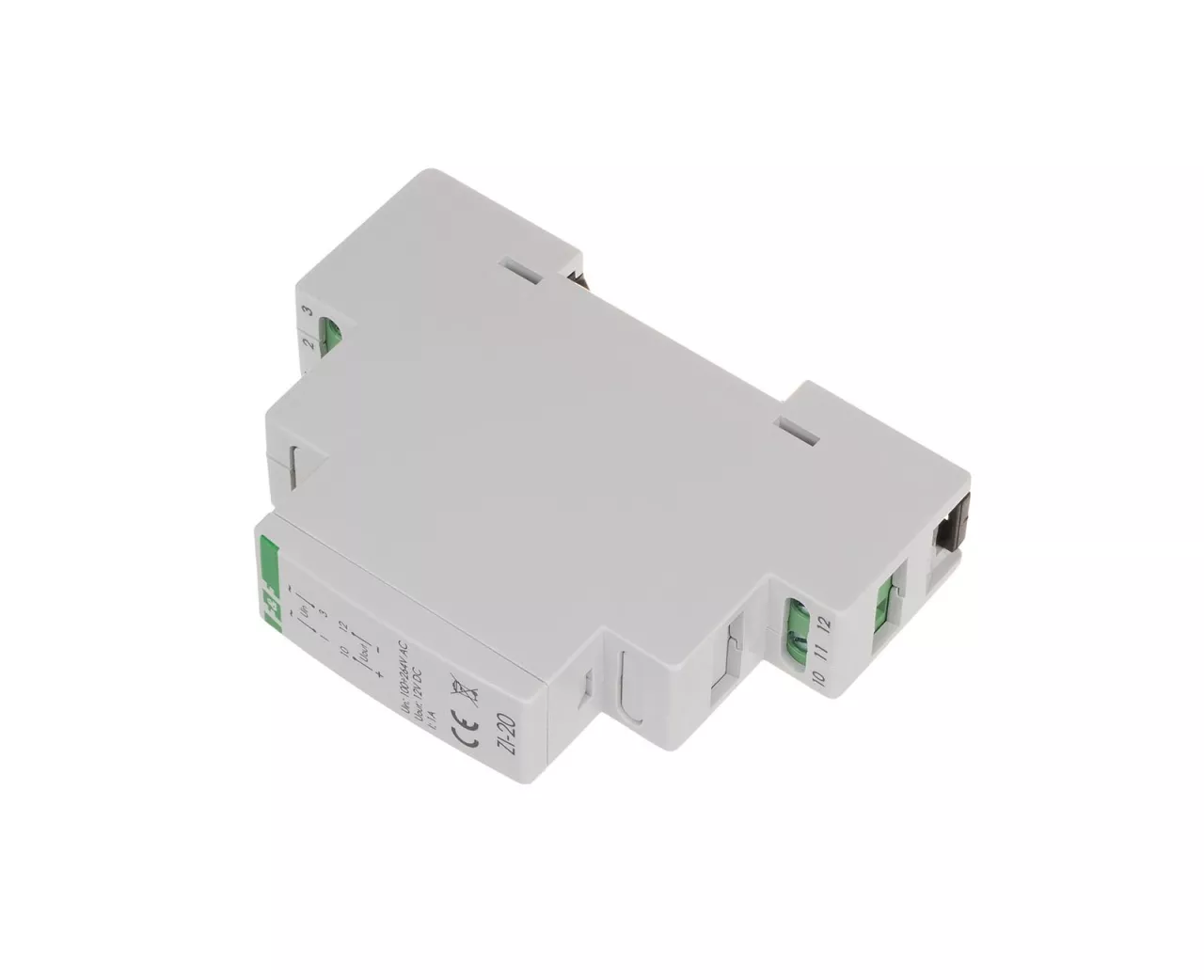

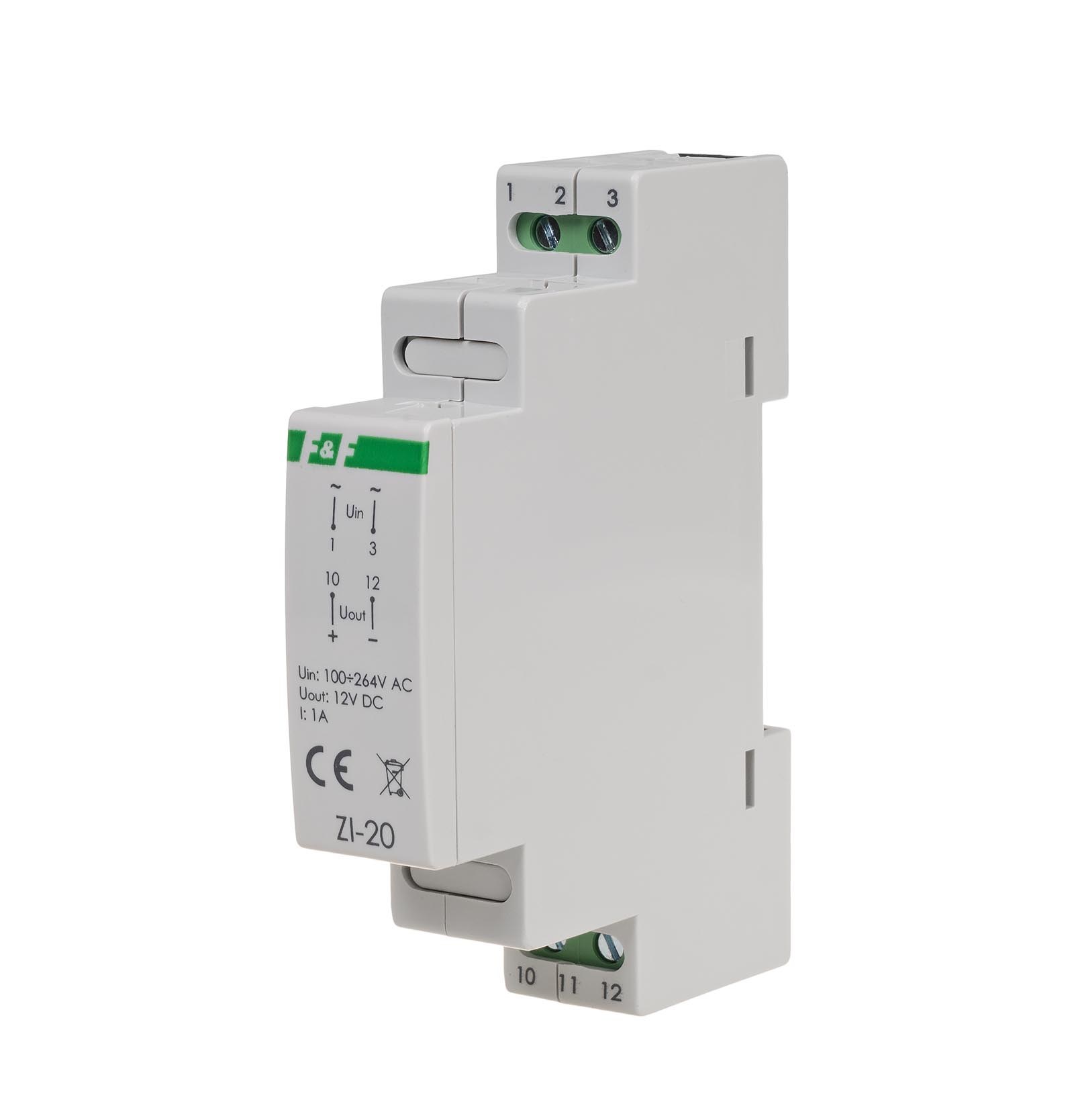

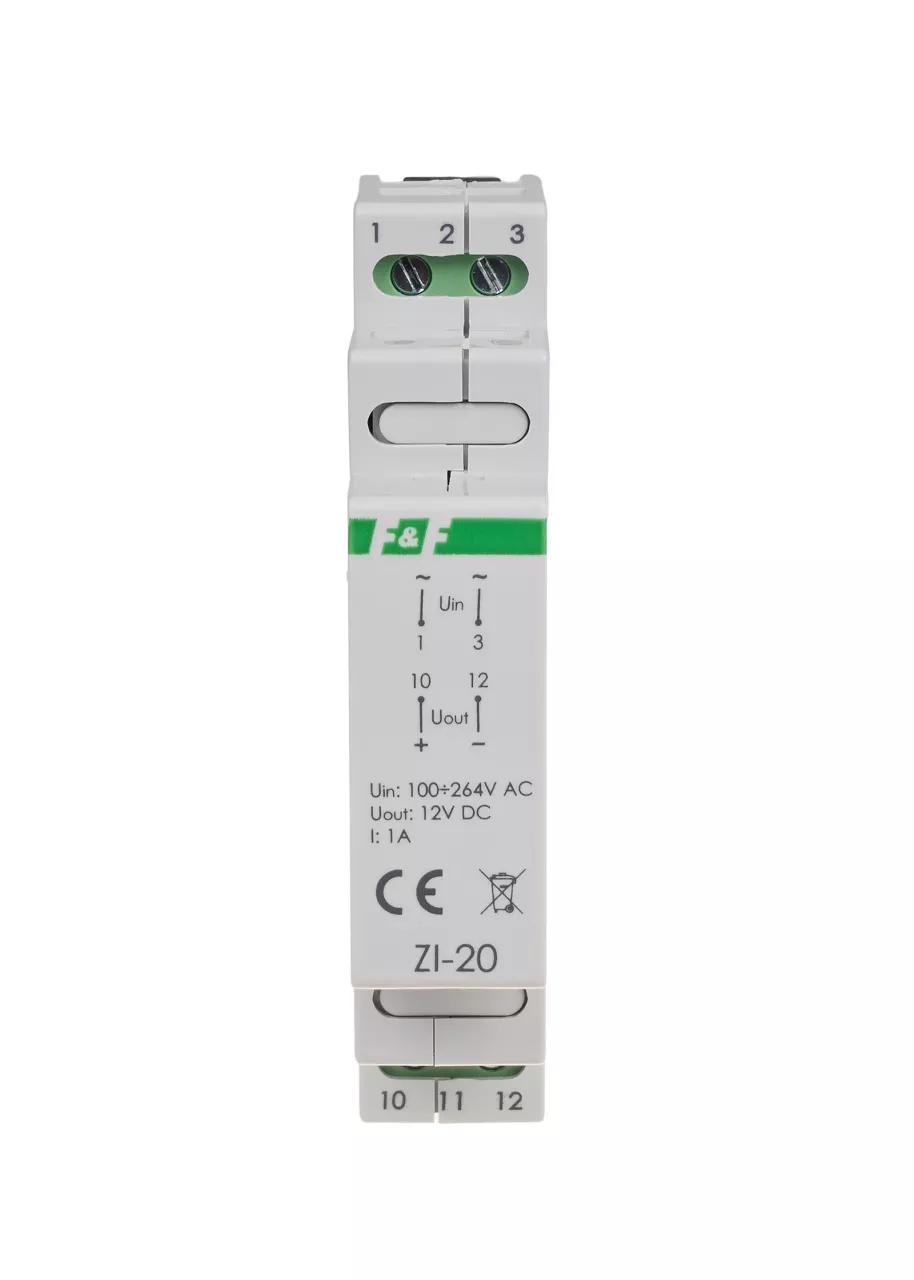

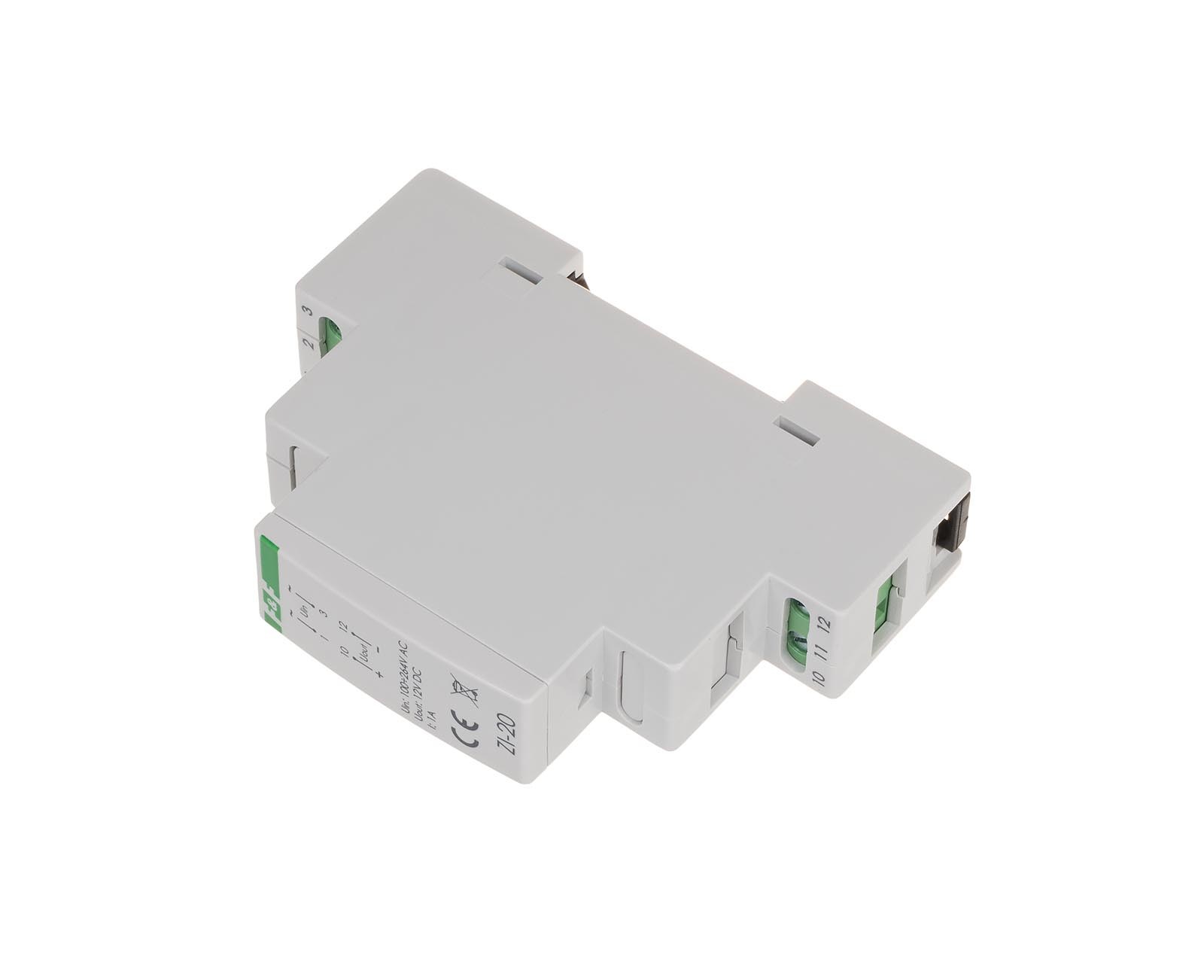

Zasilacz impulsowy ZI-20 12V DC 1,0A
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | ZI |
| Symbol | ZI-20 |
| GTIN(EAN) | 5908312596417 |
| Price unit | piece |
| Catalog price | 173,43 zł (141,00 zł + 23% VAT) |
| Sale price | from 73,21 zł / szt. (59,52 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Typ zasilacz impulsowy Napięcie zasilania 100÷264 V AC Maksymalny prąd obciążenia 1 A Napięcie wyjściowe OUT 12 V DC Moc wyjściowa 12 W Ograniczenie prądowe 110% napięcia wyjściowego Minimalne obciążenie 0% Częstotliwość kluczowania 70 KHz Masa 80 g Przyłącze zaciski śrubowe 2,5 mm² Moment dokręcający 0,4 Nm Temperatura pracy -10÷40°C Wymiary 1 moduł (18 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| ETIM class: | DC-power supply |
| Voltage type (supply voltage): | AC |
| 1st secondary output voltage: | 12 - 12 V |
| Max. output current 1: | 1 A |
| Secondary voltage adjustable: | no |
| Short-circuit-proof: | yes |
| Rated supply voltage AC 50 Hz: | 100 - 264 V |
| Rated supply voltage AC 60 Hz: | 100 - 264 V |
| Output voltage stabilized: | yes |
| Power consumption: | 12 VA |
| Power output: | 12 W |
| Stabilized: | yes |
| Type of electric connection: | Screw-/spring clamp connection |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Modular version: | yes |
| Width in number of modular spacings: | 1 |
| Built-in width: | 18 mm |
| Built-in height: | 90 mm |
| Direct mounting possible: | yes |
| Width: | 18 mm |
| Height: | 65 mm |
| Depth: | 90 mm |
| Suitable for safety functions: | no |
| Degree of protection (IP): | IP20 |
