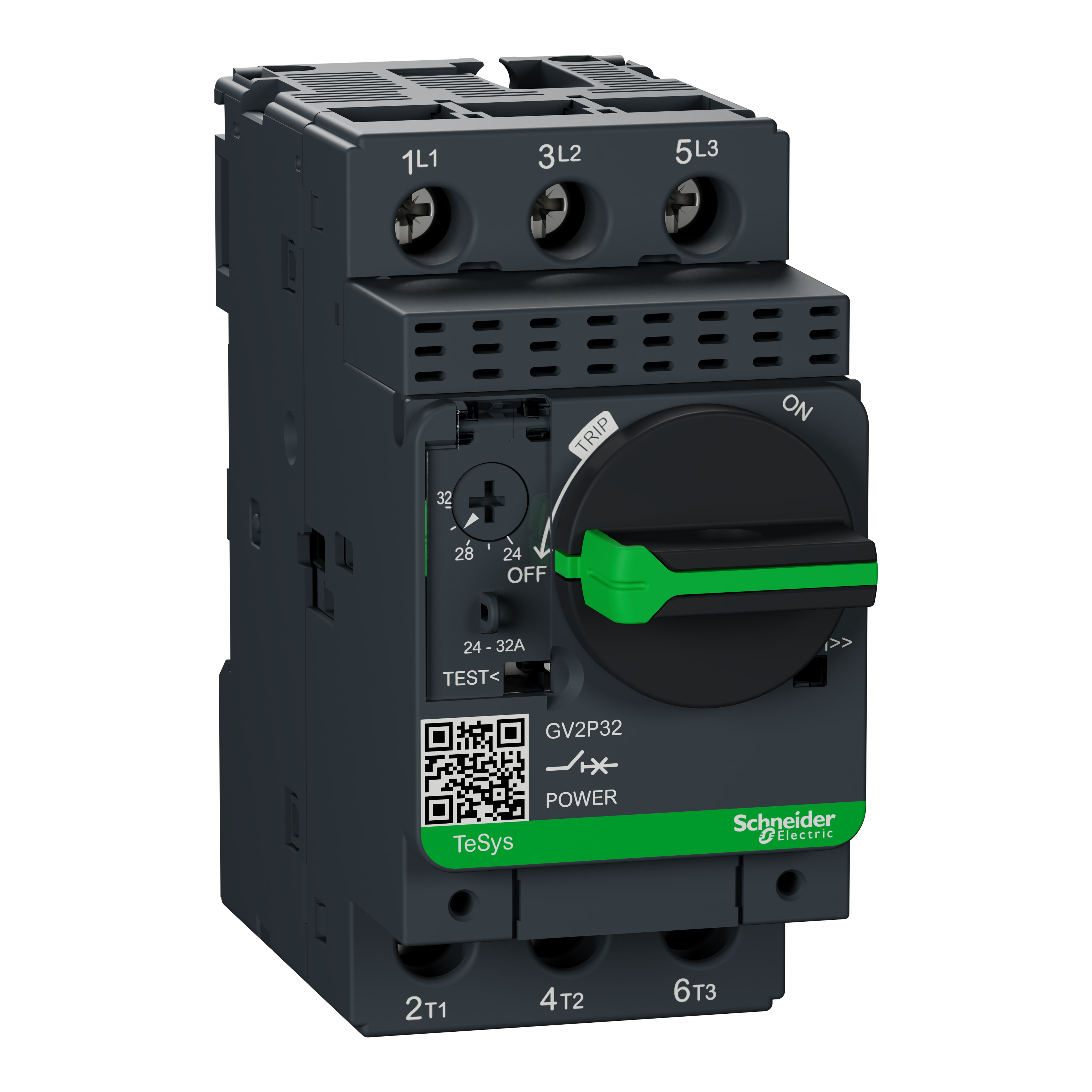

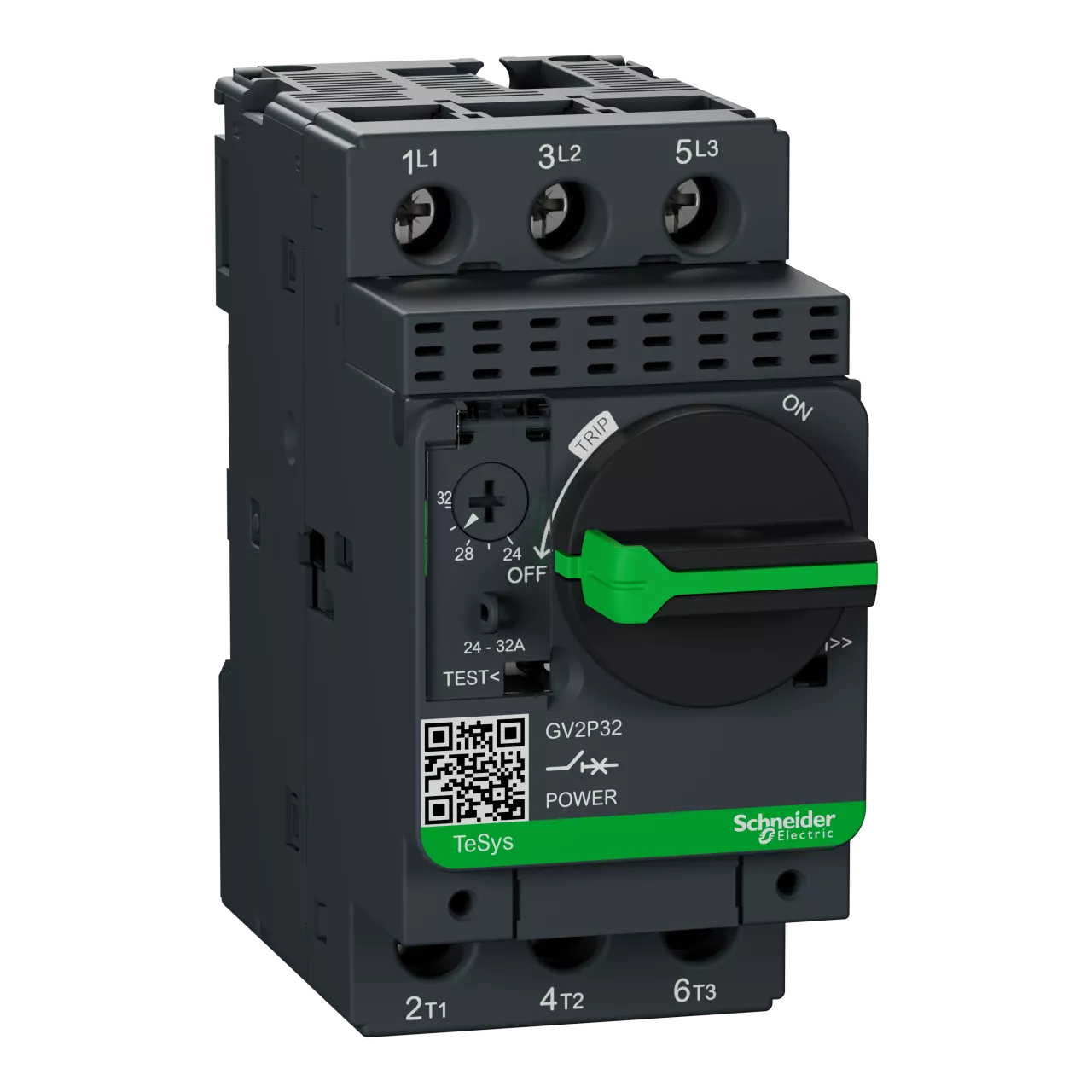

Wyłącznik silnikowy TeSys GV2P napęd obrotowy 24-32A zaciski skrzynkowe
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | GV2P32 |
GTIN(EAN) | 3389110376104 |
Price unit | piece |
Catalog price | 1 009,13 zł (820,43 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłącznik silnikowy TeSys GV, 3-biegunowy (3P), 32A/690V, do zastosowań w silnikach 3-fazowych 15kW 400V. Zapewnia zabezpieczenie termiczno-magnetyczne z zakresem nastaw termicznych 24-32A, wyzwalanie magnetyczne przy 13xIn oraz wysoką zdolność wyłączania Icu 50kA 400V. Podłączenie za pomocą zacisków śrubowych. Sterowanie start-stop za pomocą pokrętła gwarantowane przez 100 000 cykli AC-3. Zgodność z wieloma normami (IEC, UL, CSA, CCC, EAC, certyfikaty morskie, ATEX), Green Premium (RoHS/REACh).
Additional features:
Information | Value |
---|---|
Gross weight: | 329 g |
ETIM class: | Motor protection circuit-breaker |
Type of electrical connection of main circuit: | Screw connection |
Adjustment range undelayed short-circuit release: | 416 - 416 A |
Device construction: | Complete device in housing |
With integrated under voltage release: | no |
Number of poles: | 3 |
Degree of protection (IP): | IP20 |
Height: | 89 mm |
Rated operating voltage: | 690 - 690 V |
Depth: | 97 mm |
Width: | 44.5 mm |
Switch off technique: | Thermomagnetic |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 35 kA |
Rated operation power at AC-3, 400 V: | 15 kW |
Phase failure sensitive: | yes |
With integrated auxiliary switch: | no |
Type of control element: | Turn button |
Rated permanent current Iu: | 32 A |
Overload release current setting: | 24 - 32 A |
With thermal overload protection: | yes |
Rated operation power at AC-3, 230 V: | 7.5 kW |
