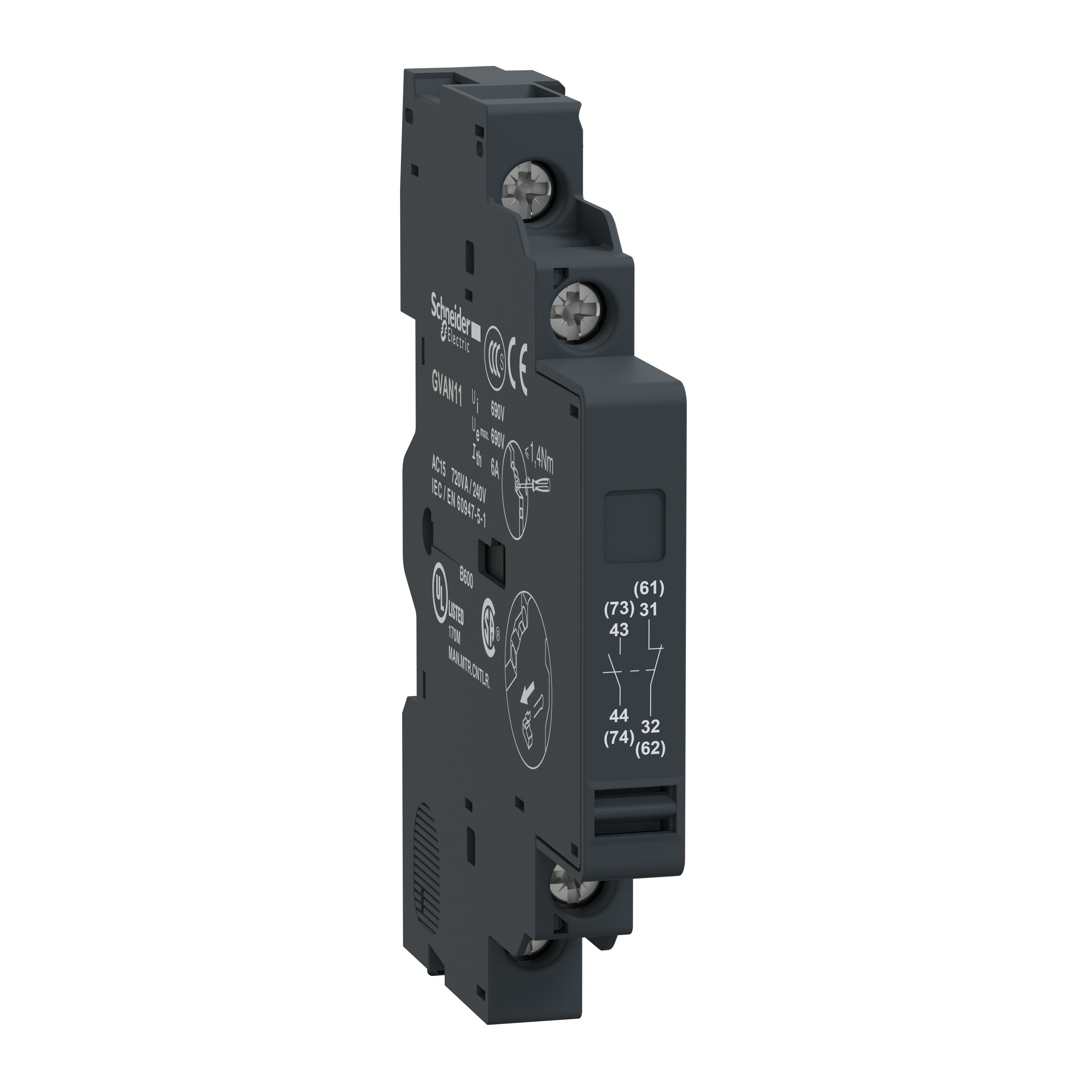

Blok styków bezzwłocznych, TeSys Deca, 1NO+1NC, lewy montaż boczny
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | GVAN11 |
| GTIN(EAN) | 3389110343489 |
| Price unit | piece |
| Catalog price | 65,83 zł (53,52 zł + 23% VAT) |
| Sale price | from 33,37 zł / szt. (27,13 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
TeSys GV auxiliary contact block, instantaneous auxiliary contacts 1NO+1NC, for motor circuit breakers GV2 and GV3. For AC operation up to 6A/690V and DC operation up to 6A/240V DC. To be installed on left-hand LH side of the circuit breaker, 2 blocks mounting possible, connection by screw clamp terminals. Multi-standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 5 |
| Gross weight: | 46 g |
| ETIM class: | Auxiliary contact block |
| Rated operation current Ie at AC-15, 230 V: | 3.3 A |
| Model: | Clip-on |
| Type of electric connection: | Screw connection |
| Mounting method: | Side mounting |
| Number of fault-signal switches: | 0 |
| Lamp holder: | None |
| Number of contacts as change-over contact: | 0 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as normally closed contact: | 1 |
