Stycznik mocy TeSys D AC3 32A 3P 1NO 1NC cewka 230VAC zaciski skrzynkowe
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | LC1D32P7 |
GTIN(EAN) | 3389110351125 |
Price unit | piece |
Catalog price | 549,93 zł (447,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

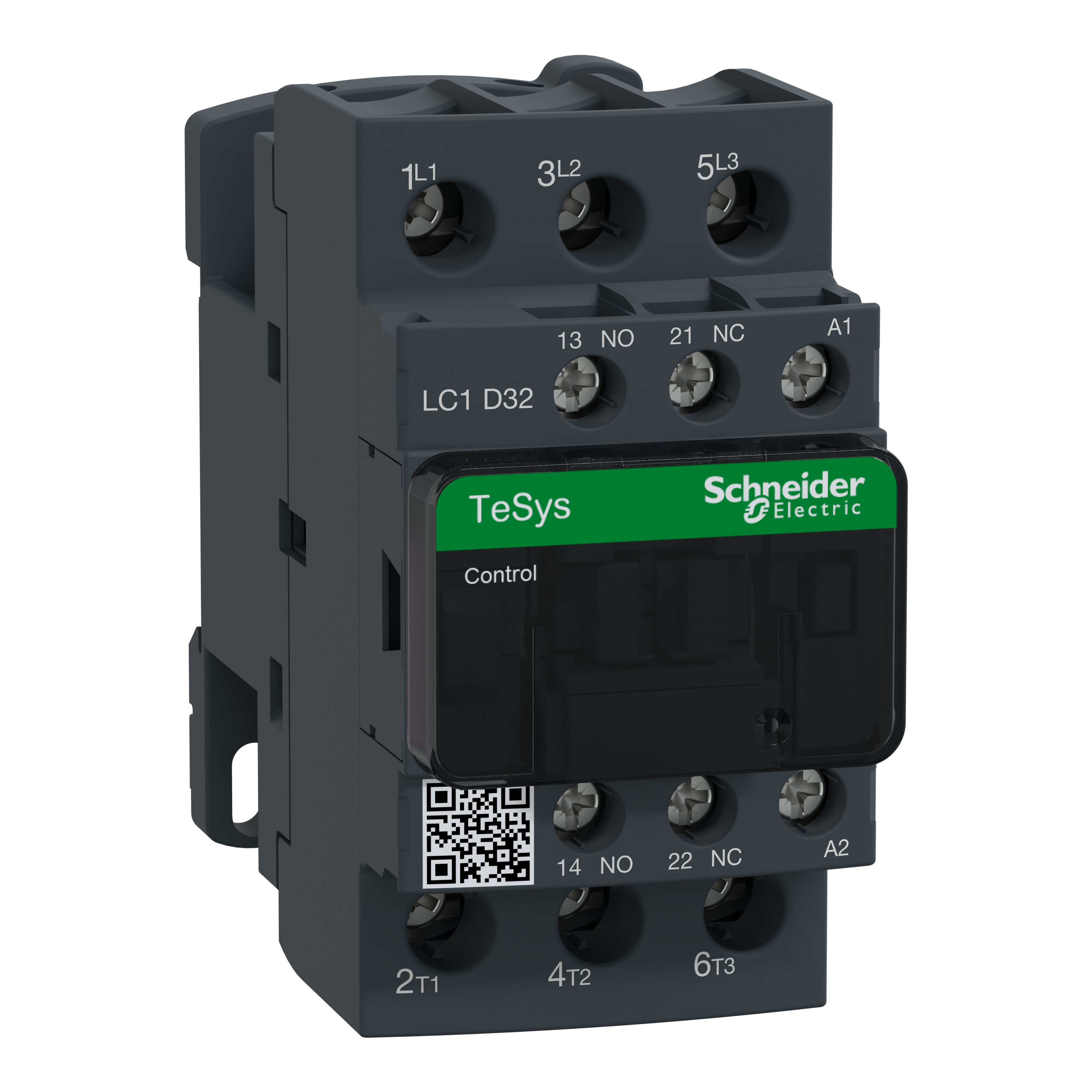

LC1D32P7 to kompaktowy 3-biegunowy stycznik TeSys D firmy Schneider Electric do zastosowań silnikowych. Znamionowe 32A AC-3 15kW/400V, stycznik zawiera cewkę o napięciu sterującym 230V 50/60Hz AC i styki pomocnicze 1NO + 1NC. Może być stosowany w aplikacjach bezpieczeńs twa. •Znamionowy prąd łączeniowy AC-3 do 440V: 32A •Napięcie sterownia cewki: 230V AC •Liczba biegunów: 3 •Kategoria użytkowania zgodnie z IEC 60947-4-1: AC-3
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 39 |
Gross weight: | 415 g |
ETIM class: | Power contactor, AC switching |
Type of electrical connection of main circuit: | Screw connection |
Number of normally open contacts as main contact: | 3 |
Number of normally closed contacts as main contact: | 0 |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as normally closed contact: | 1 |
Voltage type for actuating: | AC |
Rated operation current Ie at AC-3, 400 V: | 32 A |
Rated operation current Ie at AC-1, 400 V: | 50 A |
Rated control supply voltage AC 60 Hz: | 230 - 230 V |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Rated operation power at AC-3, 400 V: | 15 kW |
Modular version: | no |
Rated operation power at AC-4, 400 V: | 7.5 kW |
Rated operation current Ie at AC-4, 400 V: | 18 A |
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Suwałki,
ul. Mickiewicza 10
Distance:
Dostępność:
2 pc
Limanowa,
Jana Pawła II 5a
Distance:
Dostępność:
4 pc
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-09-23 00:04:45 |
Files to download: | |
External links: |
