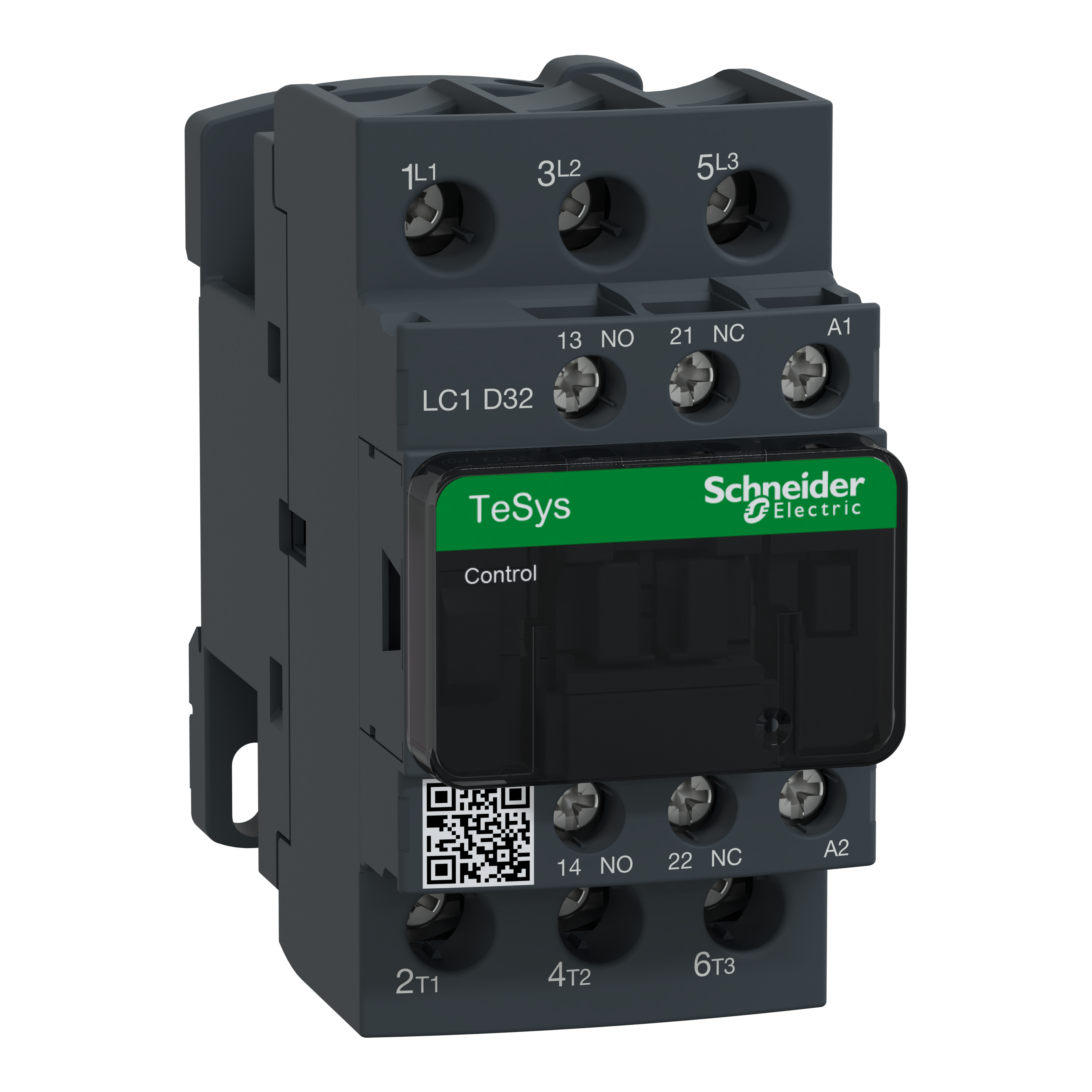

Stycznik mocy TeSys D AC3 32A 3P 1NO 1NC cewka 24VAC zaciski skrzynkowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC1D32B7 |
| GTIN(EAN) | 3389110350135 |
| Price unit | piece |
| Catalog price | 549,70 zł (446,91 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
LC1D32B7 to kompaktowy 3-biegunowy stycznik TeSys D firmy Schneider Electric do zastosowań silnikowych. Znamionowe 32A AC-3 15kW/400V, stycznik zawiera cewkę o napięciu sterującym 24V 50/60Hz AC i styki pomocnicze 1NO + 1NC. Może być stosowany w aplikacjach bezpieczeńst wa. •Znamionowy prąd łączeniowy AC-3 do 440V: 32A •Napięcie sterownia cewki: 24V AC •Liczba biegunów: 3 •Kategoria użytkowania zgodnie z IEC 60947-4-1: AC-3
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 419 g |
| ETIM class: | Power contactor, AC switching |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-3, 400 V: | 32 A |
| Rated operation current Ie at AC-1, 400 V: | 50 A |
| Rated control supply voltage AC 60 Hz: | 24 - 24 V |
| Rated control supply voltage AC 50 Hz: | 24 - 24 V |
| Rated operation power at AC-3, 400 V: | 15 kW |
| Modular version: | no |
| Rated operation power at AC-4, 400 V: | 7.5 kW |
| Rated operation current Ie at AC-4, 400 V: | 18 A |
