Wyłącznik silnikowy GV2ME napęd przyciskowy 24-32A zaciski skrzynkowe
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | GV2ME32 |
GTIN(EAN) | 3389110343298 |
Price unit | piece |
Catalog price | 859,61 zł (698,87 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

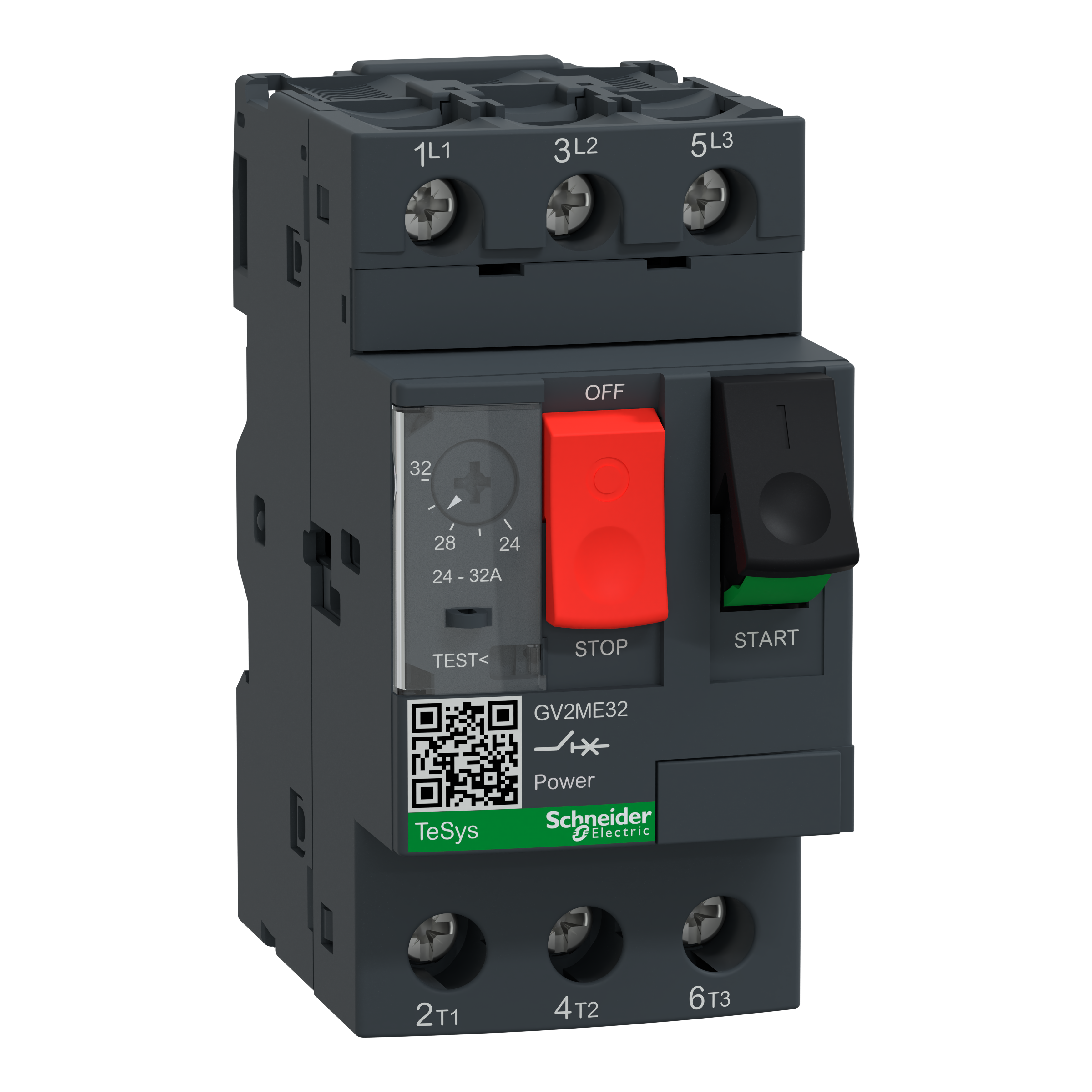

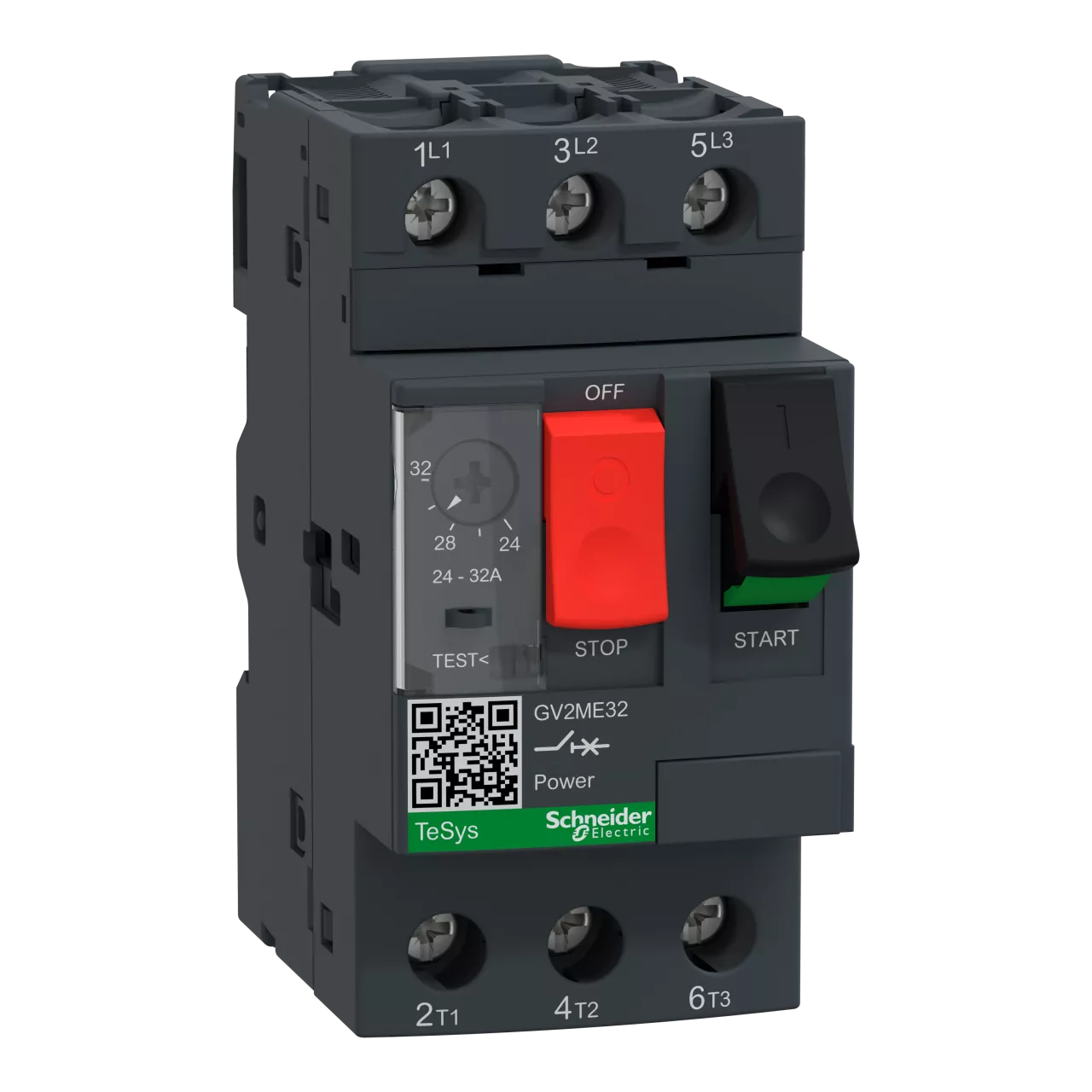

GV2ME32 jest wyłącznikiem silnikowym z serii TeSys firmy Schneider Electric. Zapewnia zabezpieczenie zwarciowe i przeciążeniowe dla silników 15kW (24-32A) przy 400V i zdolność zwarciową Icu 100kA. Umożliwia sterowanie silnikiem (załączanie/wyłączanie) za pomocą przycisk ów. Wyłącznik jest wyposażony w blokadę położenia przycisku w pozycji OFF. • Znamionowa moc silnika przy 400V [kW]: 15,0 • Zakres nastaw zabezpieczenia termicznego [A]: 24,0 – 32,0 • Kategoria użytkowania zgodnie z IEC 60947-4-1: AC-3 • Liczba biegunów: 3
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 62 |
Gross weight: | 280 g |
ETIM class: | Motor protection circuit-breaker |
Type of electrical connection of main circuit: | Screw connection |
Adjustment range undelayed short-circuit release: | 416 - 416 A |
Device construction: | Complete device in housing |
With integrated under voltage release: | no |
Number of poles: | 3 |
Degree of protection (IP): | IP20 |
Height: | 89 mm |
Rated operating voltage: | 230 - 690 V |
Depth: | 78.2 mm |
Width: | 45 mm |
Switch off technique: | Thermomagnetic |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 10 kA |
Rated operation power at AC-3, 400 V: | 15 kW |
Phase failure sensitive: | yes |
With integrated auxiliary switch: | no |
Type of control element: | Push button |
Rated permanent current Iu: | 32 A |
Overload release current setting: | 24 - 32 A |
With thermal overload protection: | yes |
Rated operation power at AC-3, 230 V: | 7.5 kW |
