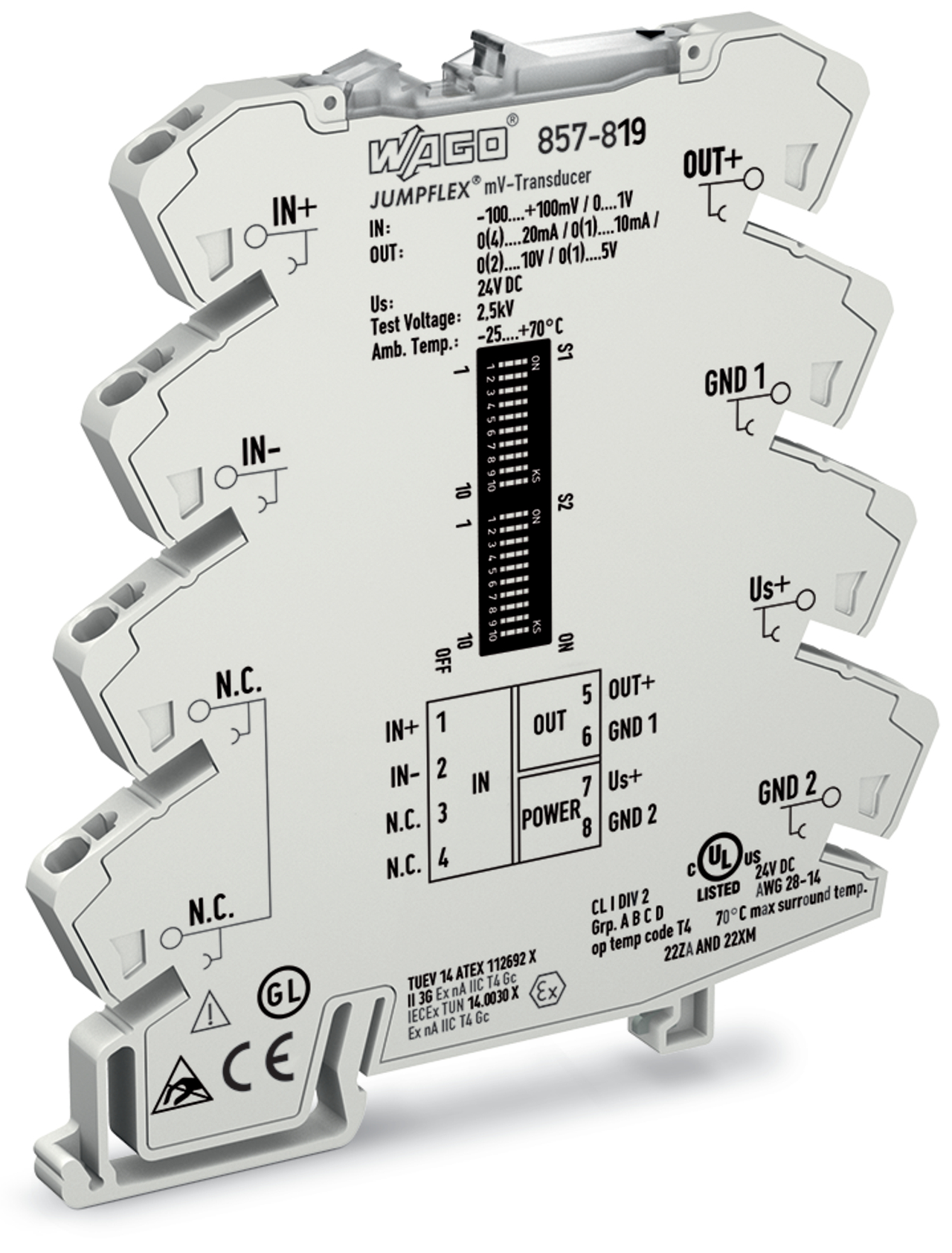

Przetwornik pomiarowy napięcia U-TRANSDUCER, bipolarny napięciowy sygnał wejściowy, prądowy i napięciowy sygnał wyjściowy
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 857-819 |
| GTIN(EAN) | 4045454665975 |
| Price unit | piece |
| Catalog price | 718,07 zł (583,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
przetwornik pomiarowy napięcia; bipolarny napięciowy sygnał wejściowy; prądowy i napięciowy sygnał wyjściowy; konfiguracja przy użyciu oprogramowania; napięcie zasilania 24 V DC; szerokość 6 mm; 2,50 mm²
Additional features:
| Information | Value |
|---|---|
| Net weight: | 36,31 g |
| ETIM class: | Isolation amplifier |
| Number of input ranges -10 V ... +10 V: | 0 |
| Number of input ranges -10 mA ... +10 mA: | 0 |
| Number of input ranges 0 mV ... 300 mV: | 1 |
| Number of output ranges -2.5 V ... +2.5 V: | 0 |
| Number of output ranges 2 V ... 10 V: | 1 |
| Number of input ranges 0 V ... 30 V: | 0 |
| Number of input ranges 0 V ... 5 V: | 0 |
| Number of input ranges 0 mA ... 5 mA: | 0 |
| Number of output ranges -20 mA ... +20 mA: | 0 |
| Type of electric connection: | Spring clamp connection |
| Number of input ranges 0 mV ... 60 mV: | 0 |
| Number of input ranges 0 mV ... 500 mV: | 1 |
| Number of input ranges 1 V ... 5 V: | 0 |
| Number of input ranges -1 V ... +1 V: | 0 |
| Number of output ranges 1 V ... 5 V: | 1 |
| Number of output ranges -10 V ... +10 V: | 0 |
| Number of output ranges -10 mA ... +10 mA: | 0 |
| Number of output ranges 10 V ... 2 V: | 0 |
| Number of output ranges 10 V ... 0 V: | 0 |

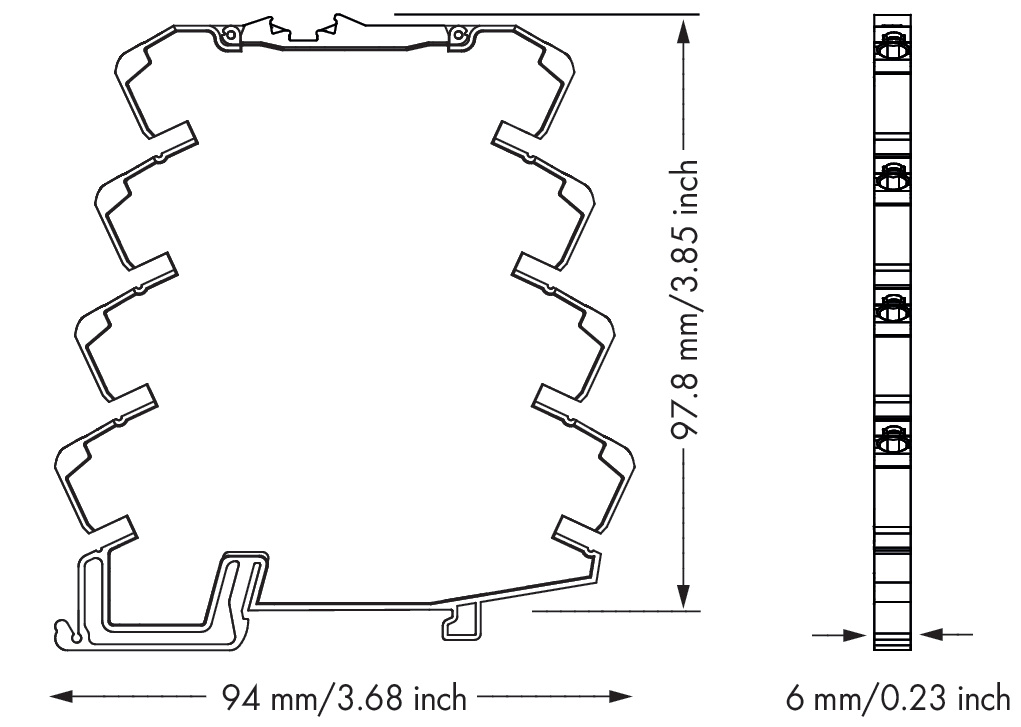

| Depth: | 94 mm |
| Number of output ranges -2 V ... +2 V: | 0 |
| Number of output ranges -100 mV ... +100 mV: | 0 |
| Construction type of device: | Other |
| Number of input ranges 20 mA ... 4 mA: | 0 |
| Height: | 96 mm |
| Number of channels: | 1 |
| Number of input ranges -100 mV ... +100 mV: | 1 |
| Number of output ranges -500 mV ... +500 mV: | 0 |
| Number of output ranges 5 V ... 1 V: | 0 |
| Number of input ranges 10 V ... 2 V: | 0 |
| Number of input ranges 2 V ... 10 V: | 0 |
| Number of input ranges -2 V ... +2 V: | 0 |
| Number of input ranges -20 mA ... +20 mA: | 0 |
| Rated supply voltage DC: | 16.8 - 31.2 V |
| Number of input ranges -2.5 V ... +2.5 V: | 0 |
| Number of input ranges 20 mA ... 0 mA: | 0 |
| Number of input ranges -20 V ... +20 V: | 0 |
| Number of output ranges 20 mA ... 0 mA: | 0 |
| Number of output ranges -20 V ... +20 V: | 0 |
| Number of output ranges -300 mV ... +300 mV: | 0 |
| Number of output ranges 20 mA ... 4 mA: | 0 |
| Number of output ranges -5 mA ... +5 mA: | 0 |
| Number of output ranges 4 mA ... 20 mA: | 1 |
| Number of input ranges 10 V ... 0 V: | 0 |
| Number of output ranges 5 V ... 0 V: | 0 |
| Number of output ranges -5 V ... +5 V: | 0 |
| Temperature drift: | 0.01 %/K |
| Number of input ranges -5 V ... +5 V: | 0 |
| Number of input ranges +5 V ... -5 V: | 0 |
| Number of input ranges -5 mA ... +5 mA: | 0 |
| Number of input ranges 5 V ... 1 V: | 0 |
| Number of input ranges 5 V ... 0 V: | 0 |
| Number of input ranges -60 mV ... +60 mV: | 0 |
| Number of input ranges -500 mV ... +500 mV: | 0 |
| Number of input ranges +10 V ... -10 V: | 0 |
| Number of input ranges 4 mA ... 20 mA: | 0 |
| Number of input ranges -300 mV ... +300 mV: | 0 |
| Number of output ranges -60 mV ... +60 mV: | 0 |
| Number of input ranges 0 mV ... 100 mV: | 0 |
| Galvanic separation between inputs: | yes |
| Number of input ranges 0 V ... 10 V: | 0 |
| Galvanic separation between supply voltage and all other current circuits: | yes |
| Number of input ranges 0 V ... 2.5 V: | 0 |
| Galvanic separation between output to output: | no |
| Galvanic separation between input and output: | yes |
| Number of input ranges 0 V ... 2 V: | 0 |
| Number of input ranges 0 V ... 20 V: | 0 |
| Number of input ranges 0 mA ... 20 mA: | 0 |
| Number of input ranges 0 V ... 24 V: | 0 |
| Number of input ranges 0 mV ... 200 mV: | 1 |
| Type of power supply: | Other |
| Number of input ranges 0 mA ... 10 mA: | 0 |
| Number of input ranges 0 V ... 1 V: | 0 |
| Operating temperature: | -25 - 70 °C |
| Inherently safe according to EN 60947-5-6 NAMUR: | no |
| Width: | 6 mm |
| Mounting method: | Snap mounting support rail |
| Number of output ranges 0 mV ... 100 mV: | 0 |
| Number of output ranges 0 V ... 10 V: | 1 |
| Number of output ranges 0 V ... 2.5 V: | 0 |
| Number of output ranges 0 V ... 2 V: | 0 |
| Number of output ranges 0 mA ... 20 mA: | 1 |
| Malfunction message output: | no |
| Number of output ranges +5 V ... -5 V: | 0 |
| Number of output ranges +10 V ... -10 V: | 0 |
| Number of output ranges 0 mA ... 10 mA: | 1 |
| Number of output ranges 0 V ... 1 V: | 0 |
| Number of output ranges 0 mV ... 500 mV: | 0 |
| Load: | 600 - 2000 Ω |
| Number of output ranges 0 V ... 5 V: | 1 |
| Number of output ranges -1 V ... +1 V: | 0 |
| Number of output ranges 0 mV ... 60 mV: | 0 |
| Degree of protection (IP): | IP20 |
| Number of output ranges 0 mV ... 200 mV: | 0 |
| Number of output ranges 0 V ... 20 V: | 0 |
| Number of output ranges 0 V ... 30 V: | 0 |
| Number of output ranges 0 V ... 24 V: | 0 |
| Number of output ranges 0 mA ... 5 mA: | 0 |
| Number of output ranges 0 mV ... 300 mV: | 0 |
