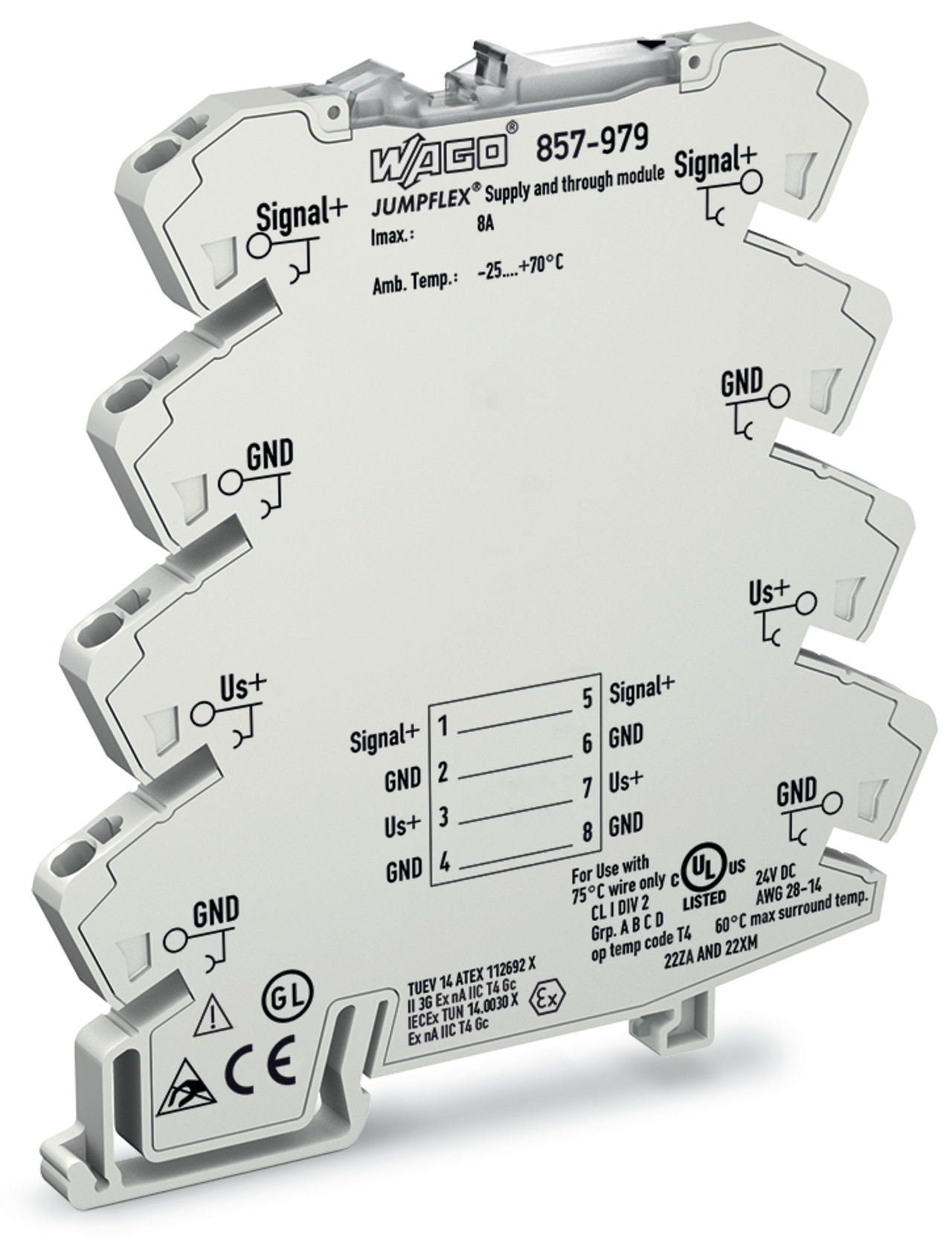

Moduł zasilający i przelotowy
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 857-979 |
GTIN(EAN) | 4050821088189 |
Price unit | piece |
Catalog price | 117,77 zł (95,75 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 28,8 g |
ETIM class: | Feed-through terminal block |

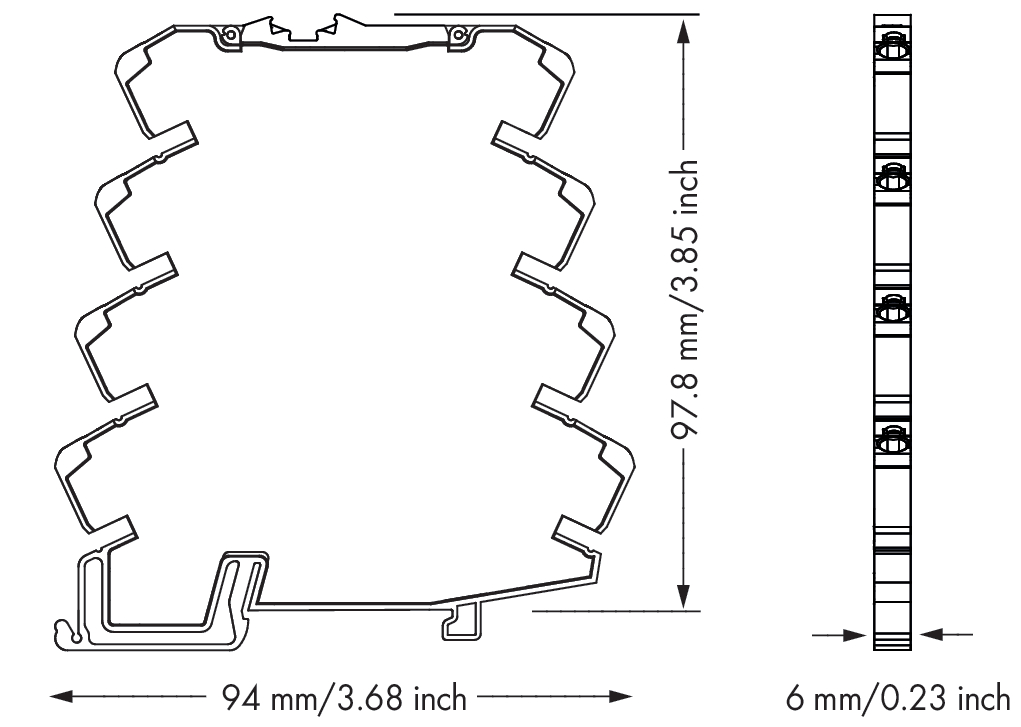

Height: | 94 mm |
Operating temperature: | -25 - 70 °C |
Material insulation body: | Thermoplastic |
Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 8 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.34 - 2.5 mm² |
Number of levels: | 4 |
Explosion-tested version 'Ex e': | no |
Number of clamp positions per level: | 2 |
Colour: | Grey |
Internally connected stages: | no |
Width: | 6 mm |
Depth: | 96 mm |
