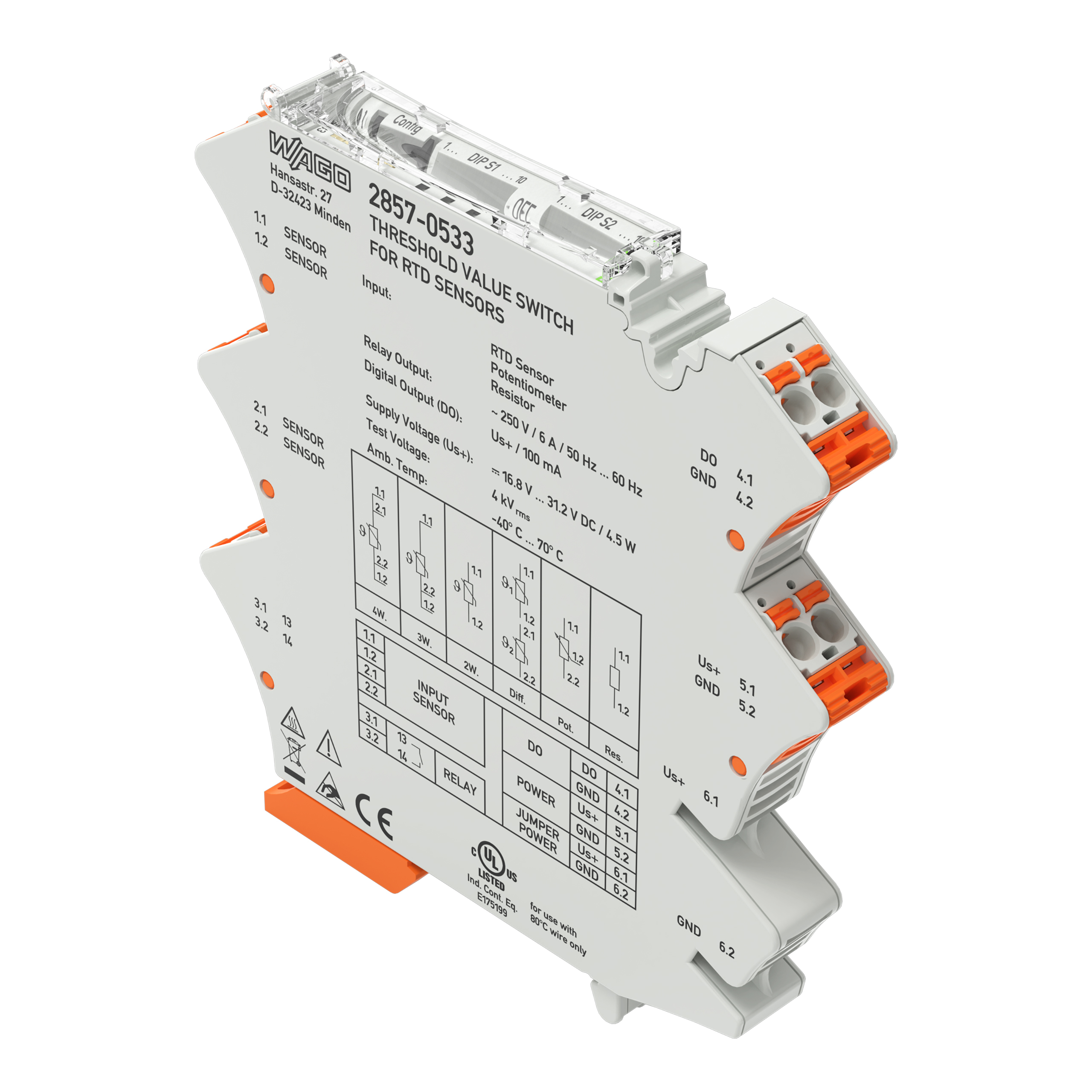

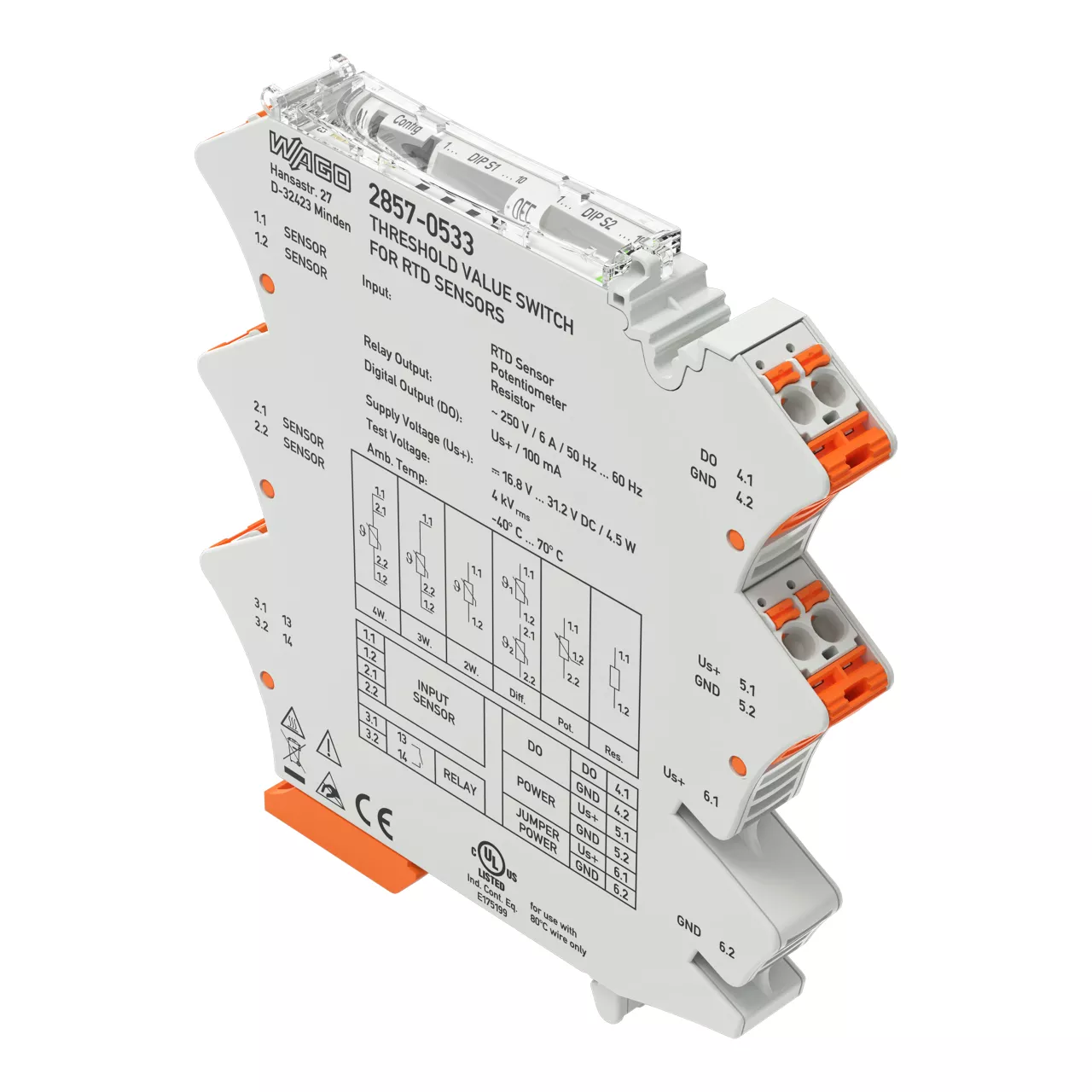

Przełącznik wartości granicznej RTD do czujników RTD TEMP-RTD 1NO
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2857-533 |
| GTIN(EAN) | 4050821676973 |
| Price unit | piece |
| Catalog price | 657,68 zł (534,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
przełącznik wartości granicznej; czujniki RTD; 1 zestyk zwierny; moduł wyjść dwustanowych; konfiguracja przy użyciu oprogramowania; napięcie zasilania 24 V DC; szerokość 12,5 mm
Additional features:
| Information | Value |
|---|---|
| Net weight: | 86,5 g |
| ETIM class: | Temperature monitoring relay |
| Resistance measuring range: | 0 - 100000 Ω |

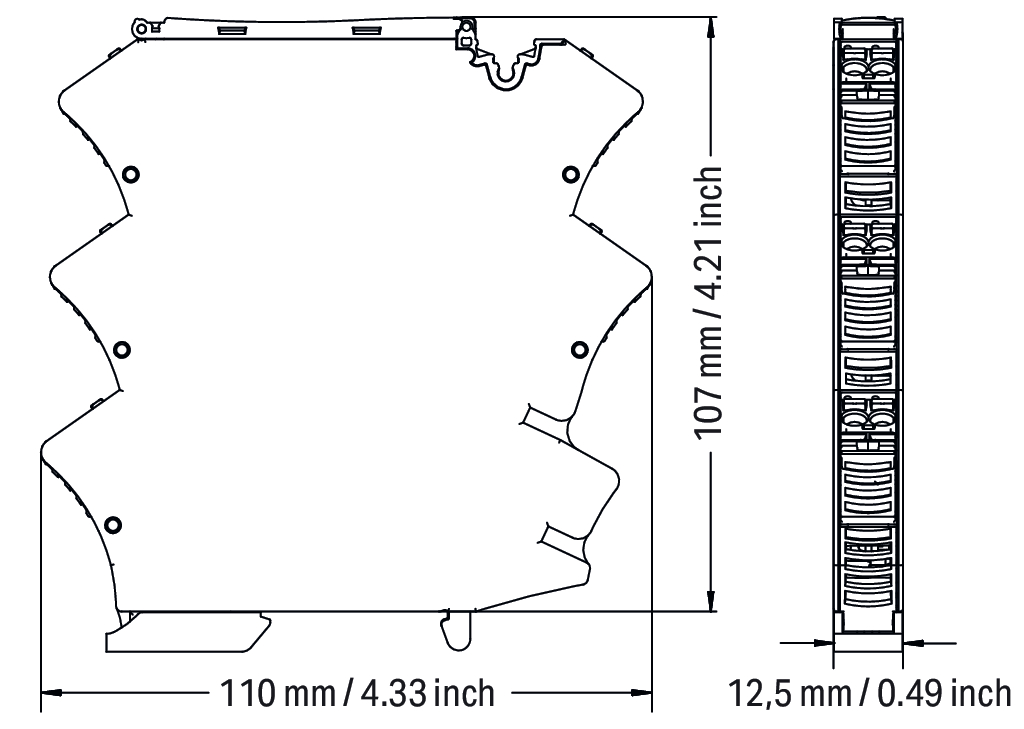

| Height: | 107 mm |
| Temperature measuring range: | -200 - 850 °C |
| Number of measuring circuits: | 1 |
| Voltage type for actuating: | DC |
| External reset possible: | no |
| Type of electric connection: | Spring clamp connection |
| Rated control supply voltage DC: | 24 - 24 V |
| With detachable clamps: | no |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Width: | 12.5 mm |
| Depth: | 110 mm |
| Error registration possible: | no |
| Number of contacts as normally closed contact: | 0 |
