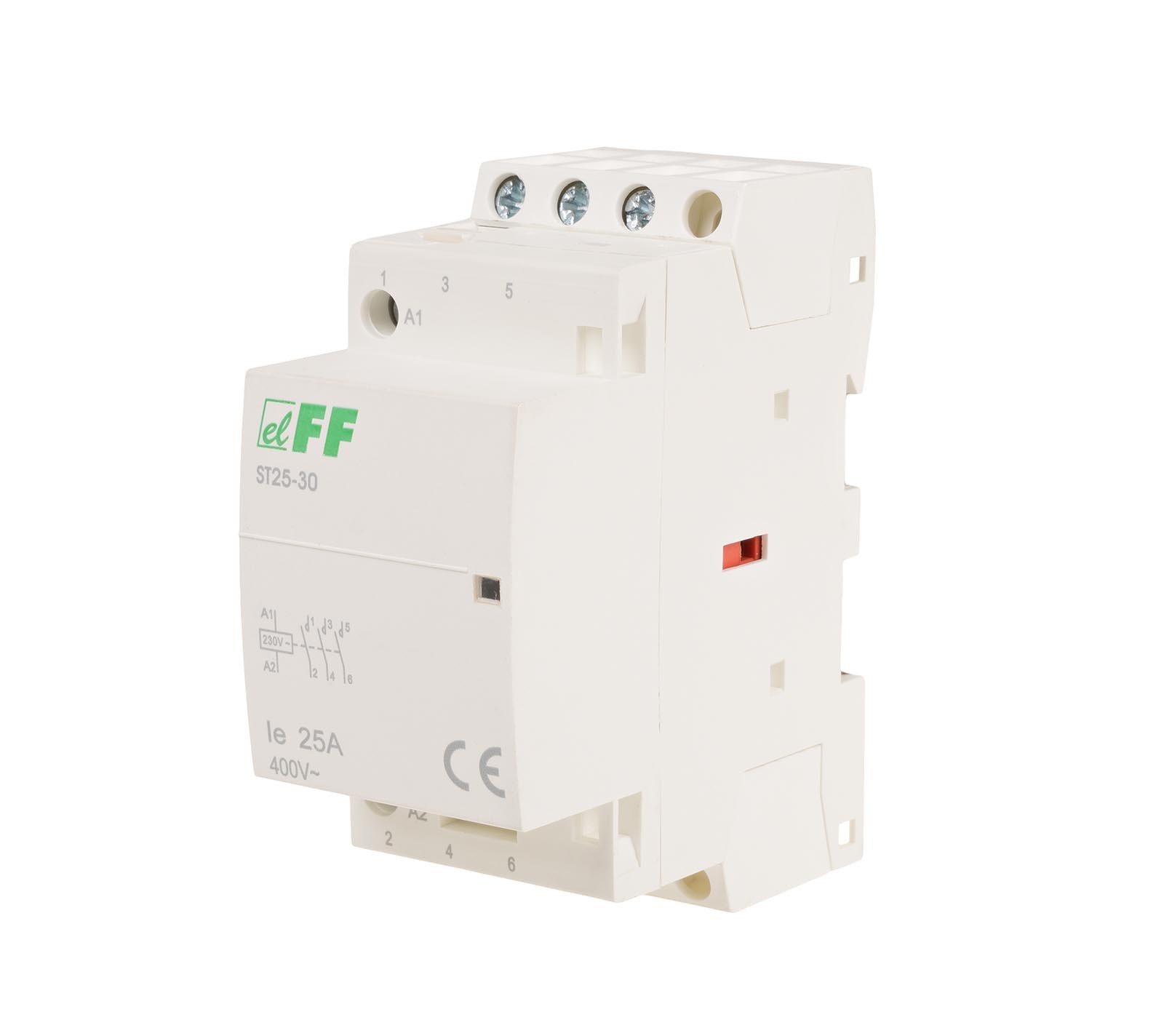

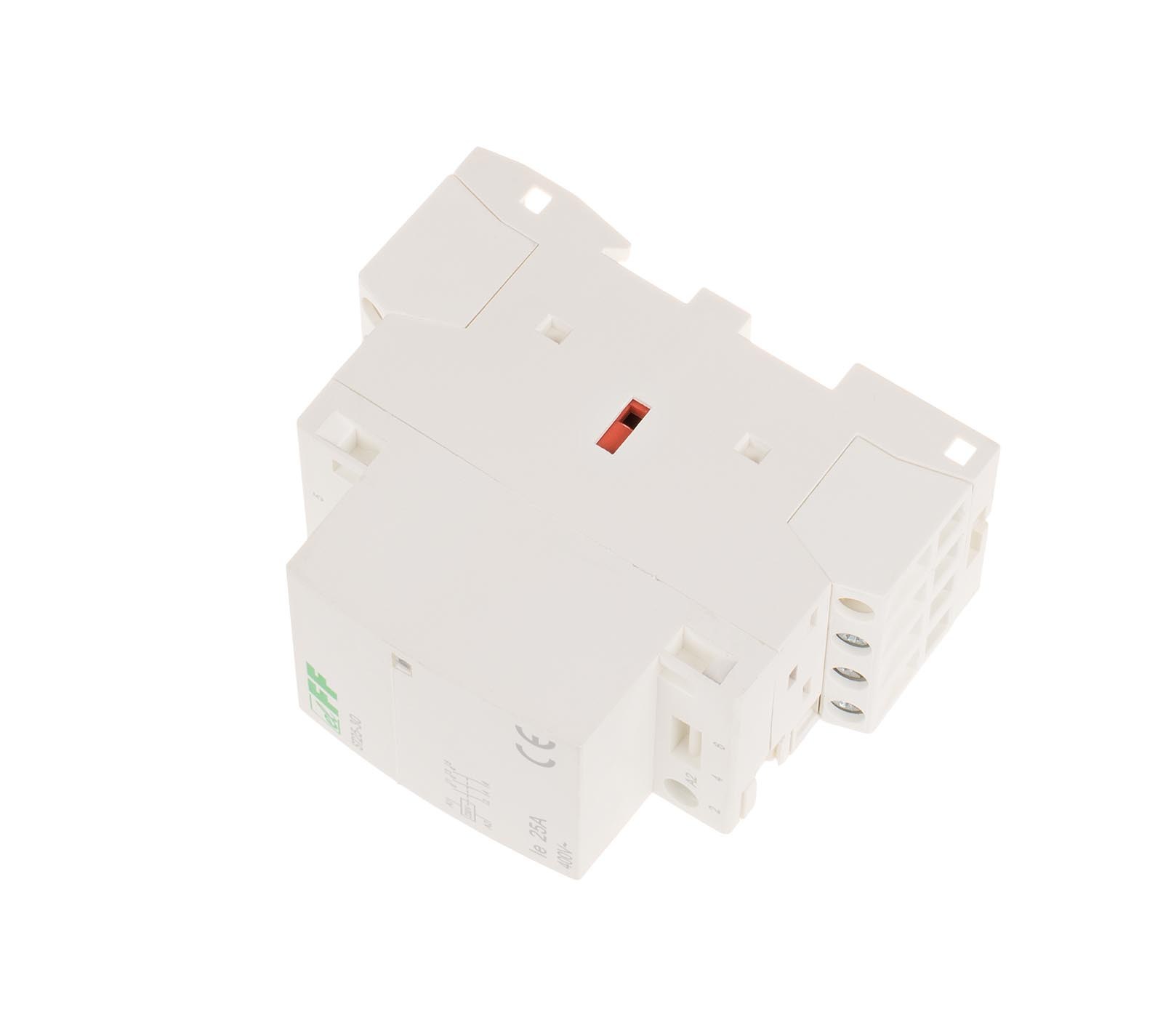

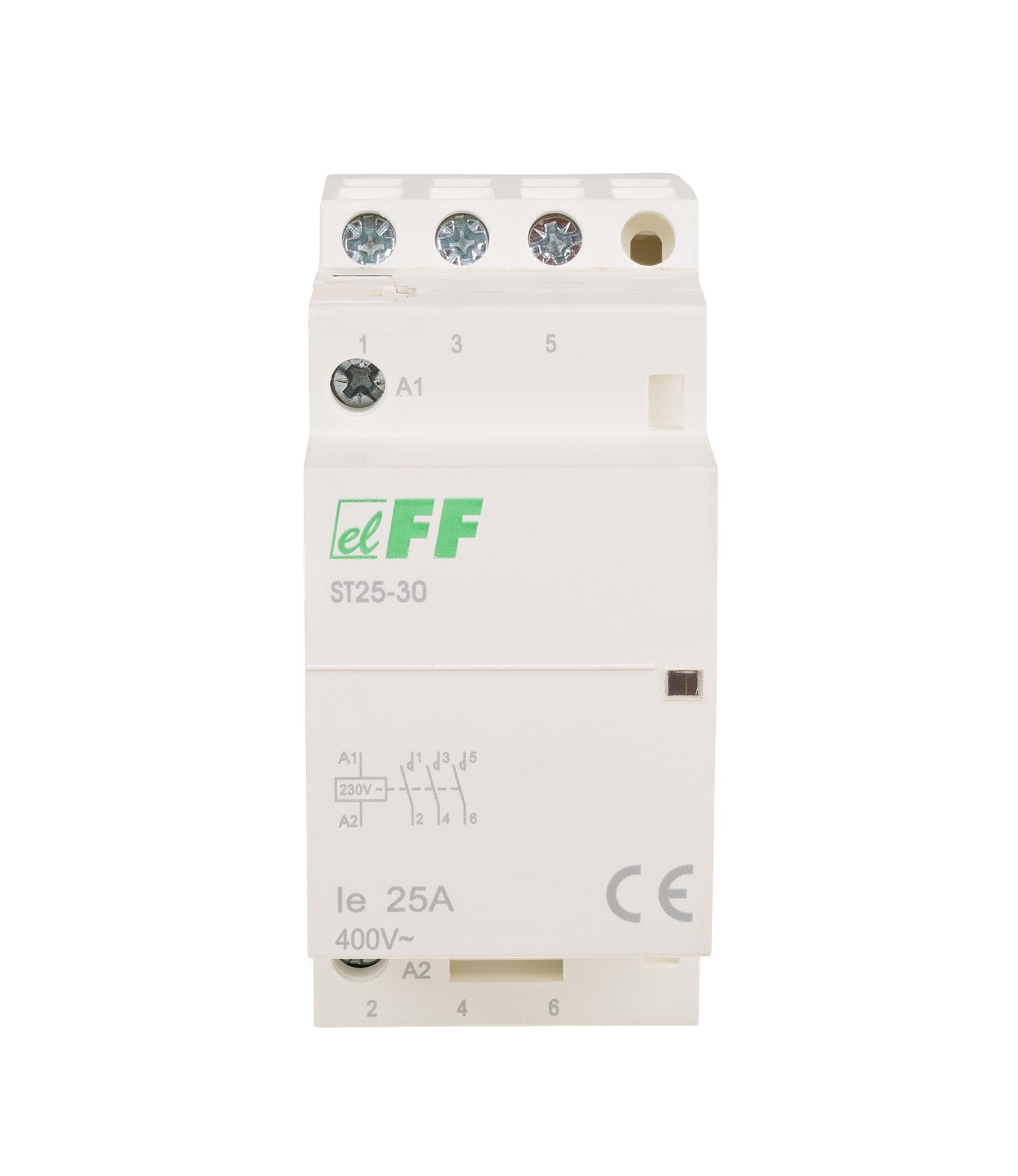

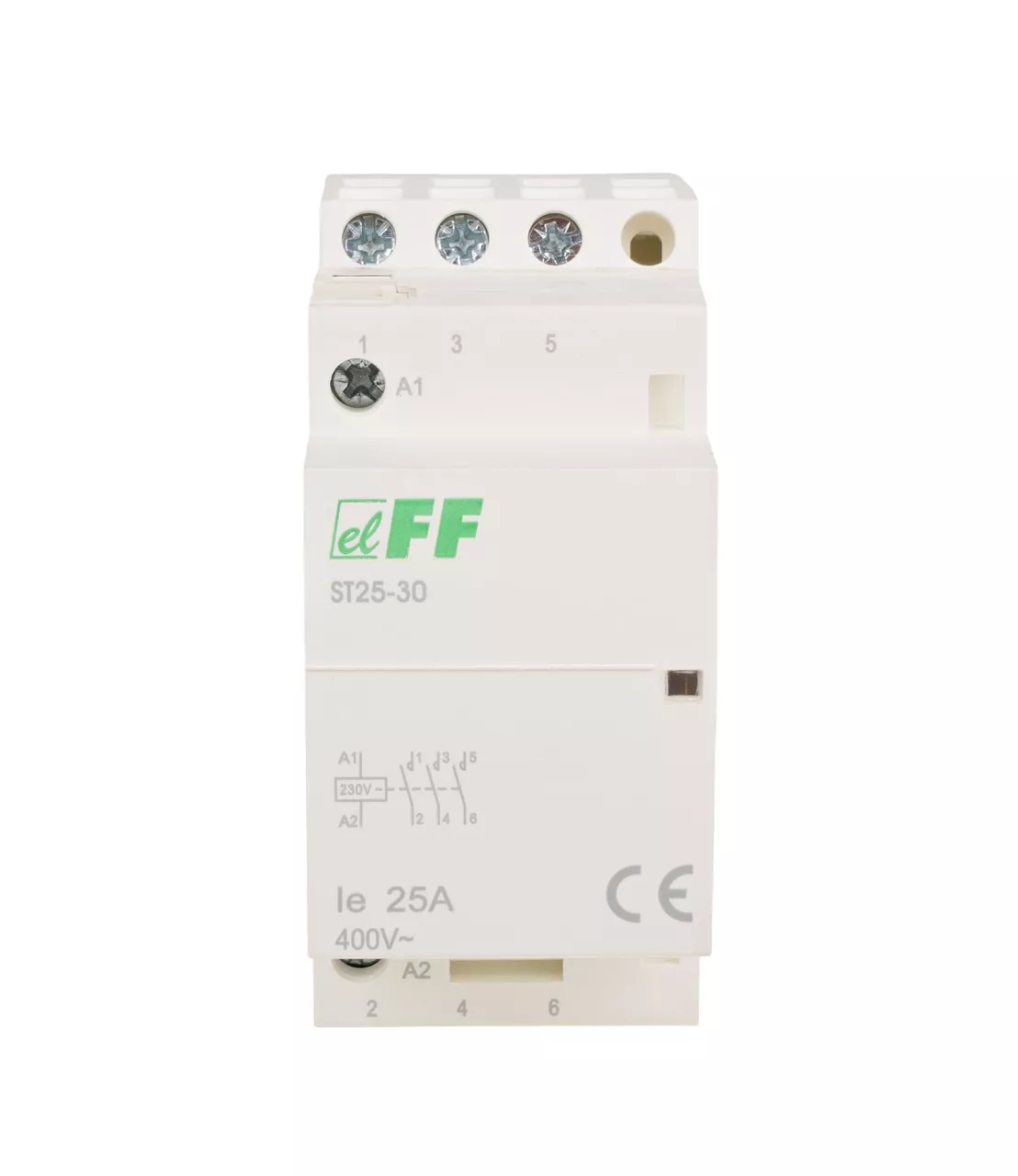

Stycznik modułowy, montaż na szynie, styki 3NO, 25A
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | ST |
| Symbol | ST25-30 |
| GTIN(EAN) | 5908312594130 |
| Price unit | piece |
| Catalog price | 114,39 zł (93,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania cewki 230 V AC Konfiguracja styków 3 × NO Prąd torów głównych 25 A Moc łączeniowa kat. AC1 (230V) 9 kW Moc łączeniowa kat. AC3 (230V) 2,2 kW Moduł 2 Nr normy IEC 61095 Trwałość łączeniowa elektryczna 1x10⁵ Trwałość łączeniowa mechaniczna 1x10⁶ Waga 168 g Zaciski śrubowe 6 mm² Napięcie izolacji 4 kV Pobór mocy 4 W Temperatura pracy -25 ÷ 50 °C Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 213 g |
| ETIM class: | Installation contactor for distribution board |
| Rated operating voltage: | 230 - 230 V |
| Rated operation current: | 25 A |
| Rated excitation voltage: | 230 - 230 V |
| Voltage type (operating voltage): | AC |
| Voltage type (excitation voltage): | AC |
| Number of contacts as normally open contact: | 3 |
| Number of contacts as normally closed contact: | 0 |
| Max. incandescent lamp load: | 9000 W |
| Slider for hand switch: | no |
| Width in number of modular spacings: | 2 |
| Built-in depth: | 65 mm |
| Additional equipment possible: | no |
| Degree of protection (IP): | IP20 |
