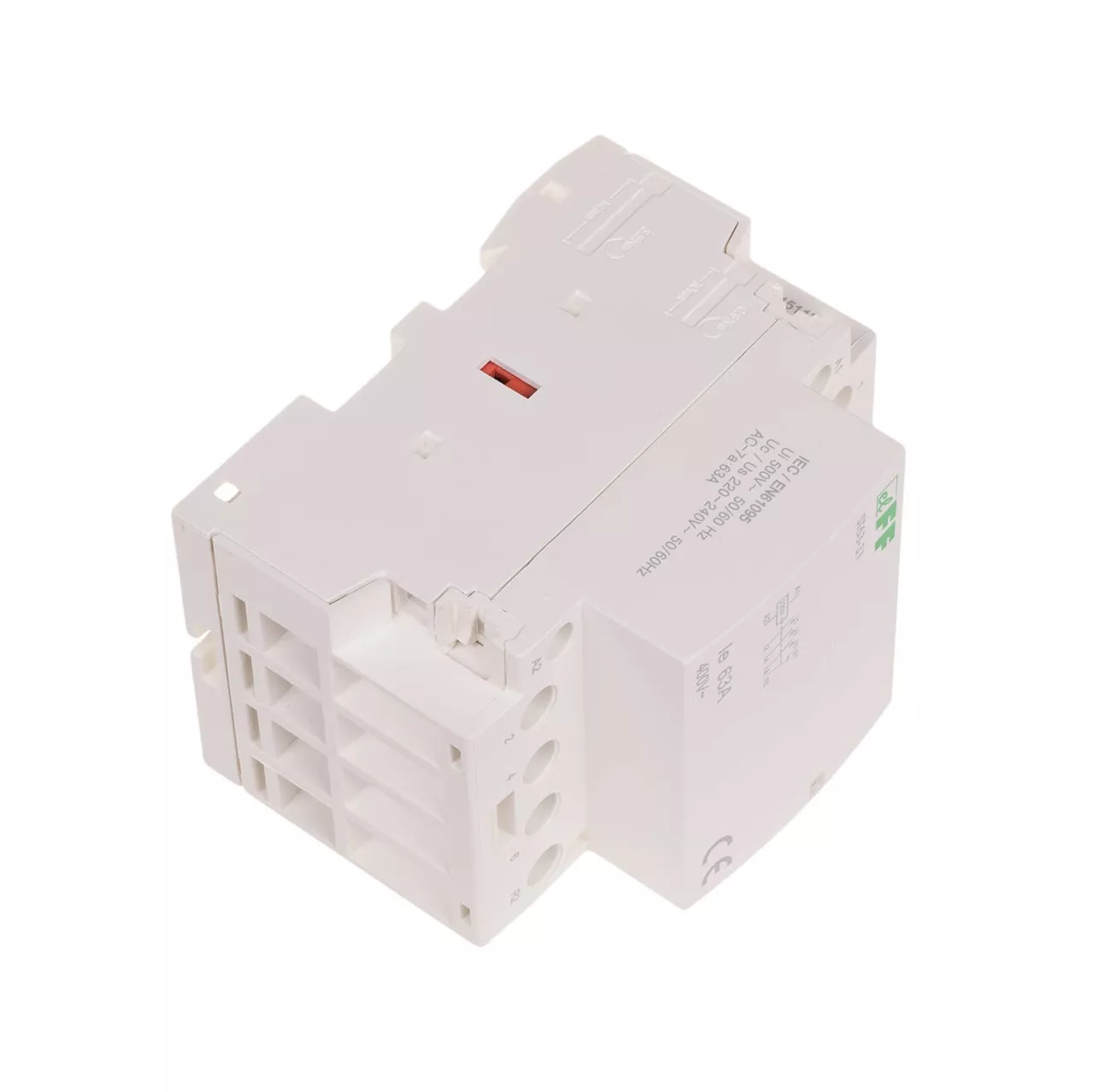

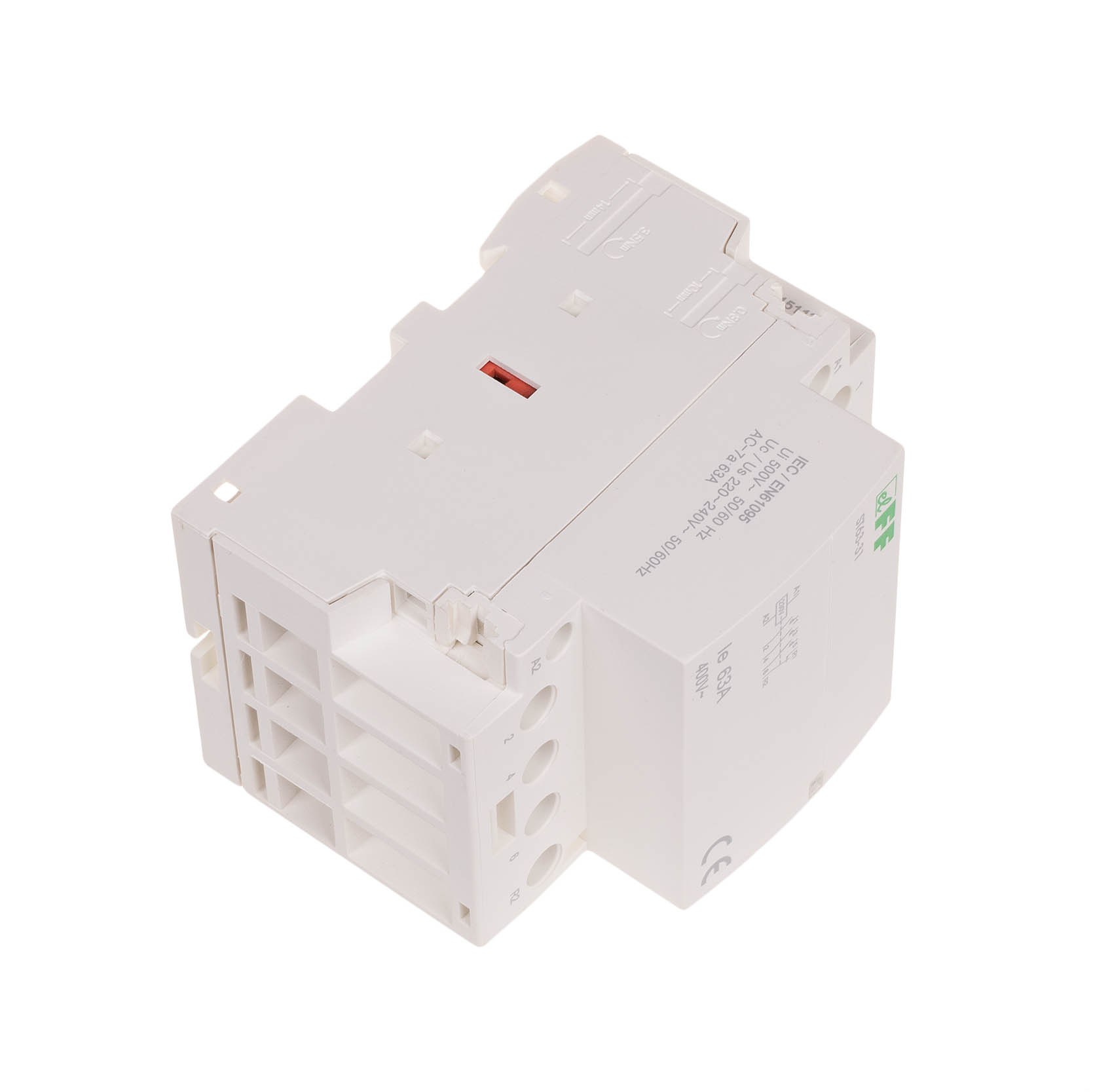

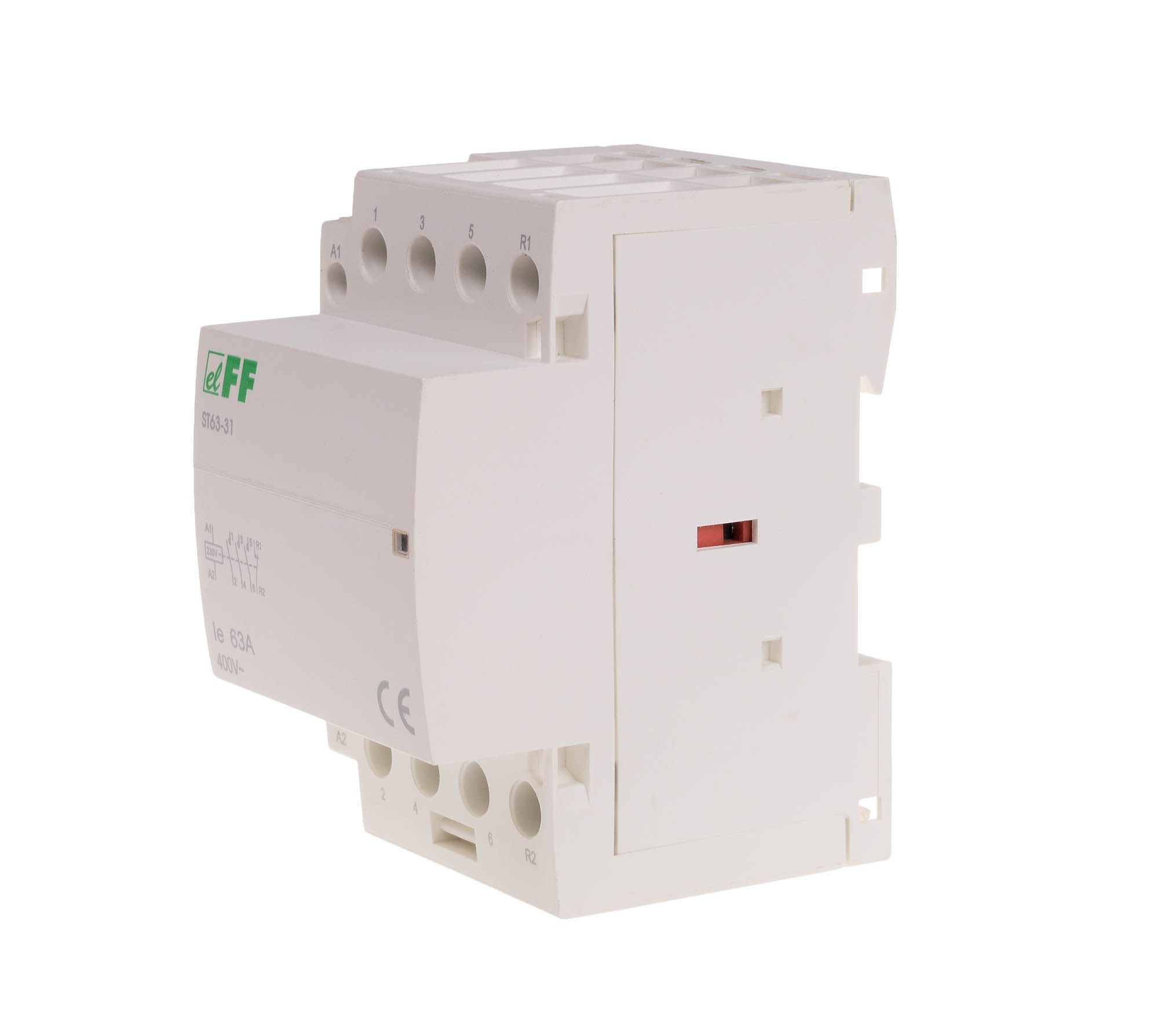

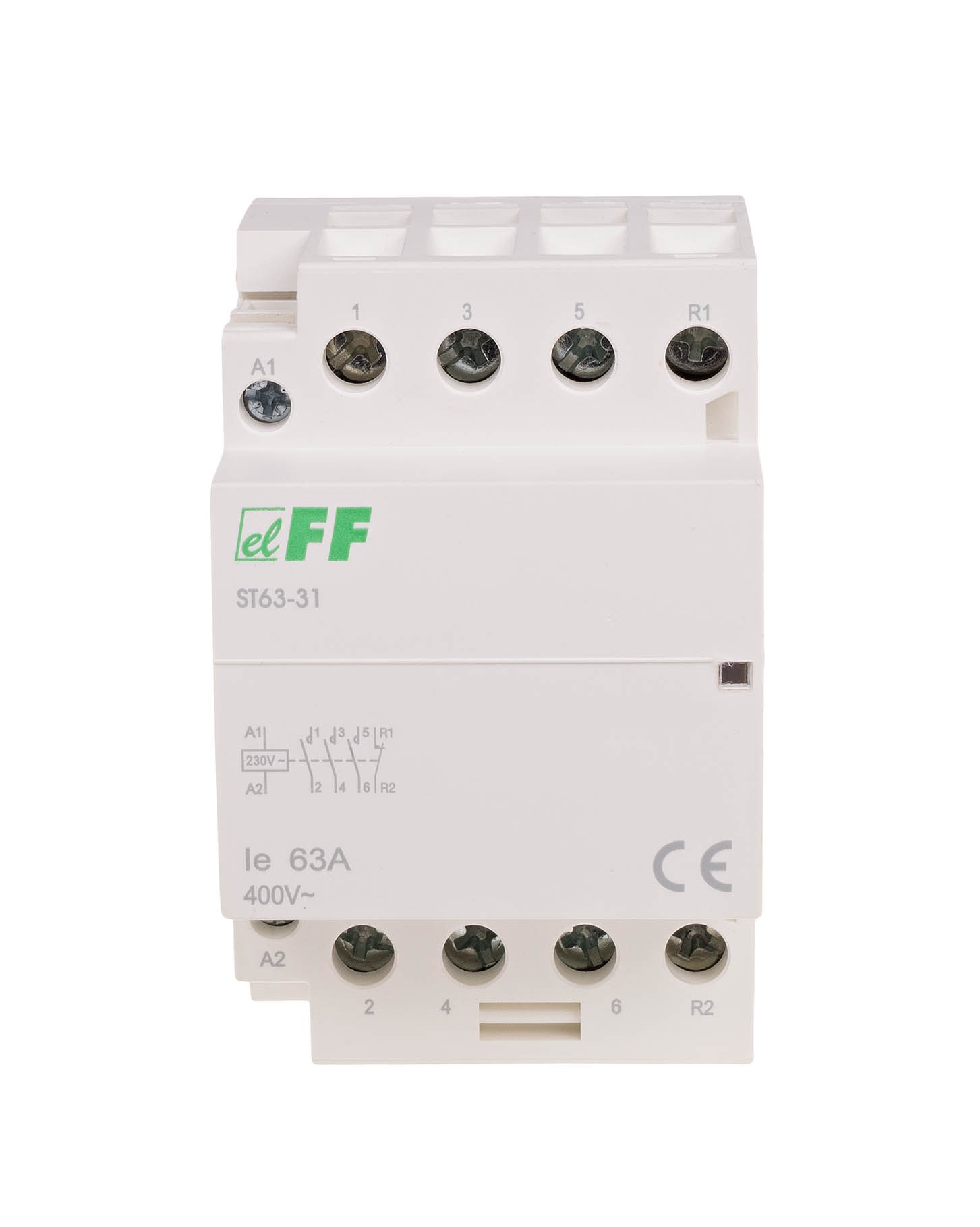

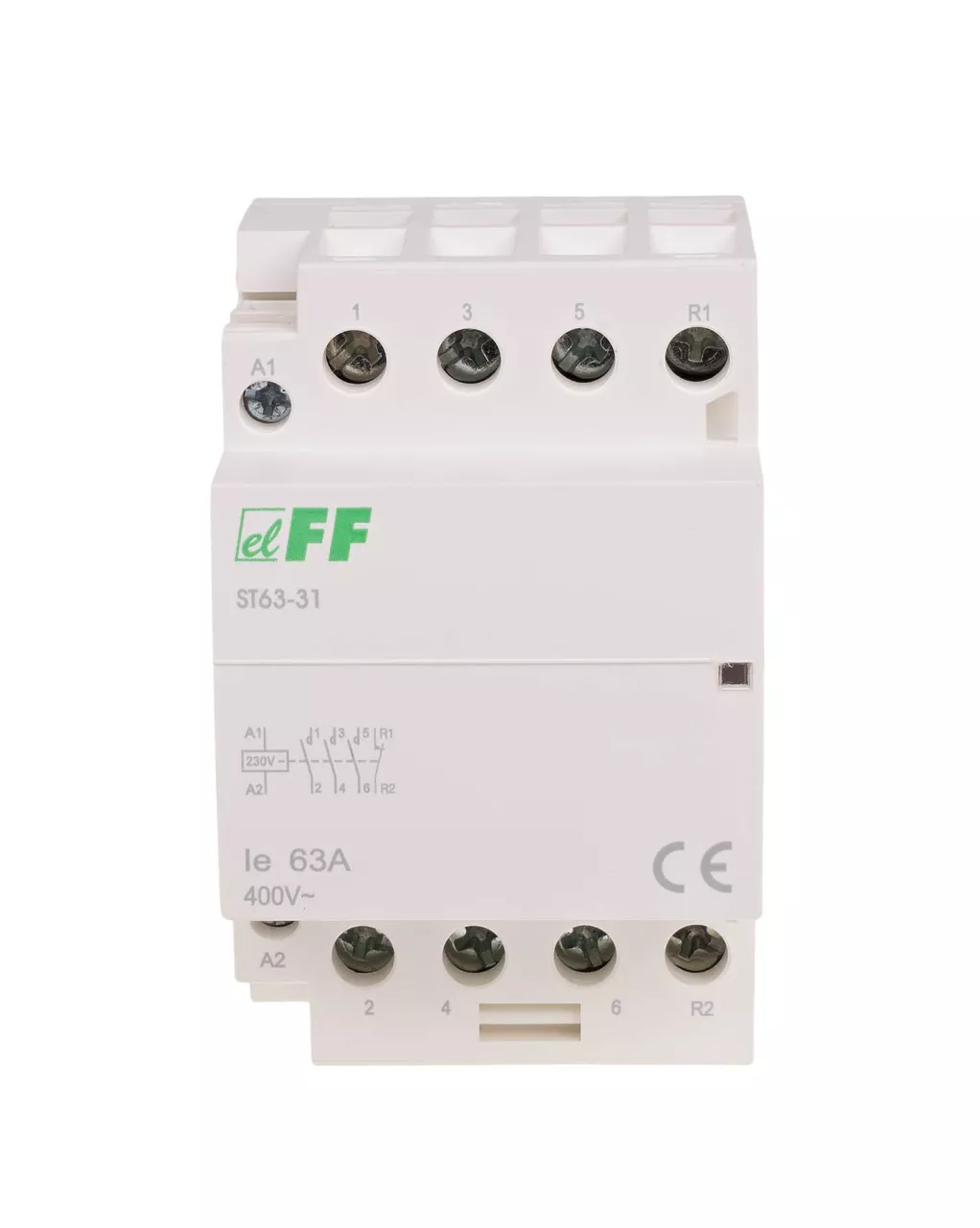

Stycznik modułowy, montaż na szynie, styki 3NO+1NC, 40A ST63-31
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | ST |
| Symbol | ST63-31 |
| GTIN(EAN) | 5908312594215 |
| Price unit | piece |
| Catalog price | 220,17 zł (179,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania cewki 230 V AC Konfiguracja styków 3×NO+1×NC Prąd torów głównych 63 A Moc łączeniowa kat. AC1 (230V) 24 kW Moc łączeniowa kat. AC3 (230V) 8,5 kW Moduł 3 Nr normy IEC 61095 Trwałość łączeniowa elektryczna 1x10⁵ Trwałość łączeniowa mechaniczna 1x10⁶ Waga 241 g Zaciski śrubowe 16 mm² Napięcie izolacji 4 kV Pobór mocy 6,4 W Temperatura pracy -25 ÷ 50 °C Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 330 g |
| ETIM class: | Installation contactor for distribution board |
| Rated operating voltage: | 230 - 230 V |
| Rated operation current: | 63 A |
| Rated excitation voltage: | 230 - 230 V |
| Voltage type (operating voltage): | AC |
| Voltage type (excitation voltage): | AC |
| Number of contacts as normally open contact: | 3 |
| Number of contacts as normally closed contact: | 1 |
| Max. incandescent lamp load: | 24000 W |
| Slider for hand switch: | no |
| Width in number of modular spacings: | 3 |
| Built-in depth: | 65 mm |
| Additional equipment possible: | no |
| Degree of protection (IP): | IP20 |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-12-04 00:03:04 |
| Files to download: |
|
| External links: |
