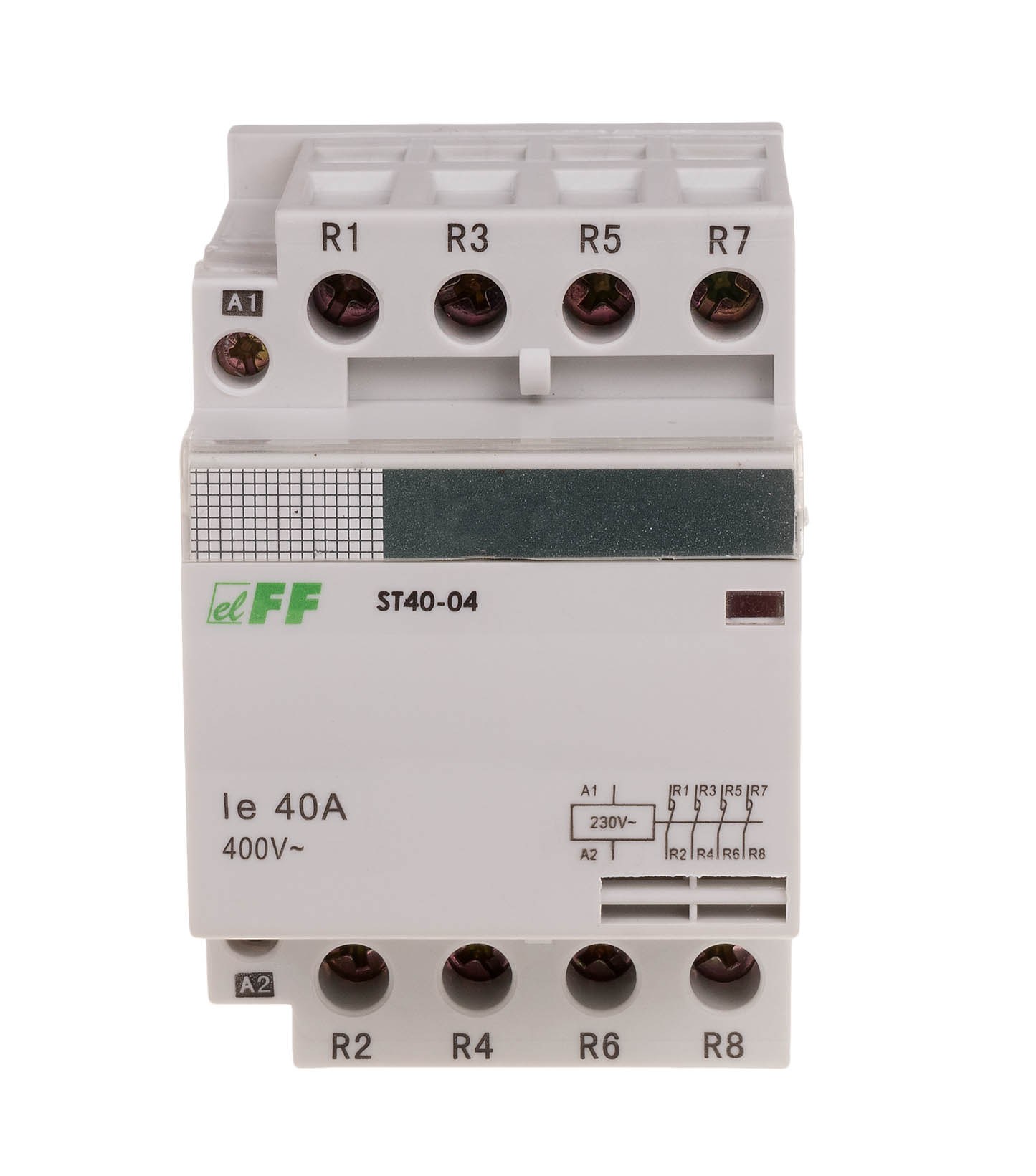

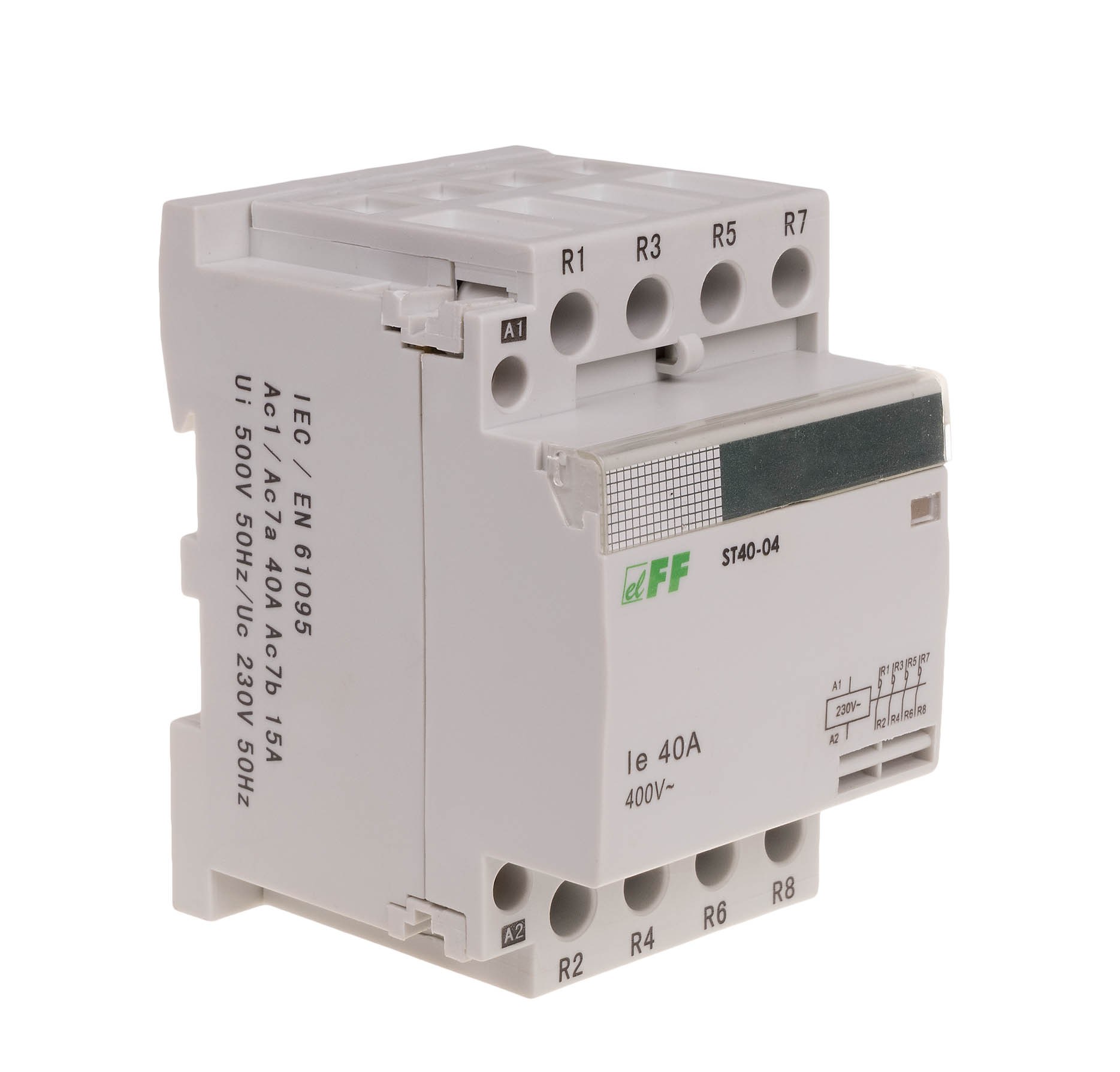

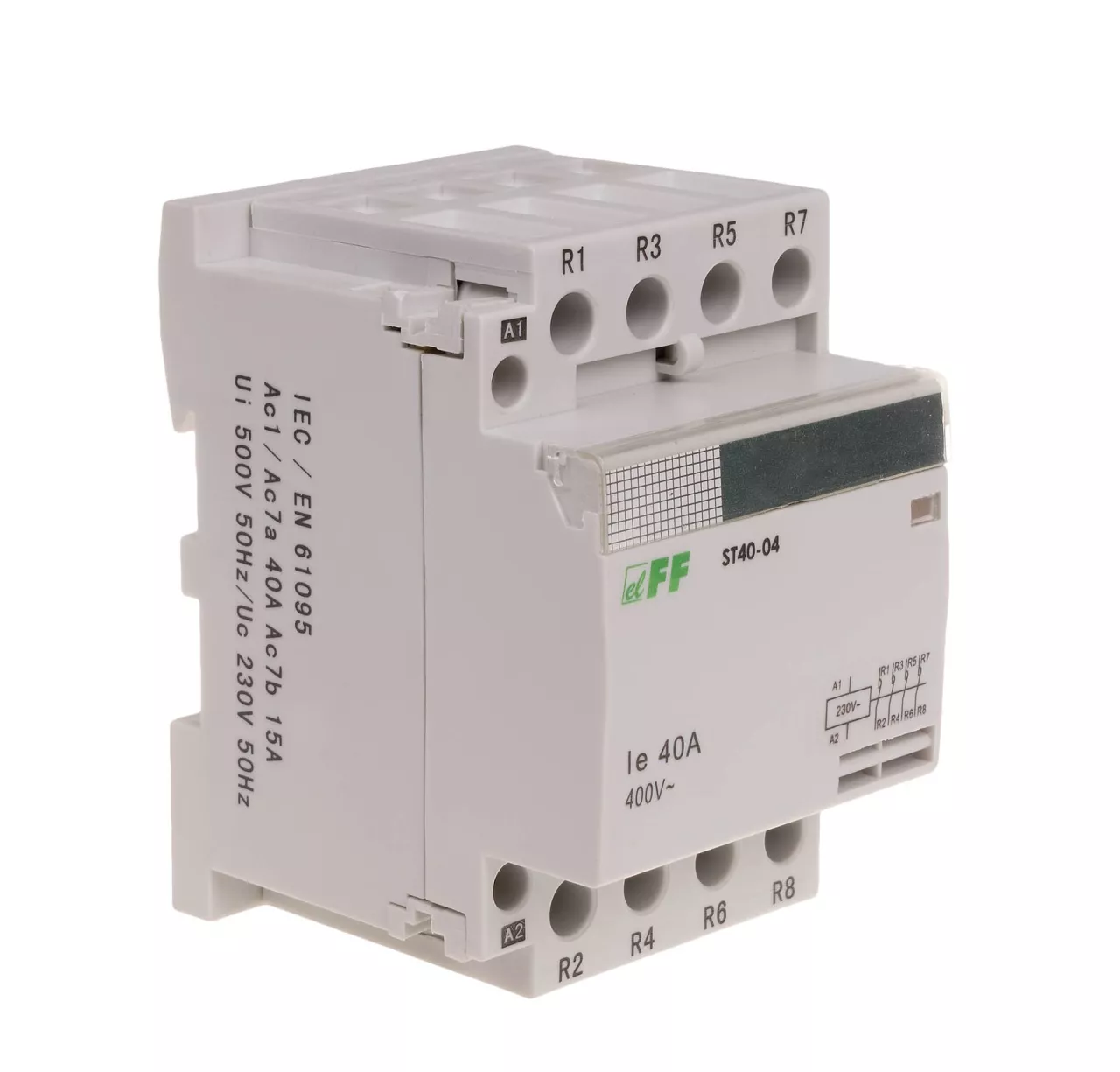

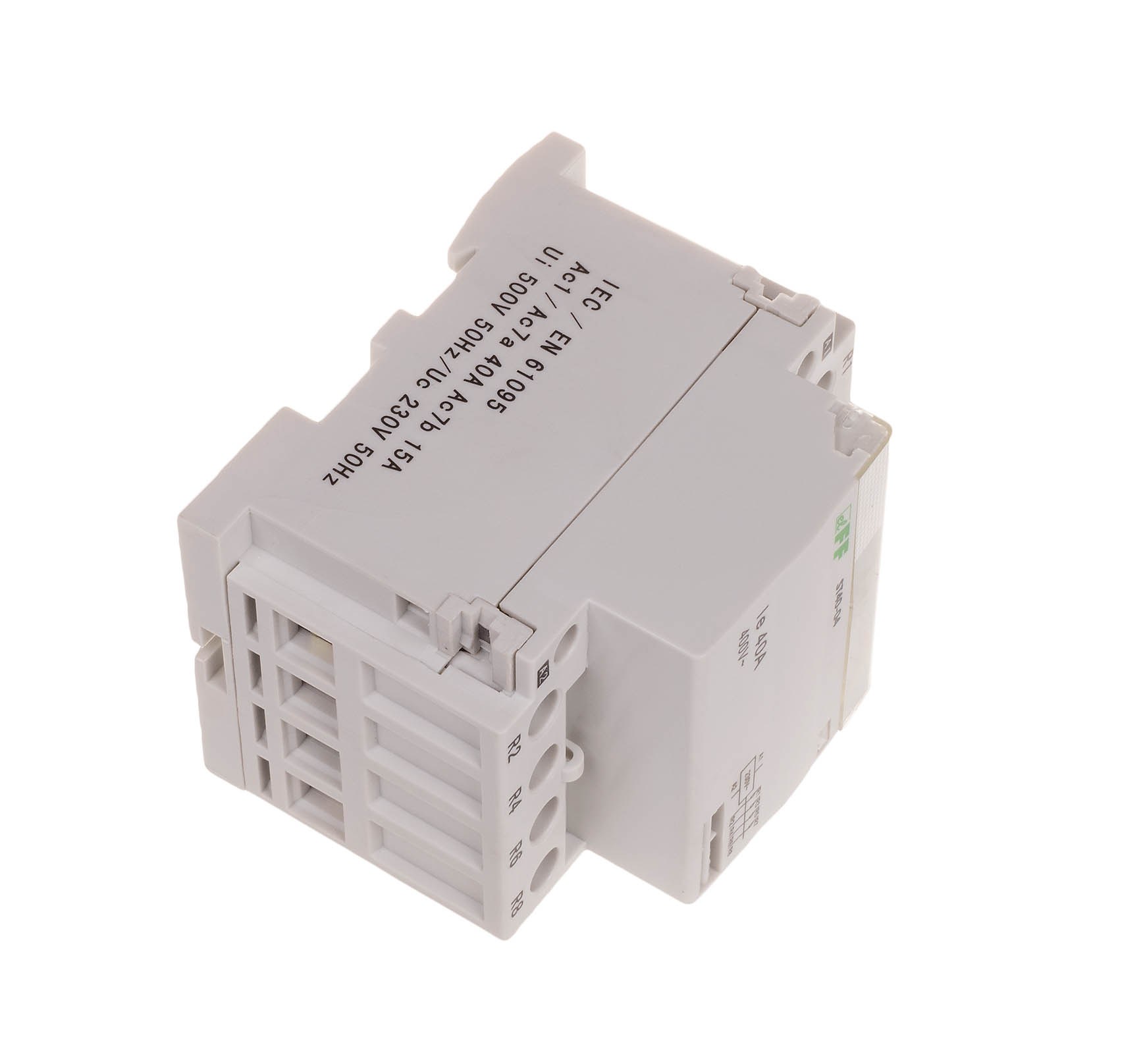

Stycznik modułowy, montaż na szynie, styki 4NC, 40A
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | ST |
| Symbol | ST40-04 |
| GTIN(EAN) | 5908312590705 |
| Price unit | piece |
| Catalog price | 244,77 zł (199,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania cewki 230 V AC Konfiguracja styków 4×NC Prąd torów głównych 40 A Moc łączeniowa kat. AC-7a: 40 A, AC-7b: 18 A Moduł 3 Nr normy IEC 61095 Trwałość łączeniowa elektryczna 1x10⁵ Trwałość łączeniowa mechaniczna 1x10⁶ Waga 241 g Zaciski śrubowe 16 mm² Napięcie izolacji 4 kV Pobór mocy 6,4 W Temperatura pracy -25 ÷ 50 °C Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 324 g |
| ETIM class: | Installation contactor for distribution board |
| Rated operating voltage: | 230 - 230 V |
| Rated operation current: | 40 A |
| Rated excitation voltage: | 230 - 230 V |
| Voltage type (operating voltage): | AC |
| Voltage type (excitation voltage): | AC |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as normally closed contact: | 4 |
| Max. incandescent lamp load: | 16000 W |
| Slider for hand switch: | no |
| Width in number of modular spacings: | 3 |
| Built-in depth: | 65 mm |
| Additional equipment possible: | no |
| Degree of protection (IP): | IP20 |
