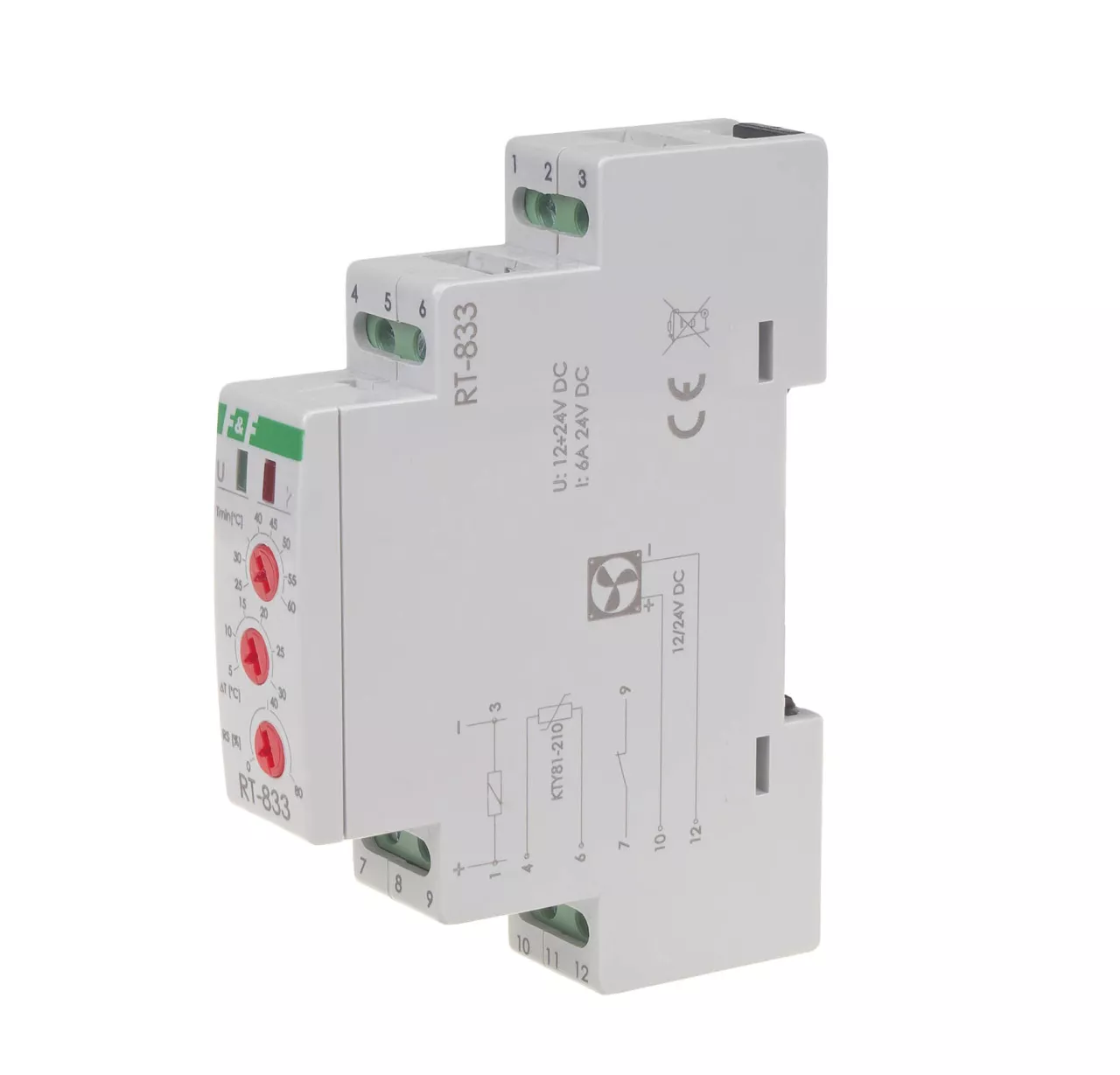

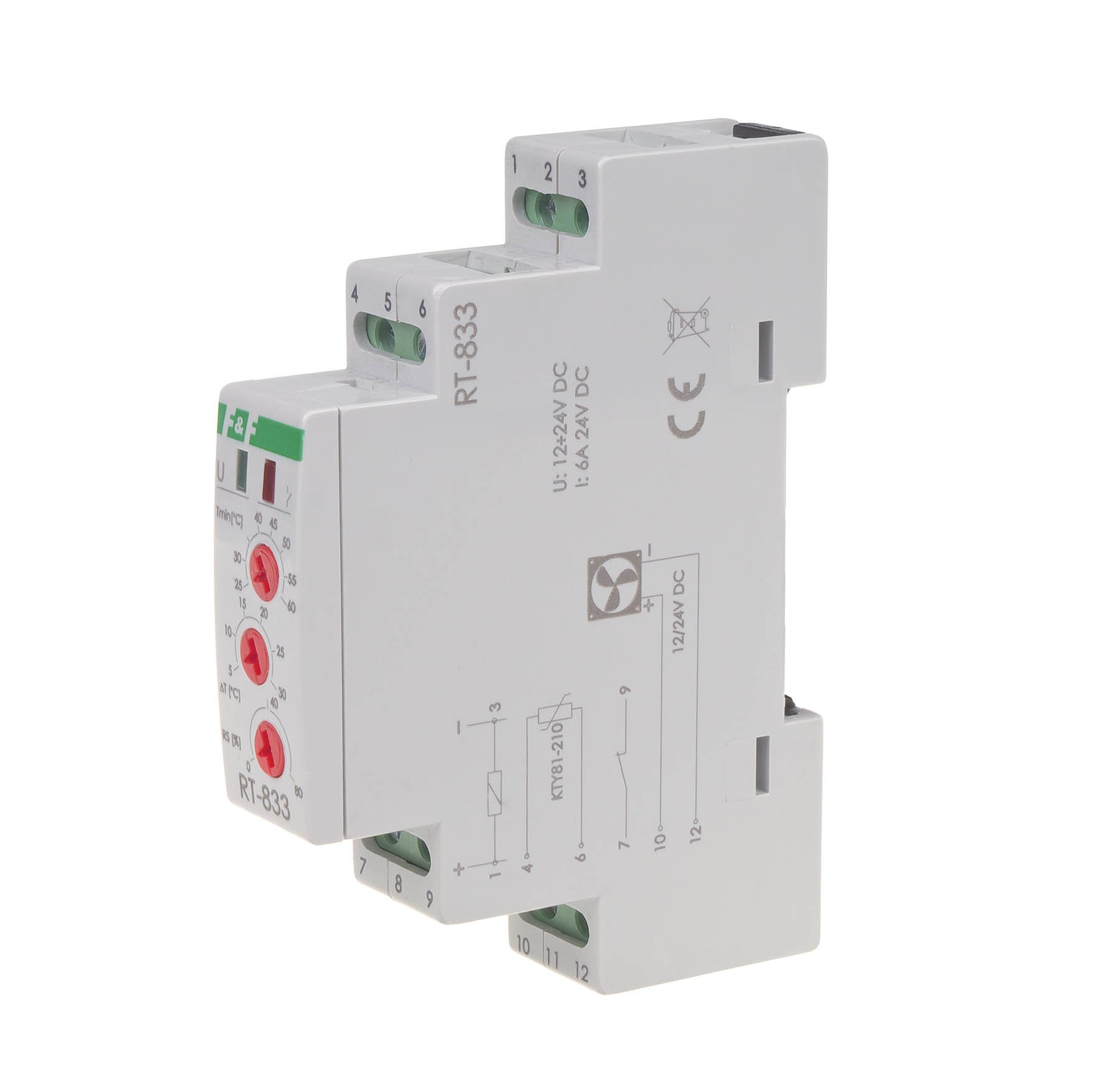

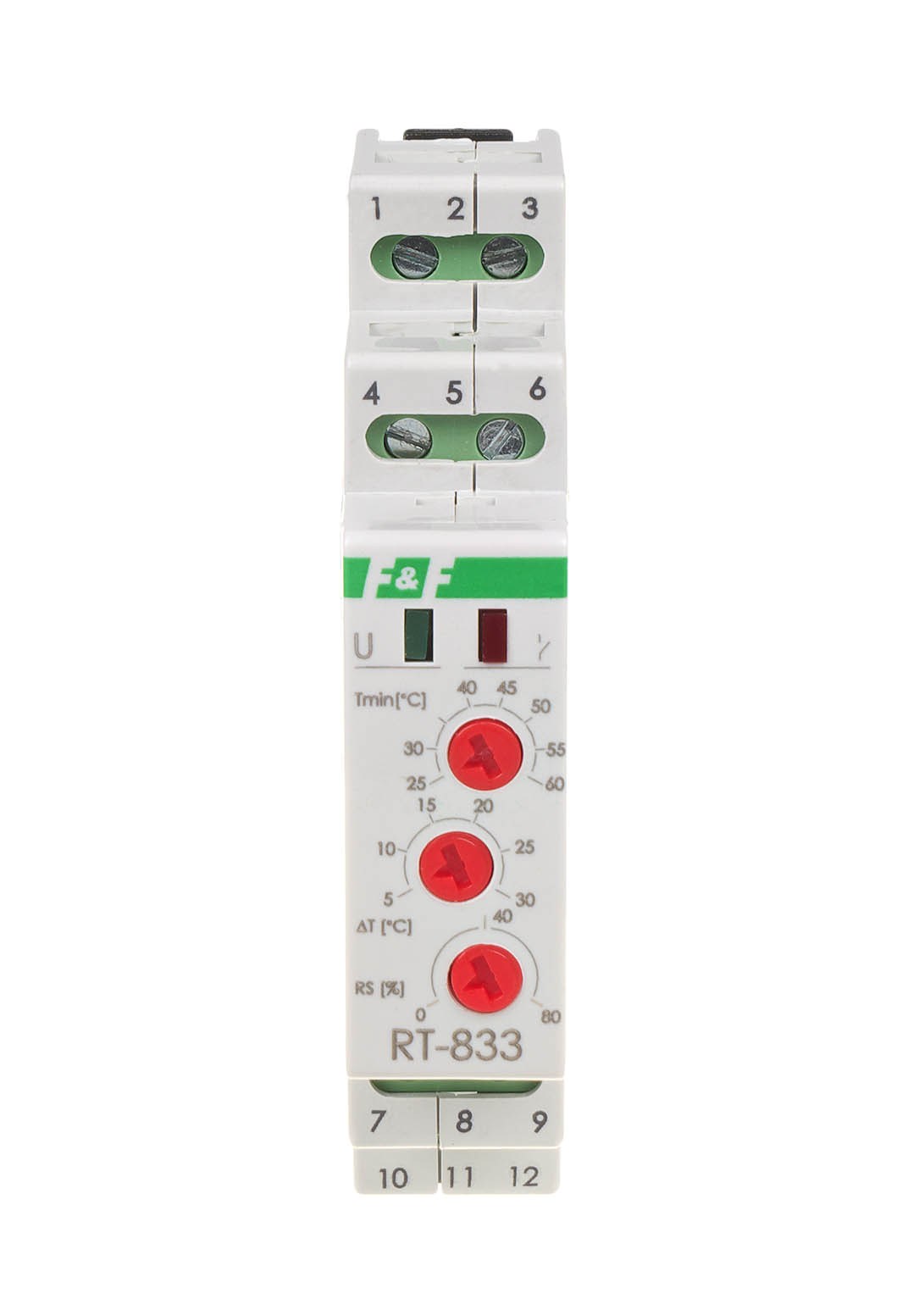

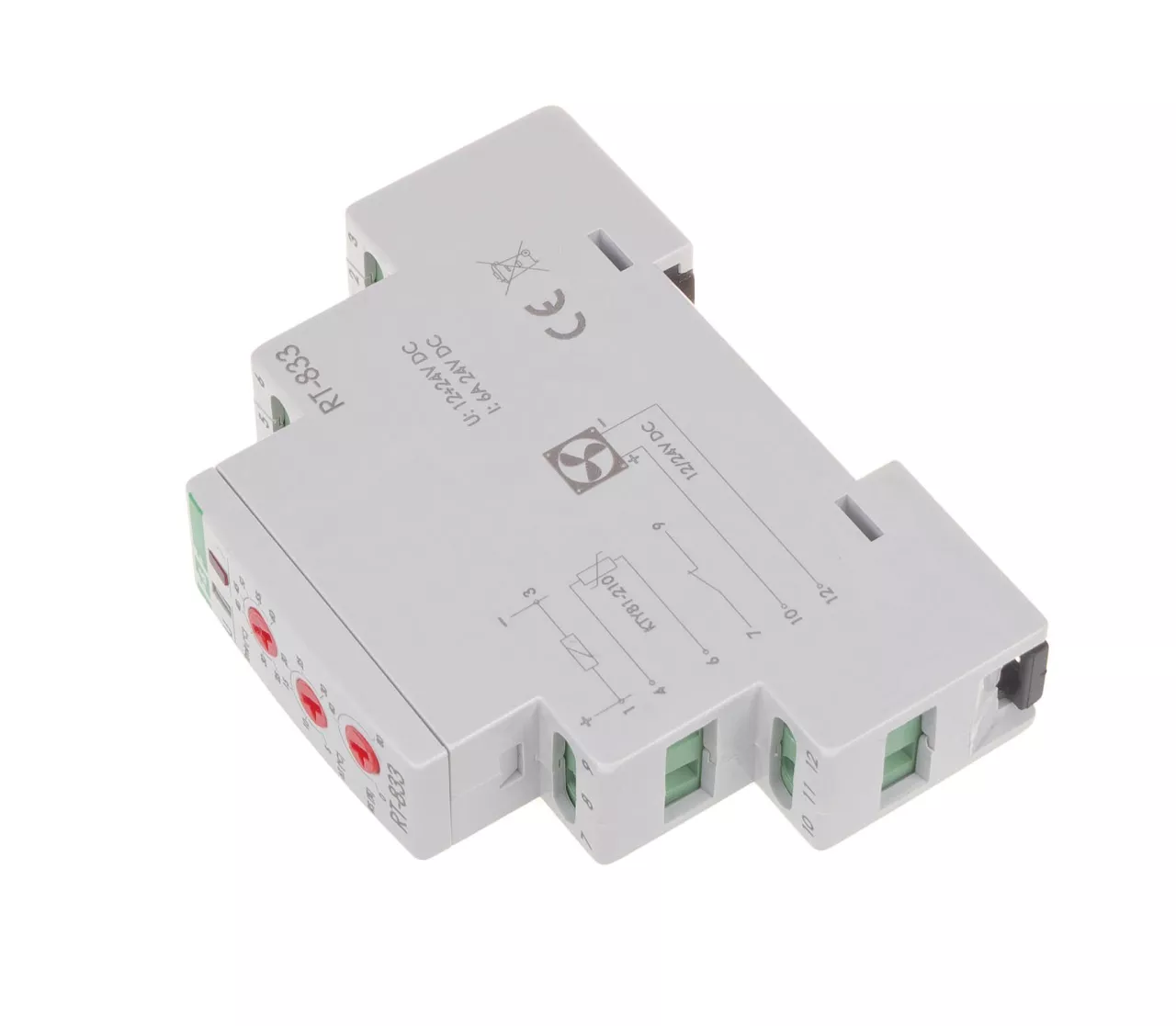

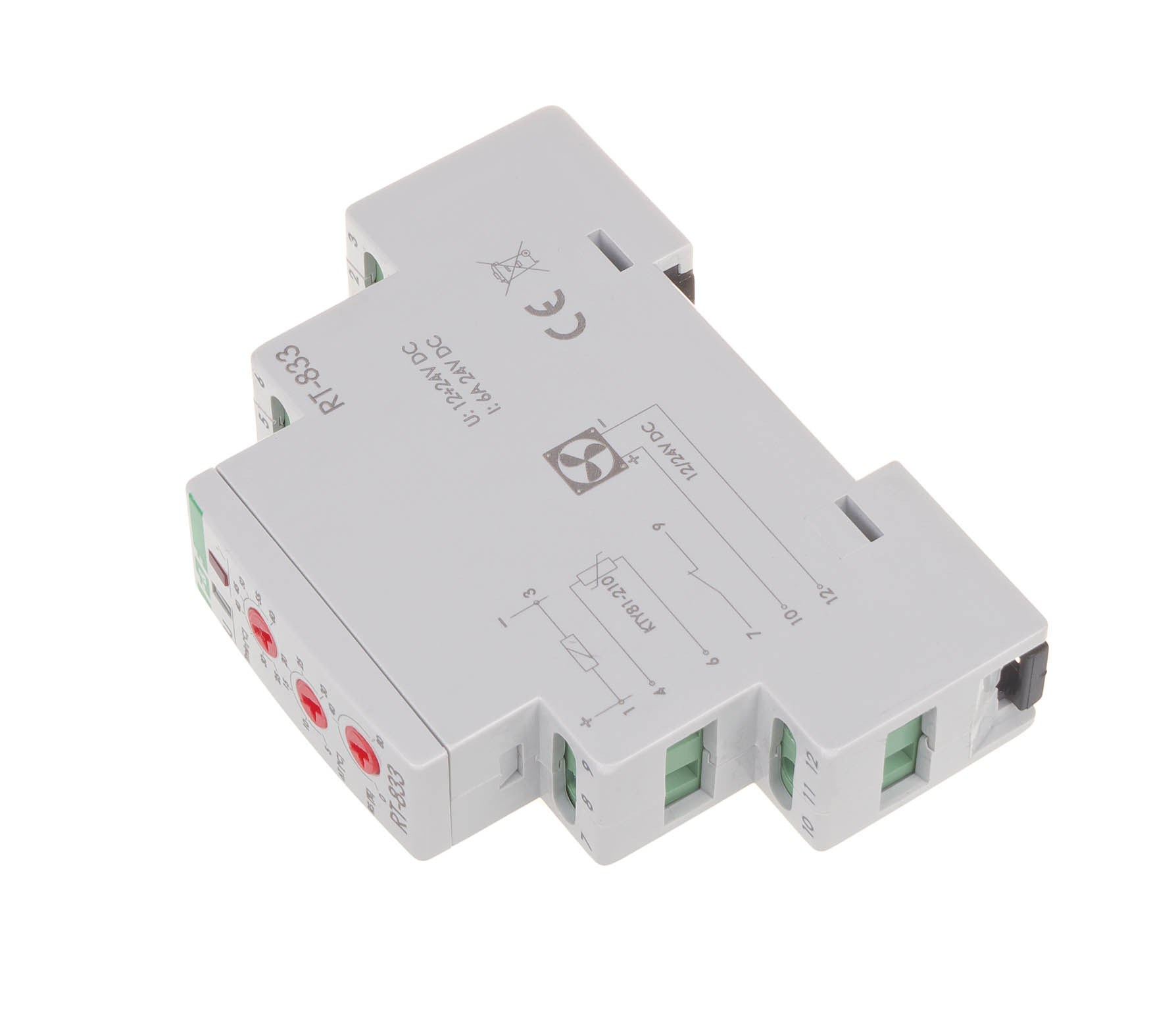

Regulator temperatury z regulacją prędkości obrotowej wentylatora montaż na szynie DIN styk: 1NO/NC 230V AC
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | RT |
| Symbol | RT-833 |
| GTIN(EAN) | 5908312598596 |
| Price unit | piece |
| Catalog price | 200,49 zł (163,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 12÷24 V DC Dokładność pomiaru ±1°C Sonda temperatury RT/RT2 Prąd obciążenia DC (7-9) 6 A Styk (obciążenie) separowany 1 x NO/NC (10 A) Zakres regulacji temperatury Tmin 25÷60°C Zakres regulacji temperatury ΔT 5÷30°C Nastawa prędkości startowej 0÷80% Przyłącze zaciski śrubowe 2,5 mm² Moment dokręcający 0,4 Nm Pobór mocy czuwanie/praca 0,05 W/0,6 W Temperatura pracy -15 ÷ 50°C Wymiary 1 moduł (18 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 46 g |
| ETIM class: | Temperature controller for distribution board |
| Model: | Digital |
| Sensor type: | Remote sensor |
| Rated voltage: | 12 - 24 V |
| Rated frequency: | 0 - 0 Hz |
| Number of channels: | 1 |
| Text guidance in display: | no |
| 24 h program: | no |
| Weekly program: | no |
| Number of memory locations: | 1 |
| Number of basic programs standard: | 1 |
| Holiday program: | no |
| Input for time program: | no |
| Adjustment range comfort: | 25 - 60 °C |
| Adjustment range set-back: | 0 - 100 °C |
| Autonomy: | 0 h |
| Automatic switching summer-/winter time: | no |
| Operation mode switch: | no |
| Switching preselection: | no |
| Contact type: | Change-over contact |
| Nominal switching current at 250 V, potential free: | 10 A |
| Nominal switching current at 230 V, not potential free: | 10 A |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 1 |
| Assembly depth: | 65 mm |
