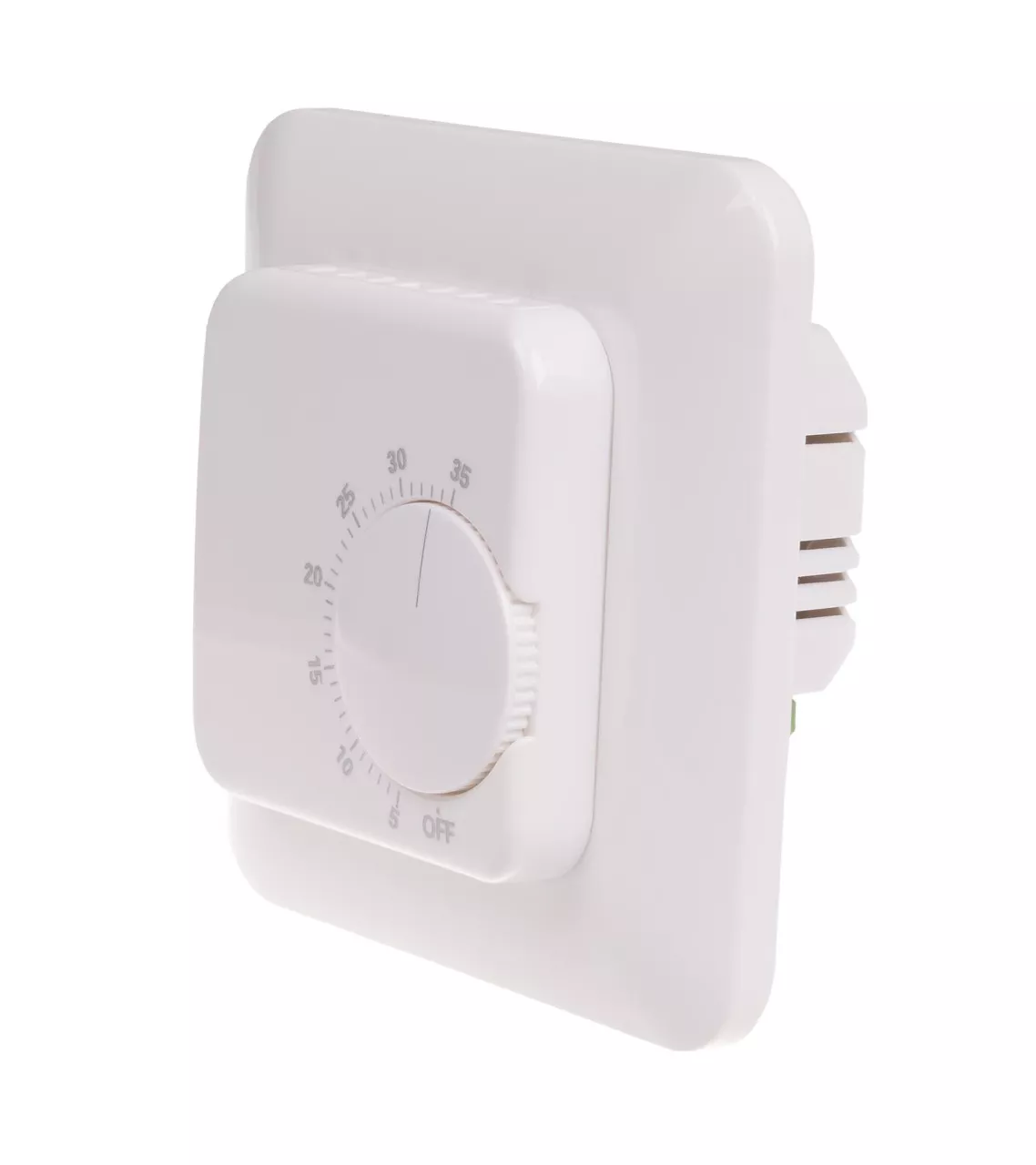

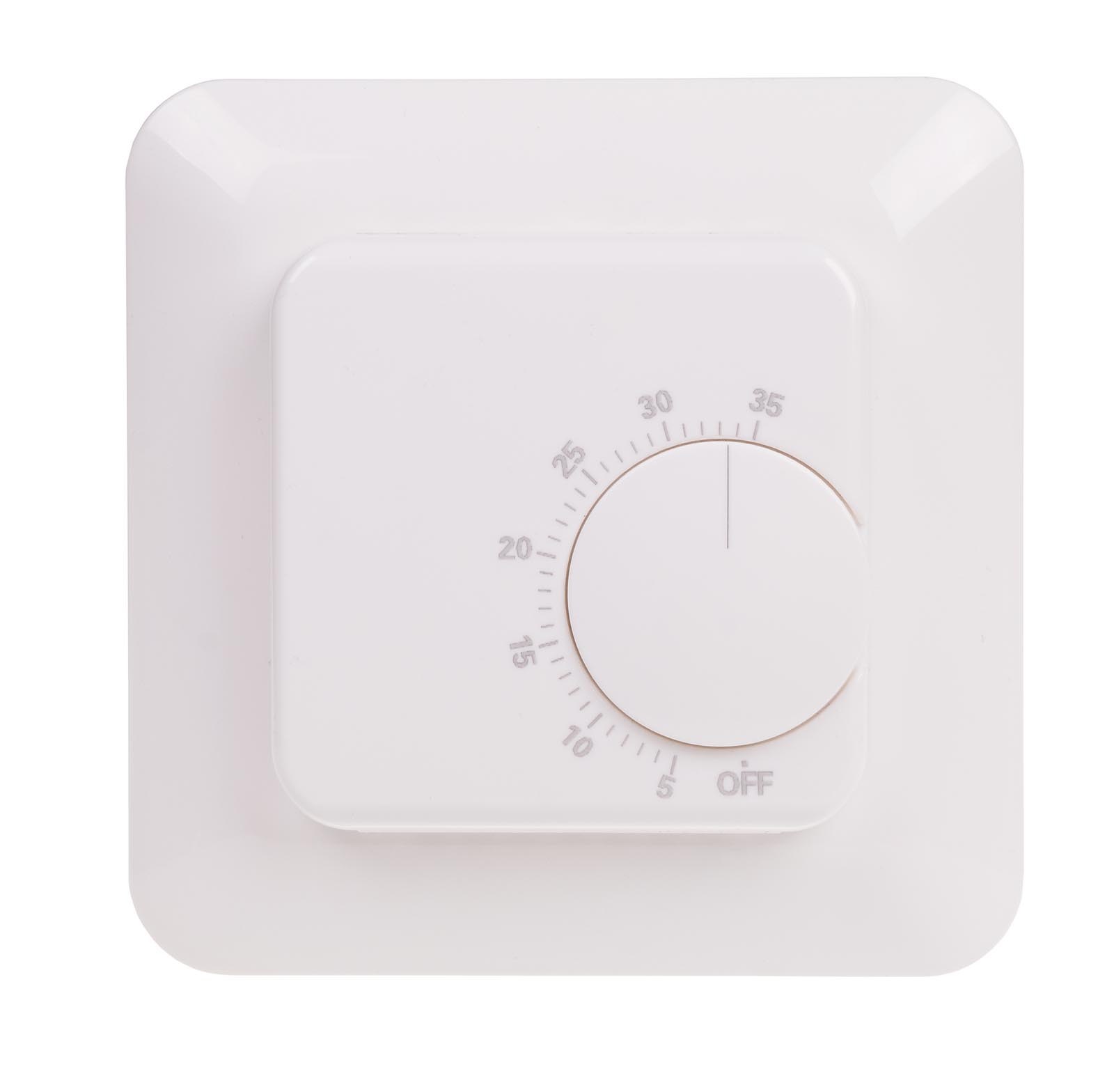

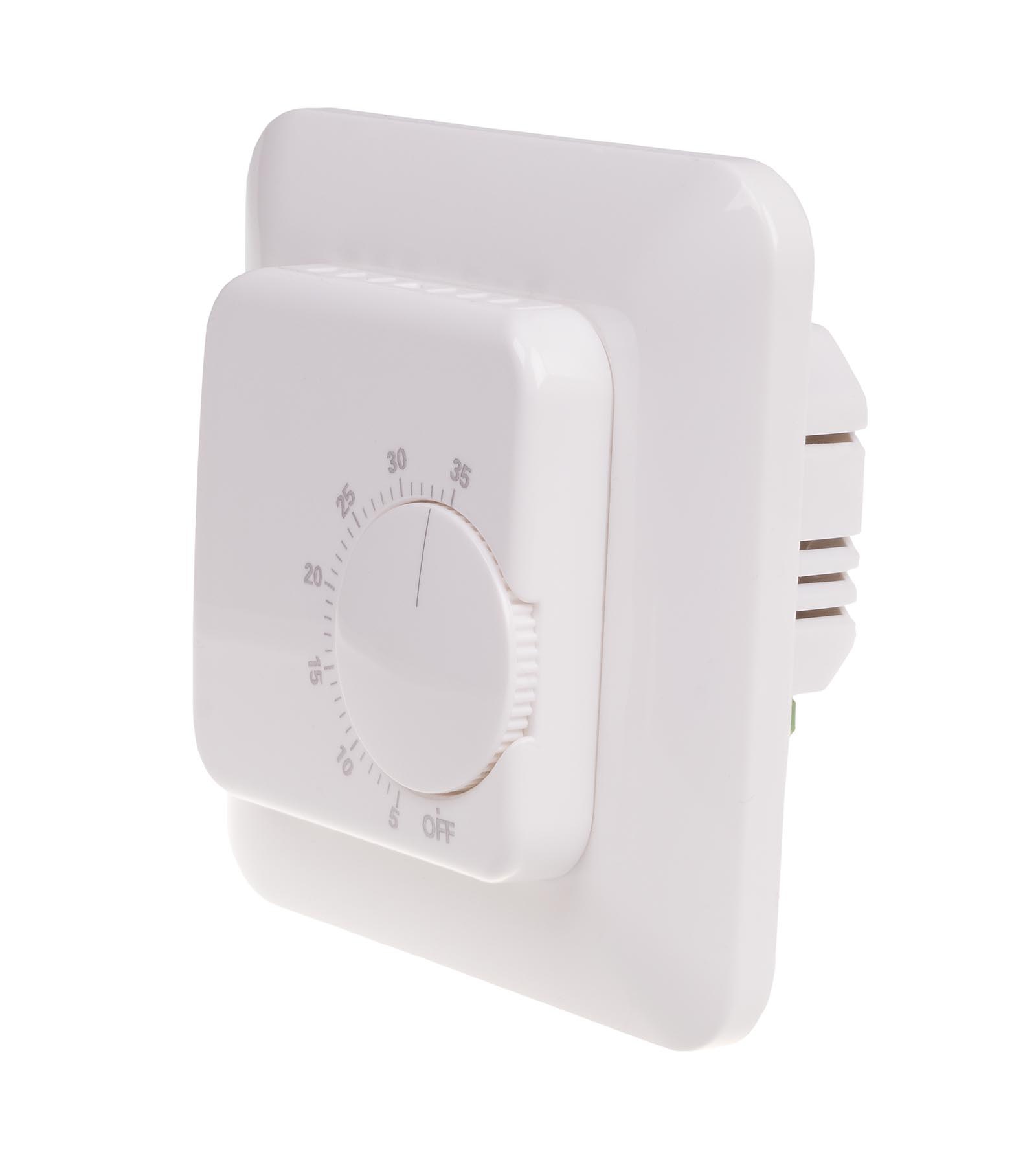

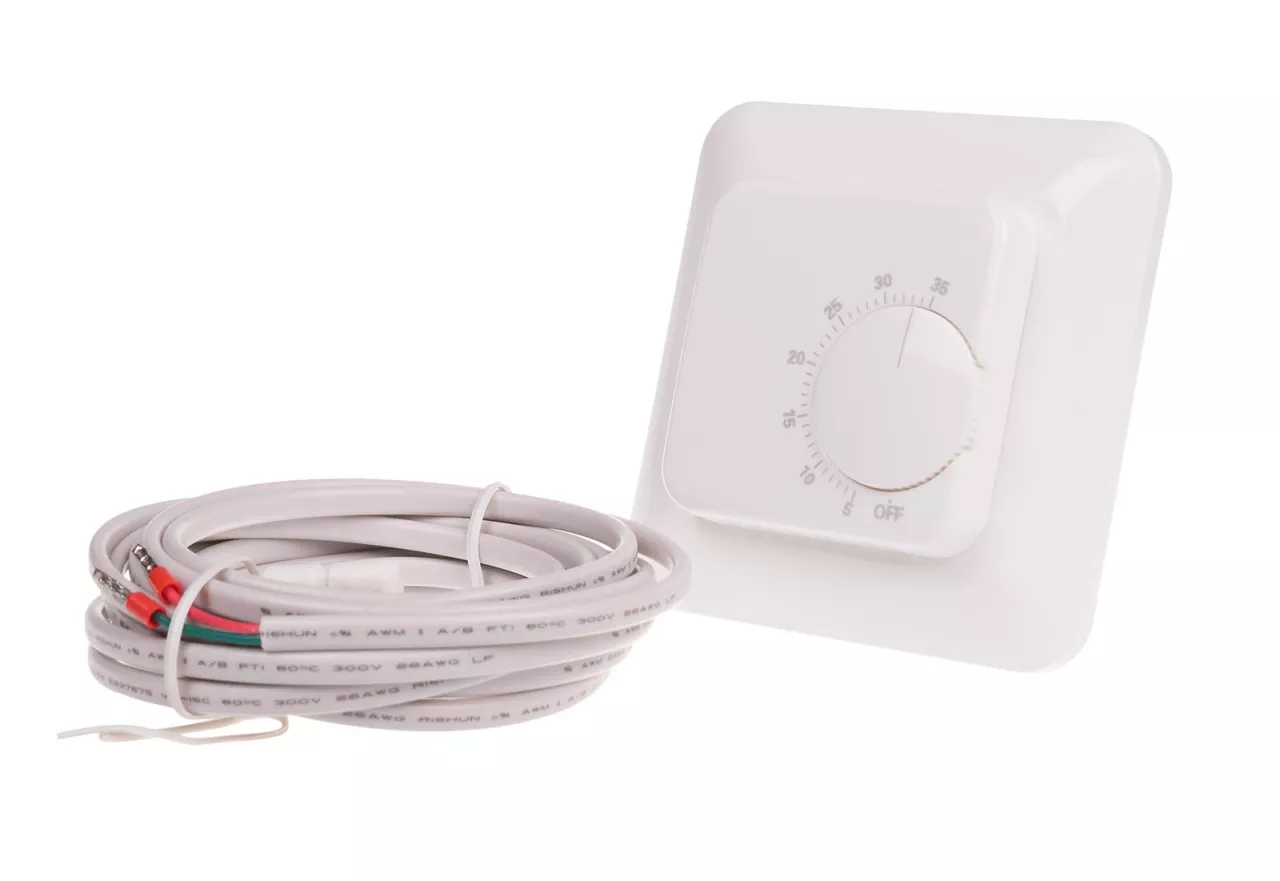

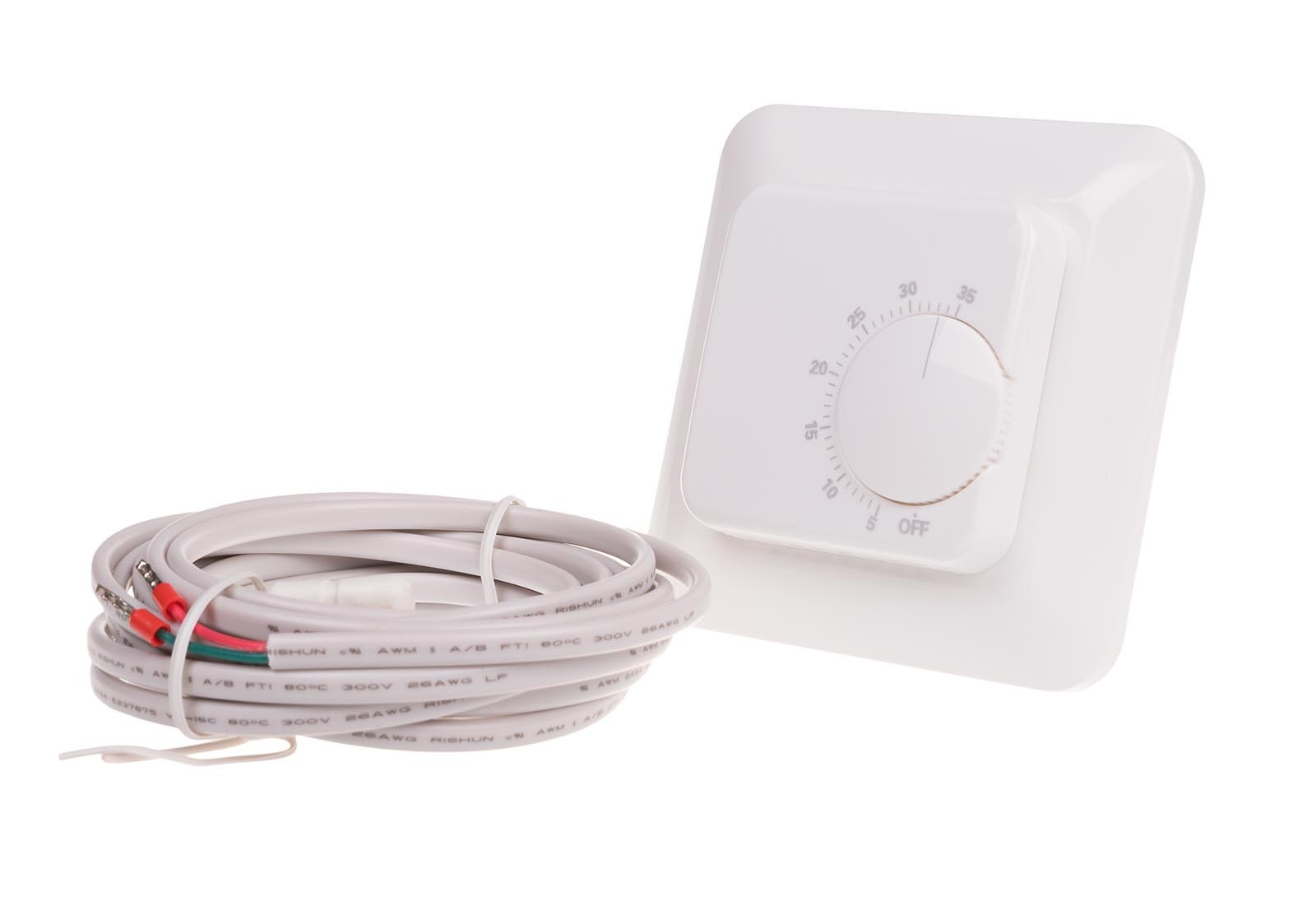

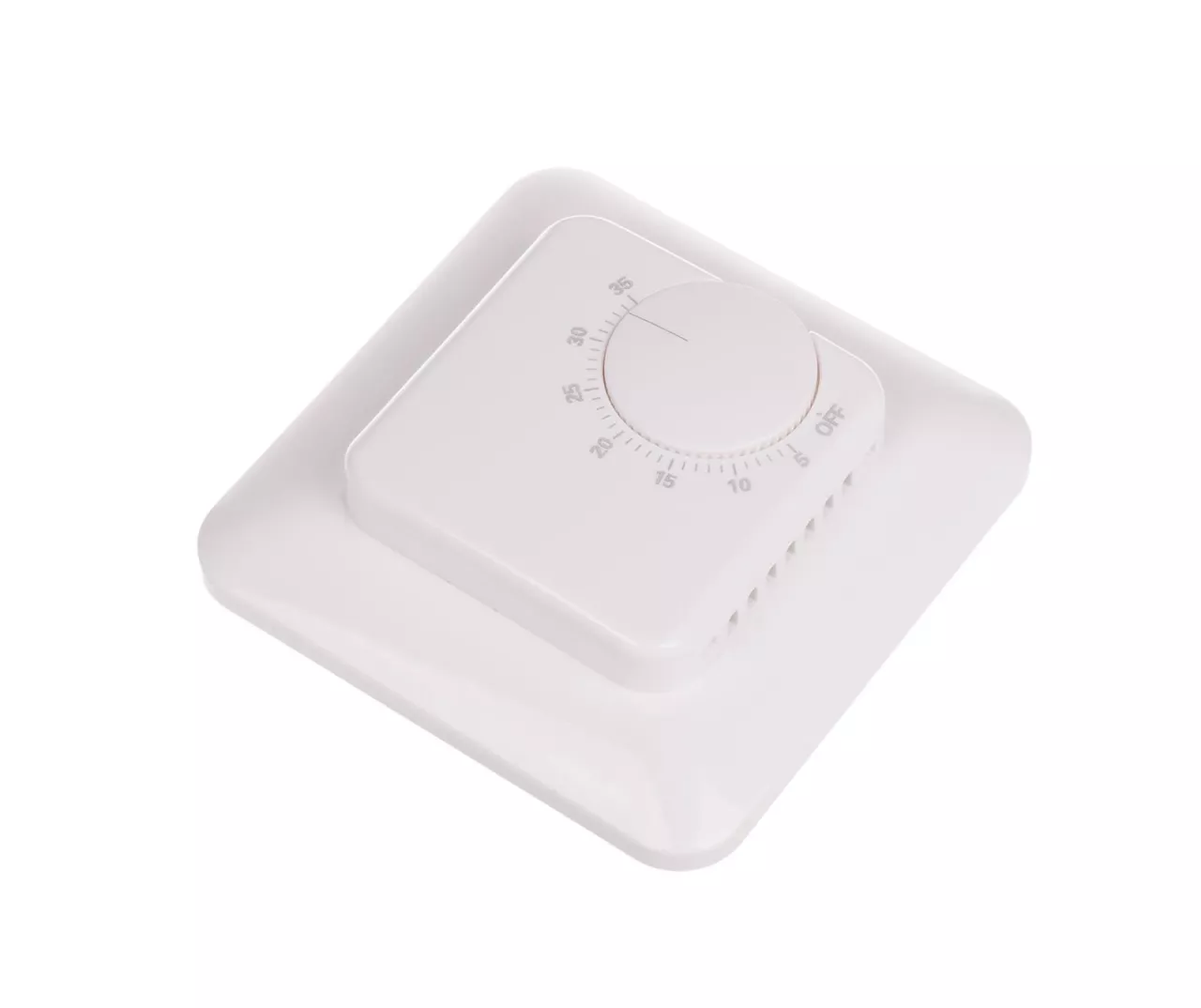

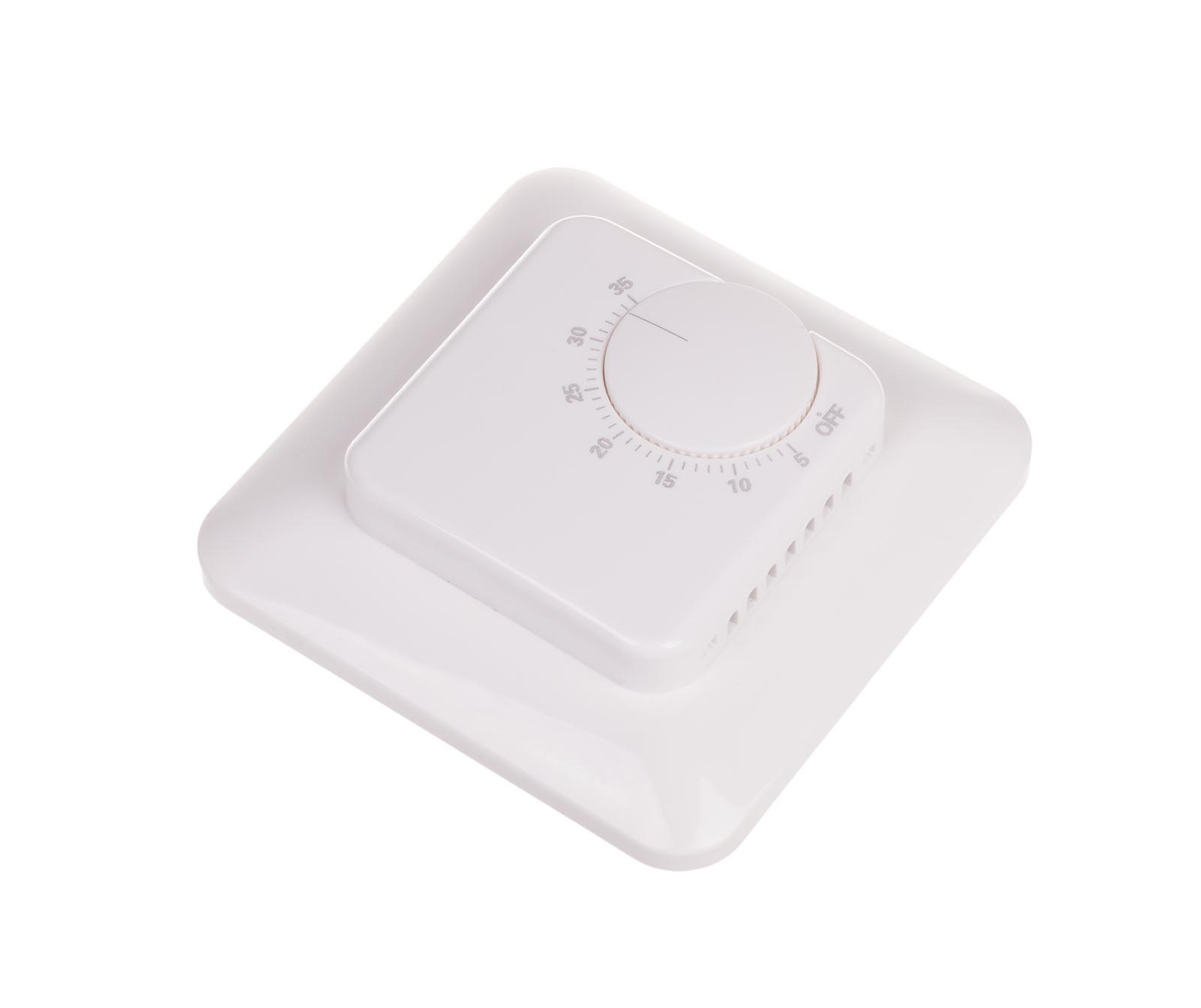

Regulator temperatury - zakres temperatur 5÷35°C montaż podtynkowy styk 1NO 230V AC
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | RT |
| Symbol | RT-824 |
| GTIN(EAN) | 5908312592631 |
| Price unit | piece |
| Catalog price | 182,04 zł (148,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 230 V AC Element wykonawczy przekaźnik Maksymalny prąd obciążenia 16 A Konfiguracja styków 1 × NO Separacja styku NIE Zakres regulacji temperatury 5÷35°C Histereza 3°C Dokładność nastawy 1°C Dokładność pomiaru ±1°C Sonda temperatury RT45 Wewnętrzny czujnik temperatury NTC Przyłącze zaciski śrubowe 1,5 mm² Moment dokręcający 0,4 Nm Pobór mocy 0,8 W Temperatura pracy -5÷50°C Wymiary front: 83,5×83,5 mm; gł.22 mm , tył Ø50; gł.27,5 mm Montaż w puszce podtynkowej Ø60 Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 242 g |
| ETIM class: | Room thermostat |
| Model: | On/Off |
| Type of power supply: | 230 V AC |
| Connection: | 2-wire |
| Measuring range: | 35 - 35 °C |
| External sensor: | yes |
| Control characteristic: | P |
| Suitable for heating: | yes |
| Number of heater outputs: | 1 |
| Adjustable differential: | no |
| Temperature readable: | no |
| With sound indicator: | no |
| Sensor/feeler type: | Resistance sensor |
| Mounting method: | Flush-mounted |
| With display: | no |
| Operation: | Turn |
| Contact type: | Normally open contact (NO) |
| Max. contact voltage: | 230 V |
| Max. contact load: | 16 A |
| Degree of protection (IP): | IP20 |
| Explosion-proof: | no |
| Colour: | White |
| Height: | 83.5 mm |
| Width: | 83.5 mm |
| Depth: | 22 mm |
| Standby power consumption (solstandby): | 0.8 W |
