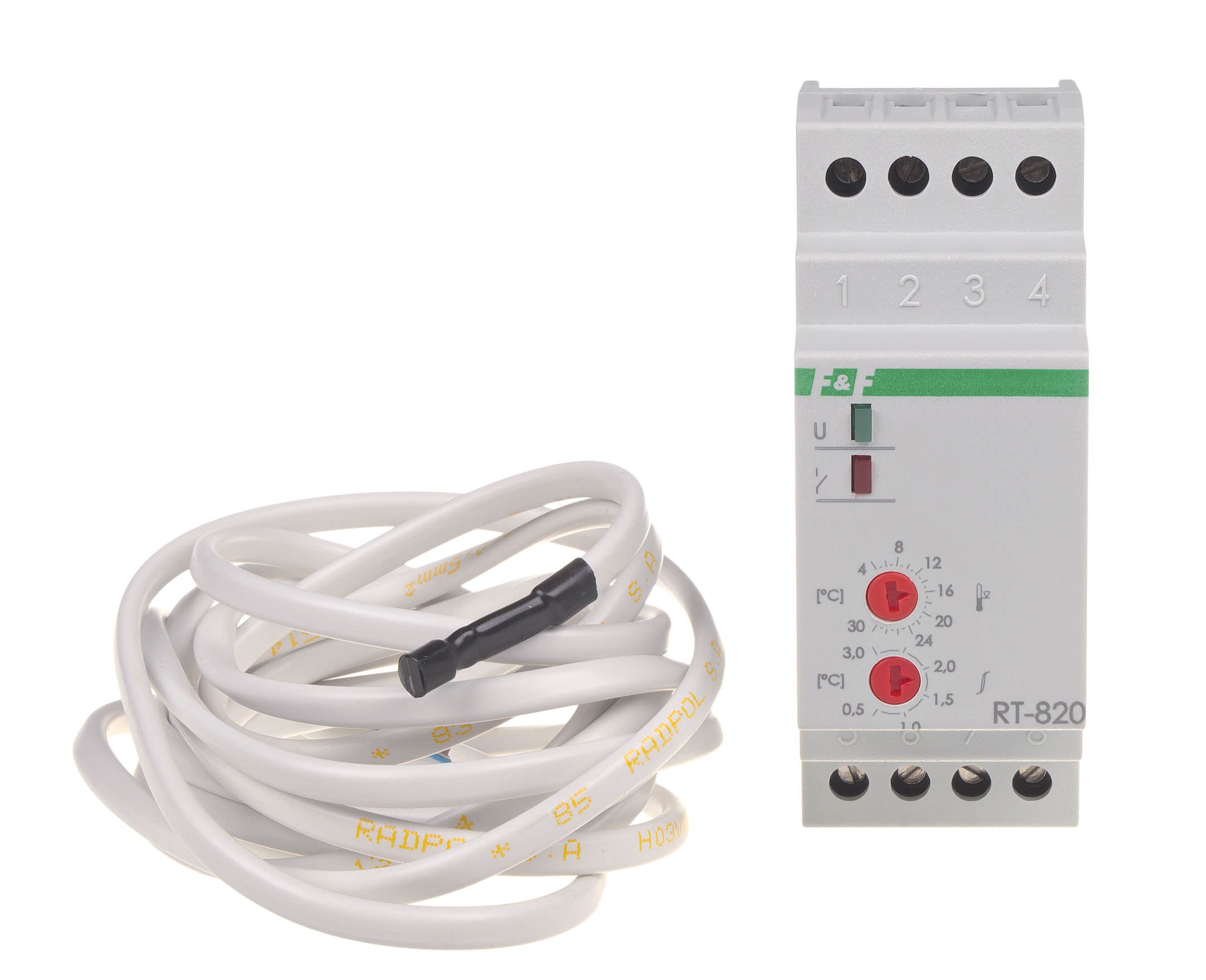

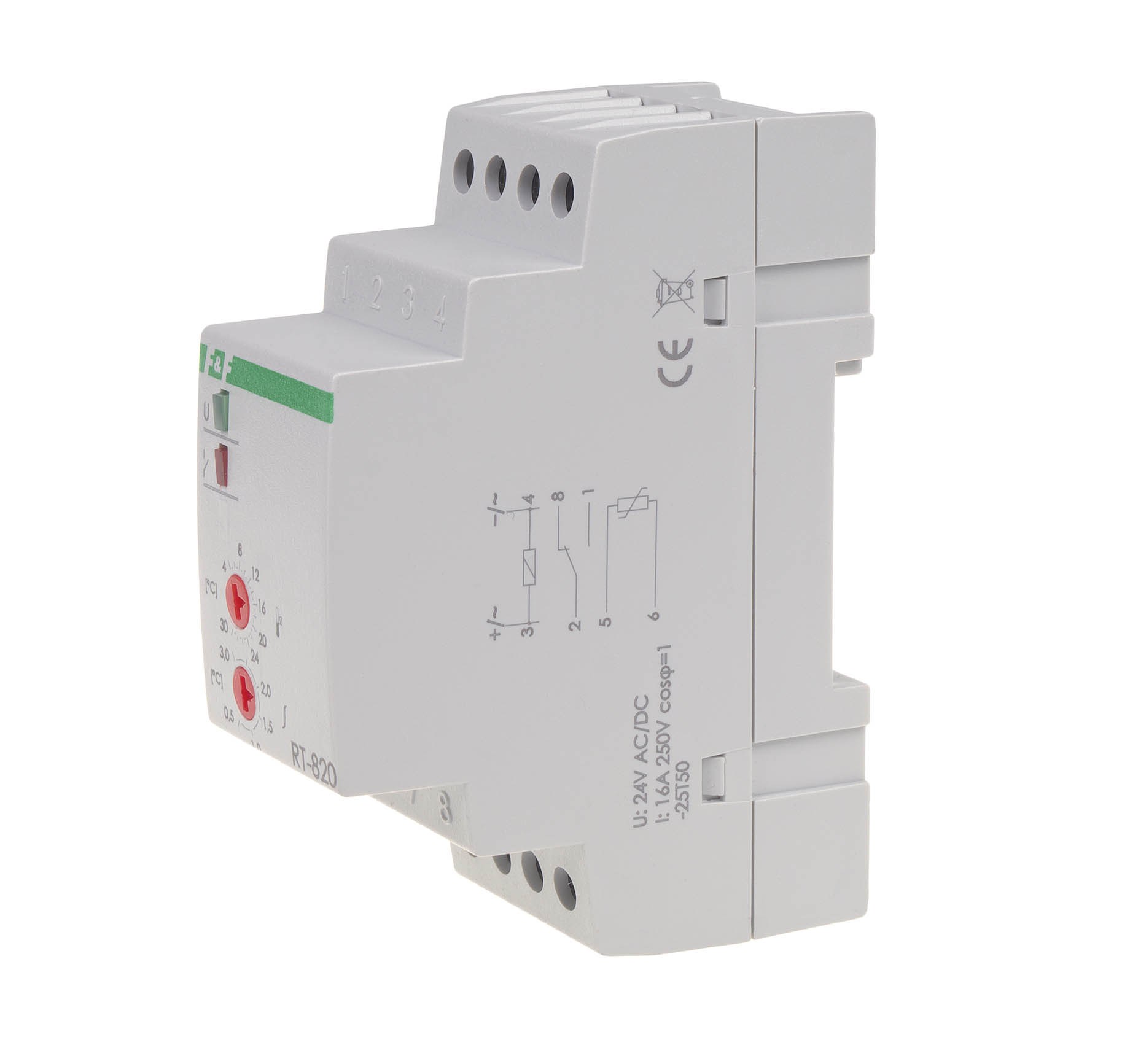

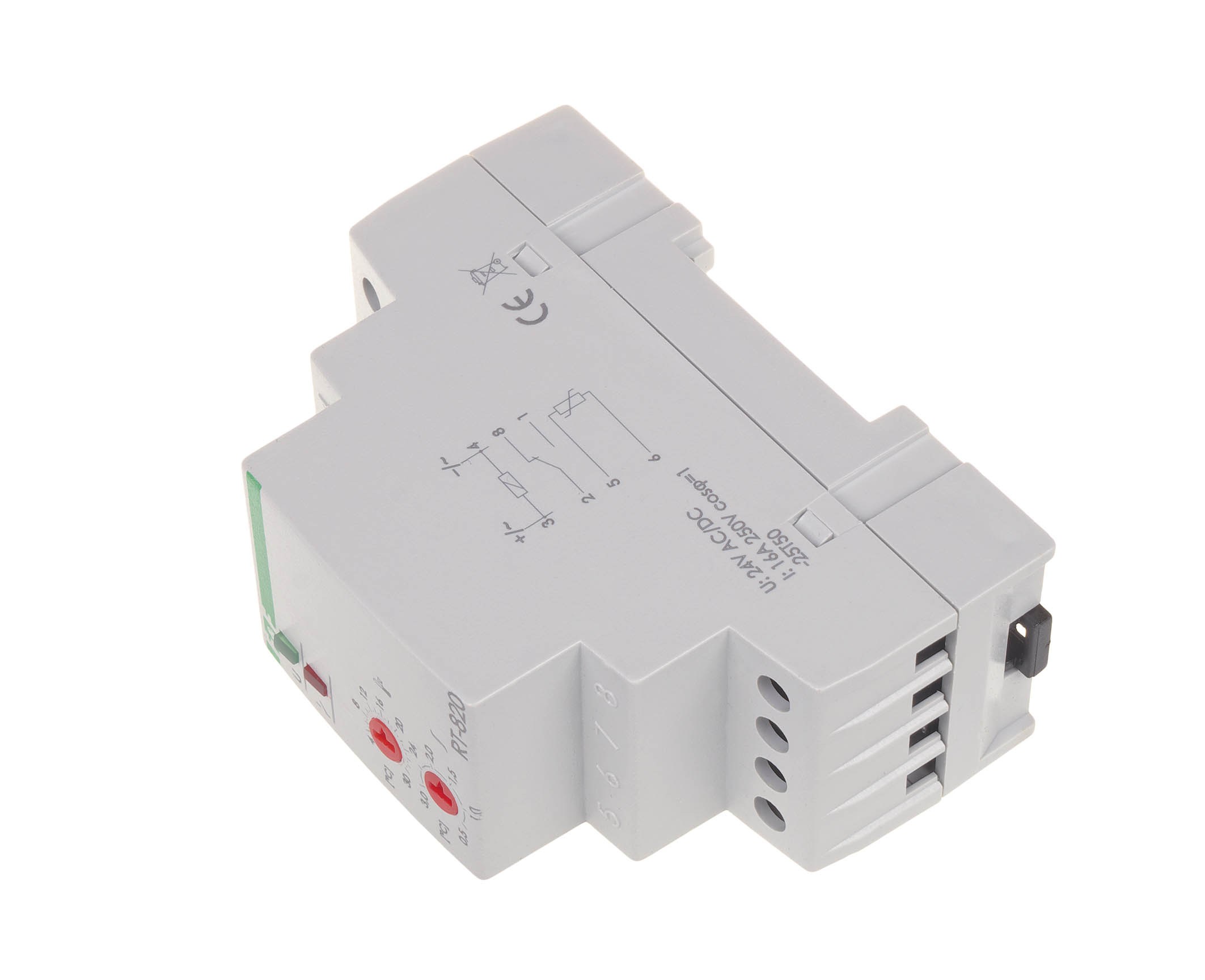

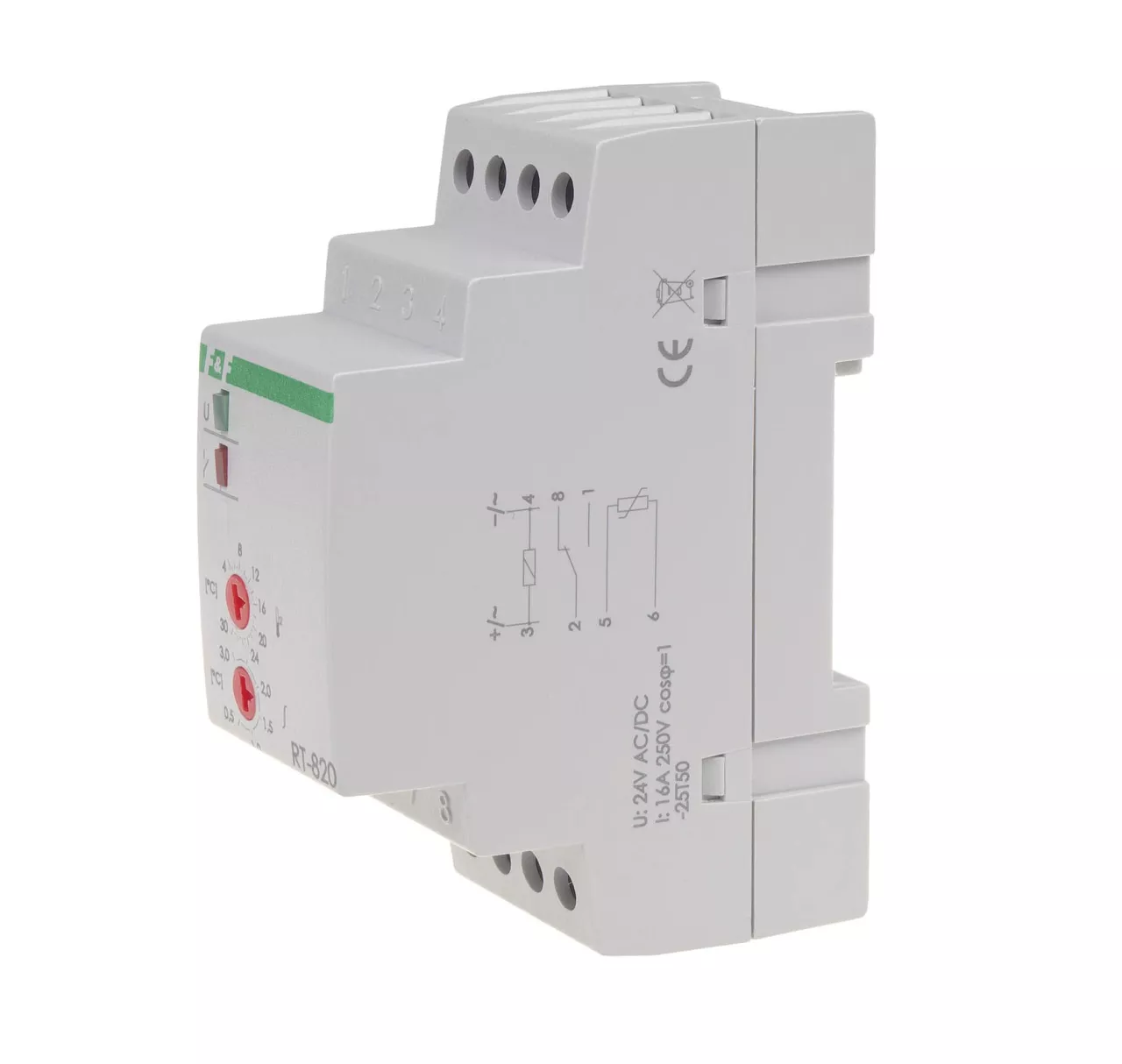

Regulator temperatury - zakres temperatur 4÷30°C montaz na szynie DIN, styk: 1NO/NC 230V AC
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | RT |
Symbol | RT-820 |
GTIN(EAN) | 5908312595700 |
Price unit | piece |
Catalog price | 215,25 zł (175,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 230 V AC Element wykonawczy przekaźnik Maksymalny prąd obciążenia 16 A Konfiguracja styków 1 × NO/NC Separacja styku TAK Zakres regulacji temperatury 4÷30°C Histereza - regulowana 0,5÷3°C Dokładność nastawy 1°C Dokładność pomiaru ±1°C Sonda temperatury RT Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Pobór mocy 1,1 W Temperatura pracy -25 ÷ 50 °C Wymiary 2 moduły (35 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
Information | Value |
---|---|
Gross weight: | 172 g |
ETIM class: | Temperature controller for distribution board |
Model: | Digital |
Sensor type: | Remote sensor |
Rated voltage: | 230 - 230 V |
Rated frequency: | 50 - 50 Hz |
Number of channels: | 1 |
Text guidance in display: | no |
24 h program: | no |
Weekly program: | no |
Holiday program: | no |
Input for time program: | no |
Adjustment range comfort: | 4 - 30 °C |
Automatic switching summer-/winter time: | no |
Switching preselection: | no |
Contact type: | Change-over contact |
Nominal switching current at 230 V, not potential free: | 16 A |
Degree of protection (IP): | IP20 |
Width in number of modular spacings: | 2 |
Assembly depth: | 65 mm |
