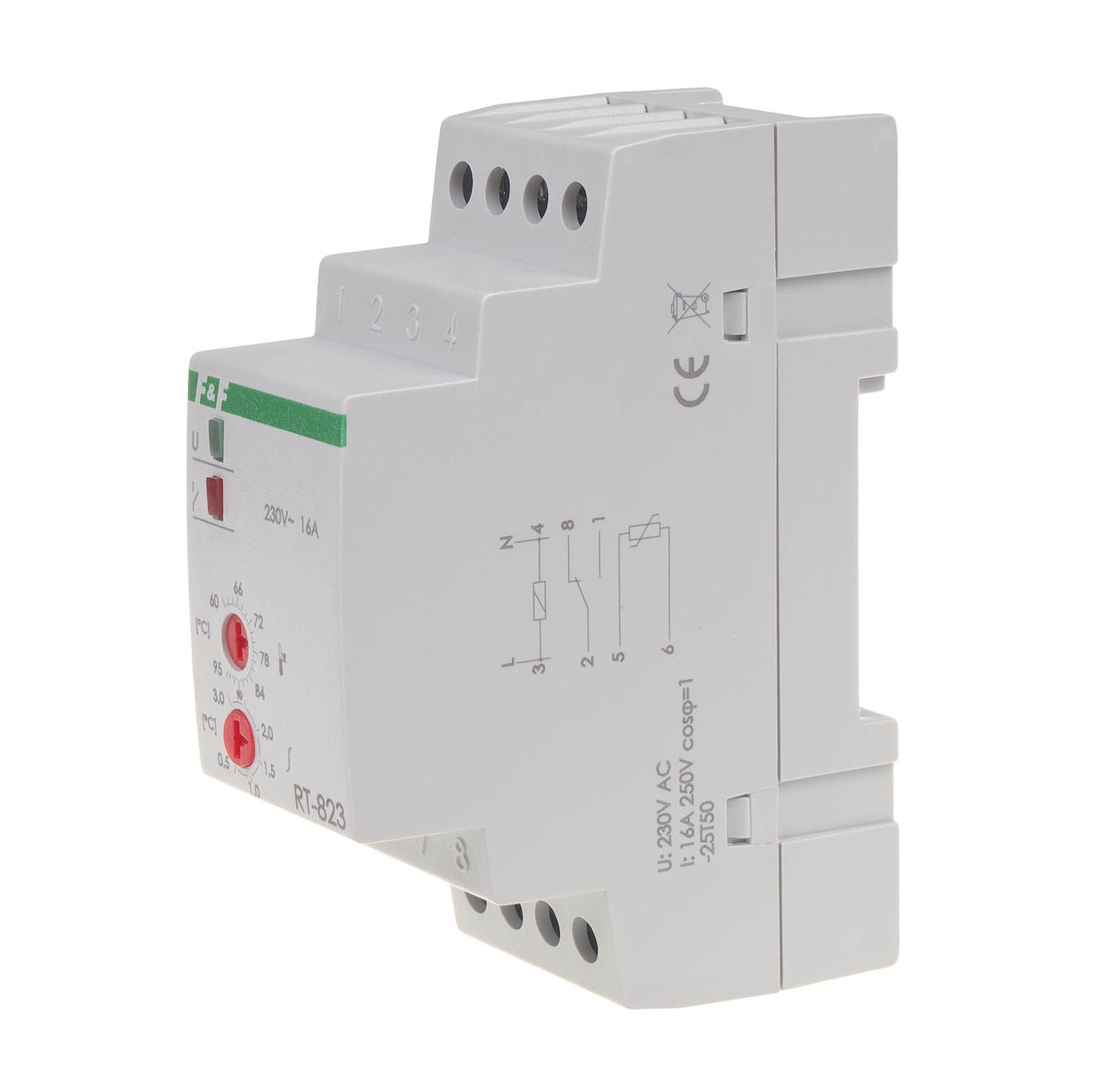

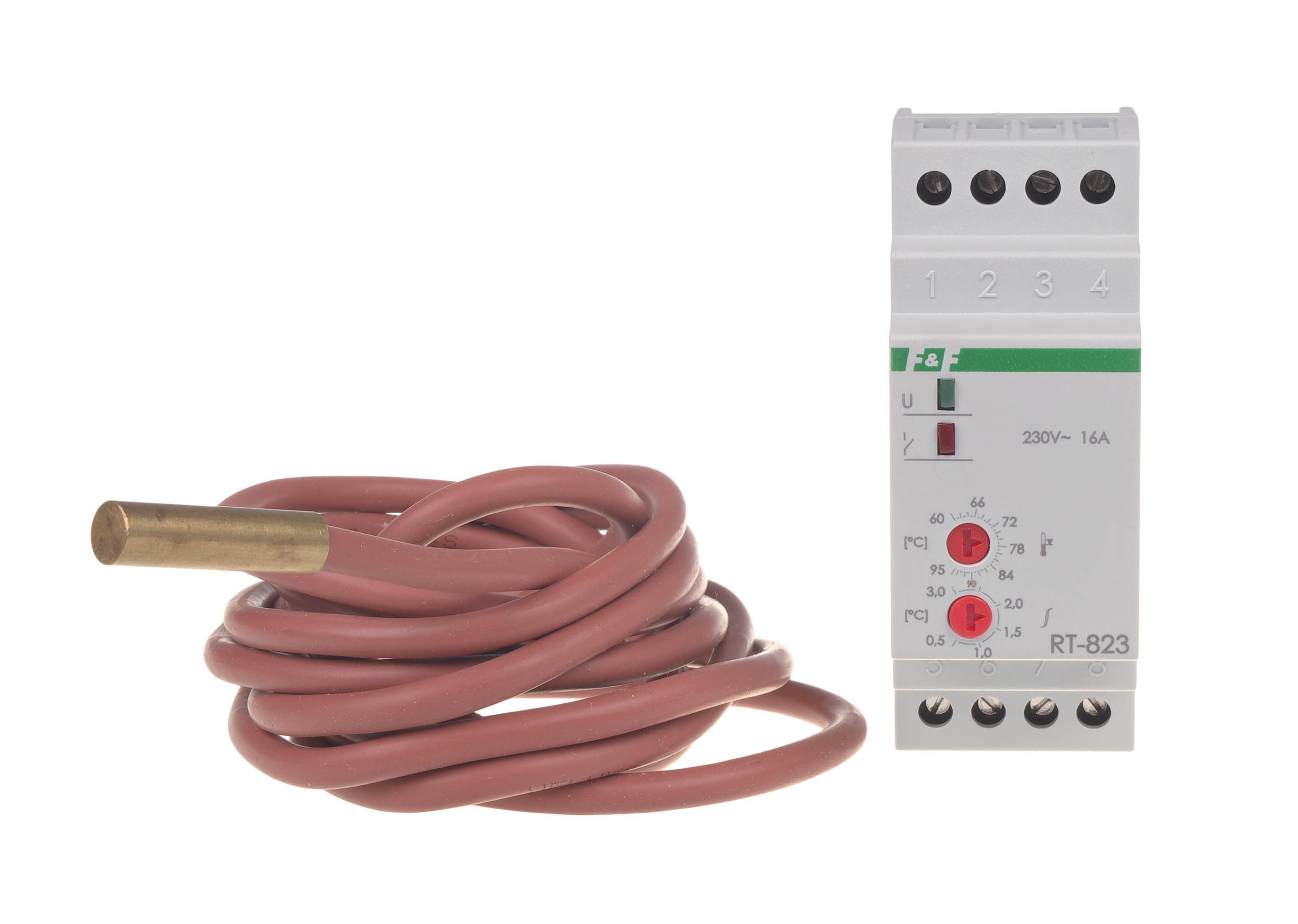

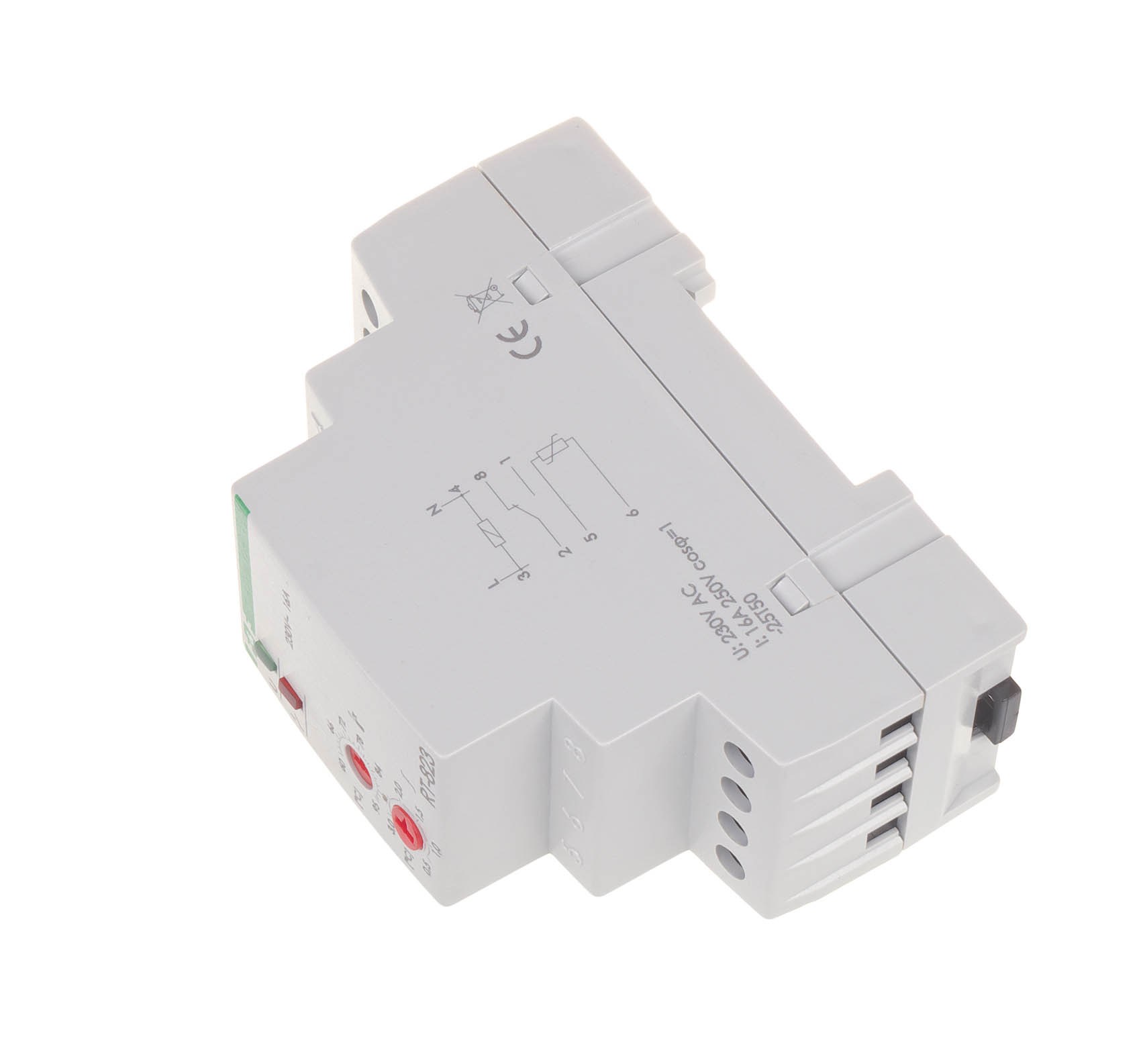

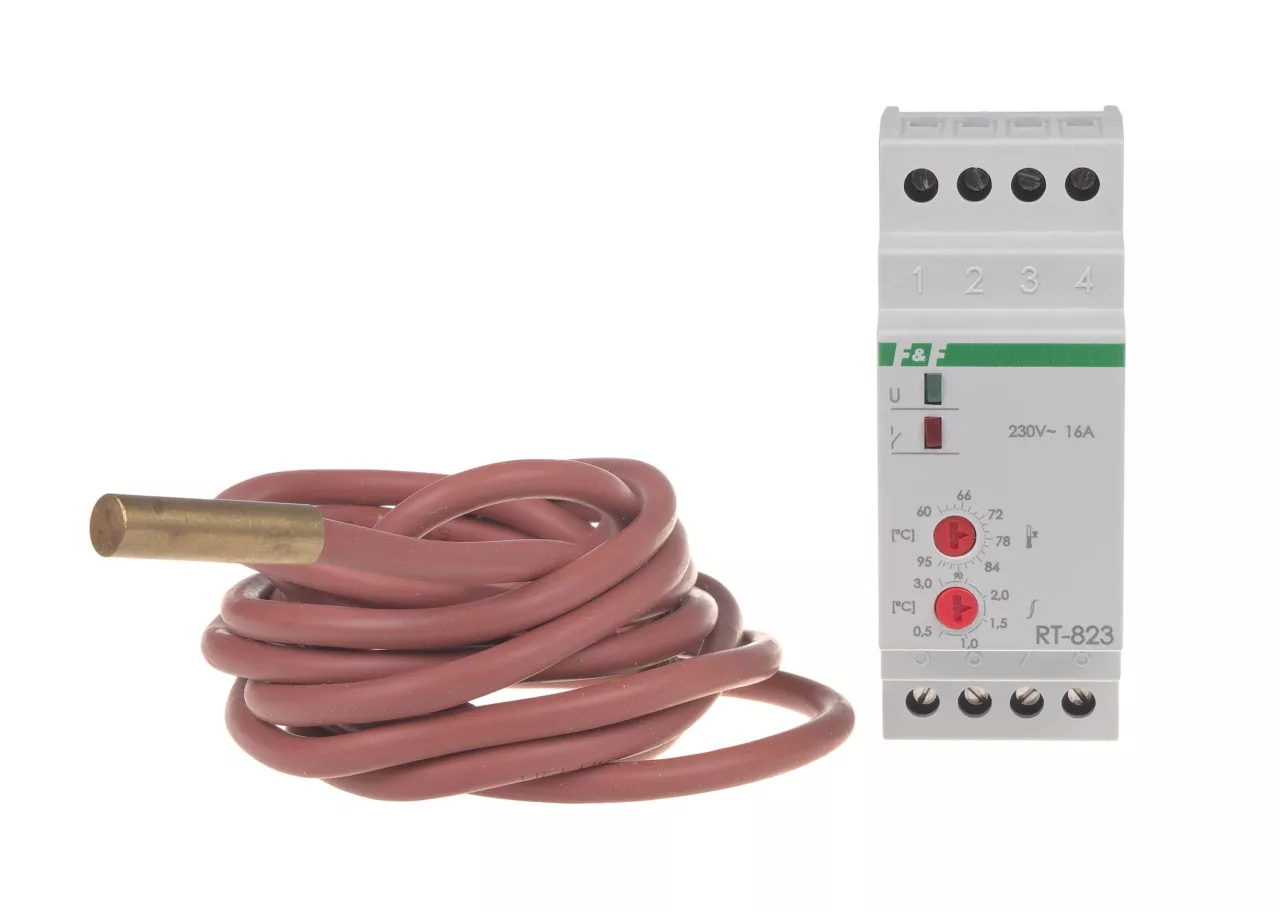

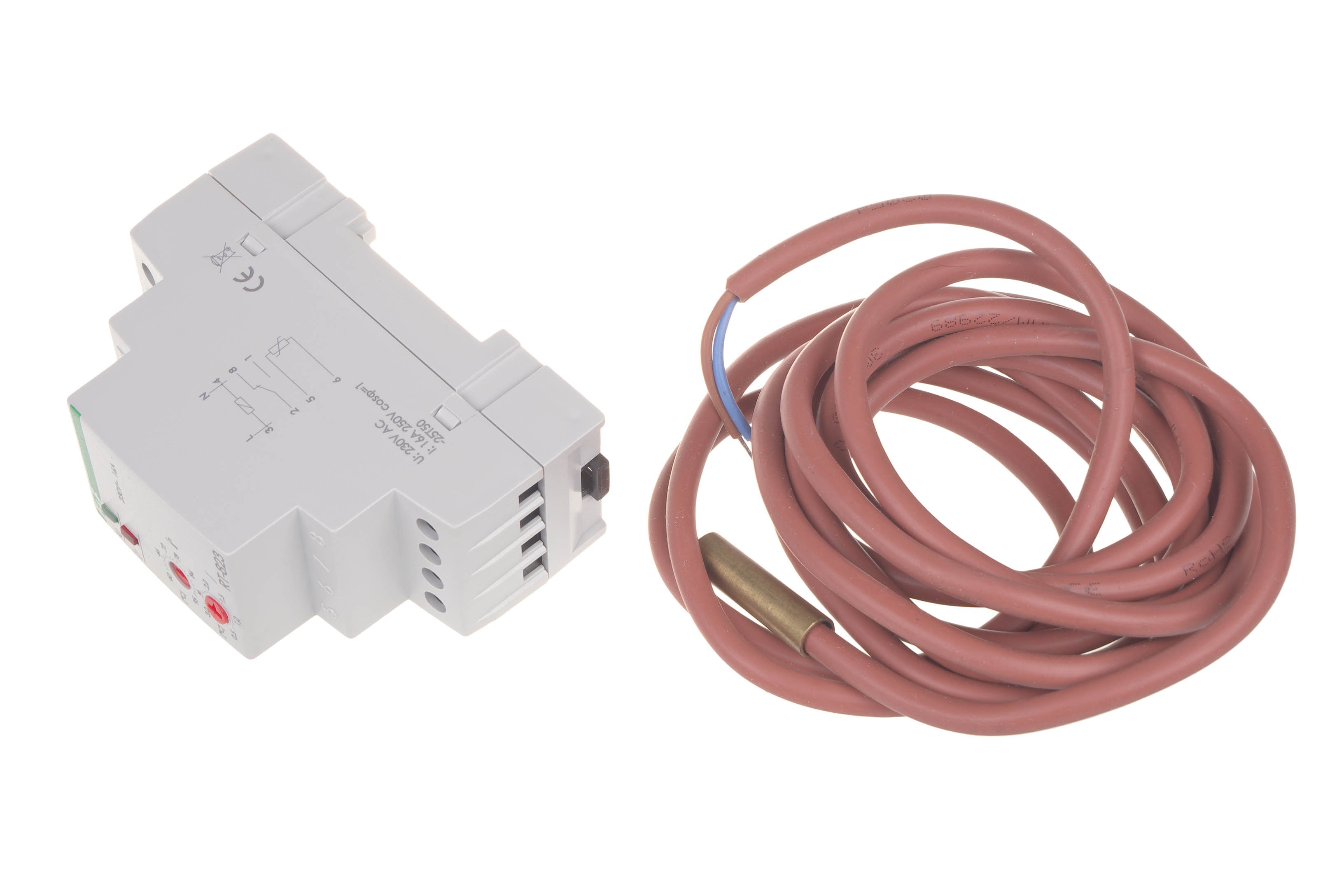

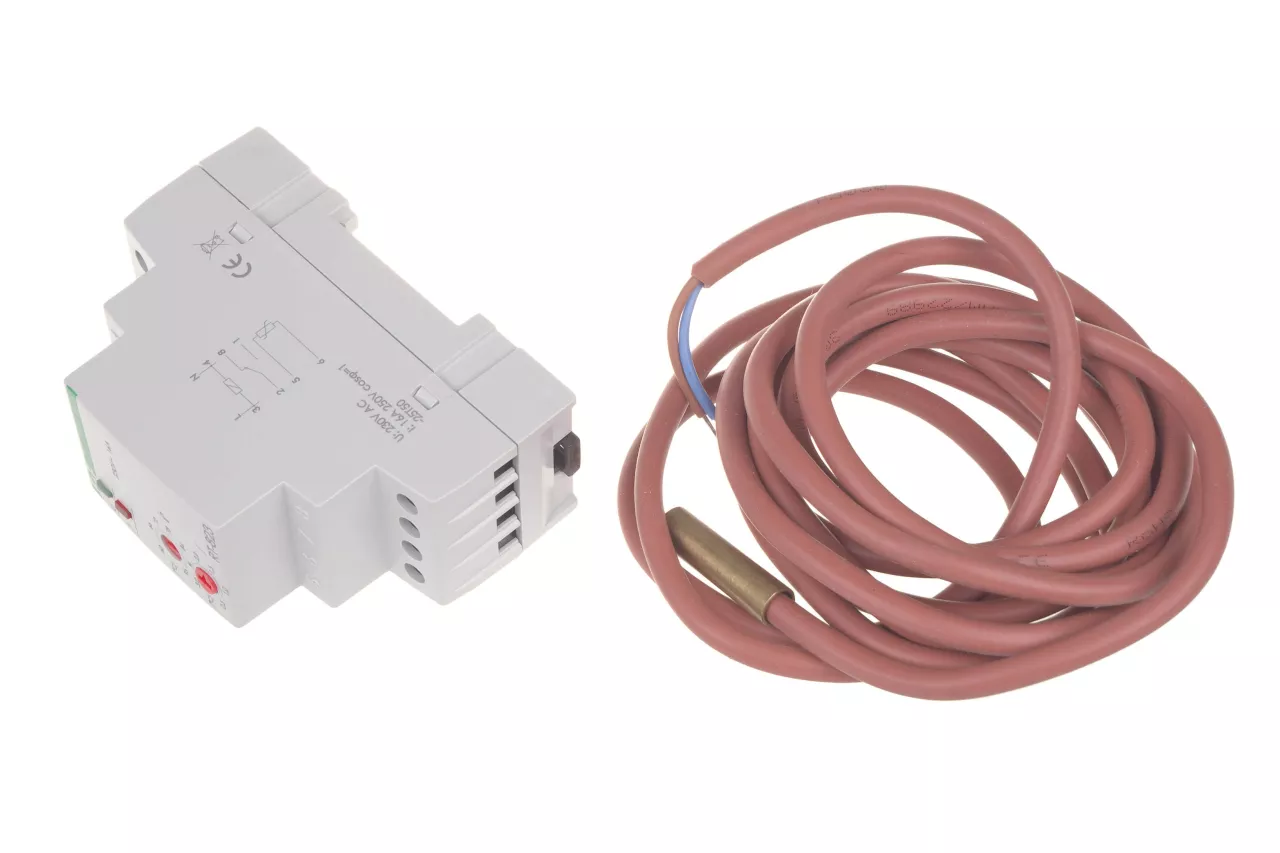

Regulator temperatury - zakres temperatur 60÷95°C montaz na szynie DIN, styk: 1NO/NC 230V AC
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | RT |
| Symbol | RT-823 |
| GTIN(EAN) | 5908312596073 |
| Price unit | piece |
| Catalog price | 239,85 zł (195,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 230 V AC Element wykonawczy przekaźnik Maksymalny prąd obciążenia 16 A Konfiguracja styków 1 × NO/NC Separacja styku TAK Zakres regulacji temperatury 60÷95°C Histereza - regulowana 0,5÷3°C Dokładność nastawy 1°C Dokładność pomiaru ±1°C Sonda temperatury RT2 Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Pobór mocy 1,1 W Temperatura pracy -25 ÷ 50 °C Wymiary 2 moduły (35 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 85 g |
| ETIM class: | Temperature controller for distribution board |
| Model: | Digital |
| Sensor type: | Remote sensor |
| Rated voltage: | 230 - 230 V |
| Rated frequency: | 50 - 50 Hz |
| Number of channels: | 1 |
| Text guidance in display: | no |
| 24 h program: | no |
| Weekly program: | no |
| Input for time program: | no |
| Adjustment range comfort: | 60 - 95 °C |
| Autonomy: | 0 h |
| Automatic switching summer-/winter time: | no |
| Operation mode switch: | no |
| Switching preselection: | no |
| Contact type: | Change-over contact |
| Nominal switching current at 230 V, not potential free: | 16 A |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 2 |
| Assembly depth: | 65 mm |
