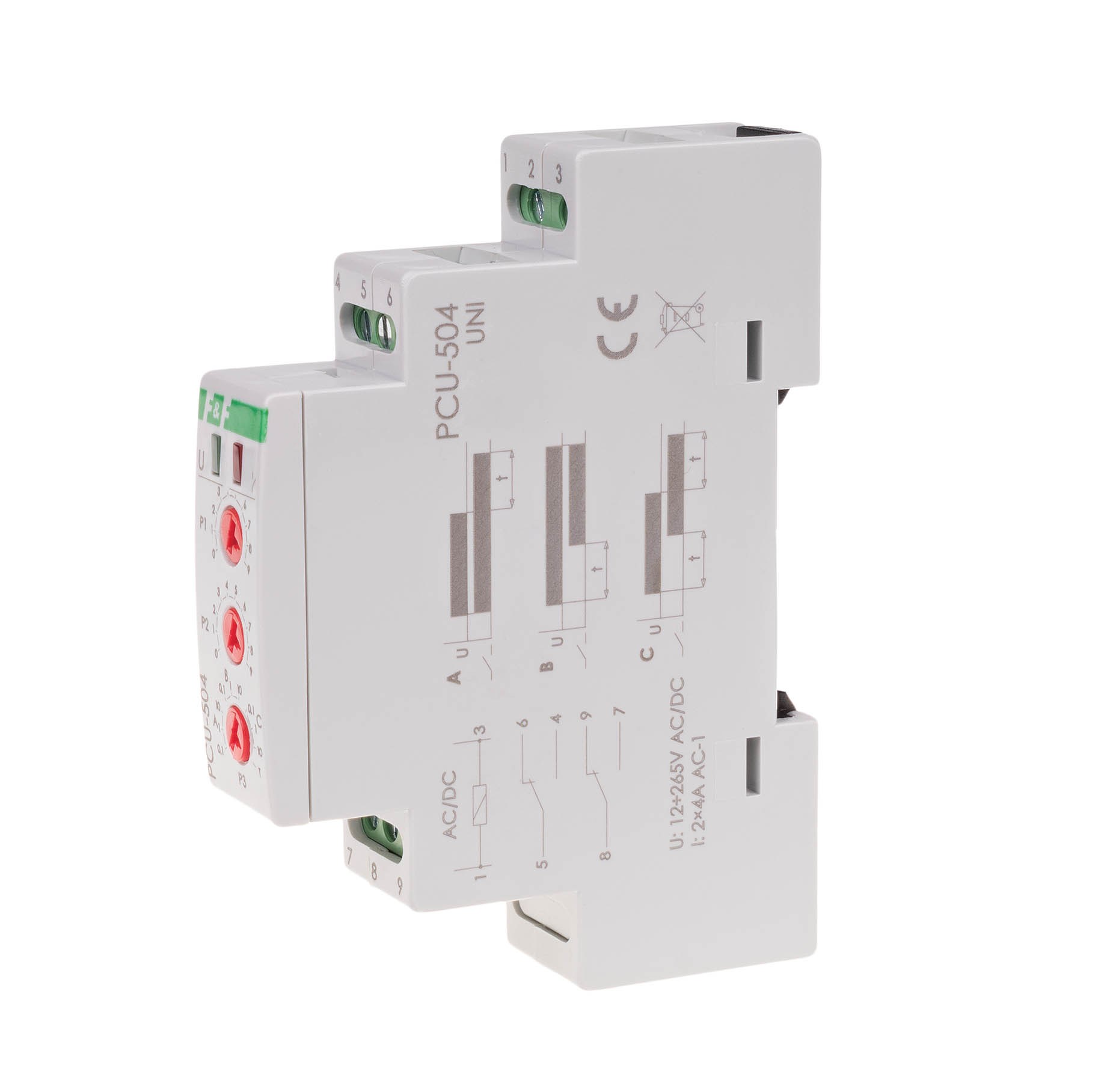

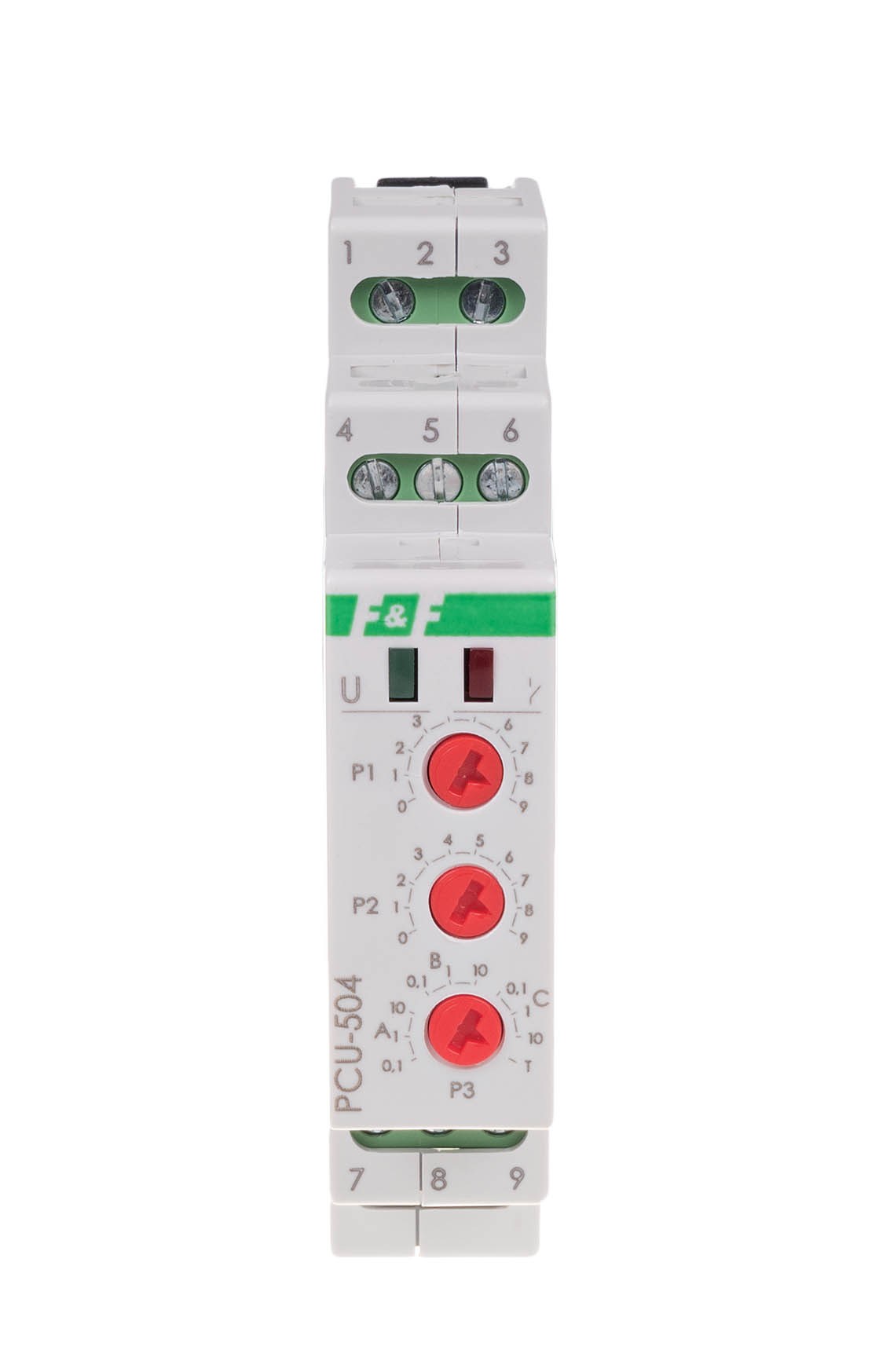

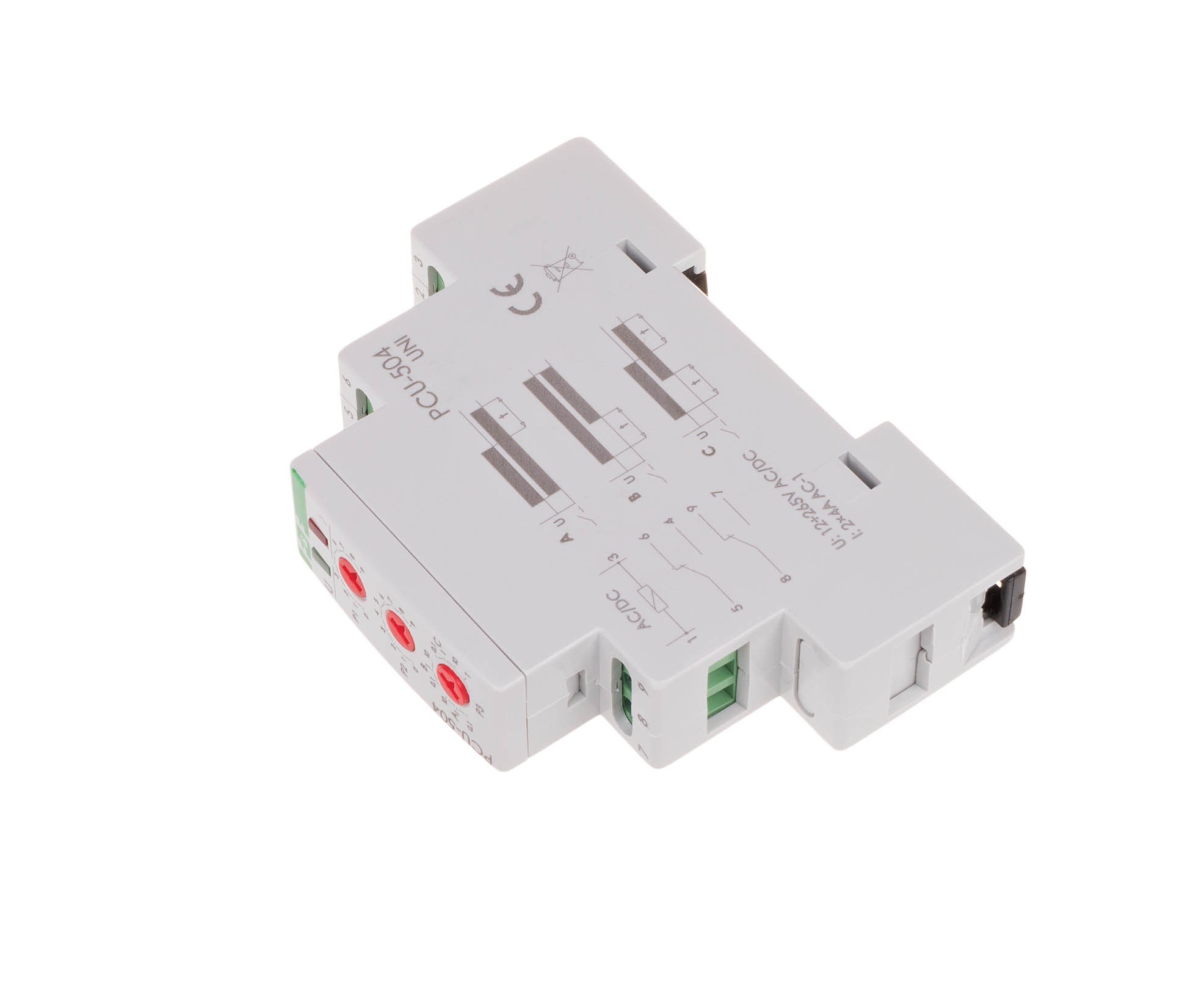

Przekaźnik czasowy z podtrzymaniem po zaniku napięcia zasilania, styk 1NO/NC, 12-264V
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | PC |
| Symbol | PCU-504UNI |
| GTIN(EAN) | 5908312598503 |
| Price unit | piece |
| Catalog price | 270,60 zł (220,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 12÷264 V AC/DC Tryb pracy z podtrzymaniem po zaniku napięcia zasilania Element wykonawczy przekaźnik Maksymalny prąd obciążenia 2 × 4 A Konfiguracja styków 2 × NO/NC Separacja styku TAK Opóźnienie zadziałania 50 ms Sygnalizacja stanu styku LED czerwona Czas działania - regulowany 0,1s÷10 min. Sygnalizacja zasilania LED zielona Przyłącze zaciski śrubowe 2,5 mm² Moment dokręcający 0,4 Nm Pobór mocy 0,56 W Temperatura pracy -25 ÷ 50 °C Wymiary 1 moduł (18 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 78 g |
| ETIM class: | Timer relay |
| Type of electric connection: | Screw connection |
| Pluggable on auxiliary contact block: | no |
| Function delay-on energization: | yes |
| Function delay on de-energization: | yes |
| Function floating contact on energization: | no |
| Function floating contact on de-energization: | no |
| Function pulse shaping: | no |
| Function flashing, starting with pause, fixed time: | no |
| Function flashing, starting with pulse, fixed time: | no |
| Clock function, starting with pause, variable: | no |
| Clock function, starting with pulse, variable: | no |
| Time range: | 0.1 - 3600 s |
| Remote operation possible: | no |
| Suitable as remote control: | no |
| Rated control supply voltage AC 50 Hz: | 12 - 264 V |
| Rated control supply voltage AC 60 Hz: | 12 - 264 V |
| Rated control supply voltage DC: | 12 - 264 V |
| Voltage type for actuating: | AC/DC |
| Number of outputs, delayed, change-over contact: | 2 |
| With semiconductor output: | no |
| Width: | 18 mm |
| Height: | 90 mm |
| Depth: | 65 mm |
