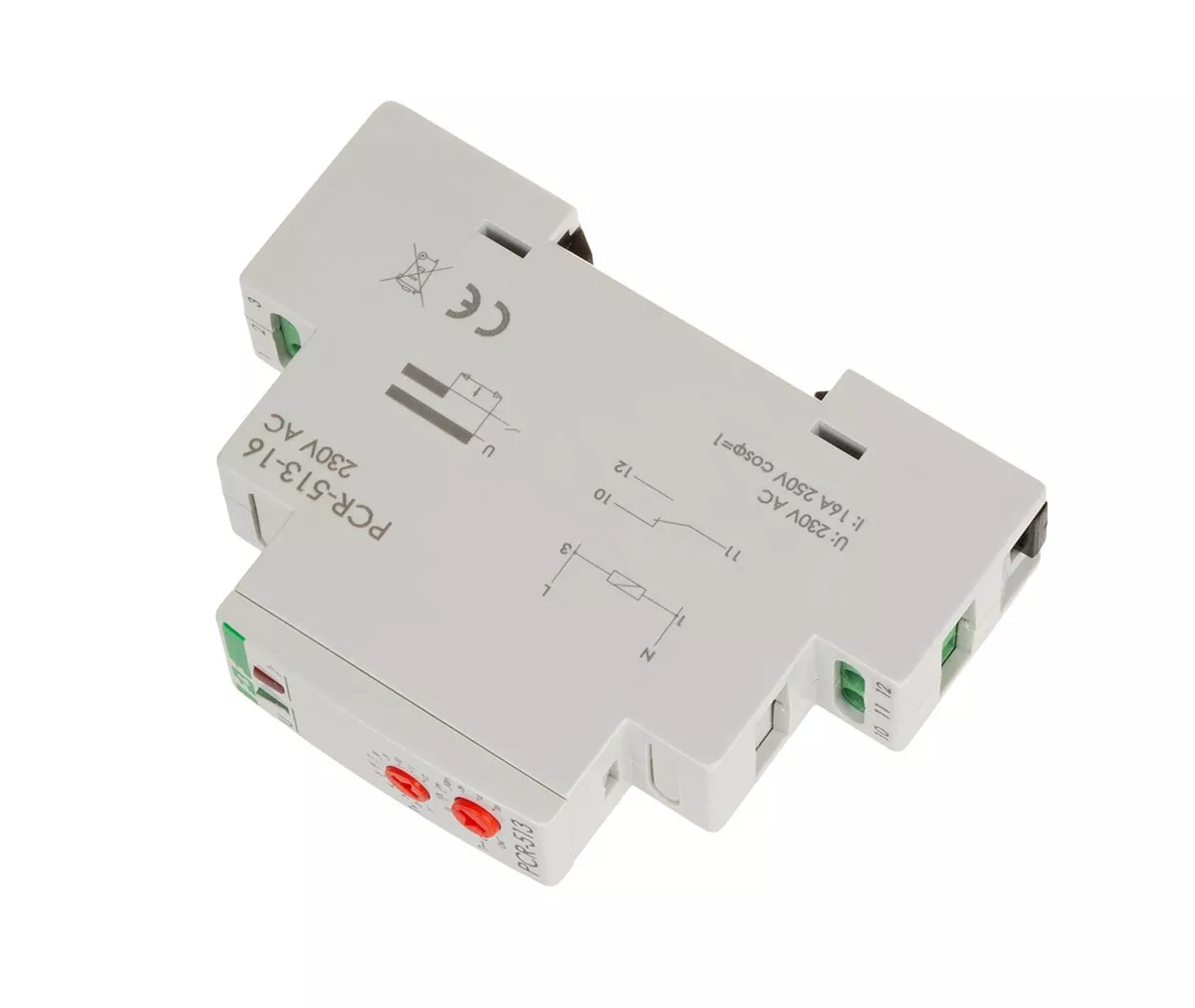

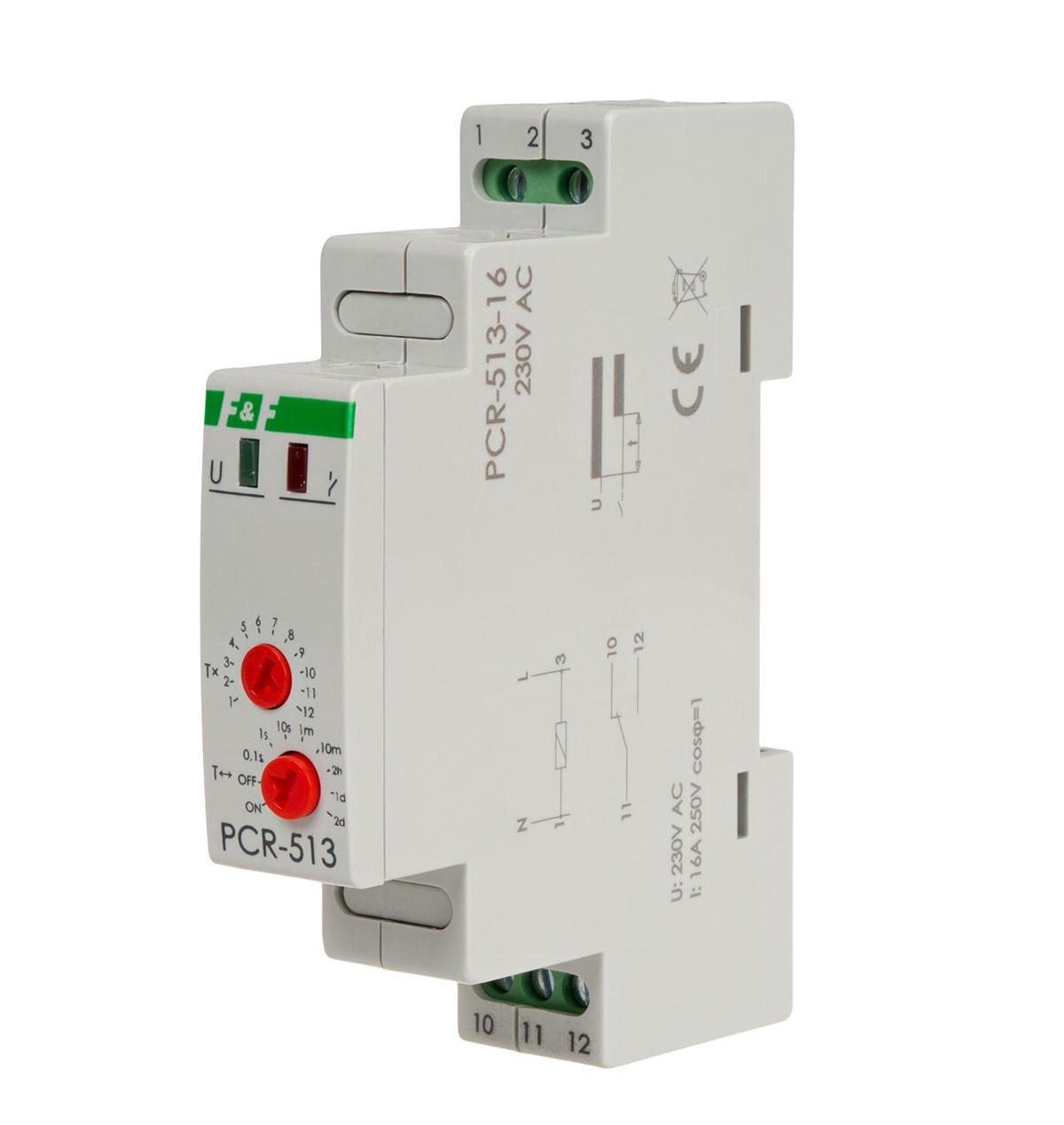

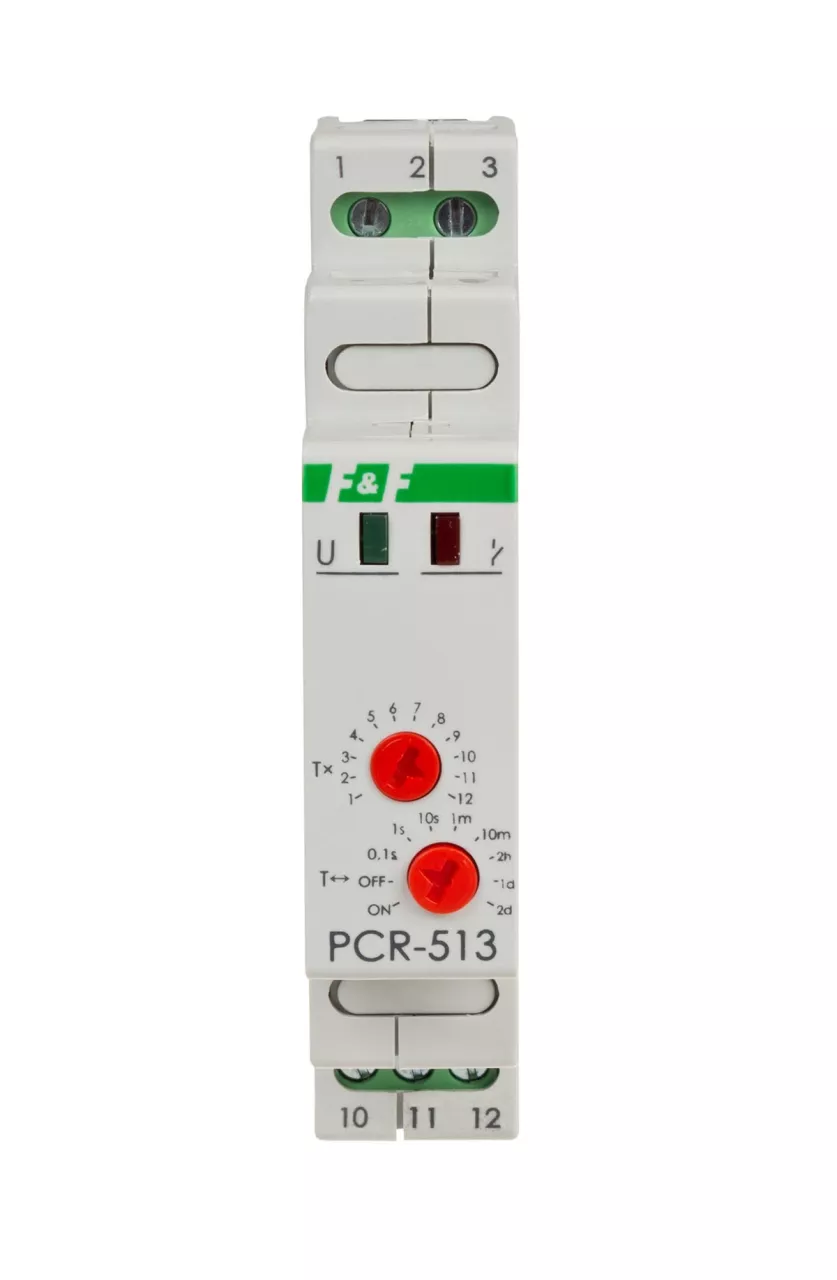

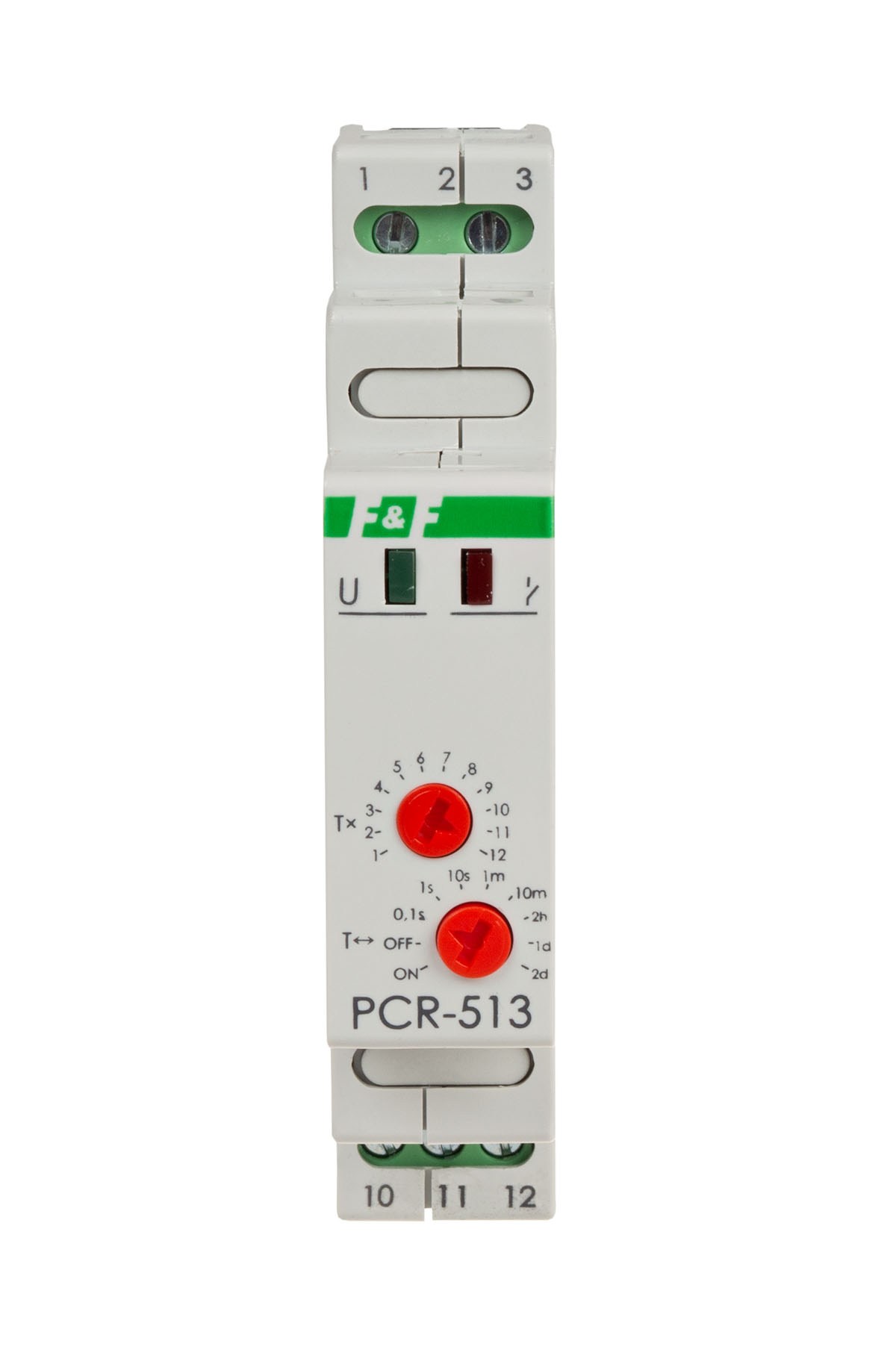

Przekaźnik czasowy rewersyjny, styki: 1NO/NC, 230V, 16A
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | PC |
Symbol | PCR-513-16 |
GTIN(EAN) | 5902431672083 |
Price unit | piece |
Catalog price | 151,29 zł (123,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 230 V AC Tryb pracy opóźnione załączenie Element wykonawczy przekaźnik Maksymalny prąd obciążenia 16 A Konfiguracja styków 1 × NO/NC Separacja styku TAK Sygnalizacja stanu styku LED czerwona Czas działania - regulowany 0,1 s ÷ 576 godz. Sygnalizacja zasilania LED zielona Przyłącze zaciski śrubowe 2,5 mm² Moment dokręcający 0,4 Nm Pobór mocy 0,8 W Temperatura pracy -25 ÷ 50 °C Wymiary 1 moduł (18 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
Information | Value |
---|---|
Gross weight: | 65 g |
ETIM class: | Timer relay for distribution board |
Type of excitation: | Digital with single function |
Function: | Operating delay |
1st interval unit: | Seconds/minutes |
1st interval: | 0.1 - 120 |
2nd interval unit: | Minutes/hours |
2nd interval: | 1 - 576 |
Mounting method: | DIN rail |
Width in number of modular spacings: | 1 |
Built-in height: | 65 mm |
Number of contacts as normally open contact: | 0 |
Number of contacts as normally closed contact: | 0 |
Number of changeover switches: | 1 |
Control voltage 1: | 1 - 230 V |
Type of control voltage 1: | AC/DC |
Frequency control voltage 1: | 50 - 50 Hz |
Supply voltage: | 195 - 253 V |
Voltage type (supply voltage): | AC |
Nominal switching current at 250 V AC: | 16 A |
