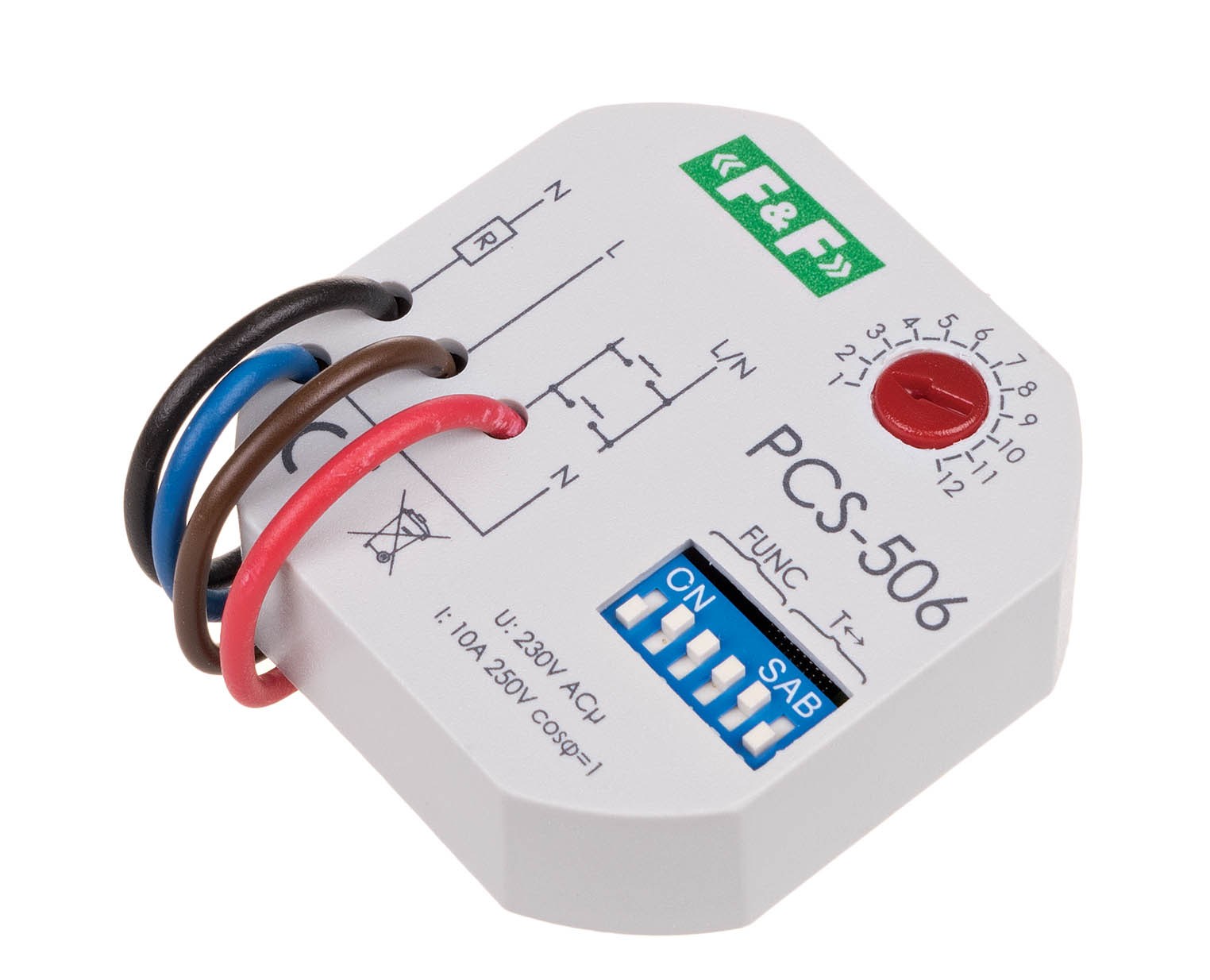

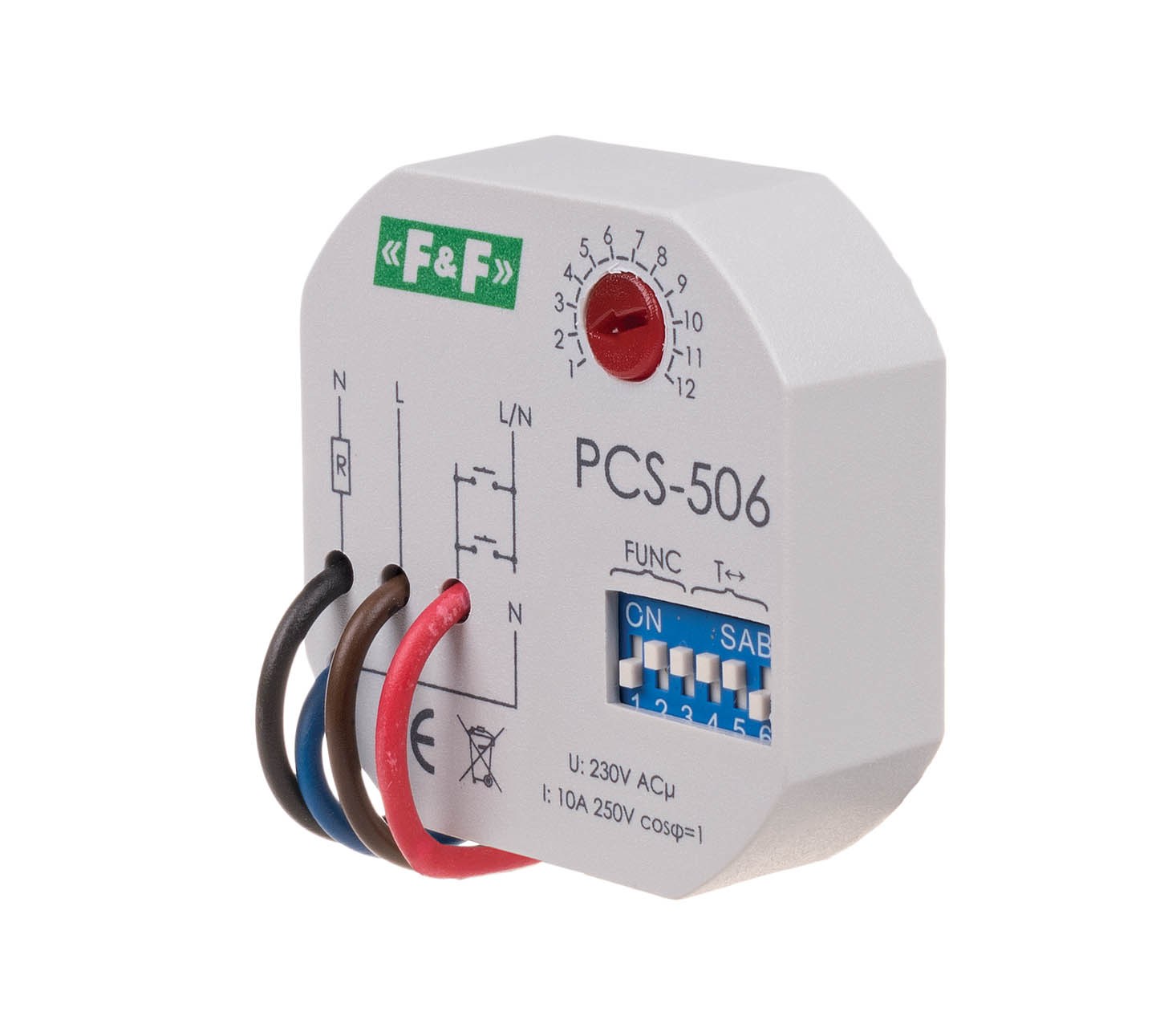

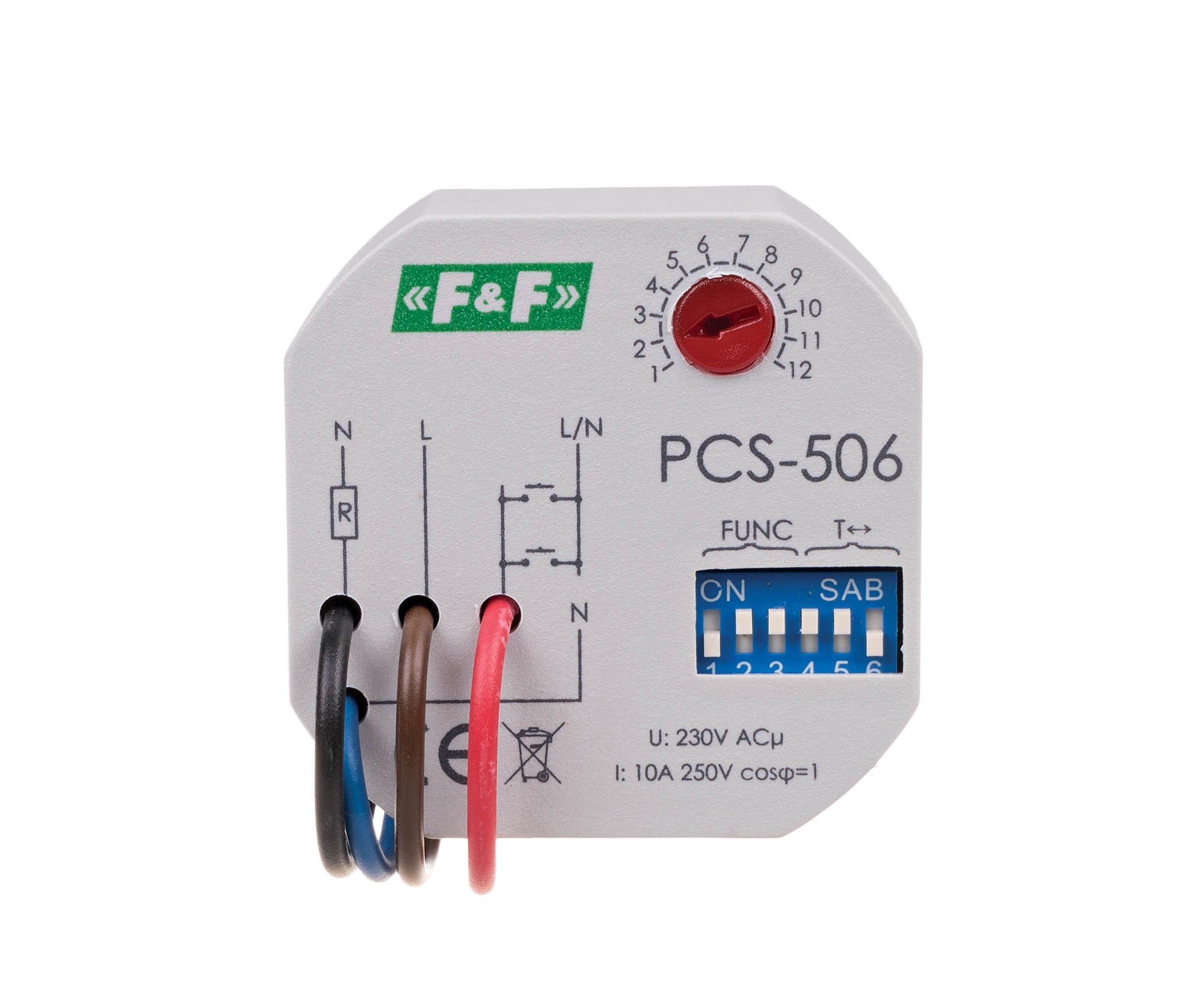

Przekaźnik czasowy 8-funkcyjny, styki: 1NO
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | PC |
| Symbol | PCS-506 |
| GTIN(EAN) | 5908312595380 |
| Price unit | piece |
| Catalog price | 138,99 zł (113,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 230 V AC Tryb pracy wielofunkcyjny Element wykonawczy przekaźnik Maksymalny prąd obciążenia 10 A Konfiguracja styków 1 × NO Separacja styku NIE Opóźnienie zadziałania 50 ms Prąd impulsu sterującego mniej niż 1 mA Czas działania - regulowany 0,1s÷24h Przyłącze 4×DY 1mm²; długość: 10 cm Pobór mocy 0,8 W Temperatura pracy -25 ÷ 50 °C Wymiary Ø 55 mm; wysokość: 13 mm Montaż w puszce podtynkowej Ø60 Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 68 g |
| ETIM class: | Timer relay |
| Type of electric connection: | Screw connection |
| Function delay-on energization: | yes |
| Function delay on de-energization: | yes |
| Function floating contact on energization: | yes |
| Function floating contact on de-energization: | yes |
| Function pulse shaping: | yes |
| Function flashing, starting with pause, fixed time: | yes |
| Function flashing, starting with pulse, fixed time: | yes |
| Clock function, starting with pause, variable: | yes |
| Clock function, starting with pulse, variable: | yes |
| Time range: | 1 - 86400 s |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Number of outputs, undelayed, normally open contact: | 1 |
