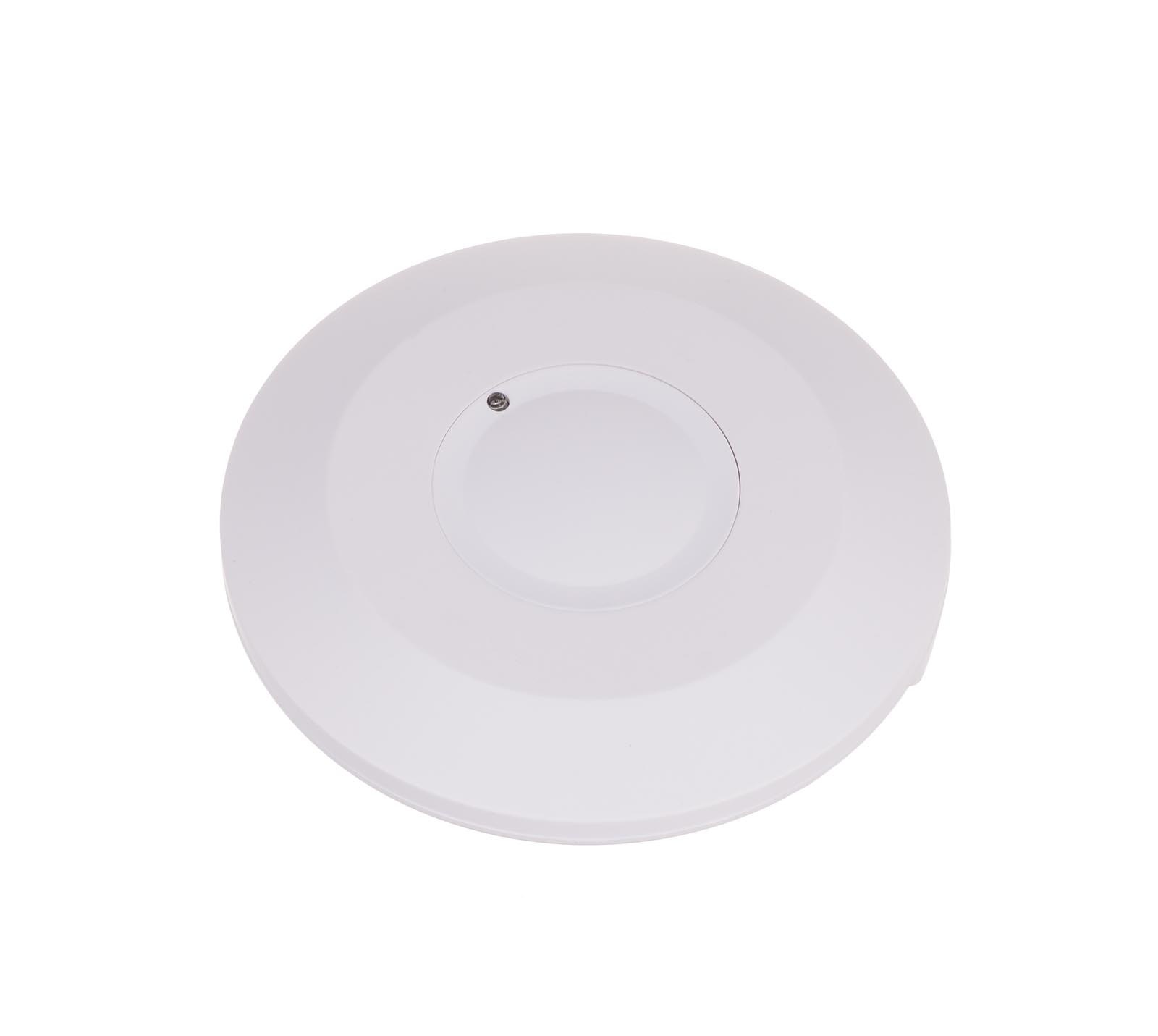

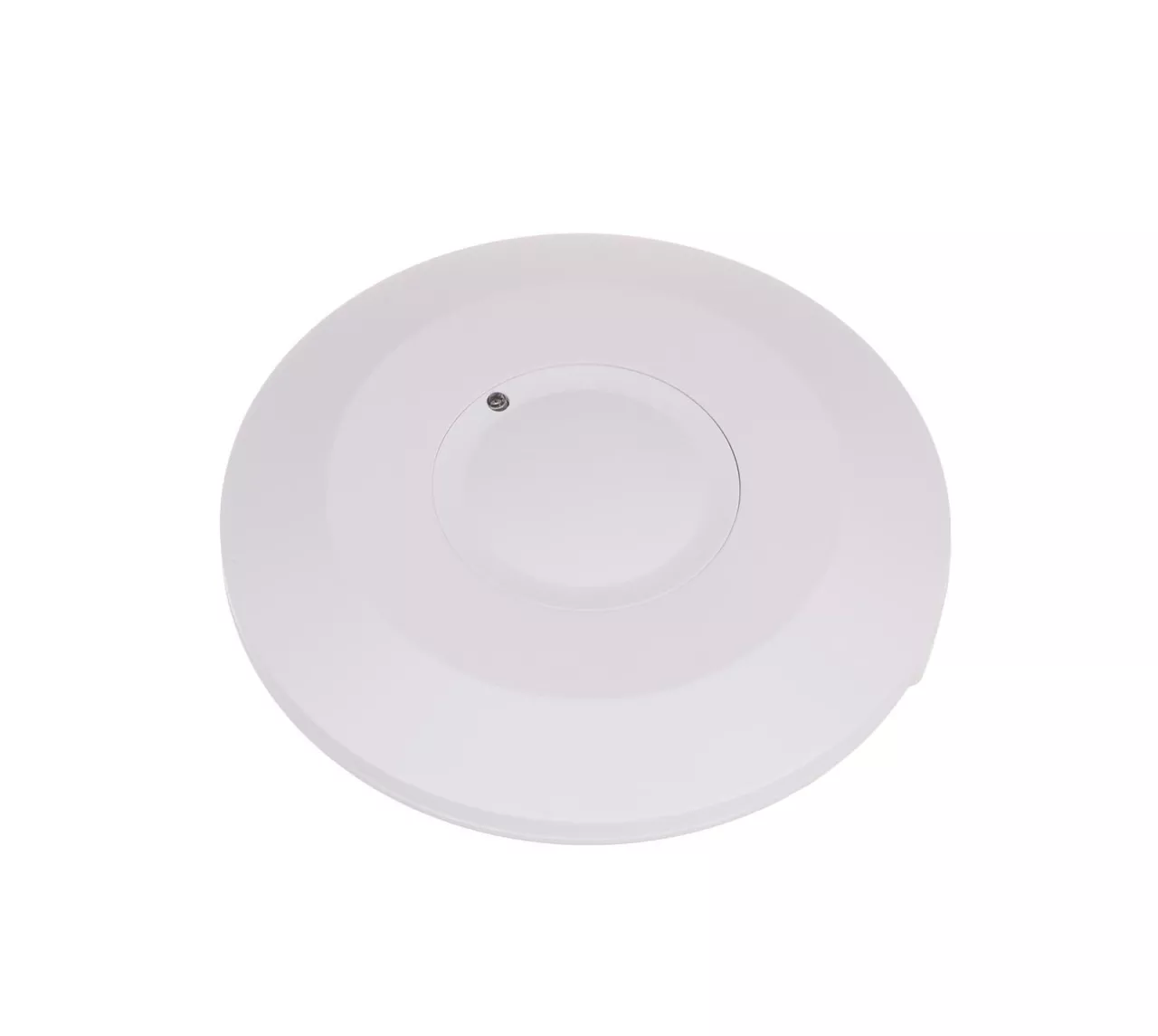

Czujnik ruchu mikrofalowy sufitowy, z funkcją obecności
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | DR |
| Symbol | DRM-08 |
| GTIN(EAN) | 5908312599883 |
| Price unit | piece |
| Catalog price | 120,54 zł (98,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 230 V AC Maksymalny prąd obciążenia AC-1 10 A Próg zadziałania - regulowany 3÷2000 Lx Opóźnienie zadziałania mniej niż 1 s Częstotliwość promieniowania mikrofalowego 5,8 GHz Maksymalna moc promieniowania 10 mW Pole detekcji 360° Promień detekcji - regulowane (dla wysokości równej 2,5 m) 1÷8 m Czas załączenia odbiornika - regulowany 10±3 s ÷ 12±1 min. Detekcja ruchu 0,6÷1,5 m/s Pole detekcji poziomej 360° Maks. regulowany promień detekcji (h: 2.5 m, Temp. ˂ 24 °C) 1÷8 m Wysokość montażu czujnika 2,0÷6,0 m Rodzaj detekcji promieniowanie mikrofalowe Przyłącze zaciski śrubowe 1,0 mm² Moment dokręcający 0,25 Nm Pobór mocy 0,9 W Temperatura pracy -25 ÷ 50 °C Wymiary Ø115 h: 24mm Montaż natynkowy Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Movement sensor/presence detector complete |
| Model: | Movement sensor |
| Sensor type: | Passive infrared |
| With DALI interface: | no |
| Constant light control: | no |
| HVAC-control: | no |
| Forced switch on: | no |
| Forced switch off: | yes |
| Animal zone: | no |
| Creep-under protection: | no |
| Networkable: | no |
| Scan angle: | 360 ° |
| Optimum mounting height: | 2.8 m |
| Staircase light controller: | yes |
| Bridging switch: | no |
| Max. reach sideways: | 8 m |
| Max. reach frontally: | 8 m |
| Diameter reach on floor: | 16 m |
| Suitable for wireless transmission: | no |
| Remote operation: | no |
| With remote control: | no |
| Response value sensitivity adjustable: | yes |
| Response value luminosity adjustable: | yes |
| With signal unit: | no |
| Teach-function for response value luminosity: | no |
| Dim function with dimmer basic element: | no |
| Mounting method: | Surface mounted |
| Suitable for ceiling mounting: | no |
| Connection type: | Screwed terminal |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen free: | yes |
| Surface protection: | Other |
| Surface finishing: | Matt |
| Anti-bacterial treatment: | no |
| Colour: | White |
| RAL-number (similar): | 9003 |
| Transparent: | no |
| Degree of protection (IP): | IP20 |
| Impact strength: | IK00 |
| Voltage type: | AC |
| Frequency: | 50 - 50 Hz |
| Min. switch-on time: | 10 s |
| Max. duty cycle: | 13 min |
| Switch-off delay: | 0 s |
| Switching-on delay: | 1 s |
| Detection angle horizontal: | 360 - 360 ° |
| Response value luminosity: | 3 - 2000 lx |
| Max. switching power: | 800 W |
| Temperature: | -25 - 50 °C |
| Number of switching zones: | 1 |
| Max. starting current: | 10 A |
| Substation input: | no |
| With alarm function: | no |
| Width: | 115 mm |
| Height: | 24 mm |
| Depth: | 0 mm |
| Diameter: | 115 mm |
| Built-in width: | 0 mm |
| Built-in depth: | 0 mm |
| Built-in length: | 0 mm |
| Built-in diameter: | 0 mm |
| Min. depth of built-in installation box: | 0 mm |
