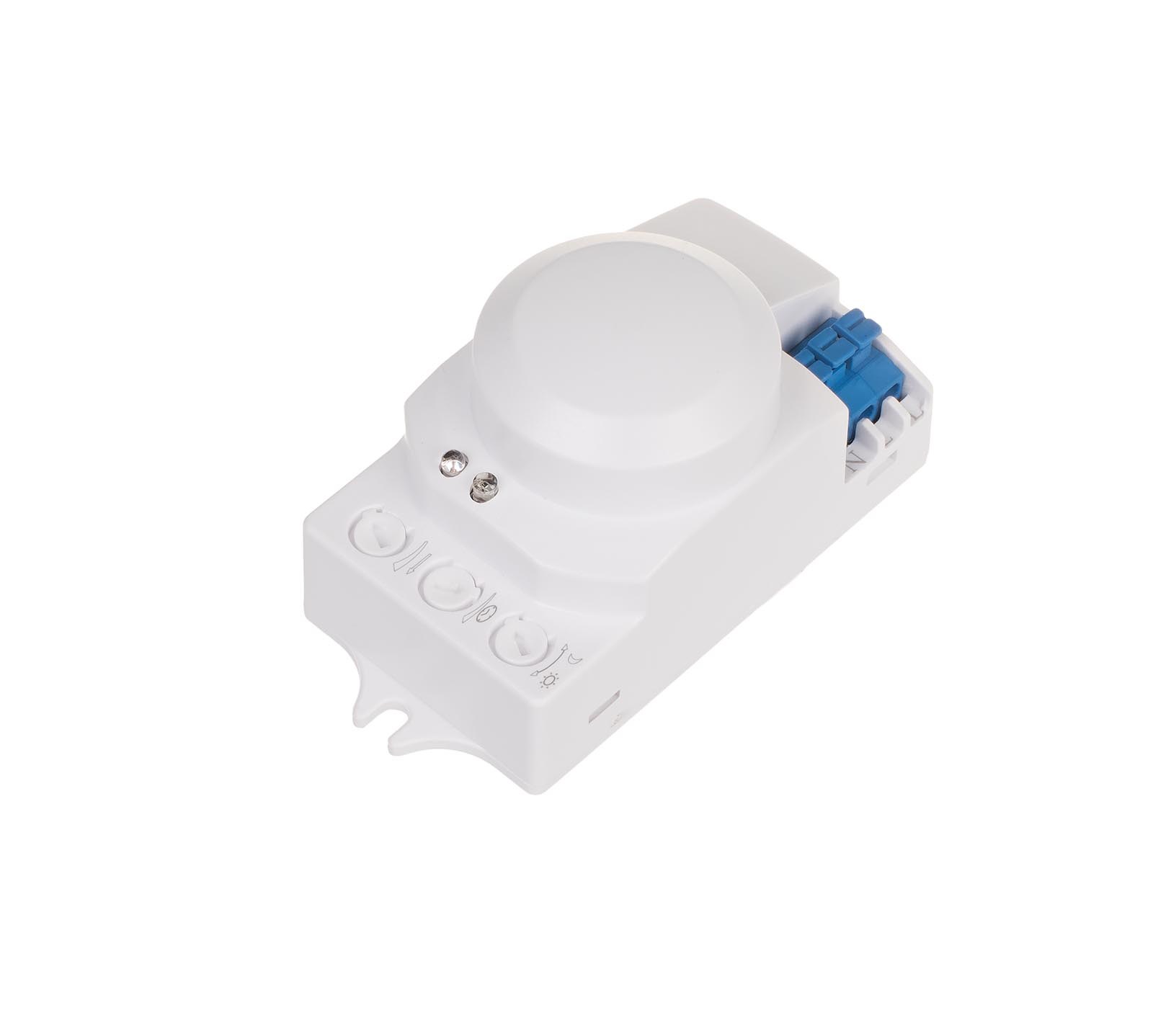

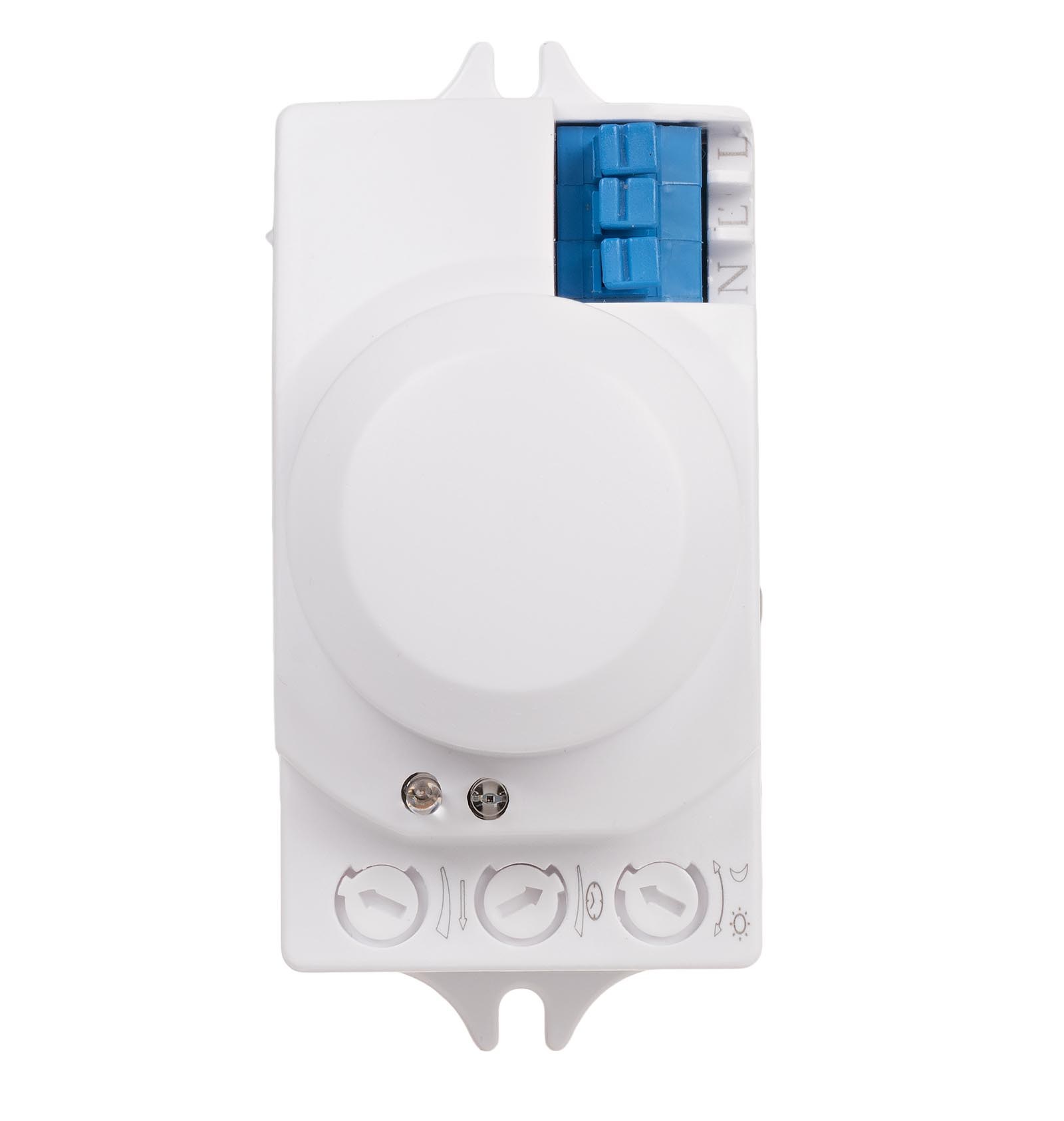

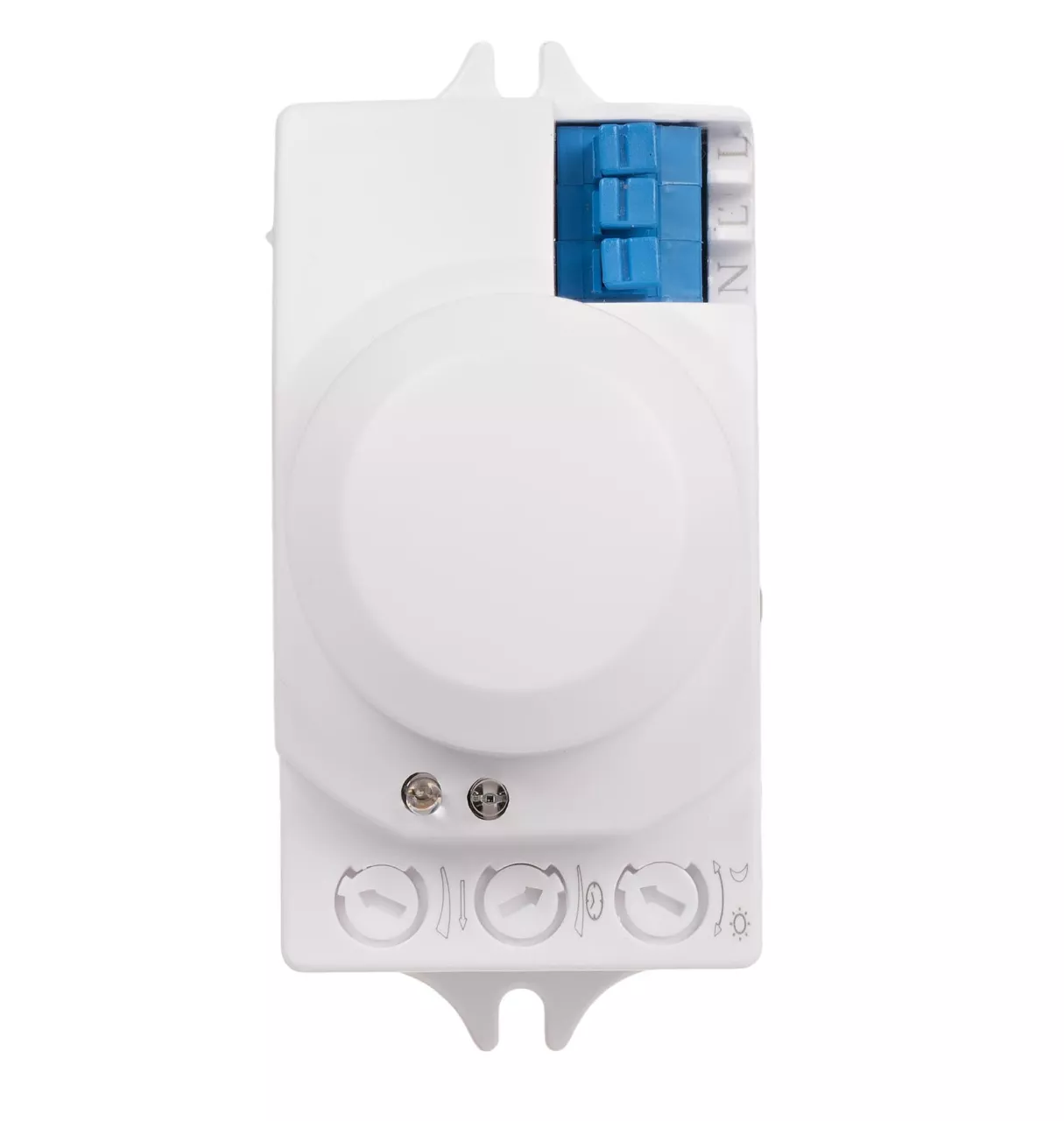

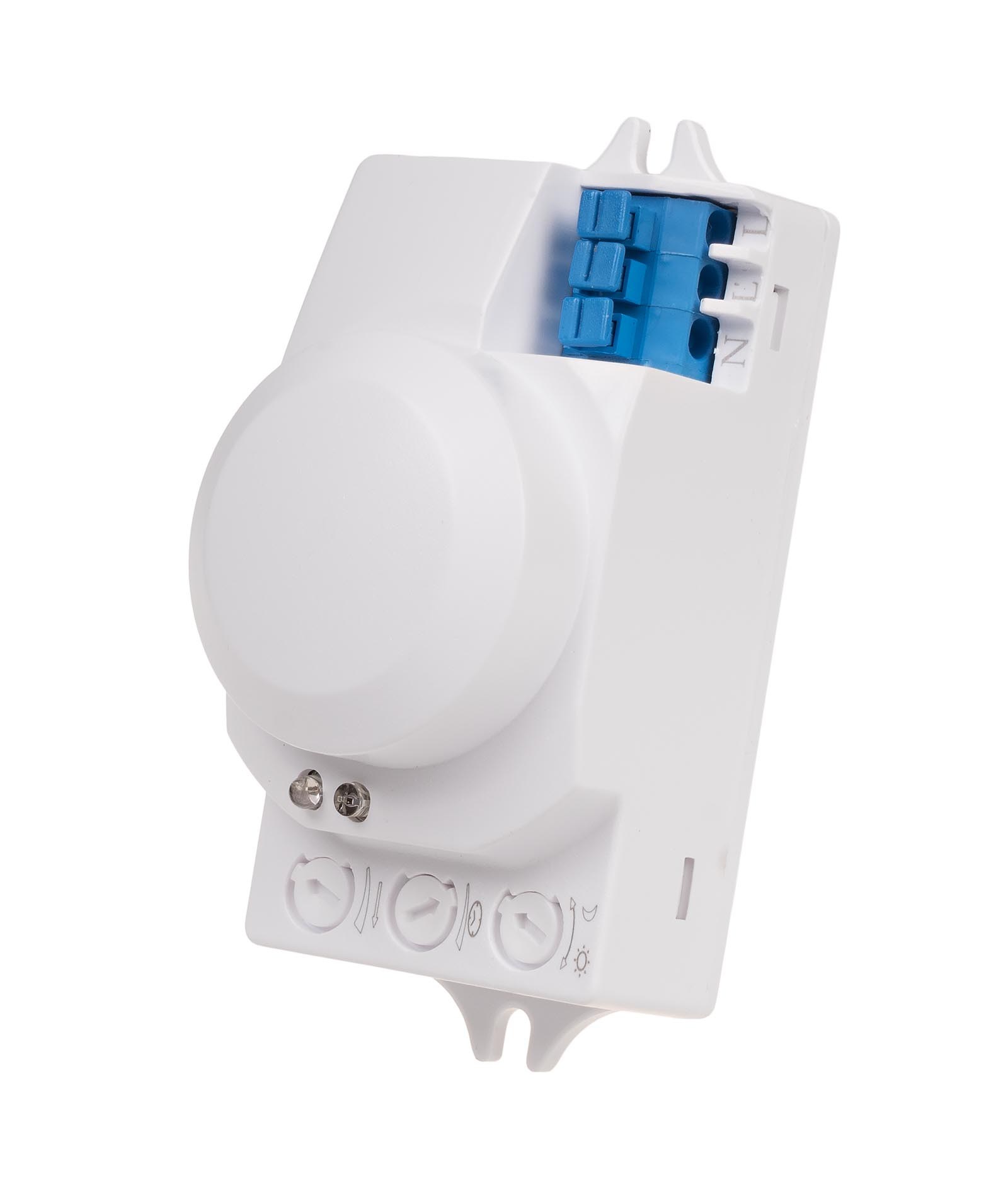

Mikrofalowy czujnik ruchu z funkcją czujnika obecności, do zabudowy
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | DR |
| Symbol | DRM-01 |
| GTIN(EAN) | 5908312593959 |
| Price unit | piece |
| Catalog price | 121,77 zł (99,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 180÷253 V AC Maksymalny prąd obciążenia AC-1 5 A Próg zadziałania - regulowany 2÷2000 Lx Opóźnienie zadziałania mniej niż 1 s Częstotliwość promieniowania mikrofalowego 5,8 GHz Maksymalna moc promieniowania 10 mW Promień detekcji - regulowane (dla wysokości równej 2,5 m) 1÷10 m Czas załączenia odbiornika - regulowany 5 s ÷ 12 min. Pole detekcji poziomej 360° Rodzaj detekcji promieniowanie mikrofalowe Przyłącze zaciski 1mm² Moment dokręcający 0,25 Nm Pobór mocy 0,9 W Temperatura pracy -25 ÷ 50 °C Wymiary 46 × 93 × 42 mm Montaż do zabudowy Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 90 g |
| ETIM class: | Sensor element for movement sensor |
| Model: | Presence detector |
| Mounting method: | Flush-mounted |
| Constant light control: | no |
| HVAC-control: | no |
| Networkable: | no |
| Suitable for wireless transmission: | no |
| Creep-under protection: | no |
| Mounting height: | 2.5 m |
| Max. reach sideways: | 10 m |
| Max. reach frontally: | 10 m |
| Diameter reach on floor: | 20 m |
| Response value sensitivity adjustable: | yes |
| Response value luminosity adjustable: | yes |
| Teach-function for response value luminosity: | no |
| Dim function with dimmer basic element: | no |
| Animal zone: | no |
| Staircase light controller: | yes |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen free: | yes |
| Suitable for degree of protection (IP): | IP20 |
| Min. switch-on time: | 5 s |
| Max. duty cycle: | 12 min |
| Detection angle horizontal: | 360 - 360 ° |
