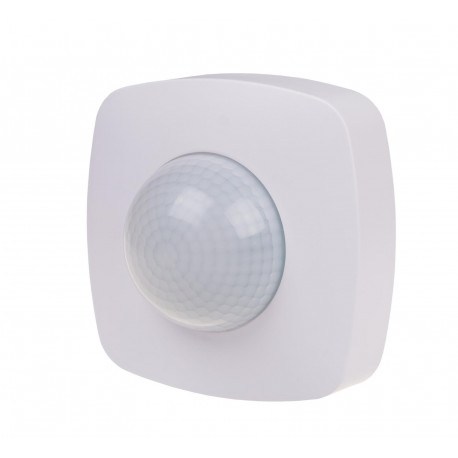

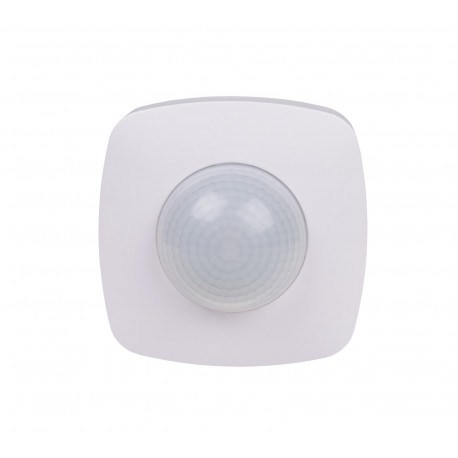

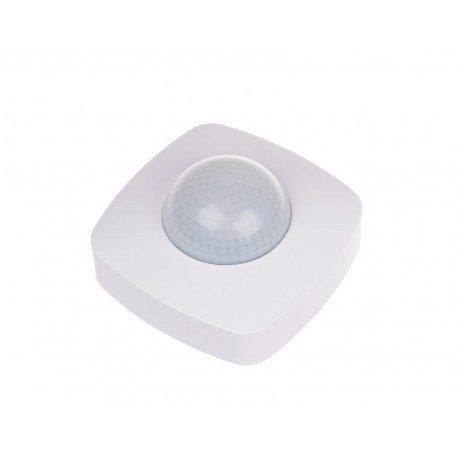

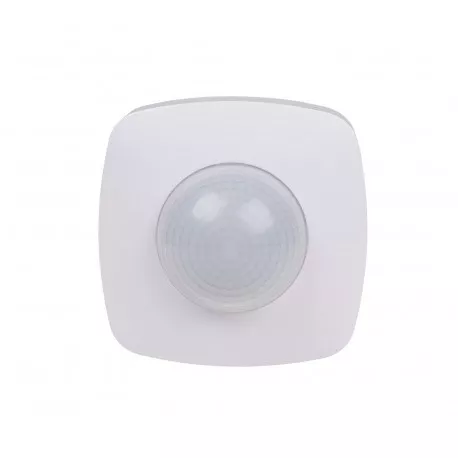

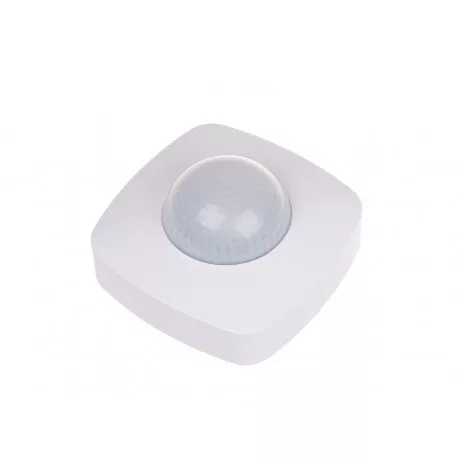

Czujnik ruchu PIR z funkcją obecności, sufitowy, 360°, 10A, 230V, biały
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | DR |
| Symbol | DR-09 |
| GTIN(EAN) | 5908312599890 |
| Price unit | piece |
| Catalog price | 121,77 zł (99,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 230 V AC Maksymalny prąd obciążenia AC-1 10 A Czas wyłączenia 3 s ÷ 9 min. (± 2 min.) Próg aktywacji zmierzchowej 3÷2000 Lx Detekcja ruchu 0,6÷1,5 m/s Pole detekcji poziomej 360° Maks. regulowany promień detekcji (h: 2.5 m, Temp. ˂ 24 °C) 20 m Wysokość montażu czujnika 2,0 m ÷ 6,0 m Rodzaj detekcji promieniowanie podczerwone Przyłącze zaciski 1,5 mm² Moment dokręcający 0,3 Nm Pobór mocy 0,5 W Temperatura pracy -20÷40°C Wymiary 102×102 mm, h: 55 mm Montaż natynkowy Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Movement sensor/presence detector complete |
| Model: | Movement sensor |
| Sensor type: | Passive infrared |
| Constant light control: | no |
| HVAC-control: | no |
| Forced switch off: | yes |
| Animal zone: | no |
| Creep-under protection: | no |
| Networkable: | no |
| Scan angle: | 360 ° |
| Optimum mounting height: | 2.8 m |
| Staircase light controller: | yes |
| Bridging switch: | no |
| Max. reach sideways: | 8 m |
| Max. reach frontally: | 8 m |
| Diameter reach on floor: | 16 m |
| Suitable for wireless transmission: | no |
| Remote operation: | no |
| Response value sensitivity adjustable: | yes |
| Response value luminosity adjustable: | yes |
| With signal unit: | no |
| Teach-function for response value luminosity: | no |
| Dim function with dimmer basic element: | no |
| Mounting method: | Surface mounted |
| Suitable for ceiling mounting: | yes |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen free: | yes |
| Surface finishing: | Matt |
| Colour: | White |
| Transparent: | no |
| Degree of protection (IP): | IP20 |
| Voltage type: | AC |
| Frequency: | 50 - 50 Hz |
| Min. switch-on time: | 10 s |
| Max. duty cycle: | 13 min |
| Switching-on delay: | 1 s |
| Detection angle horizontal: | 360 - 360 ° |
| Response value luminosity: | 3 - 2000 lx |
| Max. switching power: | 800 W |
| Temperature: | -25 - 50 °C |
| Max. starting current: | 10 A |
| Substation input: | no |
| With alarm function: | no |
| Width: | 102 mm |
| Height: | 102 mm |
| Depth: | 55 mm |
| Diameter: | 115 mm |
