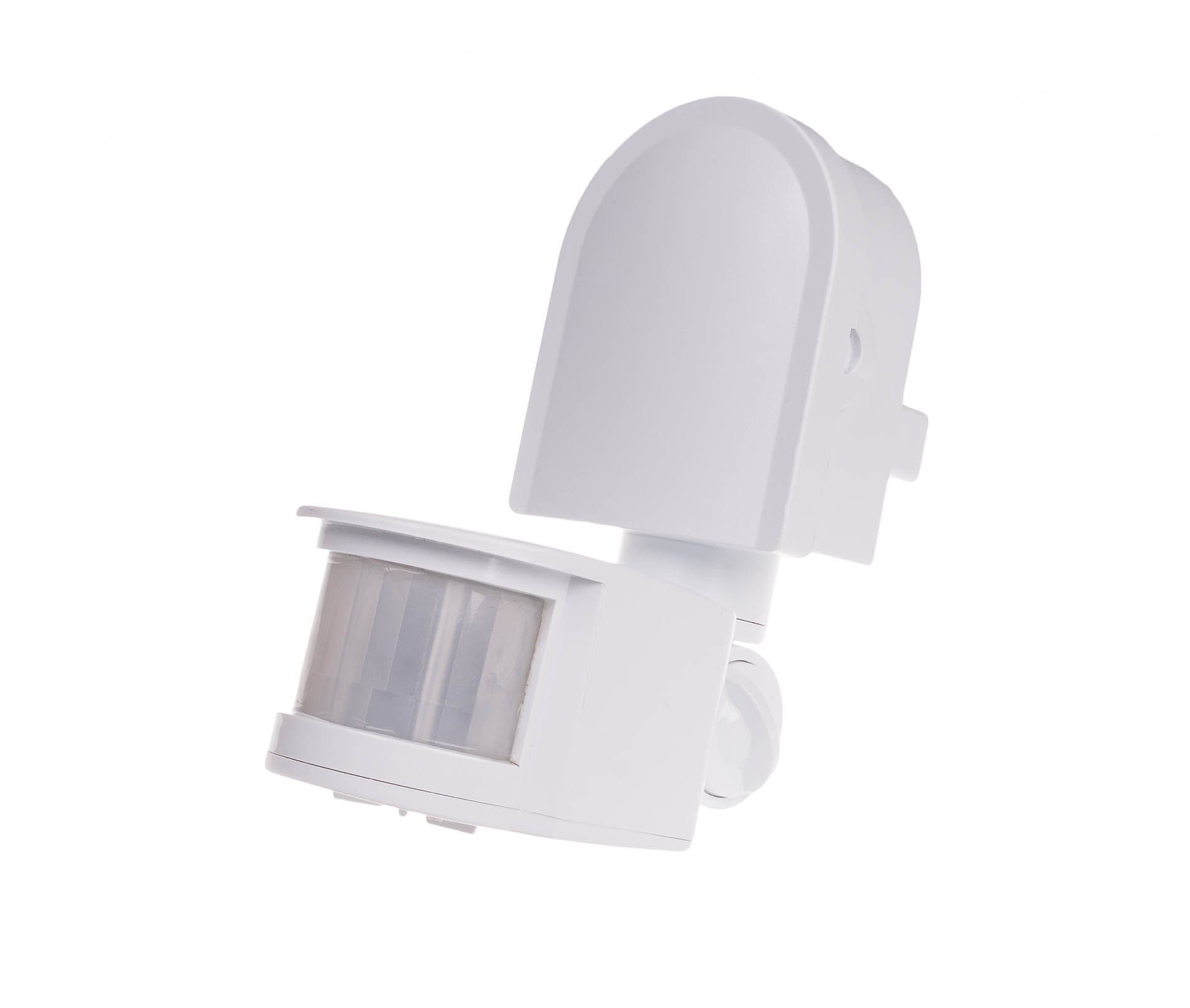

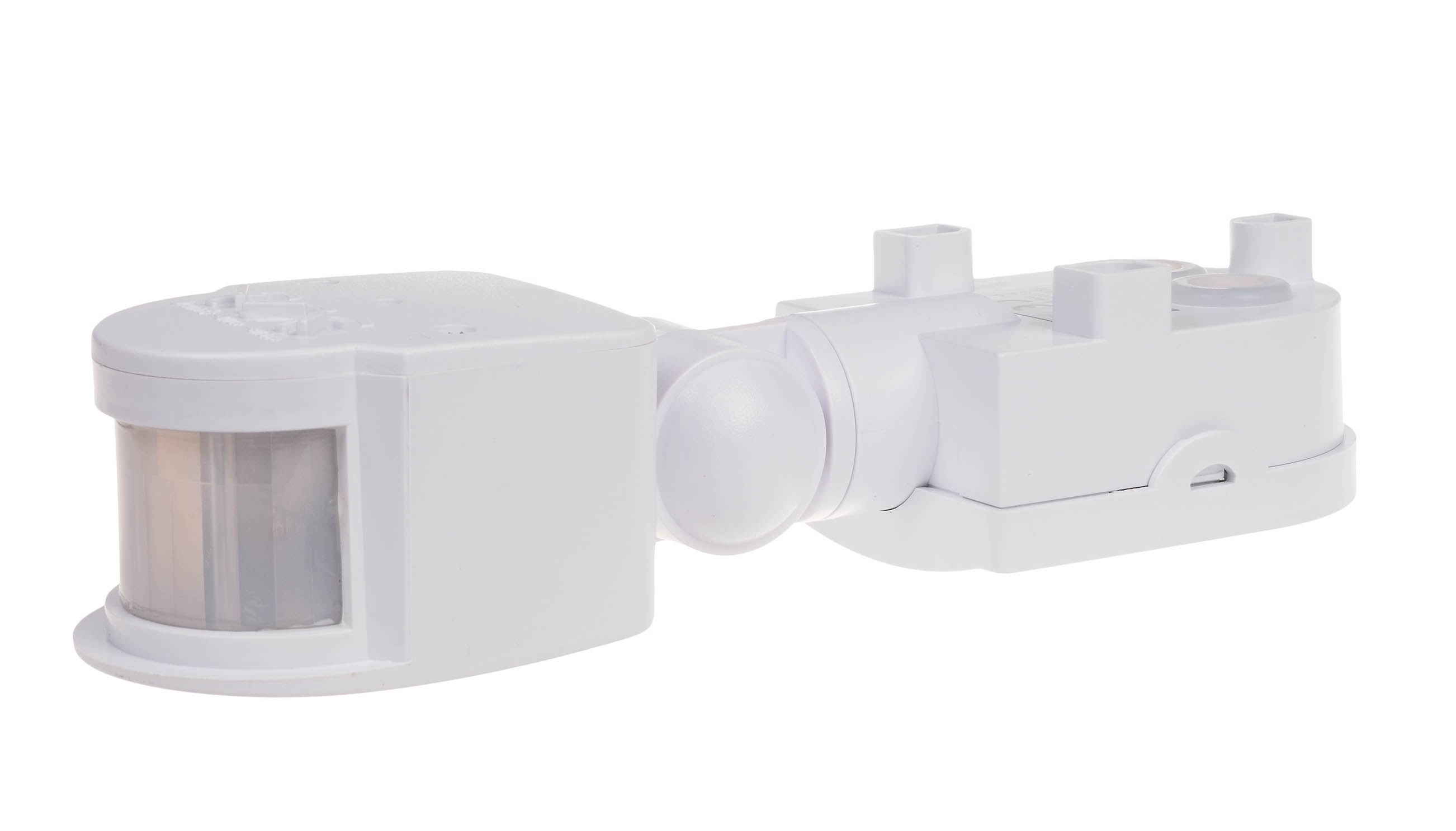

Detektor ruchu DR-05 biały 180°, 24V
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | DR |
| Symbol | DR-05W-24V |
| GTIN(EAN) | 5908312598688 |
| Price unit | piece |
| Catalog price | 120,54 zł (98,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 24 V AC/DC Czas wyłączenia 10 s ± 3 s ÷ 10 min ± 2 min. Detekcja ruchu 0,6÷1,5 m/s Pole detekcji poziomej 0°÷180° Pole detekcji pionowej 0°÷90° Maks. regulowany promień detekcji (h: 2.5 m, Temp. ˂ 24 °C) 5÷12 m Wysokość montażu czujnika 1,8÷2,5 m Zakres obrotu głowicy - w poziomie/w pionie 180°/90° Rodzaj detekcji promieniowanie podczerwone Przyłącze zaciski śrubowe 1,5 mm2 Moment dokręcający 0,3 Nm Pobór mocy 0,5 W Temperatura pracy -20÷40°C Wymiary głowica rozłożona poziomo: 70 x 205 x 45 mm; głowica rozłożona pionowo: 70 x 140 x 110 mm Montaż natynkowy Stopień ochrony IP44
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 271 g |
| ETIM class: | Movement sensor/presence detector complete |
| Model: | Movement sensor |
| Sensor type: | Passive infrared |
| Constant light control: | no |
| HVAC-control: | no |
| Forced switch off: | yes |
| Animal zone: | no |
| Creep-under protection: | no |
| Networkable: | no |
| Optimum mounting height: | 2.5 m |
| Staircase light controller: | yes |
| Bridging switch: | no |
| Max. reach sideways: | 4 m |
| Max. reach frontally: | 4 m |
| Diameter reach on floor: | 8 m |
| Suitable for wireless transmission: | no |
| Remote operation: | no |
| Response value sensitivity adjustable: | yes |
| Response value luminosity adjustable: | yes |
| With signal unit: | no |
| Teach-function for response value luminosity: | no |
| Dim function with dimmer basic element: | no |
| Mounting method: | Flush-mounted |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen free: | yes |
| Surface finishing: | Matt |
| Colour: | White |
| Transparent: | no |
| Degree of protection (IP): | IP20 |
| Voltage type: | AC |
| Frequency: | 50 - 50 Hz |
| Min. switch-on time: | 10 s |
| Max. duty cycle: | 10 min |
| Detection angle horizontal: | 360 - 360 ° |
| Response value luminosity: | 10 - 2000 lx |
| Max. switching power: | 600 W |
| Temperature: | -20 - 40 °C |
| Max. starting current: | 5 A |
| Substation input: | no |
| With alarm function: | no |
