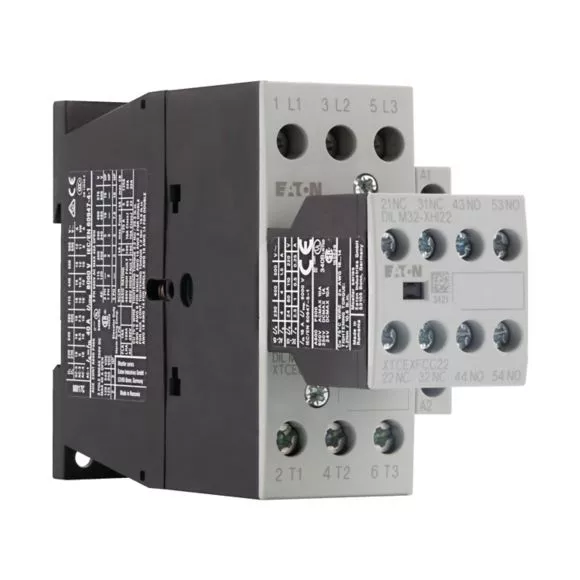

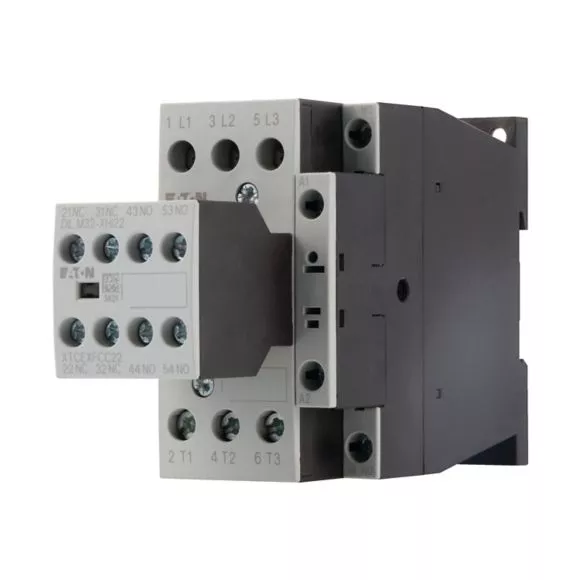

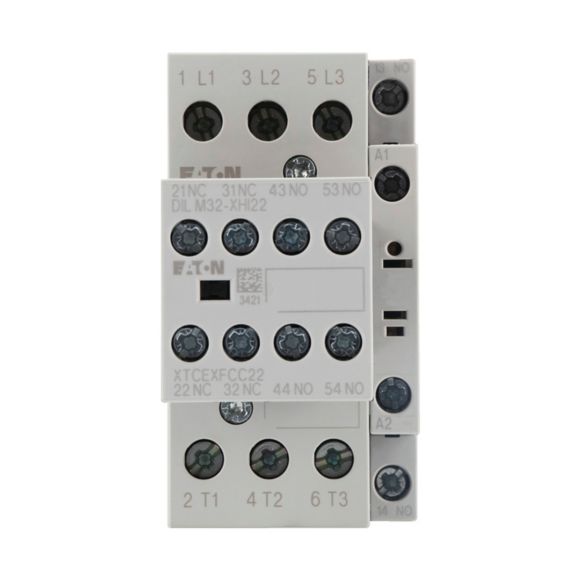

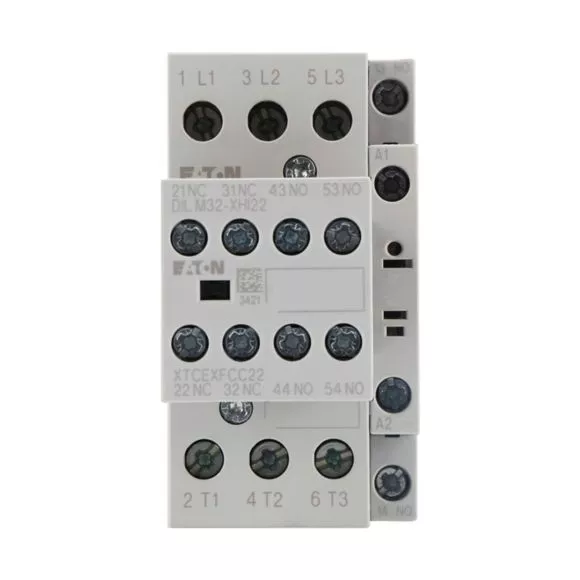

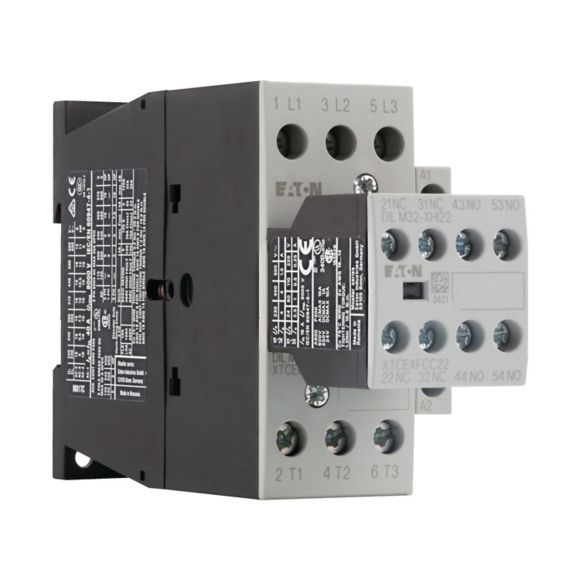

DILM17-32(230V50HZ,240V60HZ) Stycznik mocy I=17A [AC-3] 3Z 2R
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 277100 |
| GTIN(EAN) | 4015082771003 |
| Price unit | piece |
| Catalog price | 505,53 zł (411,00 zł + 23% VAT) |
| Sale price | from 114,89 zł / szt. (93,41 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Magneetschakelaar, toepassing: Magneetschakelaars voor motoren, complete apparaten tot 170 A, gebruikscategorie: AC-1: Niet-inductieve of licht inductieve belastingen, weerstandovens, NAC-3: Normale AC-inductiemotoren: Starten, uitschakelen tijdens bedrijf, AC-4: Normale AC-inductiemotoren: Starten, tegenstroomremmen, omkeren, tippen, aansluittechniek: Schroefklemmen, opmerkingen: Ook geschikt voor motoren met rendementsklasse IE3. IE3-ready apparaten zijn te herkennen aan het logo op hun verpakking. Nominale bedrijfsstroom AC-3 380 V 400 V: Ie= 18 A, nominale bedrijfsstroom AC-1 conventionele thermische stroom in vrije lucht, 3-polig
Additional features:
| Information | Value |
|---|---|
| Net weight: | 503 g |
| Country of origin | Rumunia |
| ETIM class: | Power contactor, AC switching |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-1, 400 V: | 40 A |
| Rated operation current Ie at AC-3, 400 V: | 18 A |
| Rated operation power at AC-3, 400 V: | 7,5 kW |
| Rated operation current Ie at AC-4, 400 V: | 10 A |
| Rated operation power at AC-4, 400 V: | 4,5 kW |
| Rated operation power NEMA: | 7,4 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 3 |
| Number of auxiliary contacts as normally closed contact: | 2 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Width: | 45 mm |
| Height: | 85 mm |
| Depth: | 138 mm |
