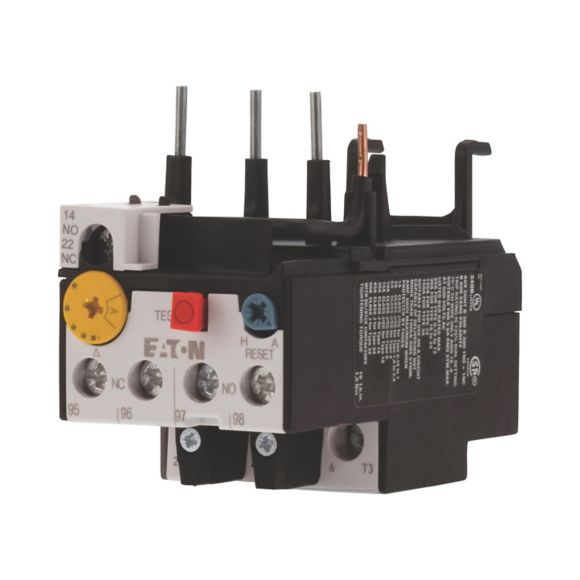

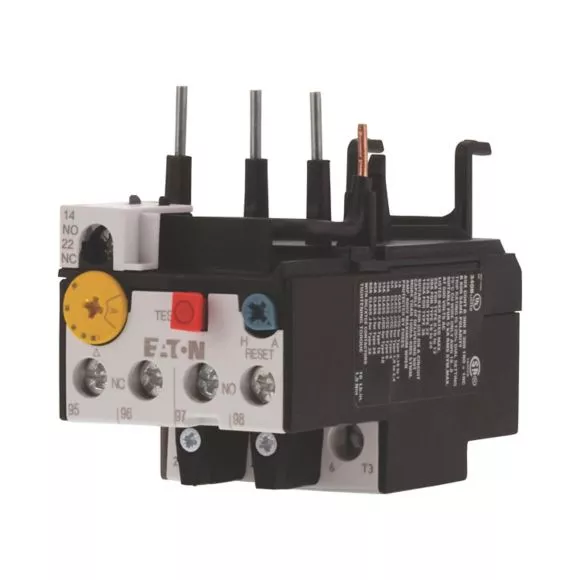

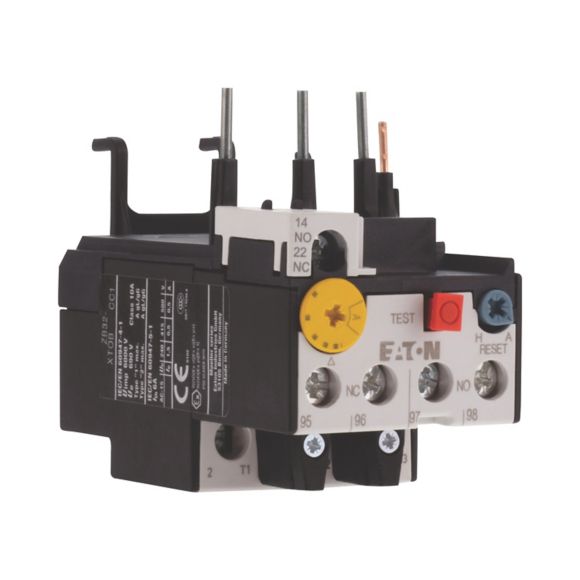

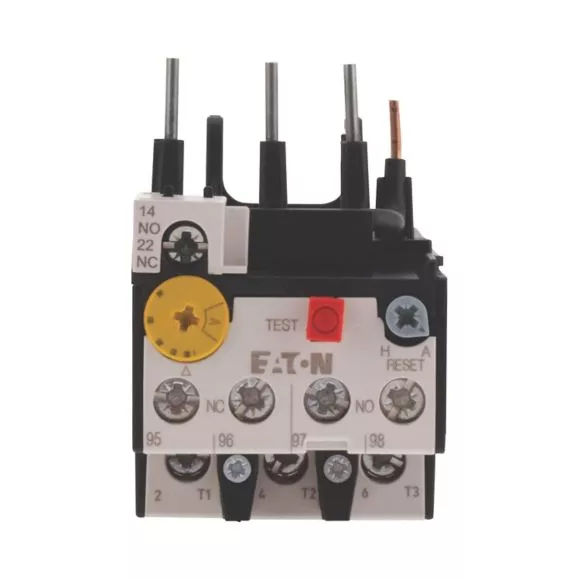

ZB32-1 Przekaźnik przeciąż. dla DILM17...38
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 278446 |
GTIN(EAN) | 4015082784461 |
Price unit | piece |
Catalog price | 546,12 zł (444,00 zł + 23% VAT) |
Sale price | from 147,01 zł / szt. (119,52 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik przeciążeniowy, Zacisk śrubowy: Przekaźnik przeciążeniowy ZB do 150 A, Akcesoria: Przekaźniki przeciążeniowe, Wielkość: ZB32, Czułość na zanik fazy: IEC/EN 60947, VDE 0660 część 102, Opis: Przycisk test/wył., Przycisk resetowania ręcznego/automatycznego, Wyzwalanie swobodne, Typ mocowania: Montaż bezpośredni, Styki pomocnicze Z = Zwierne: 1 Z, Styki pomocnicze R = Rozwierne: 1 R, Do zastosowania z: DILM17, DILM25, DILM32, DILM38, DILMF8, DILMF11, DILMF14, DILMF17, DILMF25, DILMF32, DIULM17, DIULM25, DIULM32, SDAINLM30, SDAINLM45, SDAINLM55, Normy: IEC/EN 60947, VDE 0660, UL, CSA, Stopień ochrony: IP20
Additional features:
Information | Value |
---|---|
Net weight: | 142 g |
Country of origin | Niemcy |
ETIM class: | Thermal overload relay |
Adjustable current range: | 0,6 - 1 A |
Max. rated operation voltage Ue: | 690 V |
Mounting method: | Direct attachment |
Type of electrical connection of main circuit: | Screw connection |
Number of auxiliary contacts as normally closed contact: | 1 |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as change-over contact: | 0 |
Release class: | CLASS 10 A |
Reset function input: | no |
Reset function automatic: | yes |
Reset function push-button: | yes |
