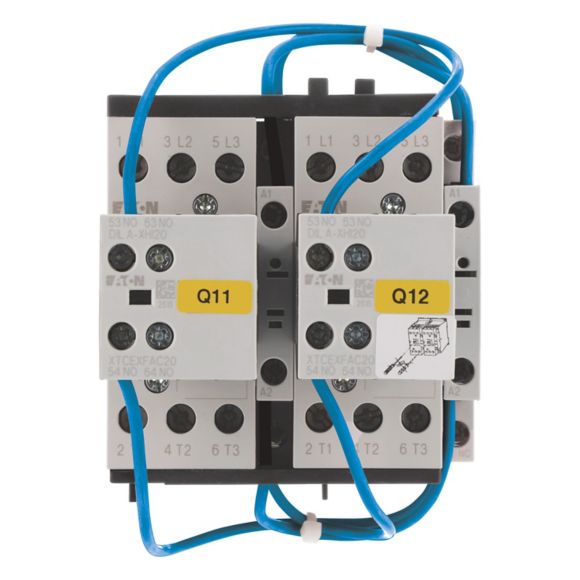

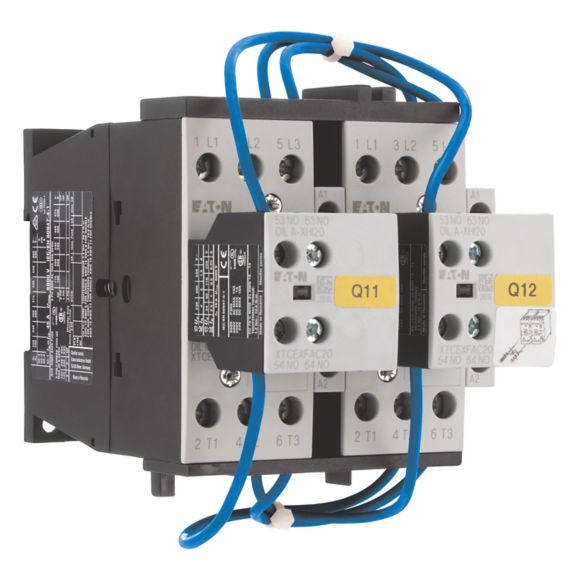

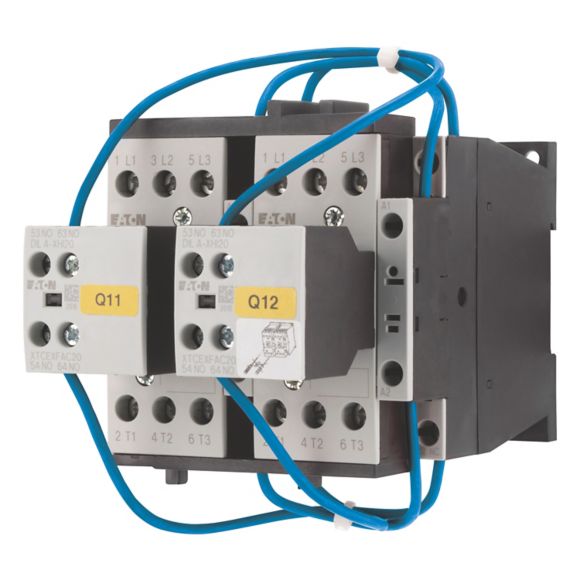

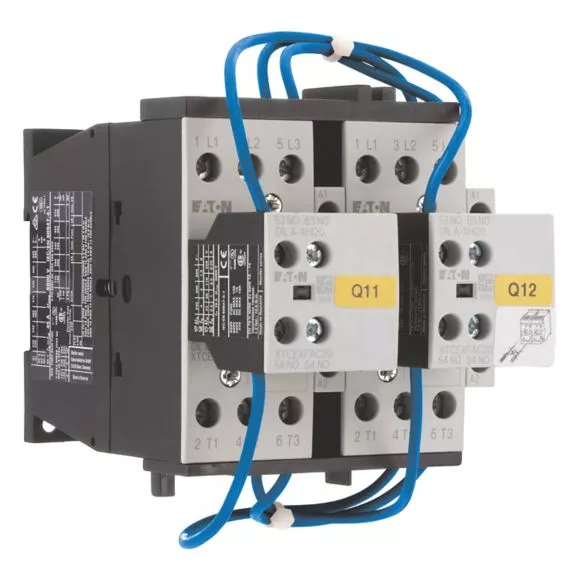

DIULM17/21(230V50HZ,240V60HZ) Zestaw nawrotny 7,5kW [AC-3] 400V
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 278136 |
GTIN(EAN) | 4015082781361 |
Price unit | piece |
Catalog price | 1 137,50 zł (924,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Reversing contactor combination, Application: Contactor combinations for starting motors with two directions of rotation, Accessories: DIUL reversing combinations, Utilization category: NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Rated operational current AC-3 380 V 400 V: Ie= 18 A, Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 5 kW, 380 V 400 V: P= 7.5 kW, 660 V 690 V: P= 11 kW, Actuating voltage: 230 V 50 Hz, 240 V 60 Hz, Voltage AC/DC: AC operation, Notes: Also suitable for motors with efficiency class IE3. , IE3-ready devices are identified by the logo on their packaging.
Additional features:
Information | Value |
---|---|
Net weight: | 1,087 kg |
ETIM class: | Combination of contactors |
Function: | Reversing contactor |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Rated control supply voltage AC 60 Hz: | 240 - 240 V |
Rated control supply voltage DC: | 0 - 0 V |
Voltage type for actuating: | AC |
Rated operation current Ie at AC-1, 400 V: | 18 A |
Rated operation current Ie at AC-3, 400 V: | 18 A |
Rated operation power at AC-3, 400 V: | 7.5 kW |
Rated operation power NEMA: | 7.4 kW |
Number of normally closed contacts as main contact: | 0 |
Number of normally open contacts as main contact: | 6 |
Type of electrical connection of main circuit: | Screw connection |
Degree of protection (IP): | IP00 |
Rail mounting possible: | no |
Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
Degree of protection (NEMA): | Other |
