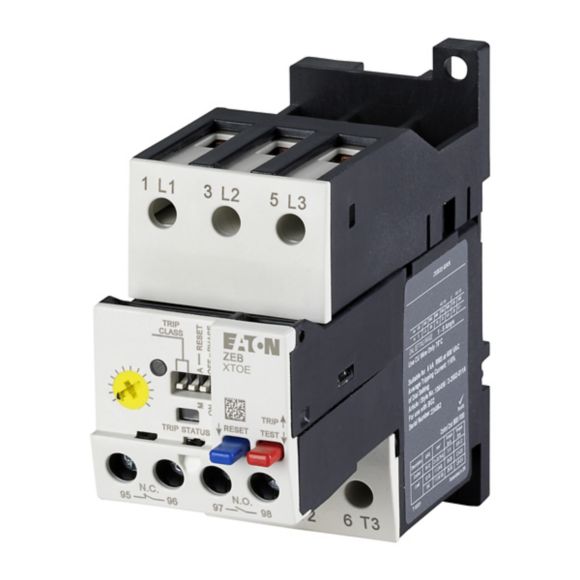

ZEB32-5/KK Elektr. przekaźnik przeciąż. 1-5A mont. oddz.
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 136495 |
GTIN(EAN) | 4015081332755 |
Price unit | piece |
Catalog price | 1 337,01 zł (1 087,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ochronny przekaźnik silnikowy wg IEC60947-4-1, dopuszczenie ATEX UL/CSA, elektroniczna szerokozakresowa ochrona przeciążeniowa (5:1), regulowane klasy wyzwalania, ochrona przed brakiem fazy i asymetrią, resetowanie automatyczne / ręczne, aparaty przełączające i wymiary przewodów odpowiednio do siły rozruchu (CLASS), pojedyncza instalacja, niewielka moc straty
Additional features:
Information | Value |
---|---|
Net weight: | 350 g |
Country of origin | Dominikana |
ETIM class: | Electronic overload relay |
Adjustable current range: | 1 - 5 A |
Mounting method: | Separate positioning |
Type of electrical connection of main circuit: | Screw connection |
Number of auxiliary contacts as normally closed contact: | 1 |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as change-over contact: | 0 |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 0 - 0 V |
Release class: | Adjustable |
Reset function automatic: | yes |
Reset function input: | no |
Reset function push-button: | yes |
External power supply required: | no |
Voltage type (operating voltage): | AC |
Operating voltage AC 50 Hz: | 230 - 690 V |
Operating voltage AC 60 Hz: | 230 - 690 V |
Operating voltage DC: | 0 - 0 V |
Width: | 45 mm |
Height: | 110 mm |
Depth: | 108 mm |
