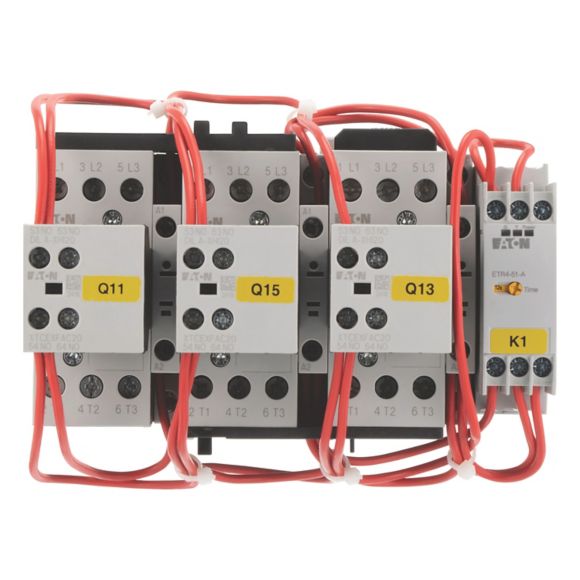

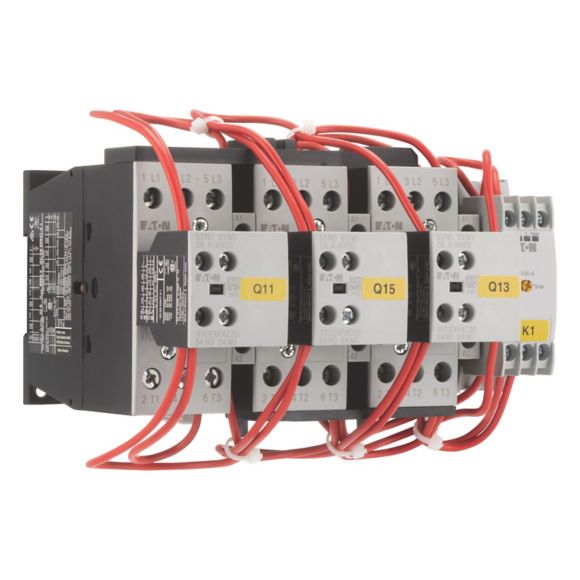

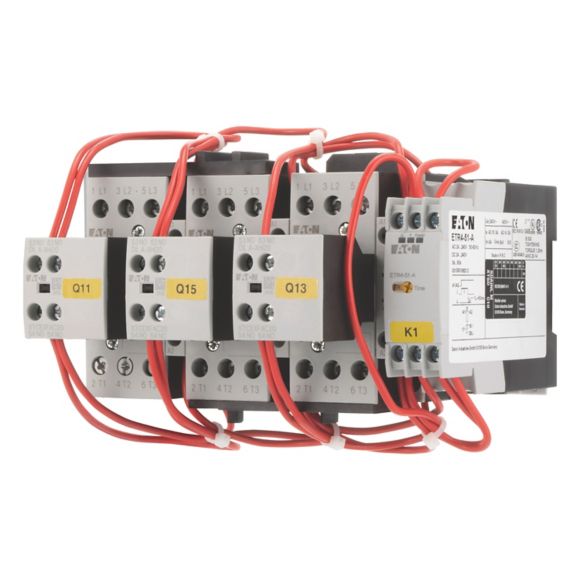

SDAINLM45(230V50HZ,240V60HZ) Zestaw gwiazda-trójkąt I=45A 22kW
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 278386 |
| GTIN(EAN) | 4015082783860 |
| Price unit | piece |
| Catalog price | 3 184,47 zł (2 589,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zestaw gwiazda-trójkąt z kompletnym okablowaniem
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,61 kg |
| Country of origin | Rumunia |
| ETIM class: | Combination of contactors |
| Function: | Star-delta contactor |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 240 - 240 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-1, 400 V: | 45 A |
| Rated operation current Ie at AC-3, 400 V: | 45 A |
| Rated operation power at AC-3, 400 V: | 22 kW |
| Rated operation power NEMA: | 0 kW |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 9 |
| Type of electrical connection of main circuit: | Screw connection |
| Degree of protection (IP): | IP00 |
| Rail mounting possible: | no |
| Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
| Degree of protection (NEMA): | Other |
| Voltage type (operating voltage): | AC |
| Operating voltage AC 50 Hz: | 24 - 690 V |
| Operating voltage AC 60 Hz: | 24 - 690 V |
| Operating voltage DC: | 0 - 0 V |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 3 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Width: | 158 mm |
| Height: | 95 mm |
| Depth: | 138 mm |
