KLV-12HWS-SF Rozdzielnica modułowa podtynk. K-G IP30 1x14 superpłaska
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 178823 |
| GTIN(EAN) | 4015081741526 |
| Price unit | piece |
| Catalog price | 409,22 zł (332,70 zł + 23% VAT) |
| Sale price | from 101,34 zł / szt. (82,39 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

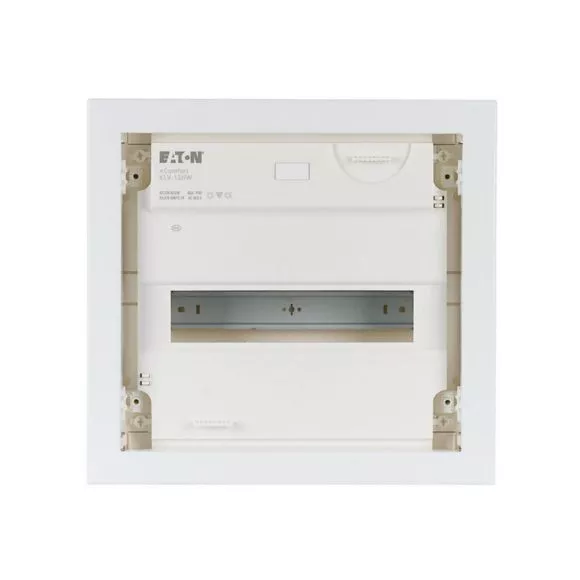

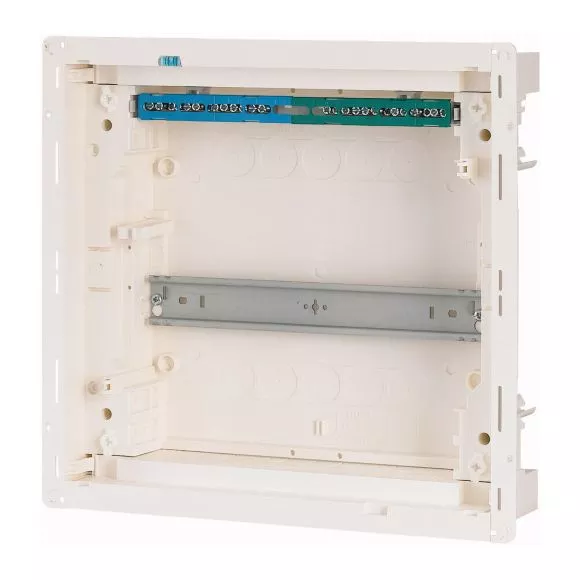

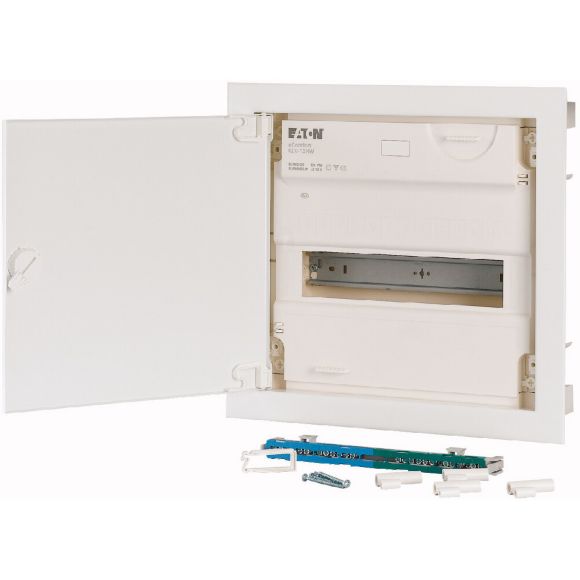

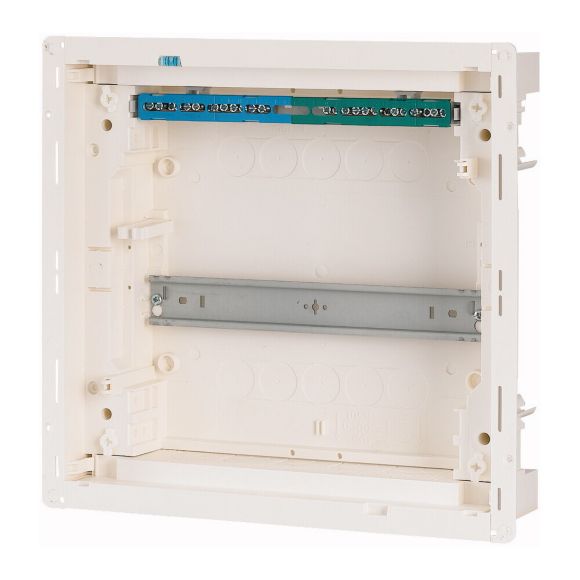

Second generation KLV hollow-wall compact distribution board, protection Class II, plastic enclosure with sheet steel door, front cover, sealable and laser-inscribed in accordance with IEC/EN 60670-24, plus 2-space-unit reserve per row, marking slot in wall box, one-of-a-kind super-slim door frame design, rugged door cam lock, optionally replaceable with safety interlock, cable retainer for neat wiring, optionally available in form of delivery for projects, optional door with frame with requested RAL color, comprehensive range of accessories, equipment supplied: enclosure, device carrier, front cover, neutral and protective conductor terminals with SK screw terminal technology, spirit level, 3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm, cable retainer, hollow wall anker, installation instructions, imprintable sheet, special packaging designed to meet real-life application requirements. Standards: In accordance with IEC/EN 60670-24, DIN 43871, IEC/EN 62208 and, accordingly, approved for distribution boards as defined in IEC/EN 61439-3.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 2,54 kg |
| Country of origin | Czechy |
| ETIM class: | Small distribution board |
| Mounting method: | Hollow wall |
| Number of rows: | 1 |
| Width in number of modular spacings: | 12 |
| Type of covering: | Door |
| Cover model: | With notch |
| Transparent cover/door: | no |
| Housing material: | Plastic |
| Height: | 340 mm |
| Width: | 360 mm |
| Depth: | 100 mm |
| Built-in depth: | 88 mm |
| Built-in height: | 0 mm |
| Built-in width: | 0 mm |
| Inner depth: | 75 mm |
| Earthing terminal block: | no |
| Neutral terminal block: | no |
| DIN-rail: | yes |
| With mounting plate: | no |
| Extension possible: | yes |
| EMC-version: | yes |
| Colour: | White |
| RAL-number: | 9016 |
| Degree of protection (IP): | IP30 |
| With lock: | no |
| Type of closure: | Other |
| Signal passing door: | no |
| Type of door: | Single |
| UV resistant: | no |
