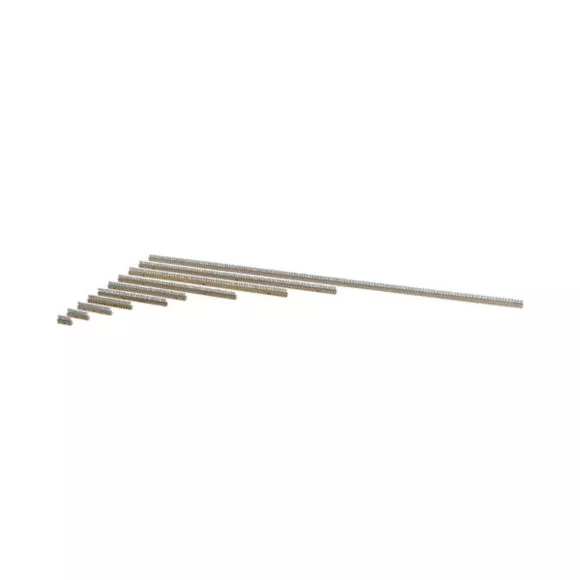

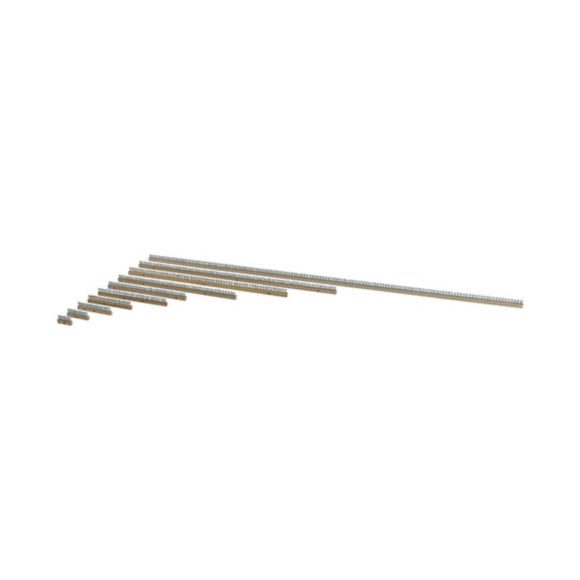

KL-7 LISTWA ZACISKOWA
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 219724 |
GTIN(EAN) | 9004852591120 |
Price unit | piece |
Catalog price | 25,09 zł (20,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 28 g |
ETIM class: | Main line branch terminal |
Number of poles: | 1 |
Nominal current: | 63 A |
Mounting method: | Screw |
Number of inputs: | 1 |
Number of outputs: | 6 |
Suitable for solid conductors: | yes |
Suitable for stranded conductors: | yes |
Suitable for fine strand conductors: | yes |
Suitable for fine strand conductors without cable end sleeve: | no |
Suitable for extra fine-strand conductors: | no |
Suitable for extra fine-strand conductors without cable end sleeve: | no |
Conductor cross section, input: | 1.5 - 25 mm² |
Conductor cross section, output: | 1.5 - 16 mm² |
Conductor cross section, input AWG: | 0 - 0 mm² |
Conductor cross section, output AWG: | 0 - 0 mm² |
Contact safe: | no |
Height: | 9 mm |
Width: | 57 mm |
Depth: | 7 mm |
Connection type: | Screwing |
