KL-29 LISTWA ZACISKOWA
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 275449 |
| GTIN(EAN) | 4015082754495 |
| Price unit | piece |
| Catalog price | 107,01 zł (87,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

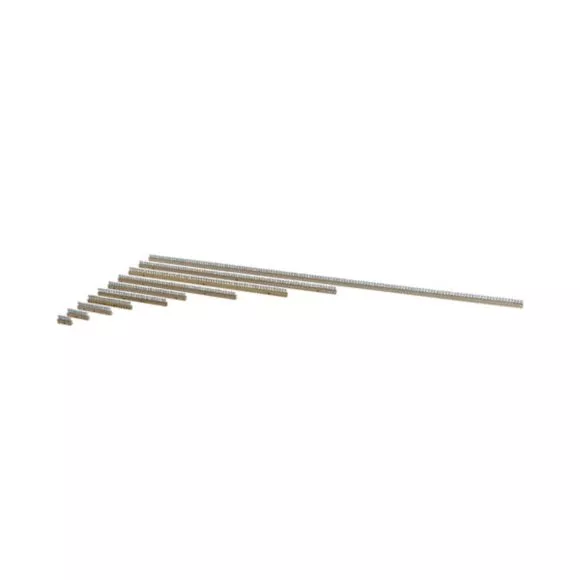

Brass terminal bar (63 A), if it is being used as a PE bar, directly installed in the service distribution board, when used as a neutral conductor busbar, it needs to be mounted with KT-3/KT-5 terminal supports
Additional features:
| Information | Value |
|---|---|
| Net weight: | 130 g |
| ETIM class: | Main line branch terminal |
| Number of poles: | 1 |
| Nominal current: | 63 A |
| Mounting method: | Screw |
| Number of inputs: | 2 |
| Number of outputs: | 27 |
| Suitable for solid conductors: | yes |
| Suitable for stranded conductors: | yes |
| Suitable for fine strand conductors: | yes |
| Suitable for fine strand conductors without cable end sleeve: | no |
| Suitable for extra fine-strand conductors: | no |
| Suitable for extra fine-strand conductors without cable end sleeve: | no |
| Conductor cross section, input: | 1.5 - 25 mm² |
| Conductor cross section, output: | 1.5 - 16 mm² |
| Conductor cross section, input AWG: | 0 - 0 mm² |
| Conductor cross section, output AWG: | 0 - 0 mm² |
| Contact safe: | no |
| Height: | 10 mm |
| Width: | 218 mm |
| Depth: | 8 mm |
| Connection type: | Screwing |
