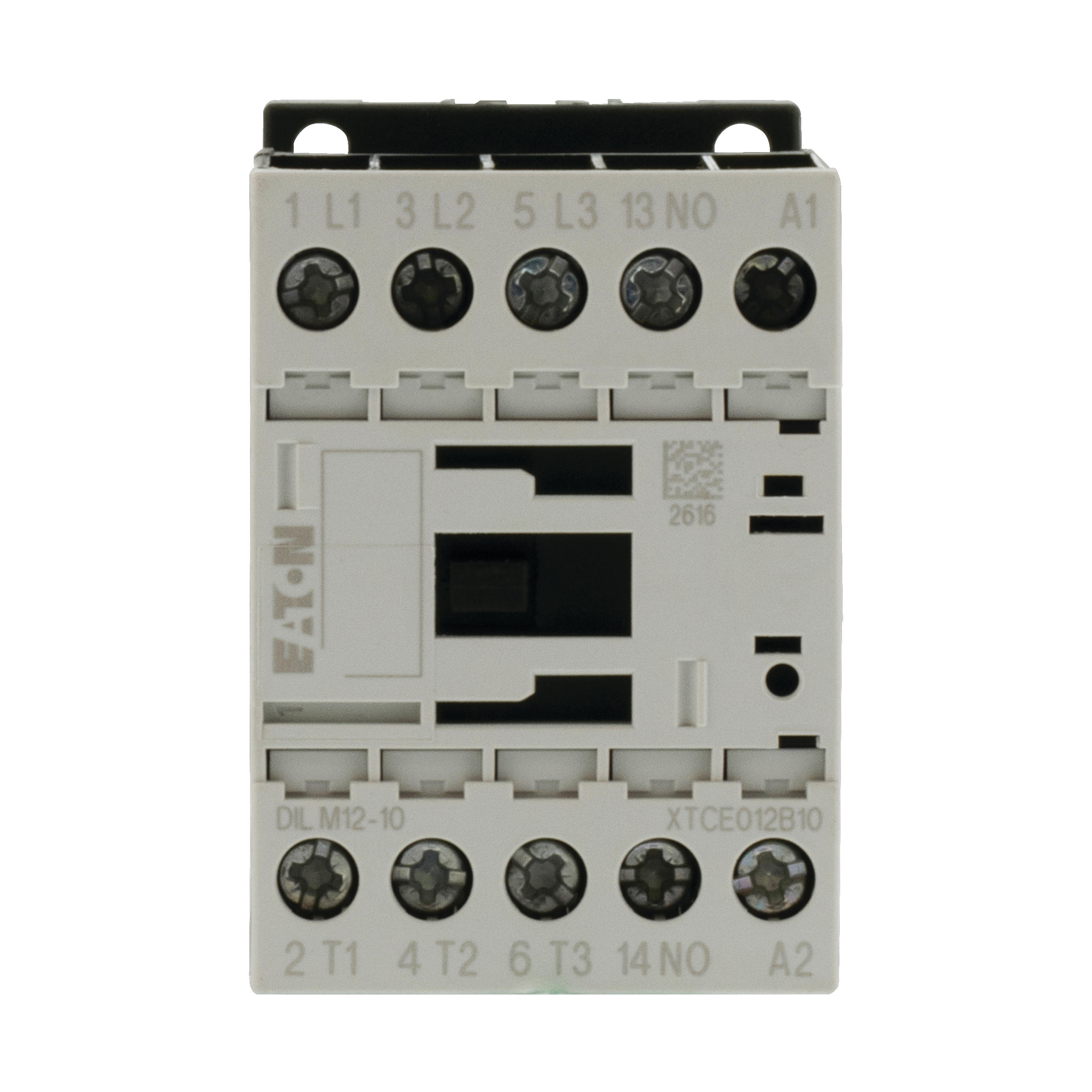

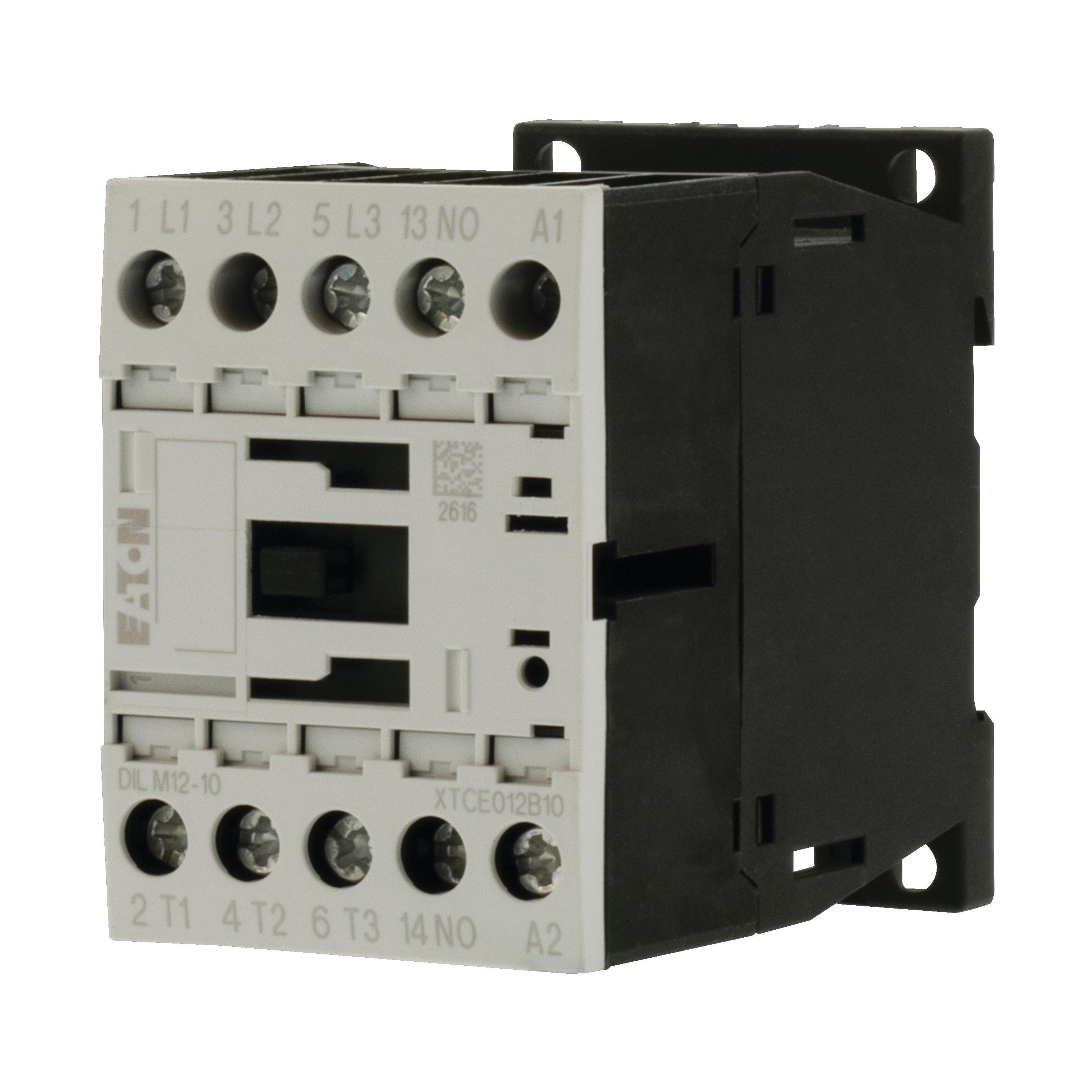

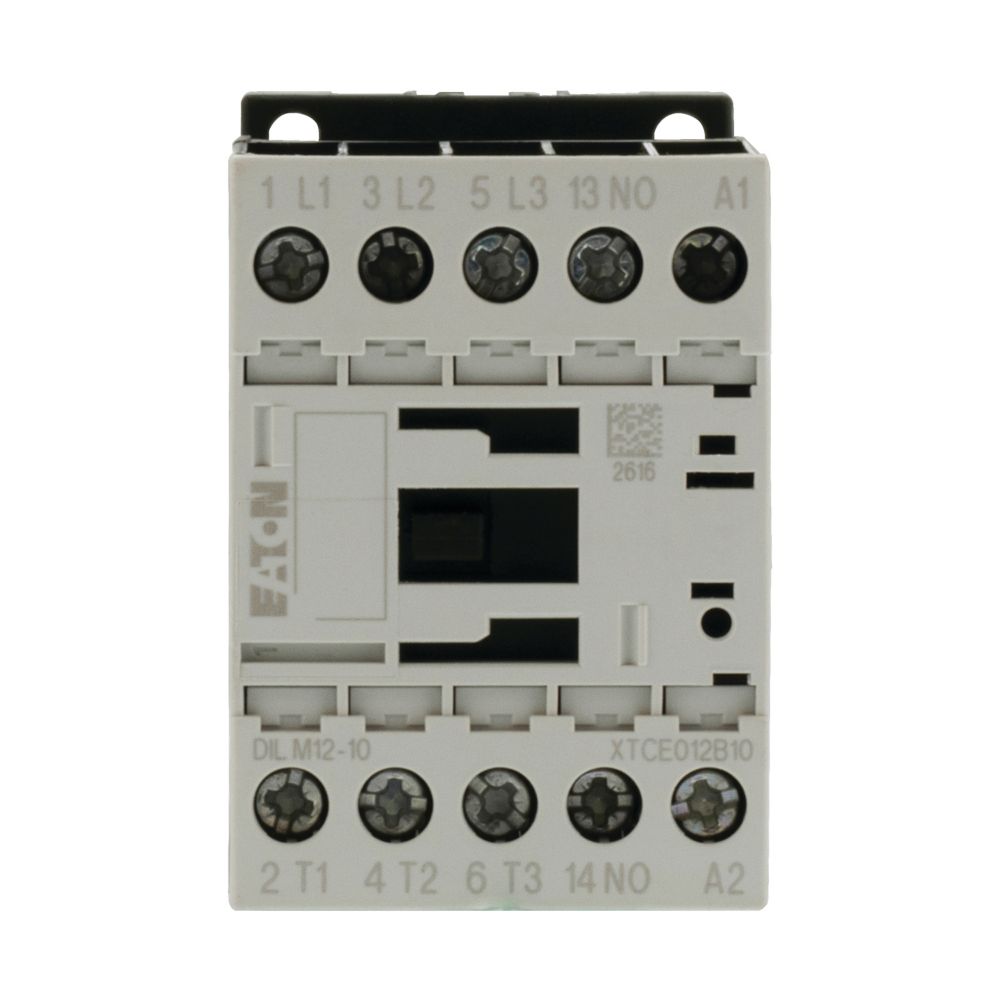

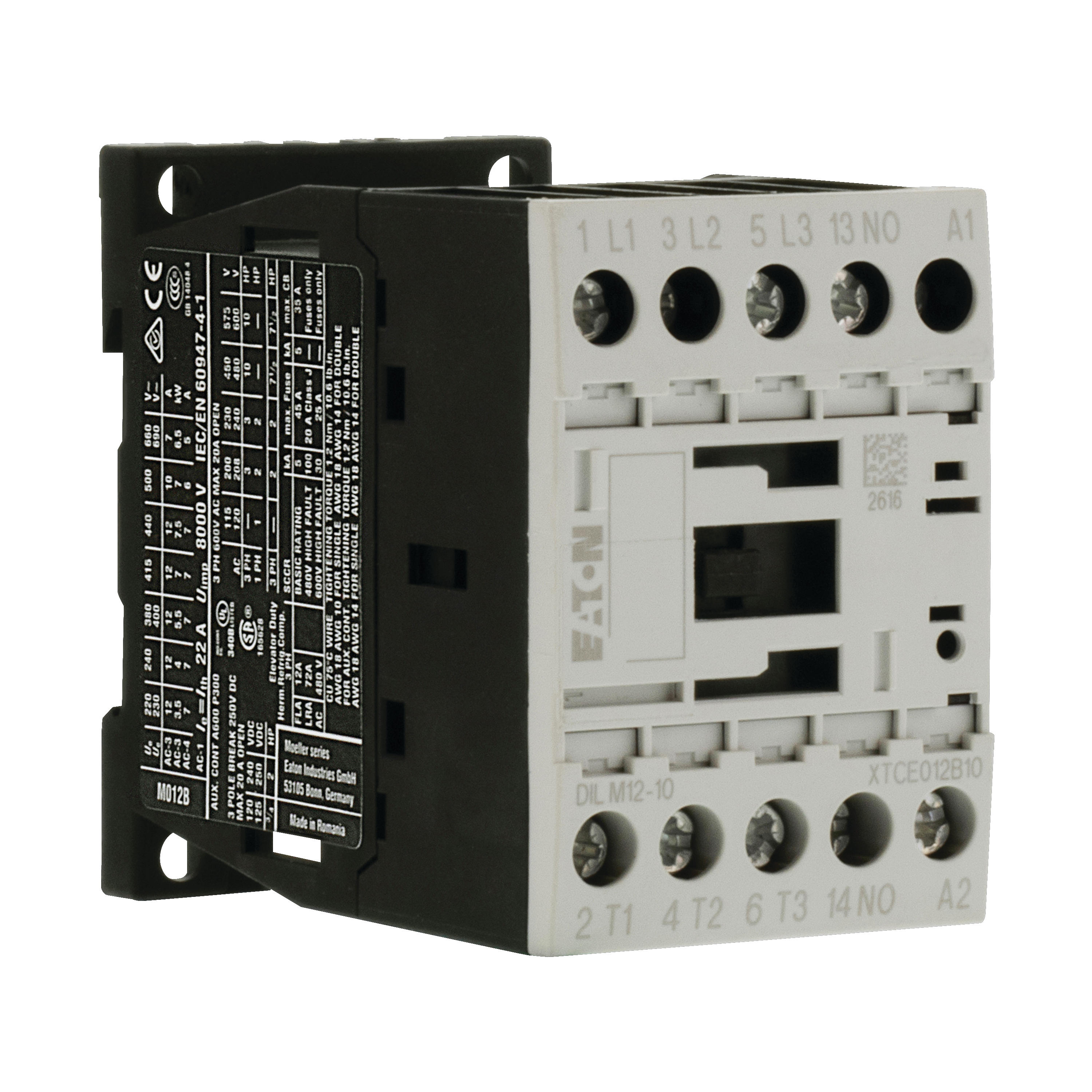

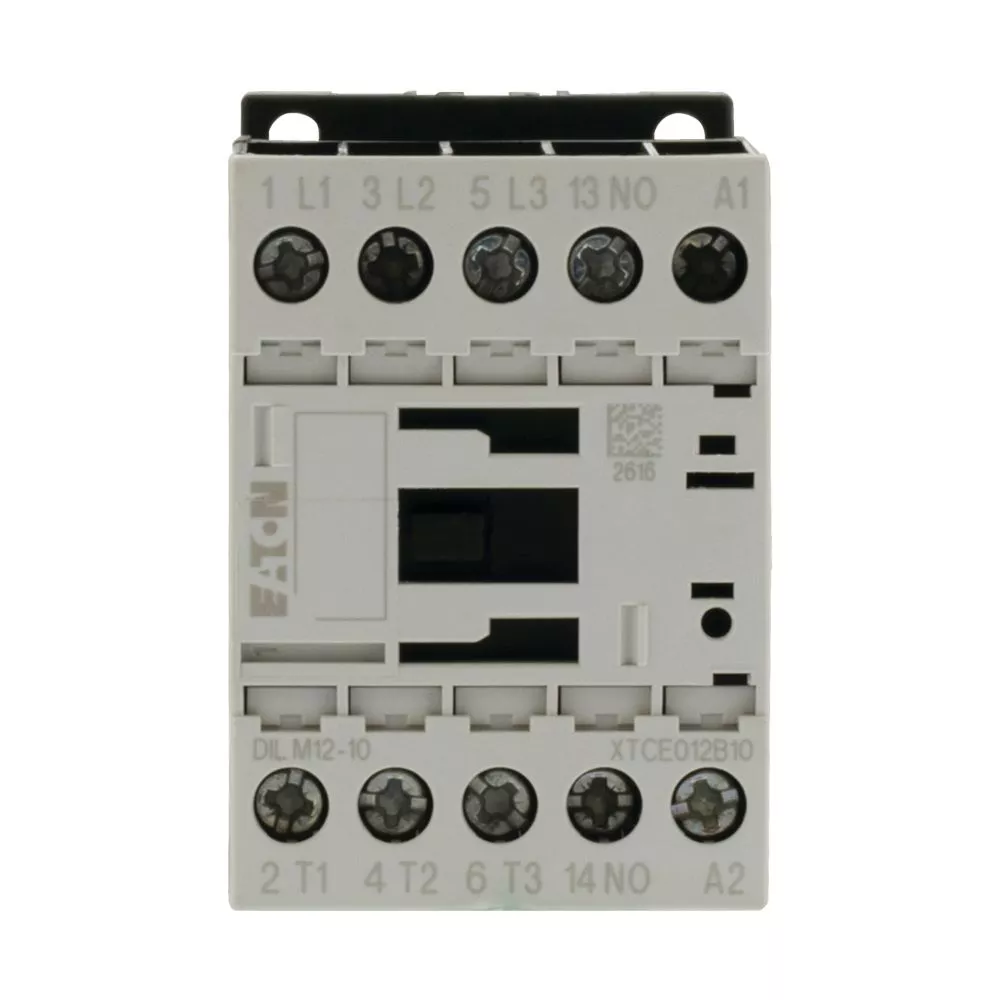

DILM12-10(230V50HZ,240V60HZ) Stycznik mocy I=12A [AC-3], 1Z 0R
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 276830 |
GTIN(EAN) | 4015082768300 |
Price unit | piece |
Catalog price | 279,21 zł (227,00 zł + 23% VAT) |
Sale price | from 51,75 zł / szt. (42,07 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik, Zastosowanie: Styczniki do silników, Styczniki do 170 A, 3-biegunowy, Kategoria użytkowa: AC-1: Obciążenia nieindukcyjne lub obciążenia o małej indukcyjności, piece oporowe, NAC-3: Standard. silniki indukcyjne AC: rozruch, wyłączanie w trakcie pracy, AC-4: Stand.silniki induk.AC:rozruch,podłącz.,cofanie,pr. spowol.,Sposób podłącz.: Zaciski śrubowe, Uwagi: Odpowiednie również dla silników o klasie sprawności IE3., Urządzenia spełniające normy IE3 są oznaczone odpowiednim logo na opakowaniu., Liczba biegunów: 3-biegunowy, Znamionowy prąd roboczy AC-3, 380 V 400 V: Ie = 12 A, Znamionowy prąd roboczy AC-1 Prąd cieplny umowny na wolnym powietrzu, 3-biegunowy
Additional features:
Information | Value |
---|---|
Net weight: | 240 g |
Country of origin | Niemcy |
ETIM class: | Power contactor, AC switching |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Rated control supply voltage AC 60 Hz: | 240 - 240 V |
Rated control supply voltage DC: | 0 - 0 V |
Voltage type for actuating: | AC |
Rated operation current Ie at AC-1, 400 V: | 22 A |
Rated operation current Ie at AC-3, 400 V: | 12 A |
Rated operation power at AC-3, 400 V: | 5,5 kW |
Rated operation current Ie at AC-4, 400 V: | 7 A |
Rated operation power at AC-4, 400 V: | 3 kW |
Rated operation power NEMA: | 7,4 kW |
Modular version: | no |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as normally closed contact: | 0 |
Type of electrical connection of main circuit: | Screw connection |
Number of normally closed contacts as main contact: | 0 |
Number of normally open contacts as main contact: | 3 |
Operating voltage AC 50 Hz: | 24 - 690 V |
Operating voltage AC 60 Hz: | 24 - 690 V |
Width: | 45 mm |
Height: | 68 mm |
Depth: | 75 mm |
