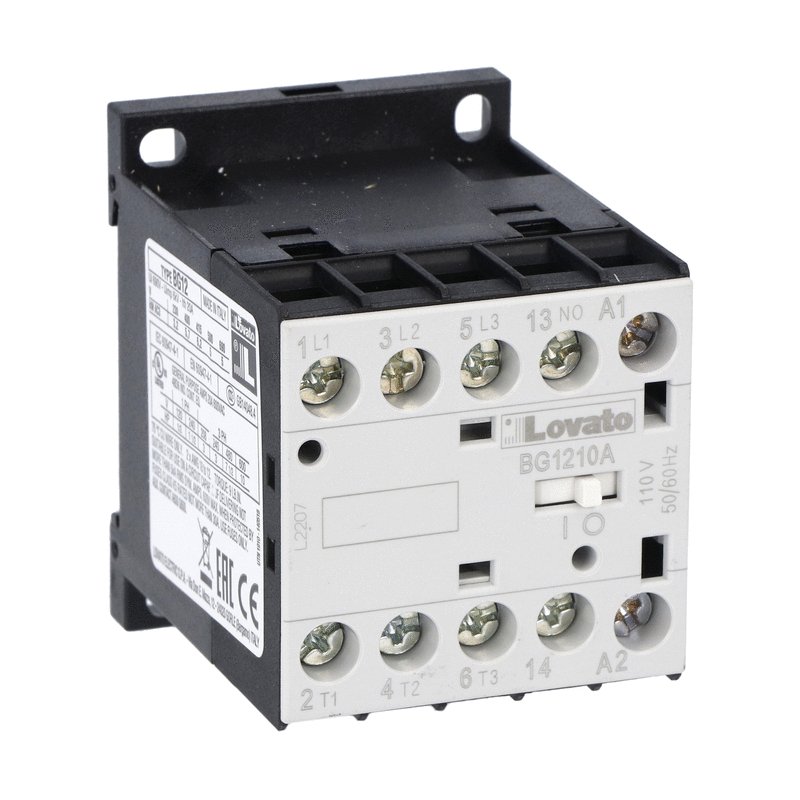

Stycznik 3 polowy, 12A w AC3, wbudowany zestyk 1NO, 230VAC 50/60Hz
Information | Value |
---|---|
Supplier | LOVATO Electric Sp. z o.o. |
Symbol | 11BG1210A230 |
GTIN(EAN) | 8013975080153 |
Price unit | piece |
Catalog price | 182,04 zł (148,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 182 g |
ETIM class: | Power contactor, AC switching |
Voltage type for actuating: | AC |
Type of electrical connection of main circuit: | Screw connection |
Rated control supply voltage AC 60 Hz: | 230 - 230 V |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Modular version: | no |
Rated operation current Ie at AC-4, 400 V: | 4.8 A |
Rated operation current Ie at AC-1, 400 V: | 20 A |
Rated operation current Ie at AC-3, 400 V: | 12 A |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 1 |
Number of normally closed contacts as main contact: | 0 |
Number of normally open contacts as main contact: | 3 |
Rated operation power at AC-3, 400 V: | 5.7 kW |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Manufacturer or importer or entity responsible in EU |
LOVATO ELECTRIC S.P.A.
Via Don E. Mazza 12, 24020 GORLE (Bergamo), Włochy
tel: 717979010 mail: info@lovatoelectric.pl
|
Updated: | 2024-12-02 15:00:05 |
Files to download: |
