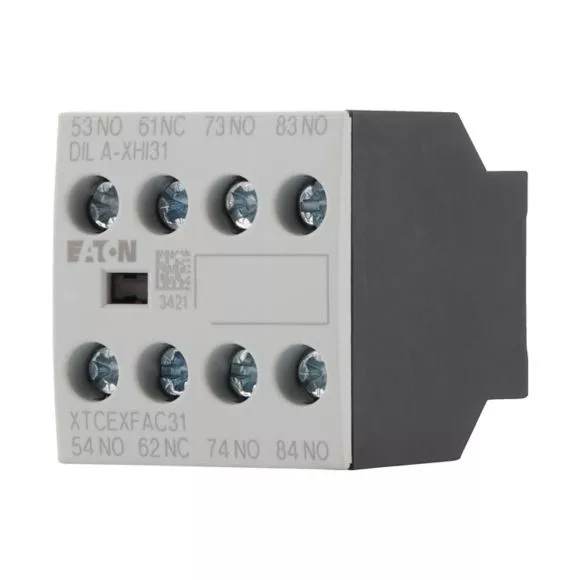

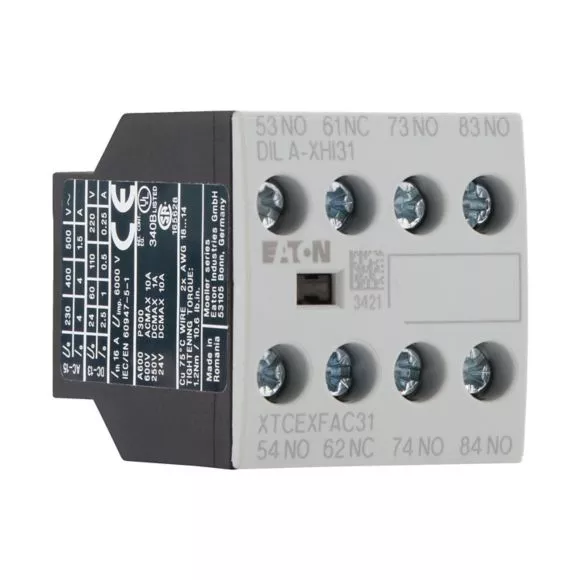

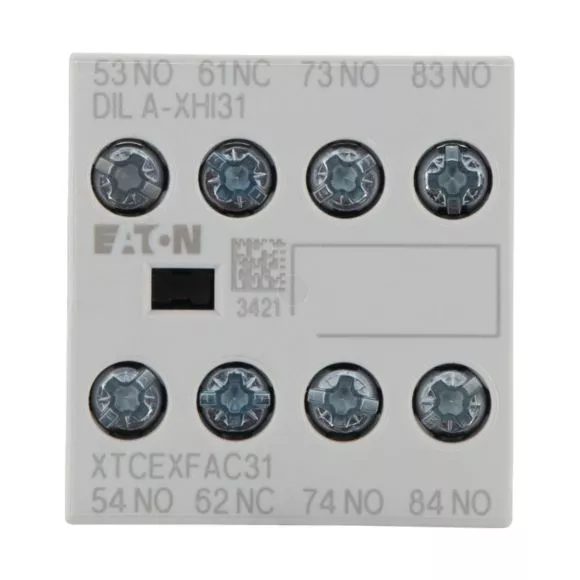

DILA-XHI31 styki pomocnicze 3Z 1R
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 276427 |
GTIN(EAN) | 4015082764272 |
Price unit | piece |
Catalog price | 121,03 zł (98,40 zł + 23% VAT) |
Sale price | from 20,59 zł / szt. (16,74 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Hilfsschalterbaustein, mit zwangsgeführten Kontakten, Schaltglieder nach EN 50005, Kombinationen der Ausführung E entsprechen EN 50011 und sind zu bevorzugen. Gleichstrombetätigte Schütze DILA(C)-22 dürfen nur mit 2-poligen Hilfsschaltern kombiniert werden. Funktion: für Standardanwendungen, 4-polig, Anschlusstechnik: Schraubklemmen, Bemessungsbetriebsstrom AC-15 220 V 230 V 240 V: Ie= 4 A, Bemessungsbetriebsstrom AC-15 380 V 400 V 415 V: Ie= 4 A, Kontakte S = Schließer: 3 S, Kontakte Ö = Öffner: 1 Ö, Montagetyp: Frontbefestigung, verwendbar für: DILA(C)…, DILM(C)7…, DILM(C)9…, DILM(C)12…, DILM(C)15…
Additional features:
Information | Value |
---|---|
Net weight: | 48 g |
Country of origin | Rumunia |
ETIM class: | Auxiliary contact block |
Number of contacts as change-over contact: | 0 |
Number of contacts as normally open contact: | 3 |
Number of contacts as normally closed contact: | 1 |
Number of fault-signal switches: | 0 |
Rated operation current Ie at AC-15, 230 V: | 4 A |
Type of electric connection: | Screw connection |
Model: | Clip-on |
Mounting method: | Front fastening |
Lamp holder: | None |
