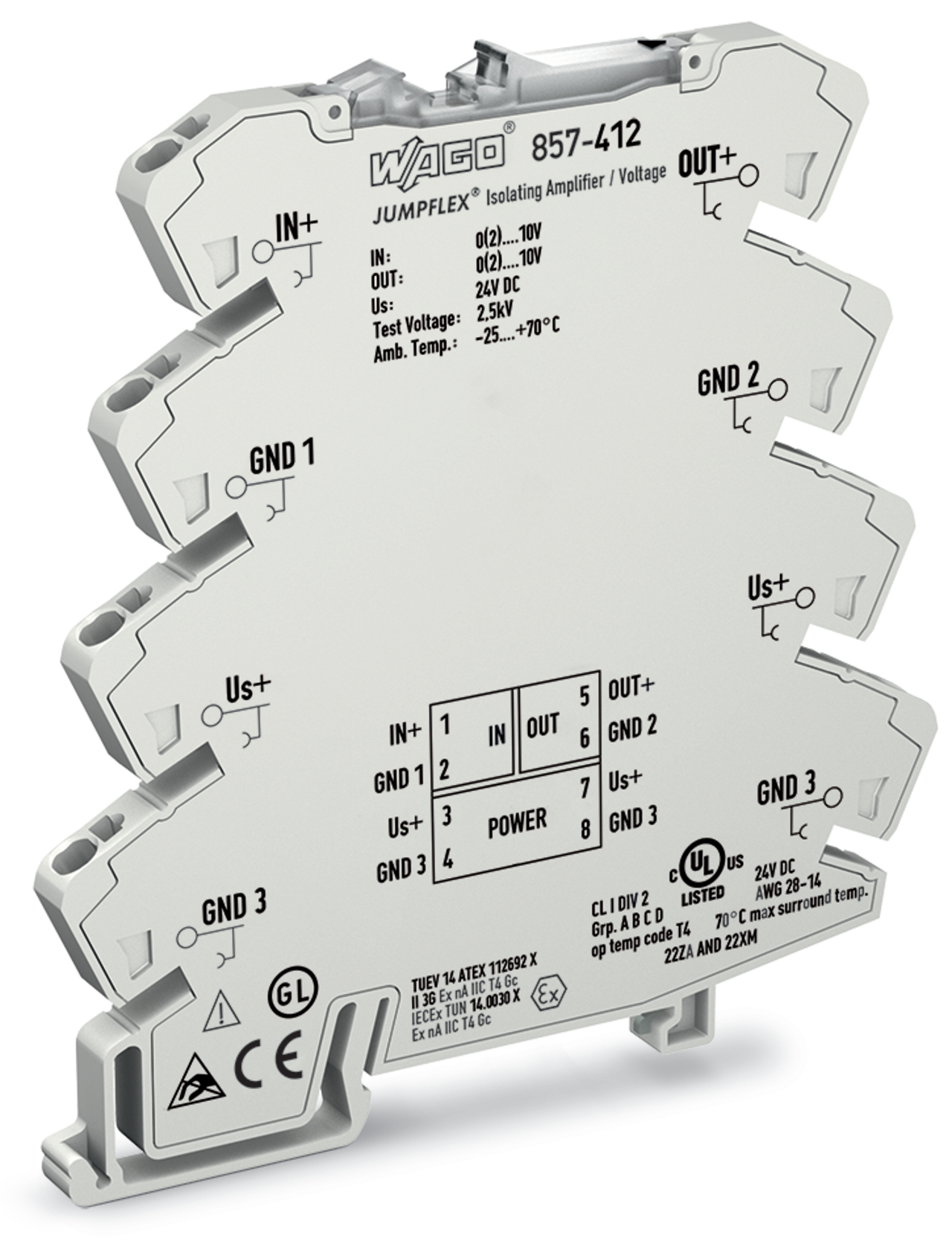

Przetwornik separacyjny ze wzmocnieniem, napięciowy sygnał wejściowy, napięciowy sygnał wyjściowy, napięcie zasilania 24 V DC, szerokość 6 mm, 2,50 mm²
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 857-412 |
GTIN(EAN) | 4045454471309 |
Price unit | piece |
Catalog price | 522,01 zł (424,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
przetwornik separacyjny ze wzmocnieniem; napięciowy sygnał wejściowy; napięciowy sygnał wyjściowy; napięcie zasilania 24 V DC; szerokość 6 mm; 2,50 mm²
Additional features:
Information | Value |
---|---|
Net weight: | 35,6 g |
ETIM class: | Isolation amplifier |
Number of input ranges -10 V ... +10 V: | 0 |
Number of input ranges -10 mA ... +10 mA: | 0 |
Number of input ranges 0 mV ... 300 mV: | 0 |
Number of output ranges -2.5 V ... +2.5 V: | 0 |
Number of output ranges 2 V ... 10 V: | 1 |
Number of input ranges 0 V ... 30 V: | 0 |
Number of input ranges 0 V ... 5 V: | 0 |
Number of input ranges 0 mA ... 5 mA: | 0 |
Number of output ranges -20 mA ... +20 mA: | 0 |
Type of electric connection: | Spring clamp connection |
Number of input ranges 0 mV ... 60 mV: | 0 |
Number of input ranges 0 mV ... 500 mV: | 0 |
Number of input ranges 1 V ... 5 V: | 0 |
Number of input ranges -1 V ... +1 V: | 0 |
Number of output ranges 1 V ... 5 V: | 0 |
Number of output ranges -10 V ... +10 V: | 0 |
Number of output ranges -10 mA ... +10 mA: | 0 |
Number of output ranges 10 V ... 2 V: | 0 |
Number of output ranges 10 V ... 0 V: | 0 |

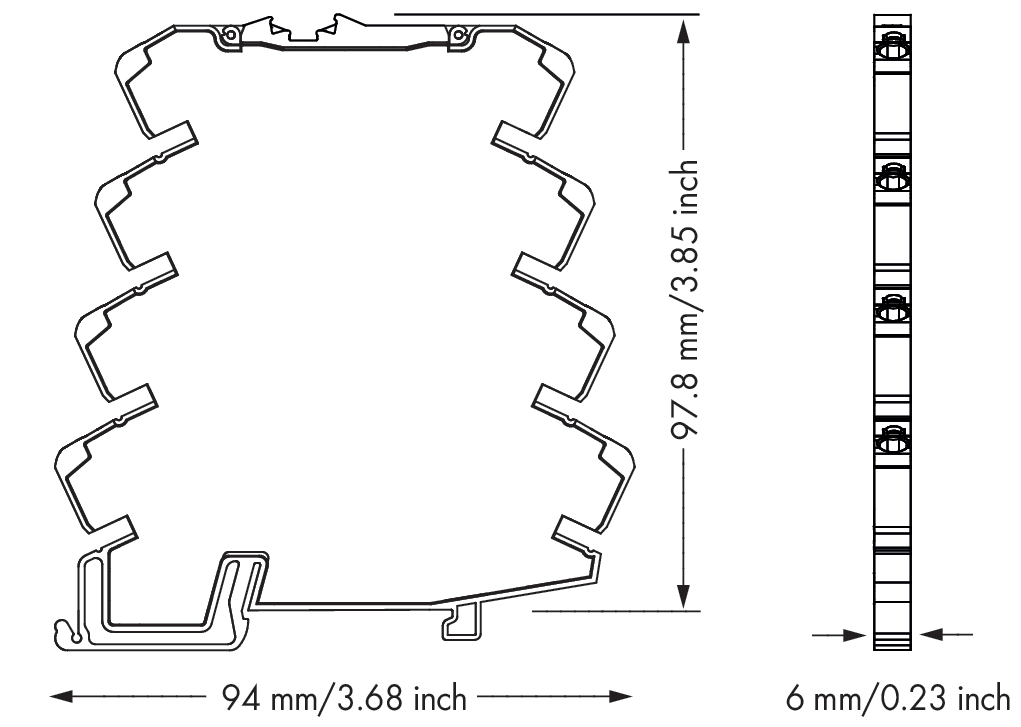

Depth: | 94 mm |
Number of output ranges -2 V ... +2 V: | 0 |
Number of output ranges -100 mV ... +100 mV: | 0 |
Construction type of device: | Other |
Number of input ranges 20 mA ... 4 mA: | 0 |
Height: | 96 mm |
Number of channels: | 1 |
Number of input ranges -100 mV ... +100 mV: | 0 |
Number of output ranges -500 mV ... +500 mV: | 0 |
Number of output ranges 5 V ... 1 V: | 0 |
Number of input ranges 10 V ... 2 V: | 0 |
Number of input ranges 2 V ... 10 V: | 1 |
Number of input ranges -2 V ... +2 V: | 0 |
Number of input ranges -20 mA ... +20 mA: | 0 |
Rated supply voltage DC: | 16.8 - 31.2 V |
Number of input ranges -2.5 V ... +2.5 V: | 0 |
Number of input ranges 20 mA ... 0 mA: | 0 |
Number of input ranges -20 V ... +20 V: | 0 |
Number of output ranges 20 mA ... 0 mA: | 0 |
Number of output ranges -20 V ... +20 V: | 0 |
Number of output ranges -300 mV ... +300 mV: | 0 |
Number of output ranges 20 mA ... 4 mA: | 0 |
Number of output ranges -5 mA ... +5 mA: | 0 |
Number of output ranges 4 mA ... 20 mA: | 0 |
Number of input ranges 10 V ... 0 V: | 0 |
Number of output ranges 5 V ... 0 V: | 0 |
Number of output ranges -5 V ... +5 V: | 0 |
Temperature drift: | 0.01 %/K |
Number of input ranges -5 V ... +5 V: | 0 |
Number of input ranges +5 V ... -5 V: | 0 |
Number of input ranges -5 mA ... +5 mA: | 0 |
Number of input ranges 5 V ... 1 V: | 0 |
Number of input ranges 5 V ... 0 V: | 0 |
Number of input ranges -60 mV ... +60 mV: | 0 |
Number of input ranges -500 mV ... +500 mV: | 0 |
Number of input ranges +10 V ... -10 V: | 0 |
Number of input ranges 4 mA ... 20 mA: | 0 |
Number of input ranges -300 mV ... +300 mV: | 0 |
Number of output ranges -60 mV ... +60 mV: | 0 |
Number of input ranges 0 mV ... 100 mV: | 0 |
Galvanic separation between inputs: | yes |
Number of input ranges 0 V ... 10 V: | 1 |
Galvanic separation between supply voltage and all other current circuits: | yes |
Number of input ranges 0 V ... 2.5 V: | 0 |
Galvanic separation between output to output: | no |
Galvanic separation between input and output: | yes |
Number of input ranges 0 V ... 2 V: | 0 |
Number of input ranges 0 V ... 20 V: | 0 |
Number of input ranges 0 mA ... 20 mA: | 0 |
Number of input ranges 0 V ... 24 V: | 0 |
Number of input ranges 0 mV ... 200 mV: | 0 |
Type of power supply: | Other |
Number of input ranges 0 mA ... 10 mA: | 0 |
Number of input ranges 0 V ... 1 V: | 0 |
Operating temperature: | -25 - 70 °C |
Inherently safe according to EN 60947-5-6 NAMUR: | no |
Width: | 6 mm |
Mounting method: | Snap mounting support rail |
Number of output ranges 0 mV ... 100 mV: | 0 |
Number of output ranges 0 V ... 10 V: | 1 |
Number of output ranges 0 V ... 2.5 V: | 0 |
Number of output ranges 0 V ... 2 V: | 0 |
Number of output ranges 0 mA ... 20 mA: | 0 |
Rated operating frequency: | 100 - 100 Hz |
Malfunction message output: | no |
Number of output ranges +5 V ... -5 V: | 0 |
Number of output ranges +10 V ... -10 V: | 0 |
Number of output ranges 0 mA ... 10 mA: | 0 |
Number of output ranges 0 V ... 1 V: | 0 |
Number of output ranges 0 mV ... 500 mV: | 0 |
Load: | 600 - 2000 Ω |
Number of output ranges 0 V ... 5 V: | 0 |
Number of output ranges -1 V ... +1 V: | 0 |
Number of output ranges 0 mV ... 60 mV: | 0 |
Degree of protection (IP): | IP20 |
Number of output ranges 0 mV ... 200 mV: | 0 |
Number of output ranges 0 V ... 20 V: | 0 |
Number of output ranges 0 V ... 30 V: | 0 |
Number of output ranges 0 V ... 24 V: | 0 |
Number of output ranges 0 mA ... 5 mA: | 0 |
Number of output ranges 0 mV ... 300 mV: | 0 |
