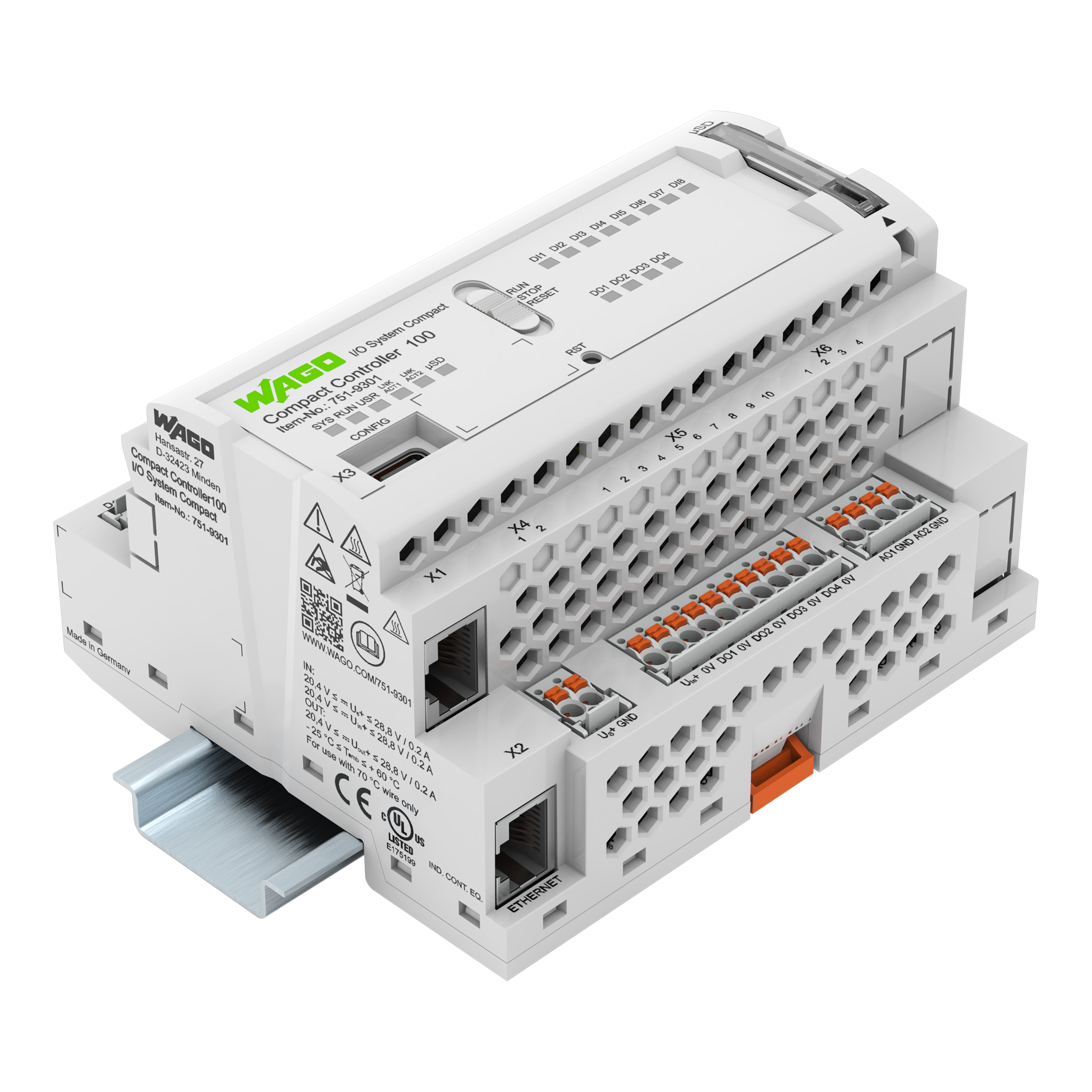

Sterowniki Compact 100; 8DI 4DO 2AI 2AO 2NI1K/PT1K 1RS485; 2 x ETHERNET; SD
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 751-9301 |
| GTIN(EAN) | 4066966192865 |
| Price unit | piece |
| Catalog price | 2 397,27 zł (1 949,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
sterownik kompaktowy CC100; 8DI 4DO 2AI 2AO 2NI1K/PT1K 1RS485; 2 x ETHERNET; SD
Additional features:
| Information | Value |
|---|---|
| Net weight: | 190 g |
| ETIM class: | PLC CPU-module |
| Type of memory: | FLASH |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Model: | Compact |
| Supporting protocol for INTERBUS-Safety: | no |
| Radio standard GPRS: | no |
| Redundancy: | no |
| Width: | 108 mm |
| Radio standard GSM: | no |
| Depth: | 55 mm |
| Radio standard UMTS: | no |
| Height: | 90 mm |
| With display: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for EtherNet/IP: | yes |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for PROFINET IO: | no |
| Voltage type (supply voltage): | DC |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET CBA: | no |
| Number of analogue outputs: | 2 |
| Number of analogue inputs: | 2 |
| Supporting protocol for LON: | no |
| Appendant operation agent (Ex ib): | no |
| Supporting protocol for CAN: | no |
| Front built-in possible: | no |
| Supporting protocol for INTERBUS: | no |
| Radio standard Bluetooth: | no |
| Supporting protocol for KNX: | no |
| Radio standard WLAN 802.11: | no |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for Data-Highway: | no |
| Rail mounting possible: | yes |
| Supporting protocol for DeviceNet: | no |
| Rack-assembly possible: | no |
| Suitable for safety functions: | no |
| Number of digital outputs: | 4 |
| Number of digital inputs: | 8 |
| Supporting protocol for TCP/IP: | yes |
| IO link master: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for PROFIBUS: | no |
| Appendant operation agent (Ex ia): | no |
| Supply voltage DC: | 24 - 24 V |
| With optical interface: | no |
| Additional program memory possible: | yes |
| System accessory: | no |
| Number of HW-interfaces wireless: | 0 |
| Number of HW-interfaces industrial Ethernet: | 2 |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 1 |
| Max. number of time switches: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of interfaces PROFINET: | 0 |
| Supporting protocol for SERCOS: | no |
| Number of HW-interfaces parallel: | 0 |
| Number of relay outputs: | 0 |
| Number of HW-interfaces other: | 0 |
| Memory size: | 32768 kB |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | yes |
| Wall mounting/direct mounting: | no |
| Supporting protocol for IEC 61850 Ethernet: | yes |
| Supporting protocol for IEC 60870: | yes |
| Supporting protocol for DNP3: | yes |
