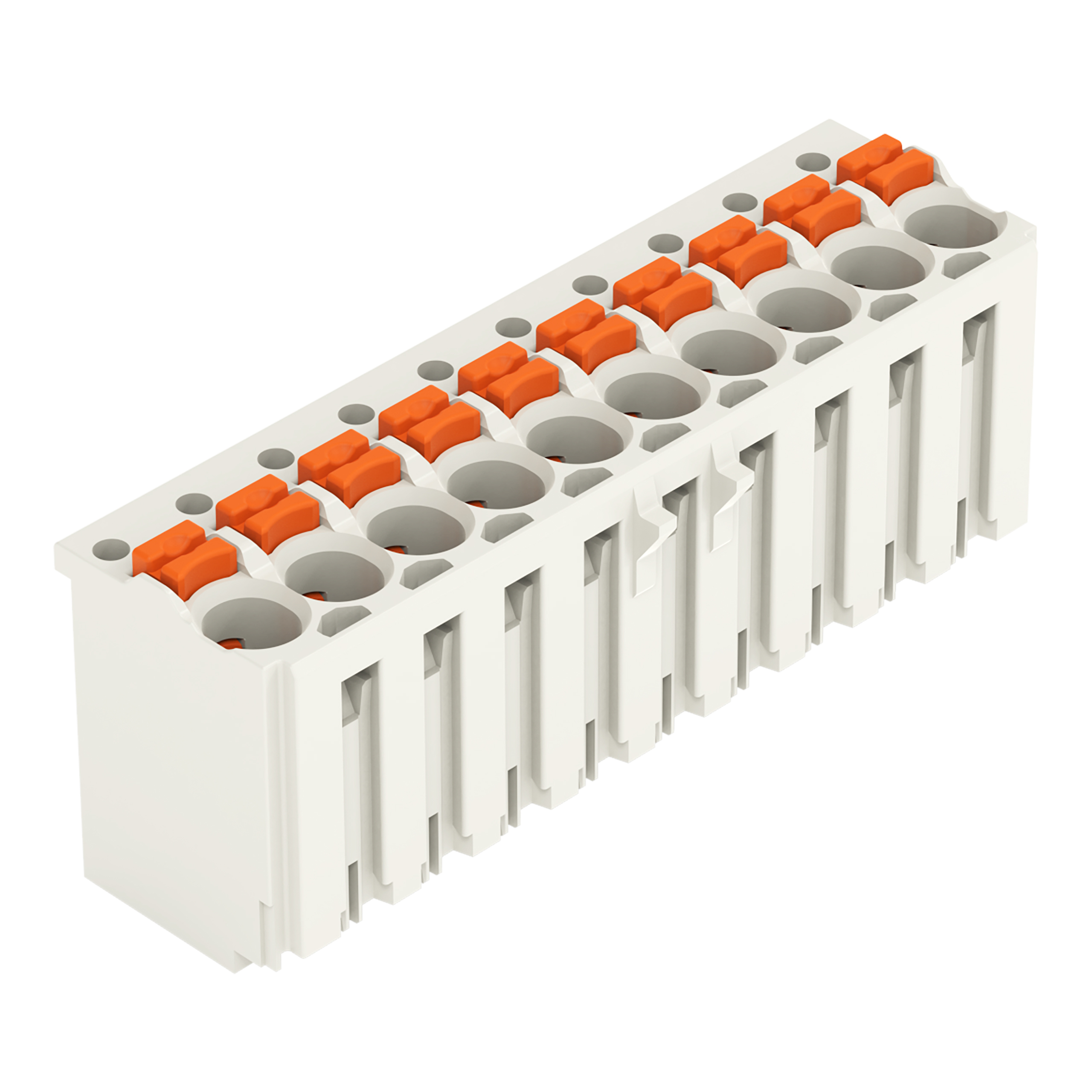

1-przewodowe gniazdo przycisk Push-in CAGE CLAMP®, jasnoszary 2091-1130
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2091-1130 |
GTIN(EAN) | 4050821160816 |
Price unit | piece |
Catalog price | 33,14 zł (26,94 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 4,5 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 1 |
Material insulation body: | Thermoplastic |
Operating temperature: | -60 - 100 °C |
Height: | 14 mm |
Connectable conductor cross section solid-core: | 0.2 - 1.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 0.75 mm² |
Rated current In: | 10 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 1.5 mm² |
Connectable conductor cross section multi-wired: | 0.2 - 1.5 mm² |
Number of poles: | 10 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | Grey |
Width: | 3.5 mm |
Rated voltage: | 160 V |
Depth: | 11.4 mm |
