Rozłącznik główny bezpieczeństwa w obudowie TeSys VARIO 32A
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | VCF2GE |
GTIN(EAN) | 3389110194104 |
Price unit | piece |
Catalog price | 647,30 zł (526,26 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

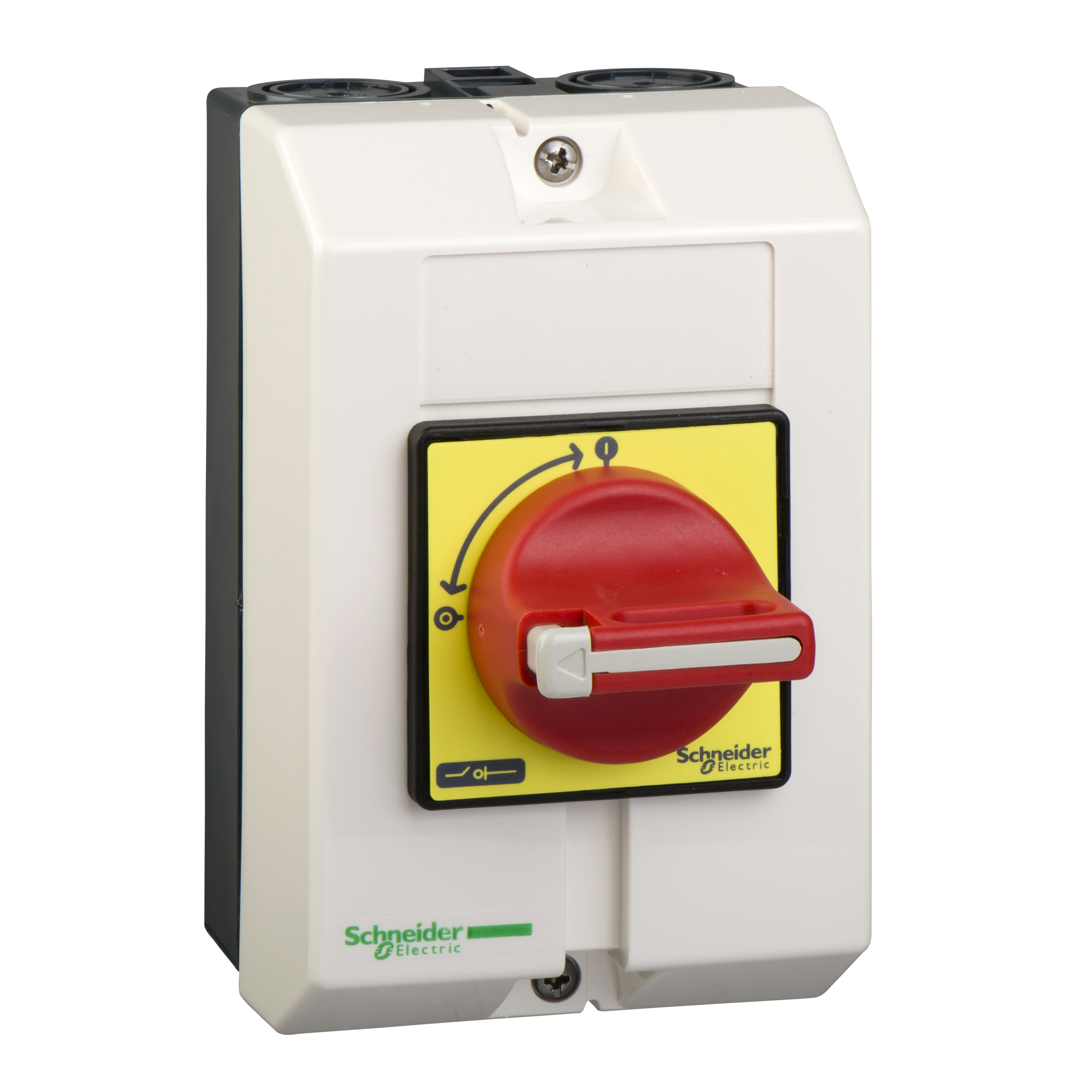

Rozrusznik w obudowie TeSys z rozłącznikiem, 3-biegunowy, Ithe 32A 690V, do głównego i awaryjnego rozłączania w aplikacjach silnikowych AC-23 do 15kW@400V. Obudowa zapewniająca stopień ochrony IP65, wyposażona w czerwony uchwyt obrotowy i żółtą płytę czołową, zamykana na kłódkę (kłódki nie są dołączone). Zawiera 3-biegunowy korpus rozłącznika Vario V2 z możliwością podłączenia 2 modułów dodatkowych. Obudowa do montażu natynkowego z mocowaniem śrubowym, 2 otwory na dławiki kablowe na górze i na dole, zamykana pokrywa. Zgodność z normami IEC 60204 i IEC 60947-4-1, zgodność z Green Premium (RoHS/REACh). Etykieta Green Premium jest zobowiązaniem firmy Schneider Electric do dostarczania produktów
Additional features:
Information | Value |
---|---|
Gross weight: | 473 g |
ETIM class: | Switch disconnector (low voltage) |
Rated short-time withstand current lcw: | 0.48 kA |
Version as emergency stop installation: | yes |
Number of auxiliary contacts as change-over contact: | 0 |
Interlockable: | yes |
Voltage release optional: | no |
Number of poles: | 3 |
Degree of protection (IP), front side: | IP65 |
Suitable for front mounting centre: | no |
Suitable for front mounting 4-hole: | yes |
Number of switches: | 1 |
Rated permanent current at AC-23, 400 V: | 29 A |
Rated permanent current Iu: | 32 A |
Colour control element: | Red |
Suitable for floor mounting: | no |
Type of electrical connection of main circuit: | Screw connection |
Version as safety switch: | no |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Version as maintenance-/service switch: | no |
Device construction: | Complete device in housing |
Max. rated operation voltage Ue AC: | 690 V |
Version as main switch: | yes |
Rated operating voltage: | 690 - 690 V |
Rated operation power at AC-23, 400 V: | 15 kW |
Version as reversing switch: | no |
Motor drive integrated: | no |
Rated operation power at AC-3, 400 V: | 11 kW |
Type of control element: | Turn button |
Conditioned rated short-circuit current Iq: | 10 kA |
Suitable for distribution board installation: | no |
Motor drive optional: | no |
Rated permanent current at AC-21, 400 V: | 32 A |
Switching power at 400 V: | 18.5 kW |
Suitable for intermediate mounting: | no |
