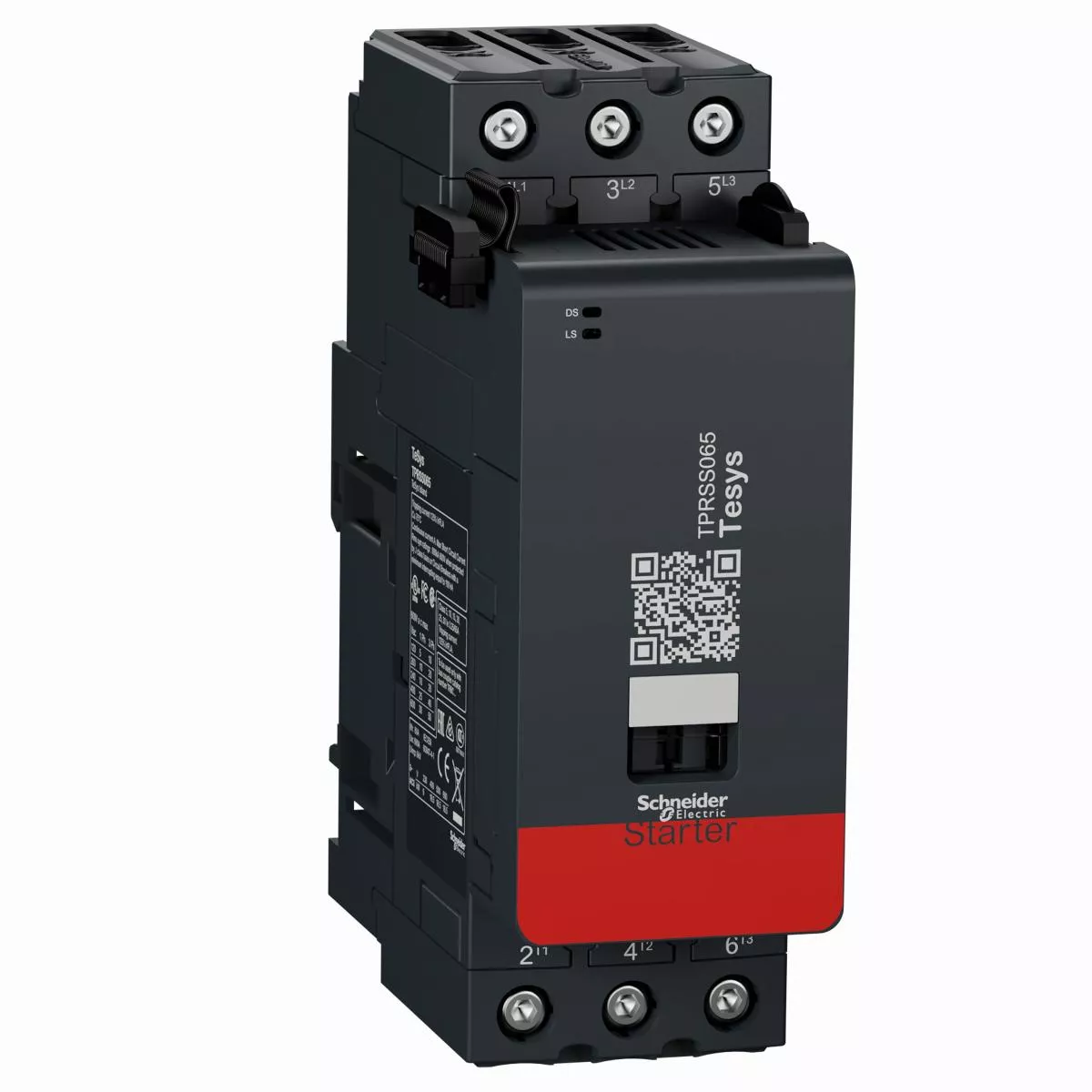

Moduł rozrusznika DOL wersja safety, TeSys Island, 65 A / 30 kW (AC-3)
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | TPRSS065 |
| GTIN(EAN) | 3606489832827 |
| Price unit | piece |
| Catalog price | 2 980,06 zł (2 422,81 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Bezpośredni rozrusznik safety TeSys Island, 3-polowy, 65 A, 690 V. Podłączony do wyspy TPRBC steruje, chroni i monitoruje obciążenia do 65 A oraz silniki do 30kW przy 400V (40hp przy 480V). Wraz z modułem TPRSM001 i zewnętrznym urządzeniem zabezpieczającym może być stosowany w układach bezpieczeństwa maszynowego zgodnych z normą IEC 61508. Zapewnia funkcje ochrony silnika, w tym przeciążenie termiczne (nastawa 3.35-65A, klasa wyłączania 5-30), utratę fazy, asymetrię i odwrócenie fazy, długi rozruch (przeciągnięcie), zablokowany wirnik (zacięcie), ograniczenie częstotliwości załączeń, wykrywanie prądu doziemienia. Monitorowanie obciążenia obejmuje maksymalne/średnie napięcia i prądy, liczbę cykli przełączania, liczbę usterek, moc czynną i bierną/energię w wyspach zawierających moduł napięciowy TPRVM001. Montaż wykonuje się na szynie DIN wraz z innymi modułami w konfiguracji TeSys Island. Posiada certyfikaty zgodności z wieloma normami (IEC, UL, CSA, CCC, EAC) i Green Premium (RoHS/REACh). Posiada certyfikat bezpieczeństwa cybernetycznego Achilles na poziomie 2.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,321 kg |
| ETIM class: | Fieldbus, decentr. periphery - power module, motor switch |
| Suitable for safety functions: | yes |
| Supporting protocol for LON: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard Bluetooth: | no |
| IO link master: | no |
| Explosion safety category for dust: | None |
| Width: | 55 mm |
| With motor current parameter setting: | no |
| Rated operation current of the motor: | 3.35 - 65 A |
| With brake output: | no |
| Permitted voltage at input: | 0 - 690 V |
| Radio standard GPRS: | no |
| Radio standard GSM: | no |
| Explosion safety category for gas: | None |
| Radio standard UMTS: | no |
| Permitted voltage at output: | 0 - 690 V |
| Performance level according to EN ISO 13849-1: | Level d |
| Wall mounting/direct mounting: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | yes |
| Rack-assembly possible: | no |
| Supporting protocol for KNX: | no |
| Supply voltage DC: | 20.4 - 28.8 V |
| Front built-in possible: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for DeviceNet: | no |
| Rail mounting possible: | yes |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Appendant operation agent (Ex ib): | no |
| Supporting protocol for ASI: | no |
| Degree of protection (IP): | IP20 |
| Supporting protocol for INTERBUS: | no |
| Type of output voltage: | AC |
| Supporting protocol for CAN: | no |
| Appendant operation agent (Ex ia): | no |
| Depth: | 125 mm |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Voltage type (supply voltage): | DC |
| Supporting protocol for EtherNet/IP: | no |
| Short-circuit protection, outputs available: | no |
| Type of electric connection: | Plug-in connection |
| Supporting protocol for SafetyBUS p: | no |
| Type of digital output: | None |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Number of inputs: | 1 |
| Number of motor outlets: | 1 |
| Type of voltage (input voltage): | AC |
| Fieldbus connection over separate bus coupler possible: | yes |
| With thermal motor protection: | yes |
| Supporting protocol for INTERBUS-Safety: | no |
| Height: | 167 mm |
| Type of electrical connection at the motor output: | Screw connection |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces other: | 2 |
| Number of HW-interfaces parallel: | 0 |
| System accessory: | yes |
| Number of HW-interfaces wireless: | 0 |
| Number of interfaces PROFINET: | 0 |
| Supporting protocol for SERCOS: | no |
| SIL according to IEC 61508: | 2 |
| With optical interface: | no |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces industrial Ethernet: | 0 |
