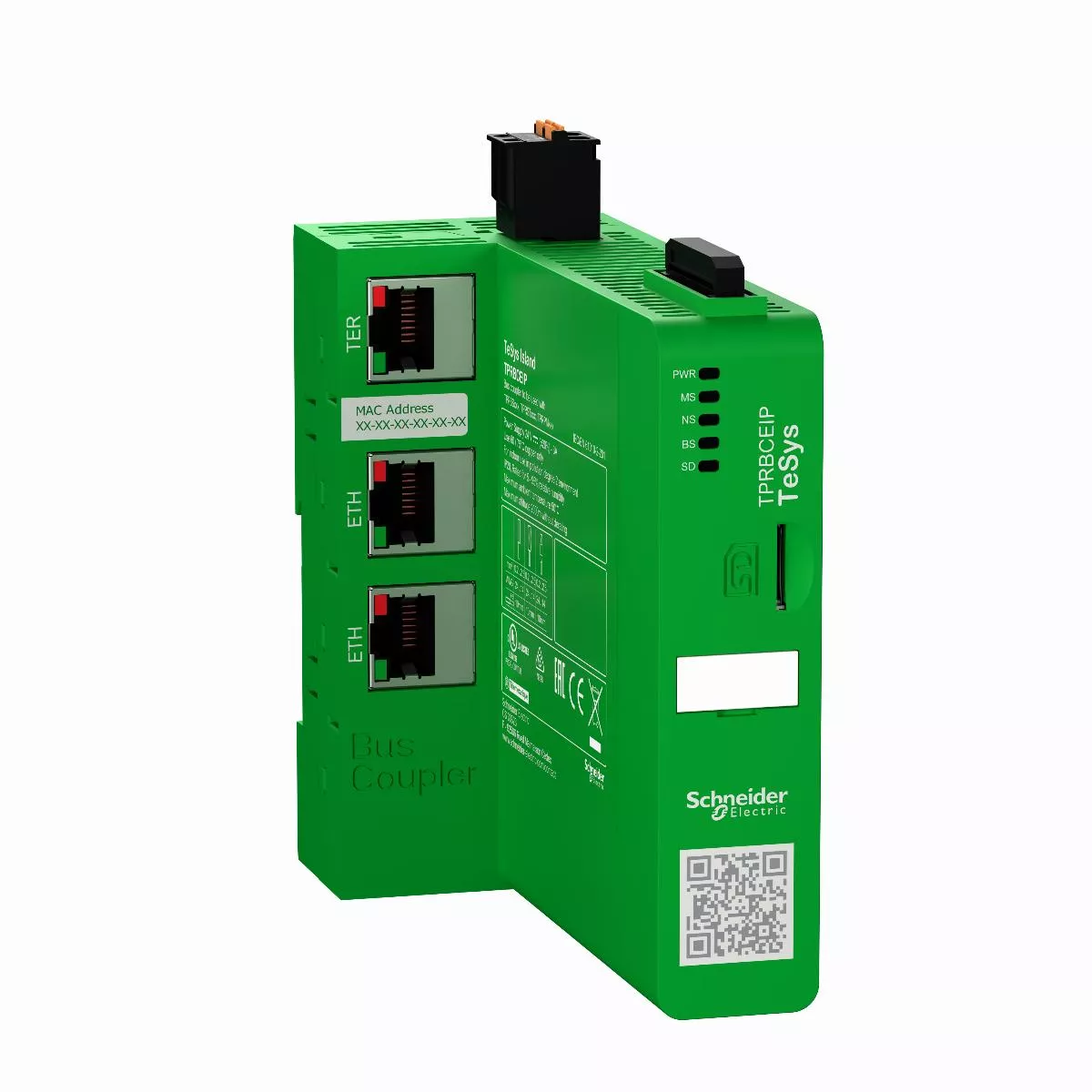

Moduł podstawowy, TeSys Island, EthernetIP + ModbusTCP
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | TPRBCEIP |
| GTIN(EAN) | 3606489832704 |
| Price unit | piece |
| Catalog price | 2 422,24 zł (1 969,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Moduł komunikacji wyspy TeSys Island z nadrzędnym systemem automatyki przez EtherNet/IP lub Modbus TCP. Wykonuje wszystkie funkcje dla aplikacji (awatary Tesys), które można wybrać i konfigurować za pomocą SoMove lub MachineExpert. Do diagnostyki i konserwacji TeSys Island jest wbudowany serwer WWW (OMT). Dostarczany zewnętrznie przez 24V DC, udostępnia dwa porty RJ45 dla EtherNet/IP lub Modbus TCP, jeden port serwisowy RJ45 przez Ethernet, jeden port karty Micro SD oraz port wewnętrznej magistrali łączącej moduły wyspy. Razem z innymi modułami w konfiguracji TeSys Island, łącznik szyny jest łącznikiem w pozycji najbardziej wysuniętej na lewo. Certyfikowane w wielu standardach (IEC, UL, CSA, CCC, EAC), cyberbezpieczeństwo Achilles Level 2, zgodność z systemem Green premium (RoHS/REACh). Posiada certyfikat bezpieczeństwa cybernetycznego Achilles na poziomie 2.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 279 g |
| ETIM class: | Fieldbus, decentr. periphery - communication module |
| Suitable for safety functions: | no |
| Supporting protocol for LON: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard Bluetooth: | no |
| IO link master: | no |
| Explosion safety category for dust: | None |
| Width: | 50 mm |
| Radio standard GPRS: | no |
| Explosion safety category for gas: | None |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| Performance level according to EN ISO 13849-1: | None |
| Wall mounting/direct mounting: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | yes |
| Radio standard LTE: | no |
| Rack-assembly possible: | no |
| Supporting protocol for KNX: | no |
| Supply voltage DC: | 20.4 - 28.8 V |
| Front built-in possible: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for Modbus: | yes |
| Rail mounting possible: | yes |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for TCP/IP: | yes |
| Supporting protocol for PROFIBUS: | no |
| Appendant operation agent (Ex ib): | no |
| Degree of protection (IP): | IP20 |
| Supporting protocol for ASI: | no |
| Supporting protocol for INTERBUS: | no |
| Appendant operation agent (Ex ia): | no |
| Supporting protocol for CAN: | no |
| Depth: | 114 mm |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Radio standard eGPRS: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Voltage type (supply voltage): | DC |
| Supporting protocol for EtherNet/IP: | yes |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Fieldbus connection over separate bus coupler possible: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| With potential separation: | yes |
| Height: | 118 mm |
| System accessory: | yes |
| Supporting protocol for SERCOS: | no |
| SIL according to IEC 61508: | None |
