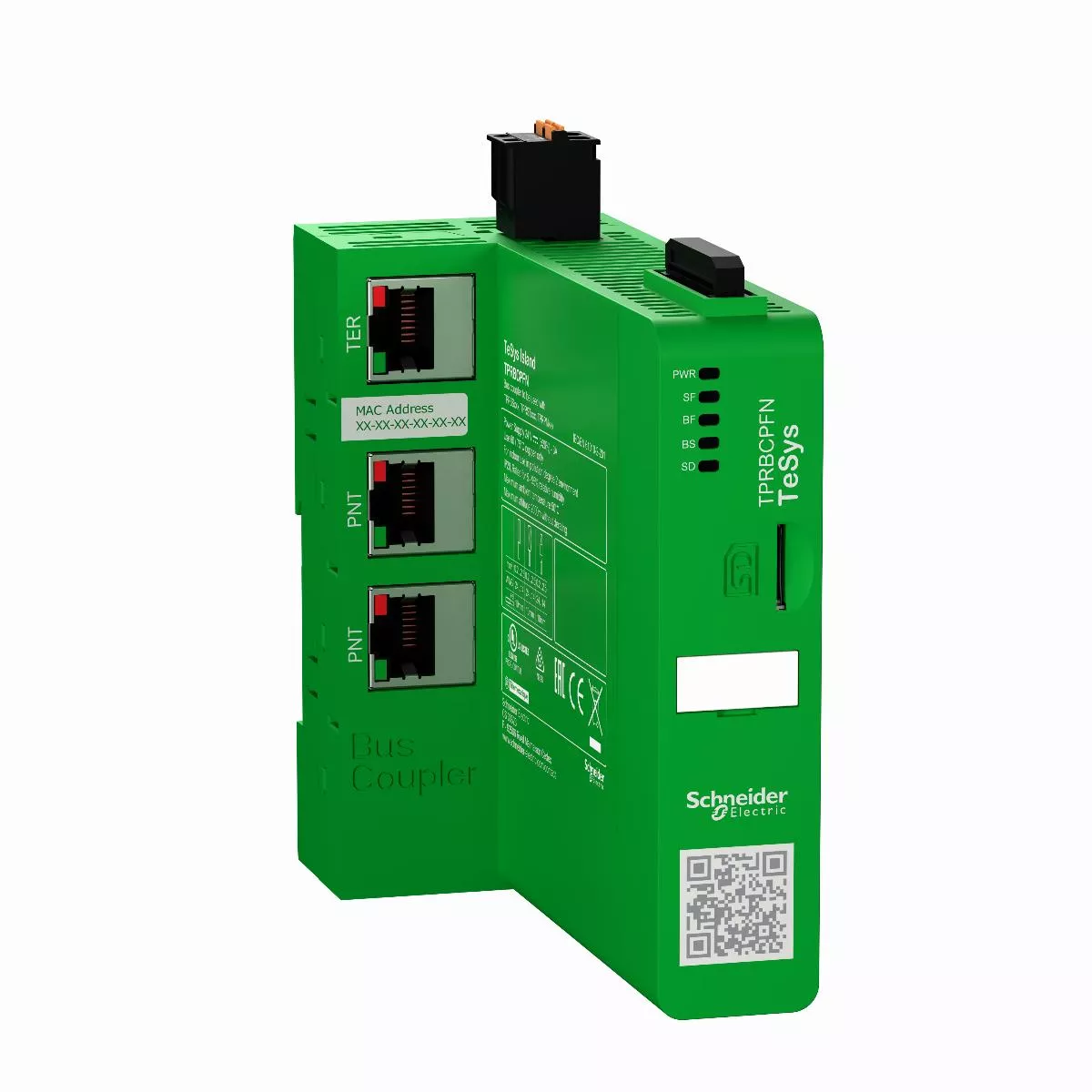

Moduł łączeniowy, TeSys Island, Profinet
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | TPRBCPFN |
| GTIN(EAN) | 3606489832711 |
| Price unit | piece |
| Catalog price | 2 422,24 zł (1 969,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Moduł komunikacji wyspy TeSys Island z nadrzędnym systemem automatyki przez PROFINET IO. Wykonuje wszystkie funkcje dla aplikacji (awatary Tesys), które można wybrać i konfigurować za pomocą SoMove lub MachineExpert. Do diagnostyki i konserwacji TeSys Island jest wbudowany serwer WWW (OMT). Dostarczany zewnętrznie przez 24V DC, udostępnia dwa porty RJ45 dla PROFINET IO, jeden port serwisowy RJ45 przez Ethernet, jeden port karty micro SD i port dla magistrali wewnętrznej łączącej moduły wyspy. Razem z innymi modułami w konfiguracji TeSys Island, łącznik szyny jest łącznikiem w pozycji najbardziej wysuniętej na lewo. Certyfikowane w wielu standardach (IEC, UL, CSA, CCC, EAC), cyberbezpieczeństwo Achilles Level 2, zgodność z systemem Green premium (RoHS/REACh). Posiada certyfikat bezpieczeństwa cybernetycznego Achilles na poziomie 2.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 283 g |
| ETIM class: | Fieldbus, decentr. periphery - communication module |
| Suitable for safety functions: | no |
| Supporting protocol for LON: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard Bluetooth: | no |
| IO link master: | no |
| Explosion safety category for dust: | None |
| Width: | 50 mm |
| Radio standard GPRS: | no |
| Explosion safety category for gas: | None |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| Performance level according to EN ISO 13849-1: | None |
| Wall mounting/direct mounting: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | yes |
| Radio standard LTE: | no |
| Rack-assembly possible: | no |
| Supporting protocol for KNX: | no |
| Supply voltage DC: | 20.4 - 28.8 V |
| Front built-in possible: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for Modbus: | no |
| Rail mounting possible: | yes |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Appendant operation agent (Ex ib): | no |
| Degree of protection (IP): | IP20 |
| Supporting protocol for ASI: | no |
| Supporting protocol for INTERBUS: | no |
| Appendant operation agent (Ex ia): | no |
| Supporting protocol for CAN: | no |
| Depth: | 114 mm |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Radio standard eGPRS: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Voltage type (supply voltage): | DC |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | yes |
| Supporting protocol for DeviceNet Safety: | no |
| Fieldbus connection over separate bus coupler possible: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| With potential separation: | yes |
| Height: | 118 mm |
| System accessory: | yes |
| Supporting protocol for SERCOS: | no |
| SIL according to IEC 61508: | None |
