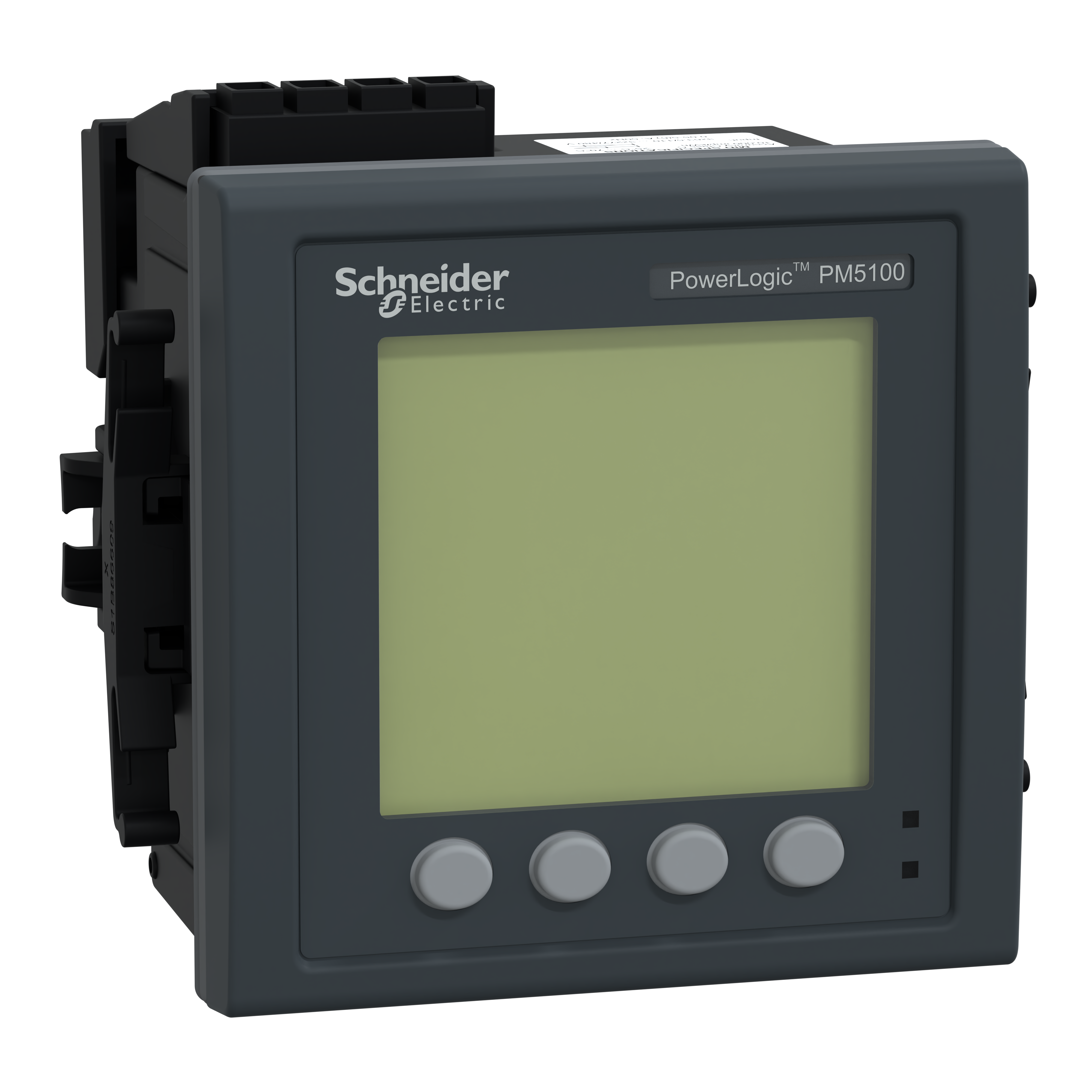

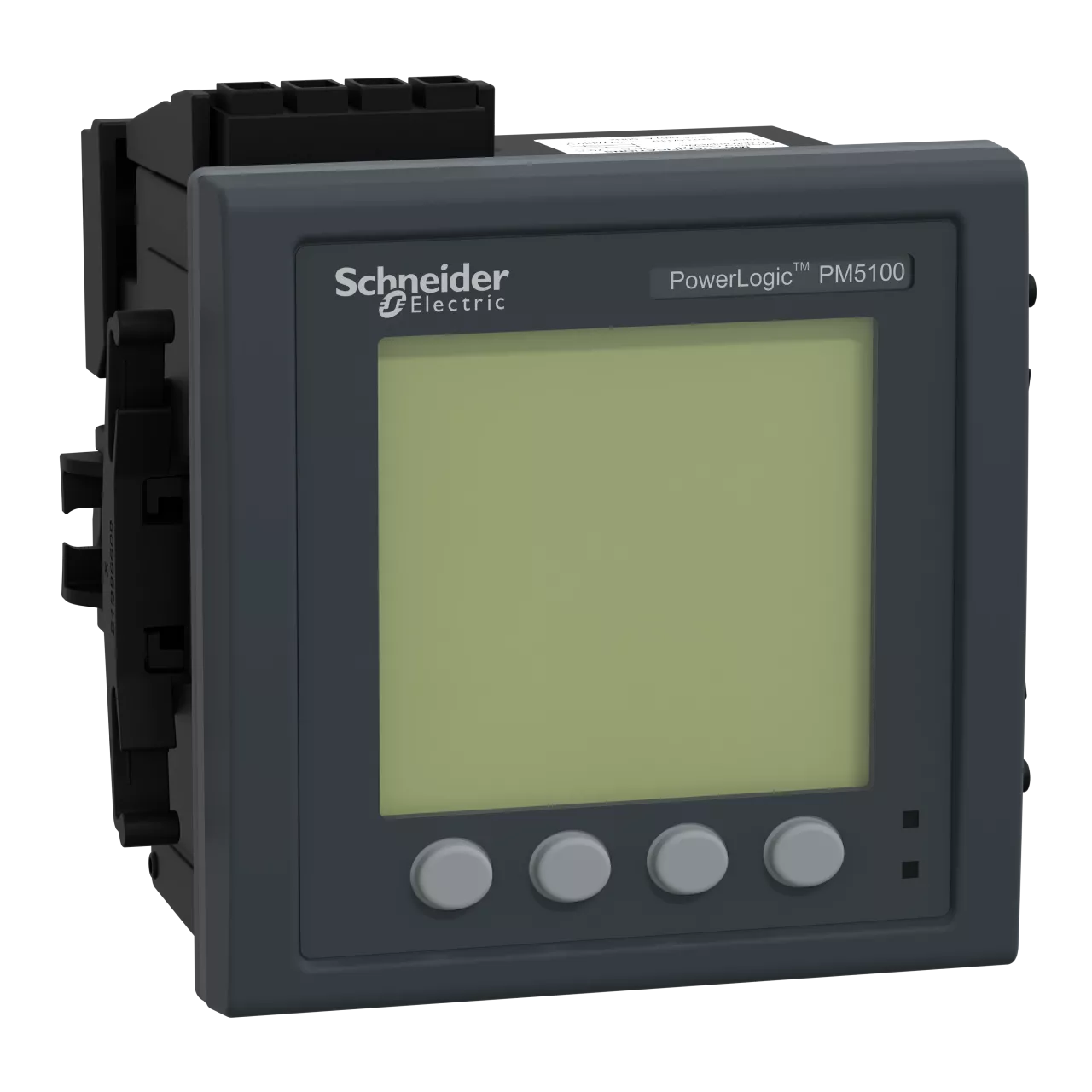

PowerLogic Analizator jakości zasilania PM5100 0,5S Modbus p64 MID
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | METSEPM5111 |
| GTIN(EAN) | 3606480624513 |
| Price unit | piece |
| Catalog price | 3 424,32 zł (2 784,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 550 g |
| ETIM class: | Multi-functional measuring- and monitoring instrument |
| Accuracy class: | 0.5 |
| Mounting method: | Front mounting |
| Reactive power: | yes |
| Height: | 112 mm |
| With communication interface KNX: | no |
| Apparent power: | yes |
| Effective power: | yes |
| Power factor: | yes |
| Max. current (Imax): | 8.5 A |
| Frequency measurement: | yes |
| Min. value storage: | yes |
| Pulse output: | Electrical |
| Model: | Measurement transformer |
| Pole type: | Three conductor/four conductor |
| With communication interface RS-485: | yes |
| Width: | 102 mm |
| Measurement type load profile: | yes |
| Step angle (cos phi): | no |
| Voltage type: | AC/DC |
| Wth communication interface M-Bus: | no |
| With communication interface according to EN 62056-21: | no |
| Max. value storage: | yes |
| Nominal current (In): | 5.0 A |
| Calibrated: | no |
| Indication: | Graphic |
| Measured value memory: | no |
| Measuring range: | 35 - 690 V |
| Harmonics measurement: | yes |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for LON: | no |
