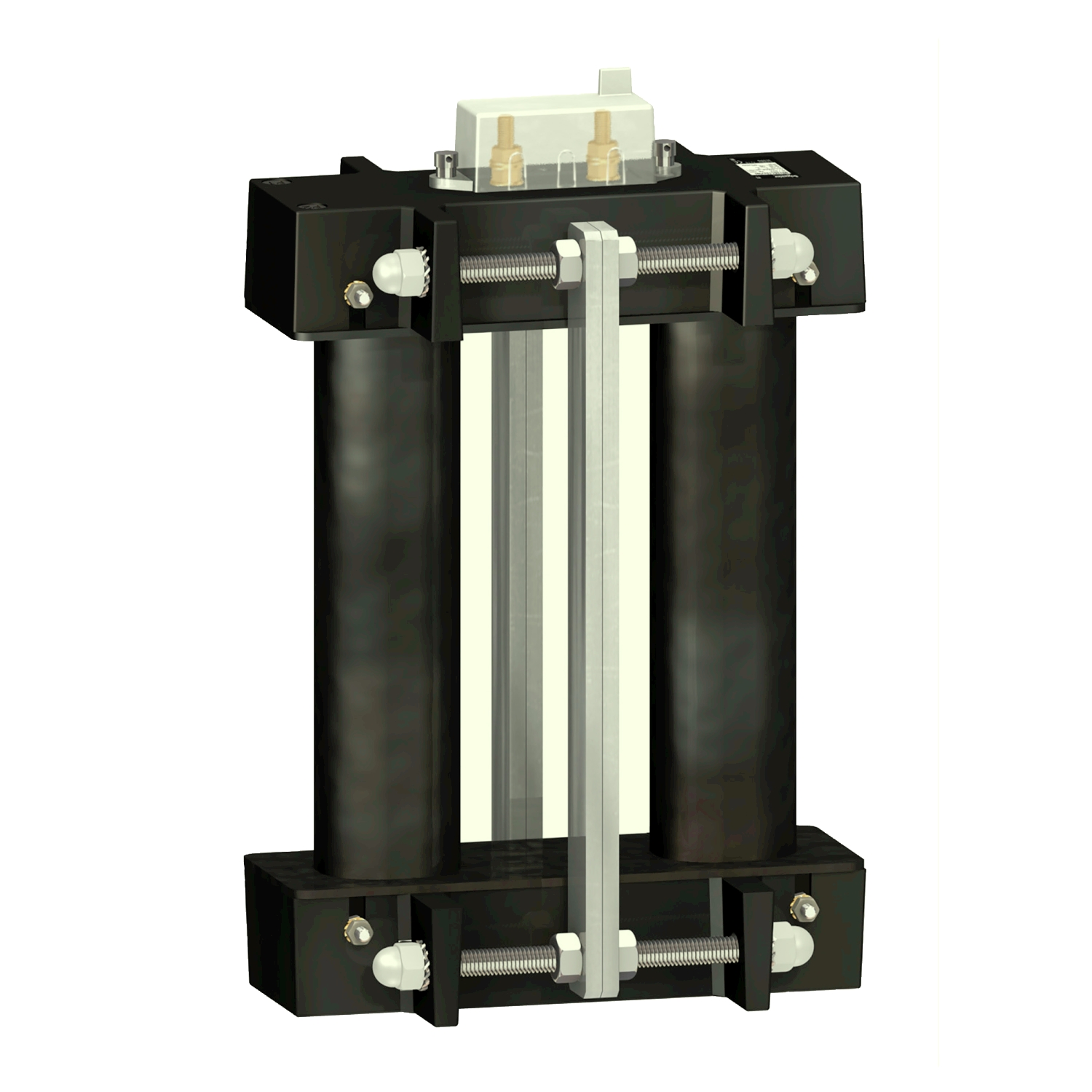

PowerLogic Przekładnik prądowy 5000/5 szynoprzewód 55x165
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | METSECT5VV500 |
GTIN(EAN) | 3303431123810 |
Price unit | piece |
Catalog price | 9 306,18 zł (7 566,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Transformator prądowy, tropikalizowany dla szyn zbiorczych, ma prąd znamionowy linii 5000 A i prąd wtórny 5 A. Przekładnik ten ma otwór 55 mm x 165 mm. Kompatybilność z pojedynczym wyjściem dla pręta: 165 mm x 55 mm. Klasa obciążenia i dokładności: klasa 0.5 moc maksymalna: 60 VA.
Additional features:
Information | Value |
---|---|
Gross weight: | 4,077 kg |
ETIM class: | Current transformer |
Overcurrent limiting factor: | FS 10 |
Width opening: | 55 - 55 mm |
Height opening: | 165 - 165 mm |
Accuracy class: | 0.5 |
With shock protection: | no |
Rated secondary current: | 5 A |
Rated secondary apparent power: | 60 VA |
Opening diameter: | 0 mm |
With copper rail: | no |
Number of primary inputs: | 1 |
Calibrated: | no |
Secondary connection: | Screw connection |
Model: | Through-feed current converter |
Rated primary current: | 5000 A |
Snap mounting: | no |
