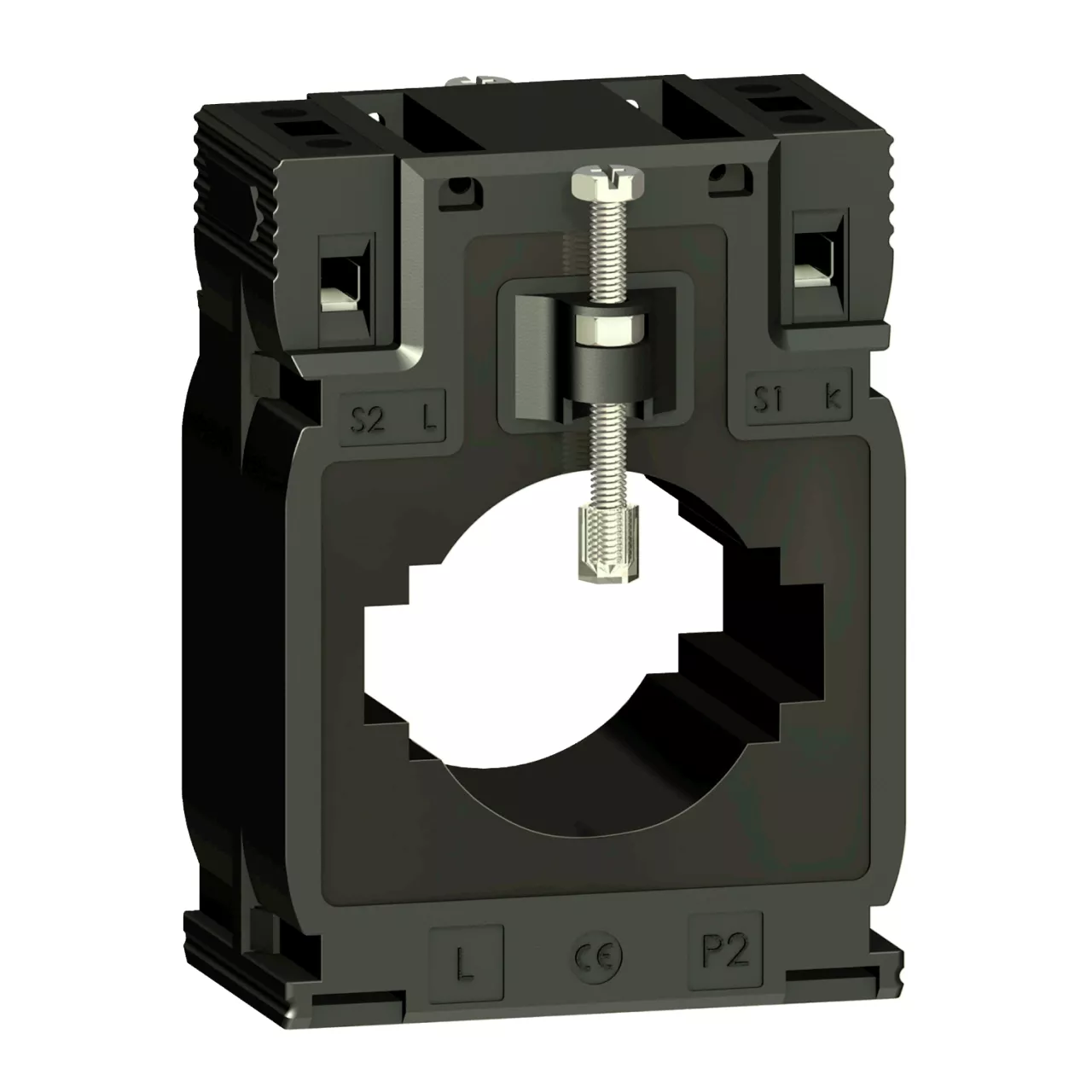

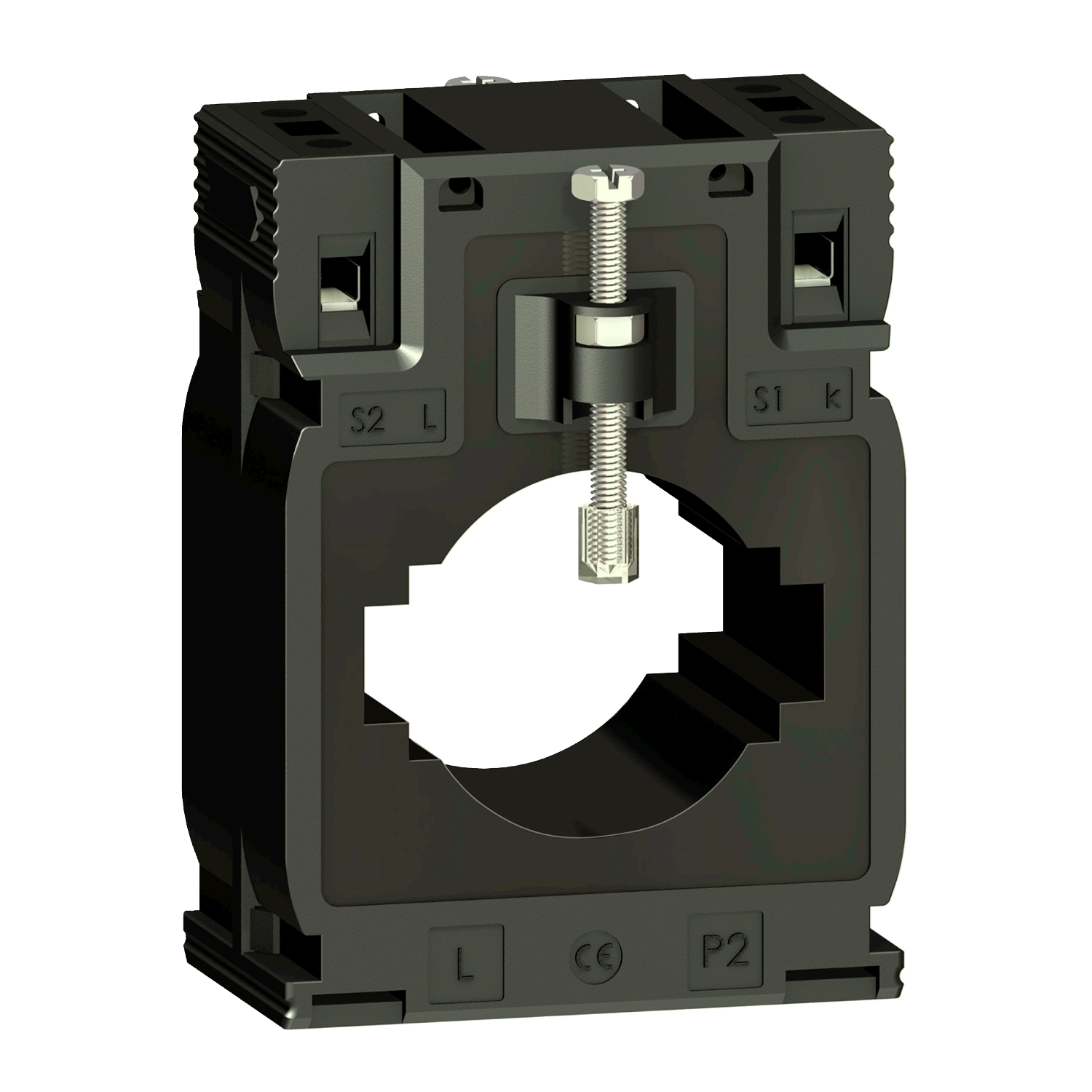

PowerLogic Przekładnik prądowy DIN 800/5 kabel średnica 40 lub szynoprzewód
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | METSECT5MD080 |
GTIN(EAN) | 3606480618895 |
Price unit | piece |
Catalog price | 526,44 zł (428,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ten transformator prądowy, tropikalizowany dla szyn zbiorczych i kabli, ma prąd znamionowy linii 800 A i prąd wtórny 5 A. Ten przekładnik prądowy umożliwia uzyskanie maksymalnej średnicy zewnętrznej kabla wynoszącej 40 mm. Kompatybilny z podwójnym wyjściem dla pręta: 50,5 mm x 12,5 mm lub 40,5 mm x 20,5 mm. Klasa obciążenia i dokładności: klasa 0.5 moc maksymalna: 8 VA, maksymalna moc klasy 1: 12 VA.
Additional features:
Information | Value |
---|---|
Gross weight: | 370 g |
ETIM class: | Current transformer |
Overcurrent limiting factor: | FS 5 |
Width opening: | 40 - 40 mm |
Height opening: | 20 - 20 mm |
Accuracy class: | 1 |
With shock protection: | no |
Rated secondary current: | 5 A |
Rated secondary apparent power: | 12 VA |
Opening diameter: | 40 mm |
With copper rail: | no |
Number of primary inputs: | 1 |
Calibrated: | no |
Secondary connection: | Screw connection |
Model: | Through-feed current converter |
Rated primary current: | 800 A |
Snap mounting: | no |
