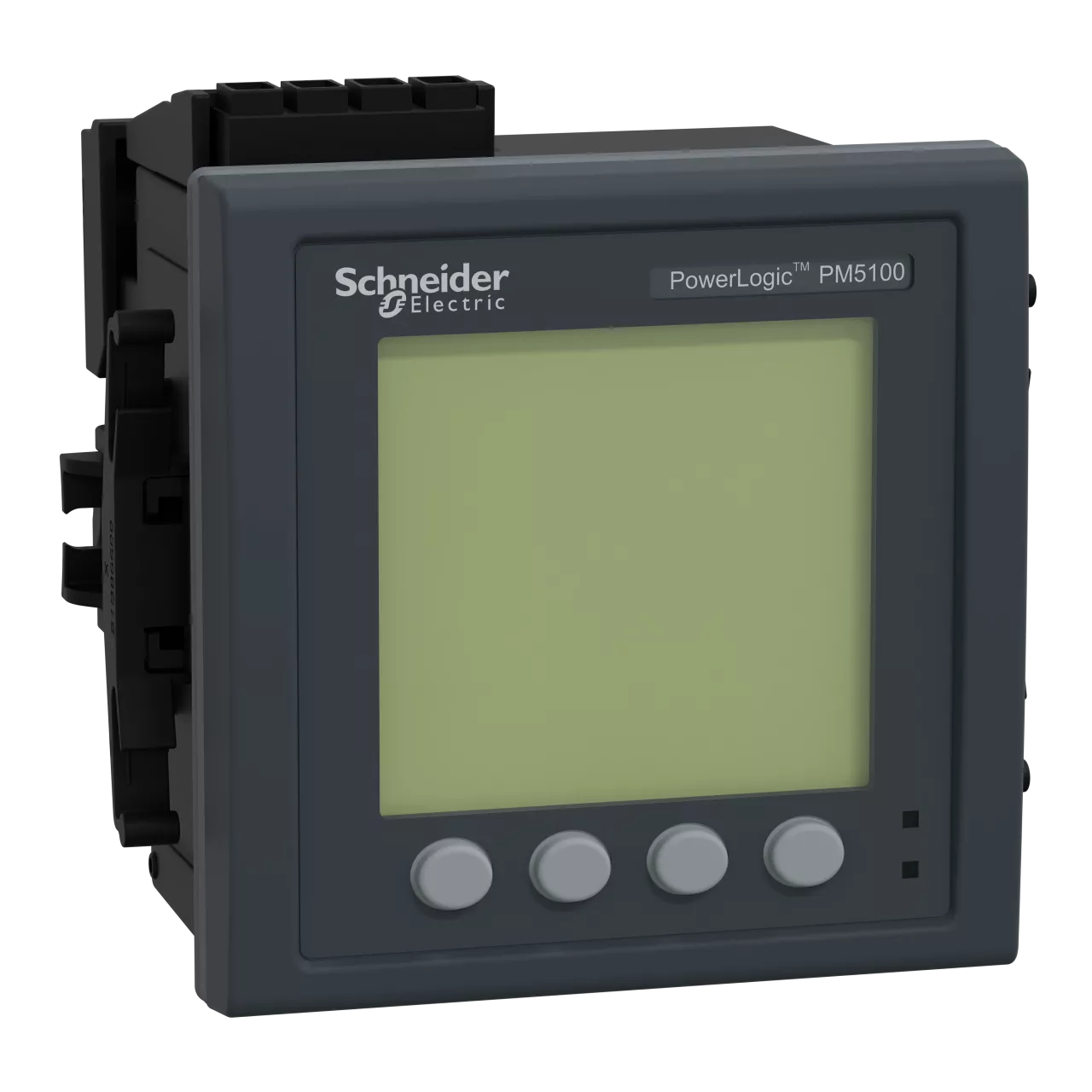

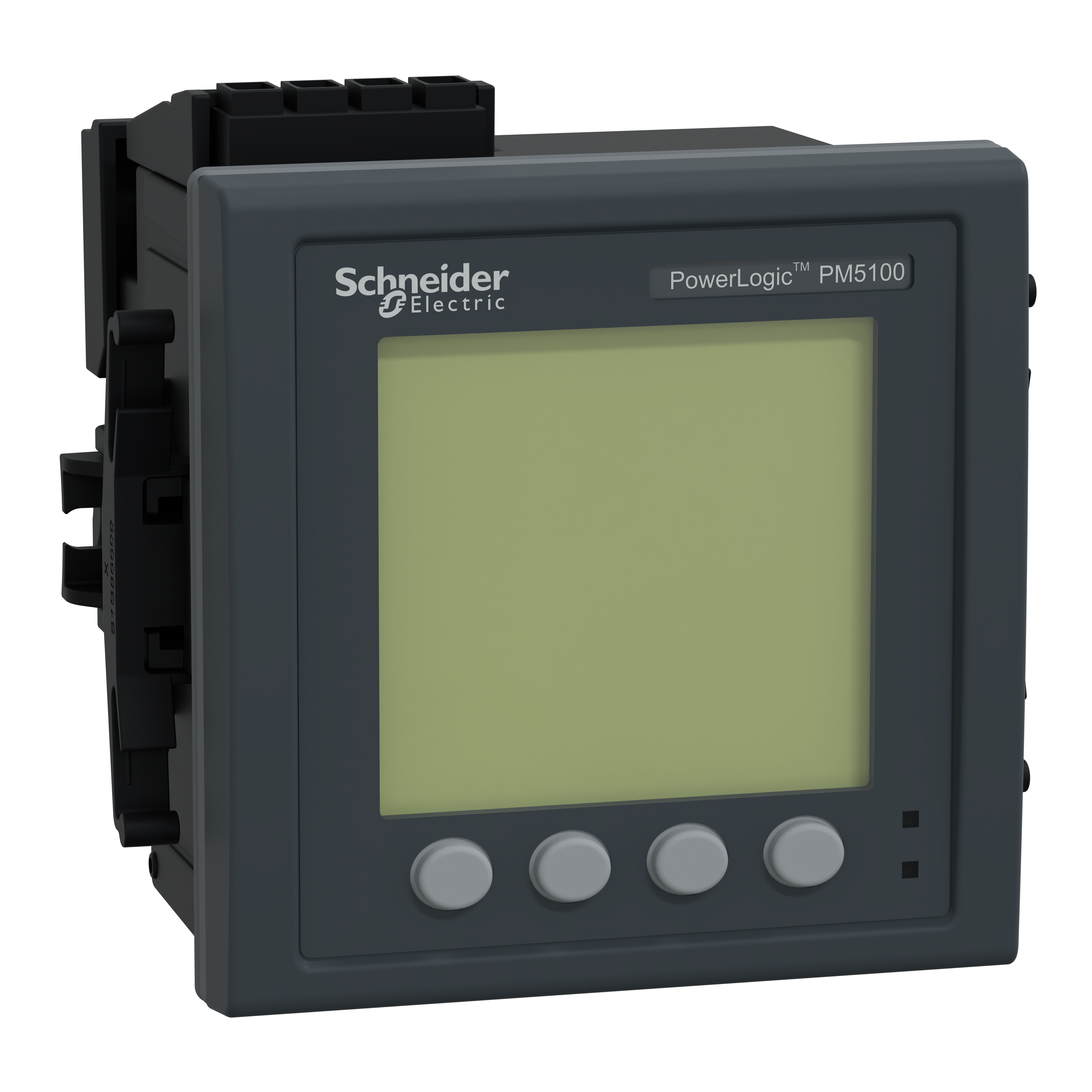

PowerLogic Analizator jakości zasilania PM5100 0,5S Modbus p64
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | METSEPM5110 |
GTIN(EAN) | 3606480613982 |
Price unit | piece |
Catalog price | 2 926,17 zł (2 379,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 449 g |
ETIM class: | Multi-functional measuring- and monitoring instrument |
Accuracy class: | 0.5 |
Mounting method: | Front mounting |
Reactive power: | yes |
Height: | 112 mm |
With communication interface KNX: | no |
Apparent power: | yes |
Effective power: | yes |
Power factor: | yes |
Max. current (Imax): | 8.5 A |
Frequency measurement: | yes |
Min. value storage: | yes |
Pulse output: | Electrical |
Model: | Measurement transformer |
Pole type: | Three conductor/four conductor |
With communication interface RS-485: | yes |
Width: | 102 mm |
Measurement type load profile: | yes |
Step angle (cos phi): | no |
Voltage type: | AC/DC |
Wth communication interface M-Bus: | no |
With communication interface according to EN 62056-21: | no |
Max. value storage: | yes |
Nominal current (In): | 5.0 A |
Calibrated: | no |
Indication: | Graphic |
Measured value memory: | no |
Measuring range: | 35 - 690 V |
Harmonics measurement: | yes |
Supporting protocol for Modbus: | yes |
Supporting protocol for LON: | no |
