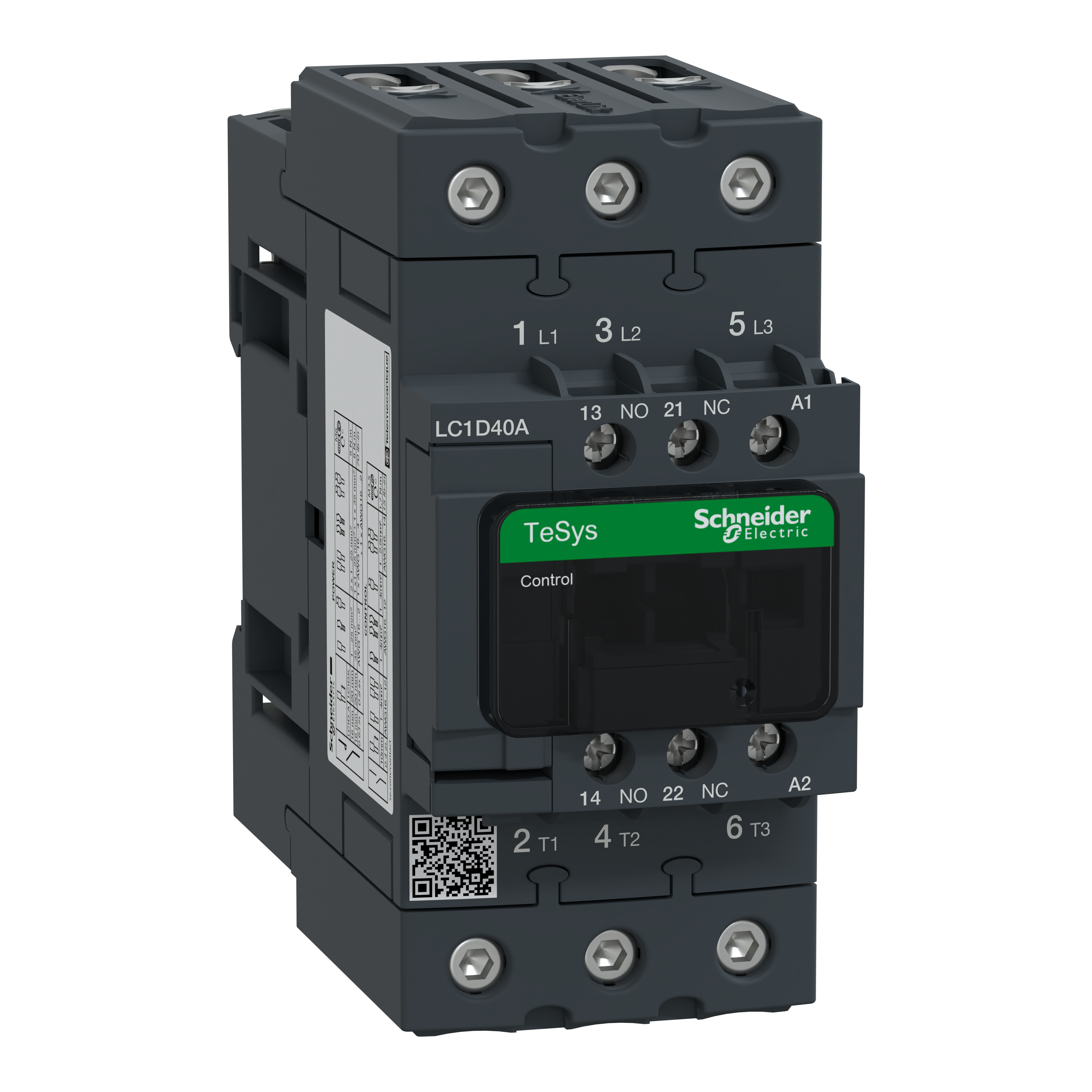

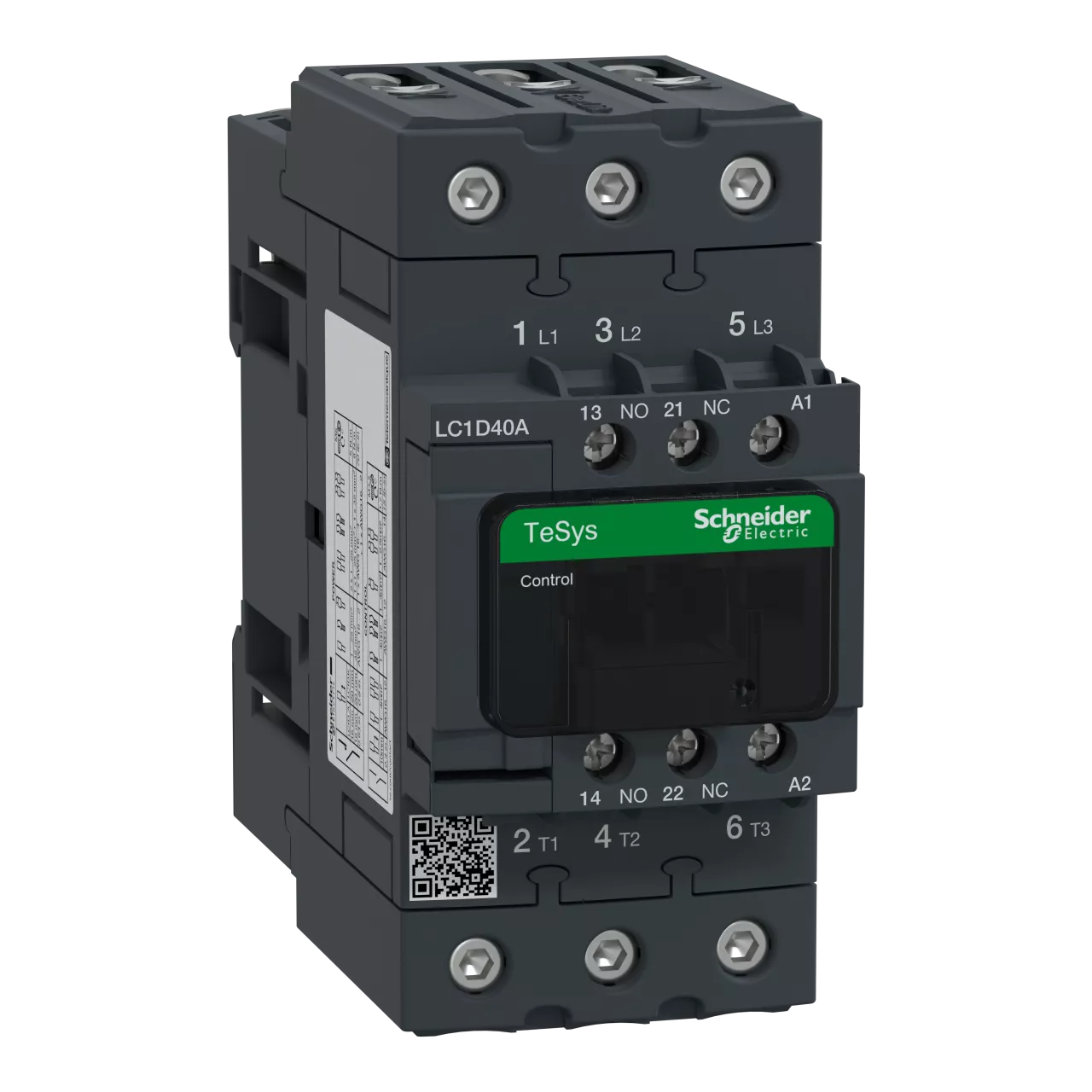

Stycznik mocy TeSys D 40A 3P 1NO 1NC cewka 230VAC zaciski EVK skrzynkowe
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | LC1D40AP7 |
GTIN(EAN) | 3389119408400 |
Price unit | piece |
Catalog price | 671,16 zł (545,66 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
LC1D40AP7 to kompaktowy 3-biegunowy stycznik TeSys D firmy Schneider Electric do zastosowań silnikowych. Znamionowe 40A AC-3 18,5kW/400V, stycznik zawiera cewkę o napięciu sterującym 230V 50/60Hz AC i styki pomocnicze 1NO + 1NC. Może być stosowany w aplikacjach bezpiecz eństwa. •Znamionowy prąd łączeniowy AC-3 do 440V: 40A •Napięcie sterownia cewki: 230V AC •Liczba biegunów: 3 •Kategoria użytkowania zgodnie z IEC 60947-4-1: AC-3
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 48 |
Gross weight: | 920 g |
ETIM class: | Power contactor, AC switching |
Type of electrical connection of main circuit: | Screw connection |
Number of normally open contacts as main contact: | 3 |
Number of normally closed contacts as main contact: | 0 |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as normally closed contact: | 1 |
Voltage type for actuating: | AC |
Rated operation current Ie at AC-3, 400 V: | 40 A |
Rated operation current Ie at AC-1, 400 V: | 60 A |
Rated control supply voltage AC 60 Hz: | 230 - 230 V |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Rated operation power at AC-3, 400 V: | 18.5 kW |
Modular version: | no |
Rated operation power at AC-4, 400 V: | 9 kW |
Rated operation current Ie at AC-4, 400 V: | 20 A |
